Каталог

Япония

Модель

HARRIER/HYBRID

VIN

Дата

2014/01

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

ELEGANCE TYPE

Фрейм

AVU65

КПП

вариатор

Опции

5-местный HIGH EFFICIENCY TWIN CAM 577W

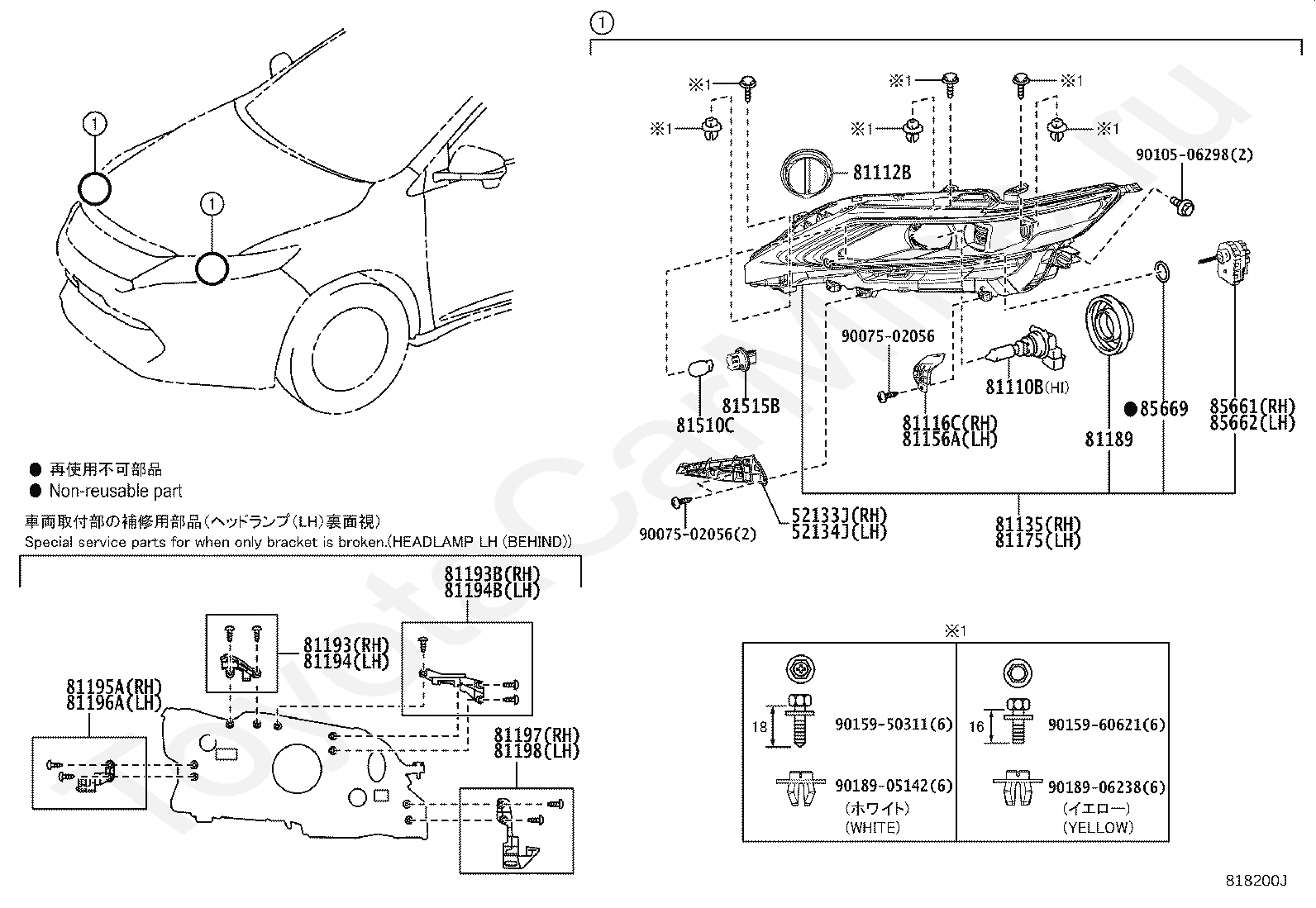

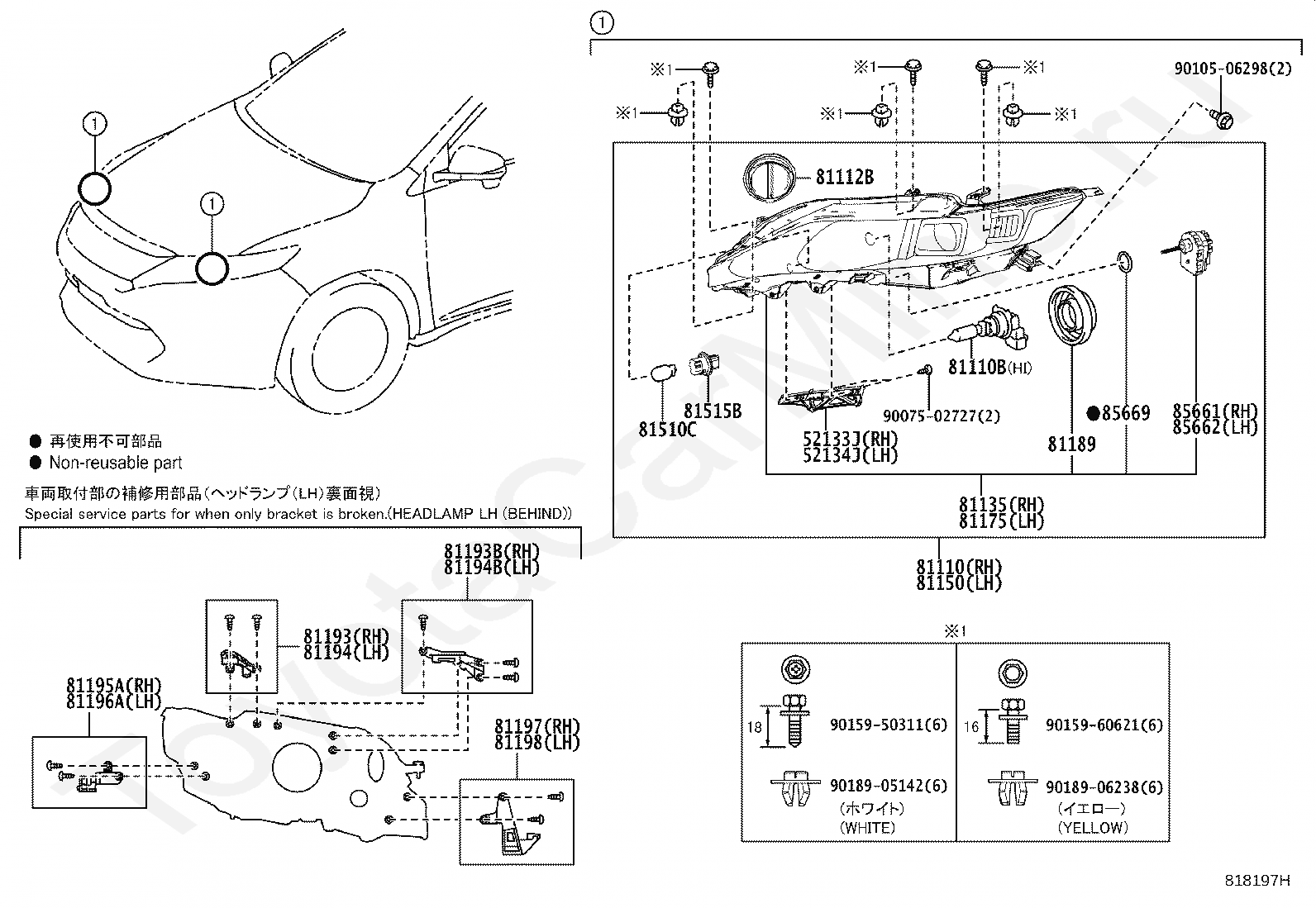

Фары TOYOTA HARRIER/HYBRID

Код

Описание

52133J

REINFORCEMENT, FRONT BUMPER BAR, RH

52134J

REINFORCEMENT, FRONT BUMPER BAR, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81112B

RING, COVER

81135

UNIT ASSY, HEADLAMP, RH

81150

HEADLAMP ASSY, LH

81175

UNIT ASSY, HEADLAMP, LH

81189

COVER, HEADLAMP

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502727

Крепеж

9010506298

Крепеж

9015950311

Крепеж

9015960621

Крепеж

9018905142

Крепеж

9018906238

Крепеж

Код

Описание

52133J

REINFORCEMENT, FRONT BUMPER BAR, RH

52134J

REINFORCEMENT, FRONT BUMPER BAR, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81112B

RING, COVER

81116C

BRACKET, HEADLAMP, RH

81135

UNIT ASSY, HEADLAMP, RH

81156A

BRACKET, HEADLAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81189

COVER, HEADLAMP

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502056

Крепеж

9007502056

Крепеж

9010506298

Крепеж

9015950311

Крепеж

9015960621

Крепеж

9018905142

Крепеж

9018906238

Крепеж
