Каталог

Япония

Модель

HARRIER/HYBRID

VIN

Дата

2014/01

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

ELEGANCE TYPE

Фрейм

AVU65

КПП

вариатор

Опции

5-местный HIGH EFFICIENCY TWIN CAM 577W

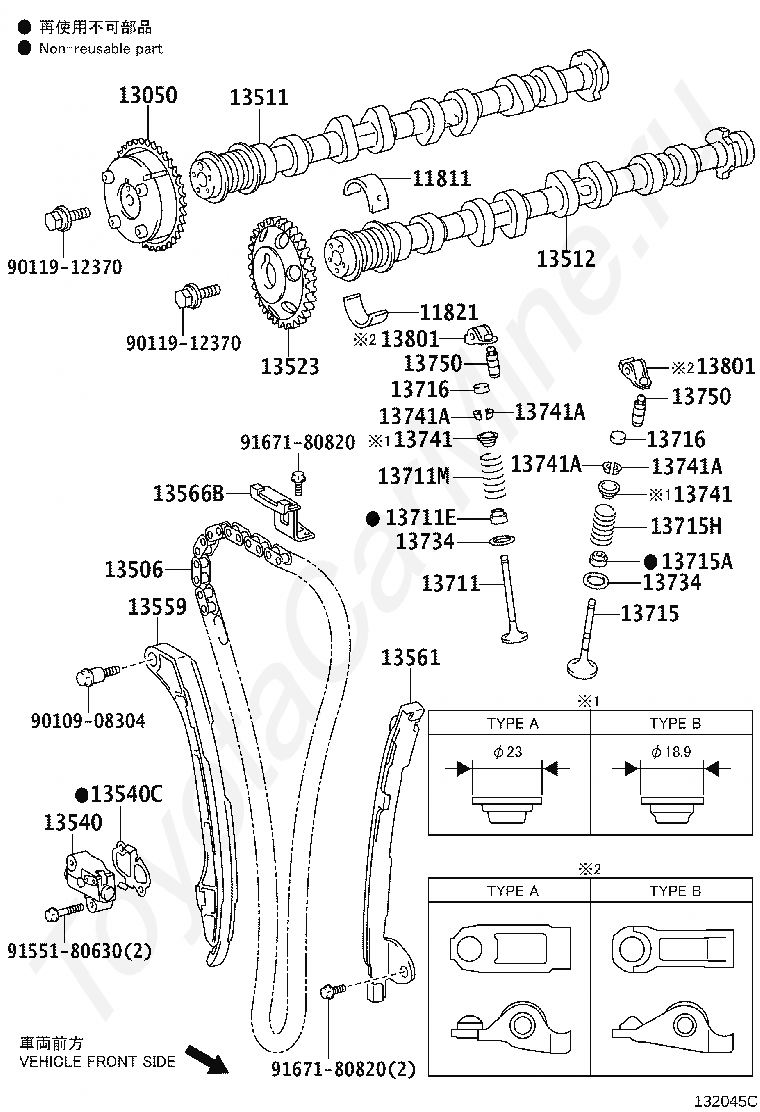

Распредвал, клапаны, ремень TOYOTA HARRIER/HYBRID

Код

Описание

11811

BEARING, CAMSHAFT, NO.1

11821

BEARING, CAMSHAFT, NO.2

13050

GEAR ASSY, CAMSHAFT TIMING

13506

CHAIN SUB-ASSY

13511

CAMSHAFT

13512

CAMSHAFT, NO.2

13523

GEAR OR SPROCKET, CAMSHAFT TIMING

13540

TENSIONER ASSY, CHAIN, NO.1

13540C

GASKET(FOR CHAIN TENSIONER)

13559

SLIPPER, CHAIN TENSIONER

13561

DAMPER, CHAIN VIBRATION, NO.1

13566B

GUIDE, TIMING CHAIN

13711

VALVE, INTAKE

13711E

SEAL, INTAKE VALVE STEM OIL

13711M

SPRING, COMPRESSION(FOR INTAKE VALVE)

13715

VALVE, EXHAUST

13715A

SEAL, EXHAUST VALVE STEM OIL

13715H

SPRING, COMPRESSION(FOR EXHAUST VALVE)

13716

CAP, VALVE STEM

13716

CAP, VALVE STEM

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13750

ADJUSTER ASSY, VALVE LASH

13750

ADJUSTER ASSY, VALVE LASH

13801

ARM SUB-ASSY, VALVE ROCKER, NO.1

13801

ARM SUB-ASSY, VALVE ROCKER, NO.1

9010908304

Крепеж

9011912370

Крепеж

9011912370

Крепеж

9155180630

Крепеж

9167180820

Крепеж

9167180820

Крепеж
