Реле и кнопки Тойота HARRIER HEV (CHINA), Ближний восток, 2021/11 - 2025/, 2500CC 16-VALVE DOHC, AXUH80, вариатор, левый руль, METERS, 829W

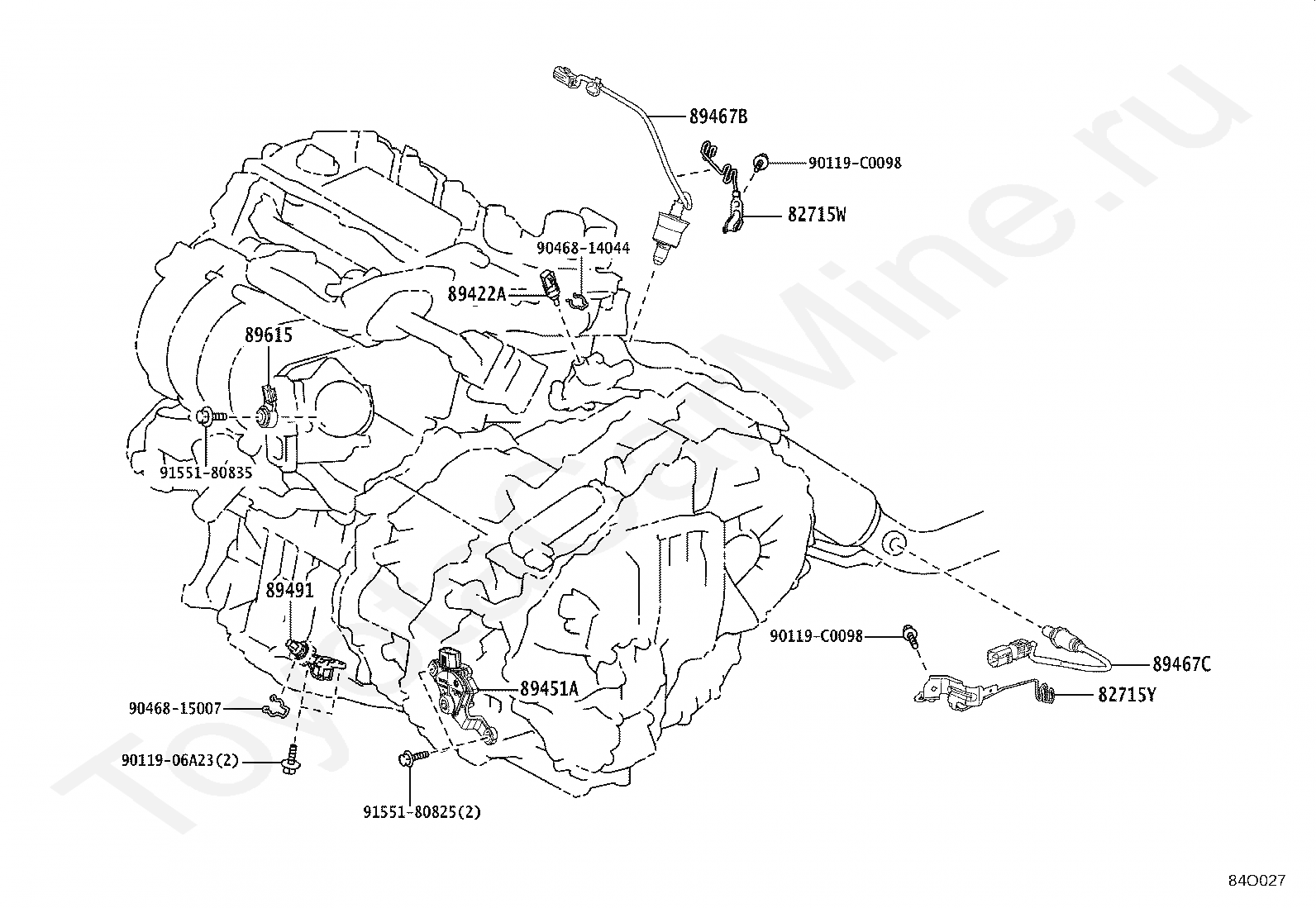

Код

Описание

82715W

BRACKET, WIRING HARNESS CLAMP

82715Y

BRACKET, WIRING HARNESS CLAMP, NO.3

89422A

SENSOR, WATER TEMPERATURE

89451A

SENSOR, SHIFT LEVER POSITION

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

9011906A23

Крепеж

90119C0098

Крепеж

90119C0098

Крепеж

9046814044

Крепеж

9046815007

Крепеж

9155180825

Крепеж

9155180835

Крепеж

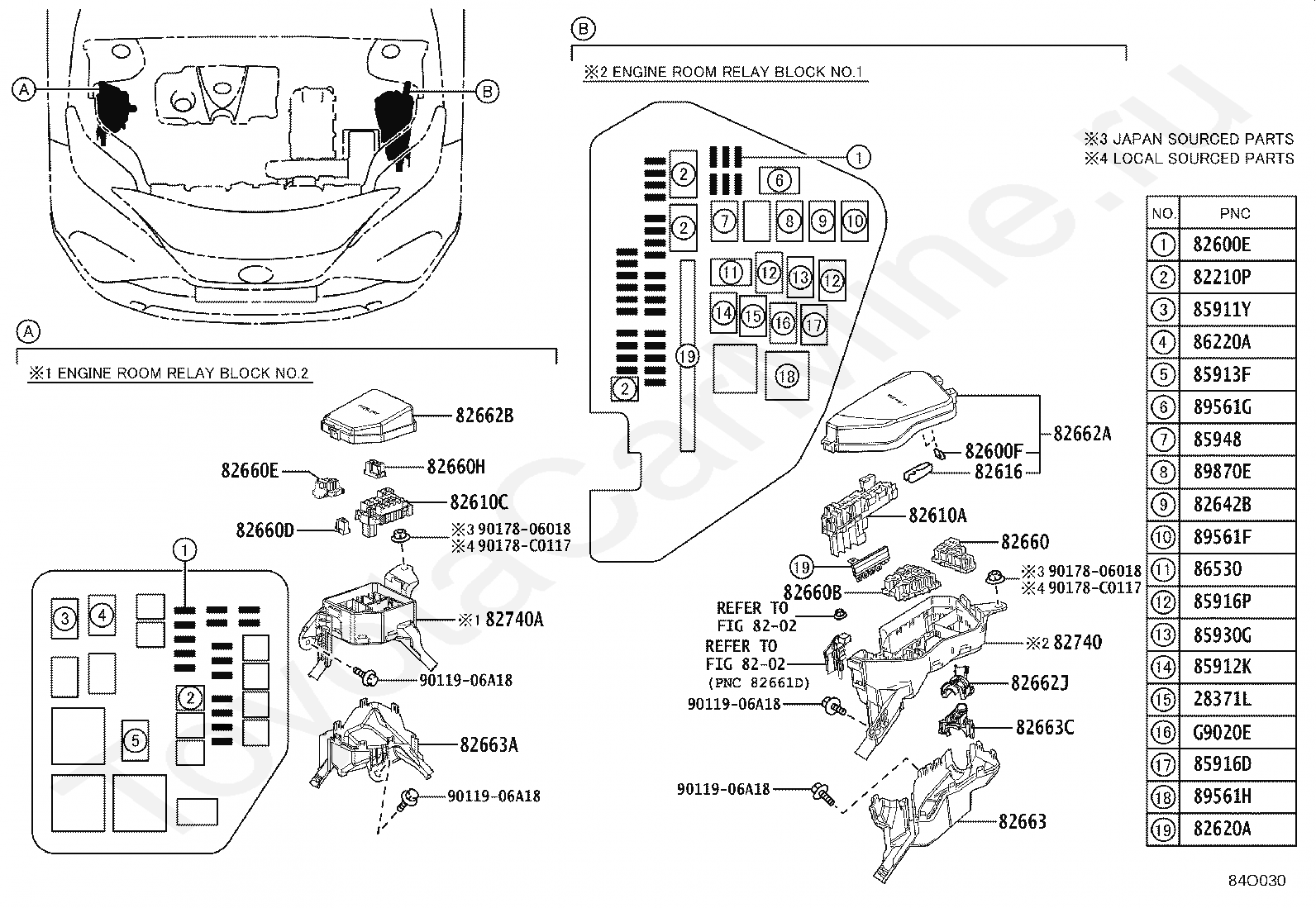

Код

Описание

28371L

RELAY, IGP

8202

переход к группе запчастей

8202

переход к группе запчастей

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82600F

FUSE, FUSE BLOCK

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82642B

RELAY, DAY TIME RUNNING LIGHT, NO.1

82660

BLOCK ASSY, RELAY, ENGINE ROOM

82660B

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662J

COVER, RELAY BLOCK, UPPER, NO.5

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663C

COVER, RELAY BLOCK LOWER, NO.4

82740

BLOCK ASSY, ENGINE ROOM RELAY

82740A

BLOCK ASSY, ENGINE ROOM RELAY, NO.2

85911Y

RELAY, FRONT SEAT HEATER

85912K

RELAY, VVT

85913F

RELAY, STEERING HEATER

85916D

RELAY, FOG LAMP

85916P

RELAY, HEADLAMP

85930G

RELAY, ACC

85948

RELAY, WINDSHIELD WIPER

86220A

RELAY, INVERTER

86530

RELAY ASSY, HORN

89561F

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

89561G

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

89561H

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

89870E

RELAY, ELECTRONIC DRIVER UNIT

9011906A18

Крепеж

9011906A18

Крепеж

9011906A18

Крепеж

9011906A18

Крепеж

9017806018

Крепеж

9017806018

Крепеж

90178C0117

Крепеж

90178C0117

Крепеж

G9020E

RELAY, HYBRID WATER PUMP

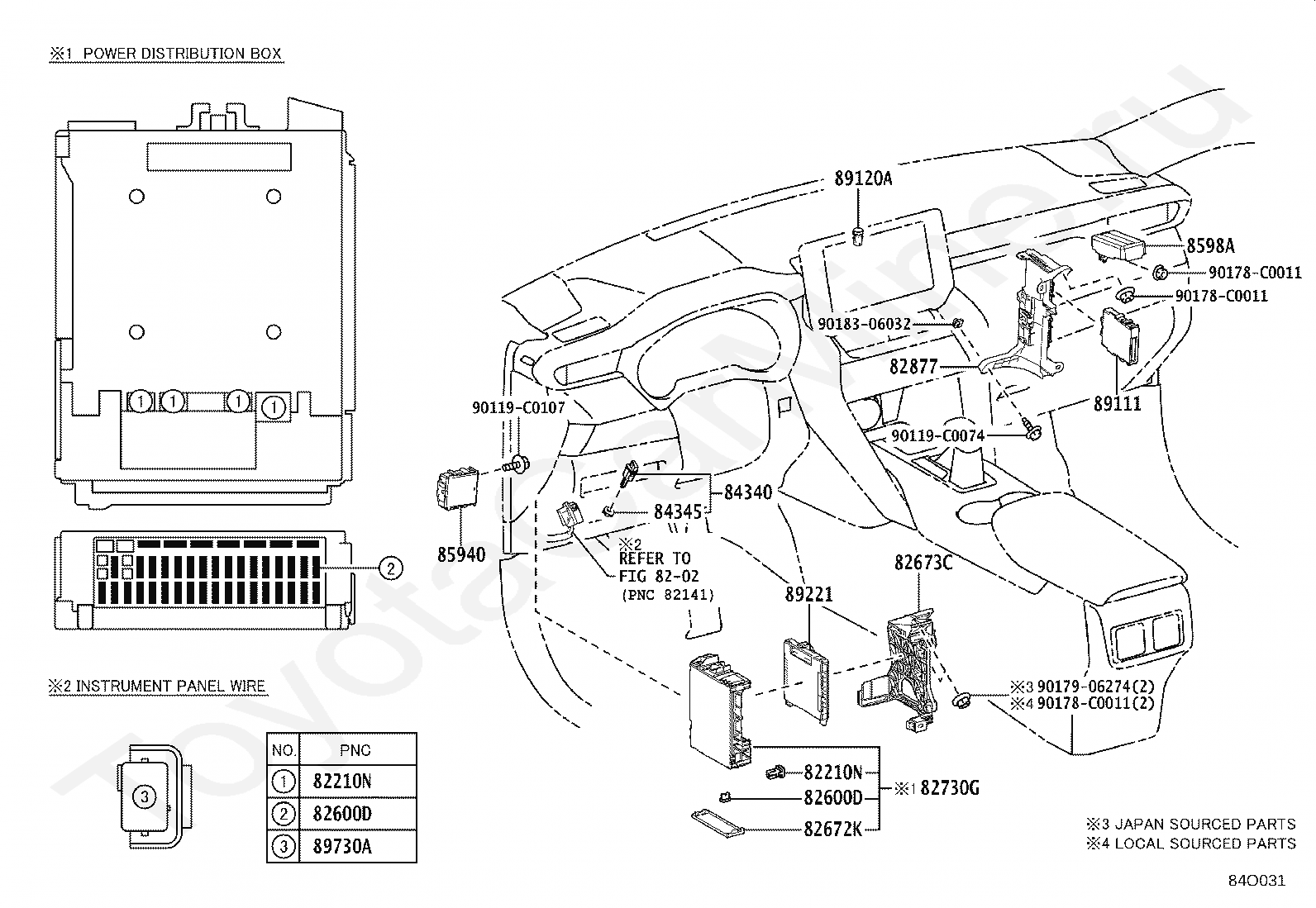

Код

Описание

8202

переход к группе запчастей

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82672K

COVER, POWER DISTRIBUTION BOX

82673C

BRACKET, JUNCTION BLOCK

82730G

BOX ASSY, POWER DISTRIBUTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85940

RELAY ASSY, WINDSHIELD WIPER

8598A

BATTERY, DOOR CONTROL

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

90119C0074

Крепеж

90119C0107

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

9017906274

Крепеж

9018306032

Крепеж

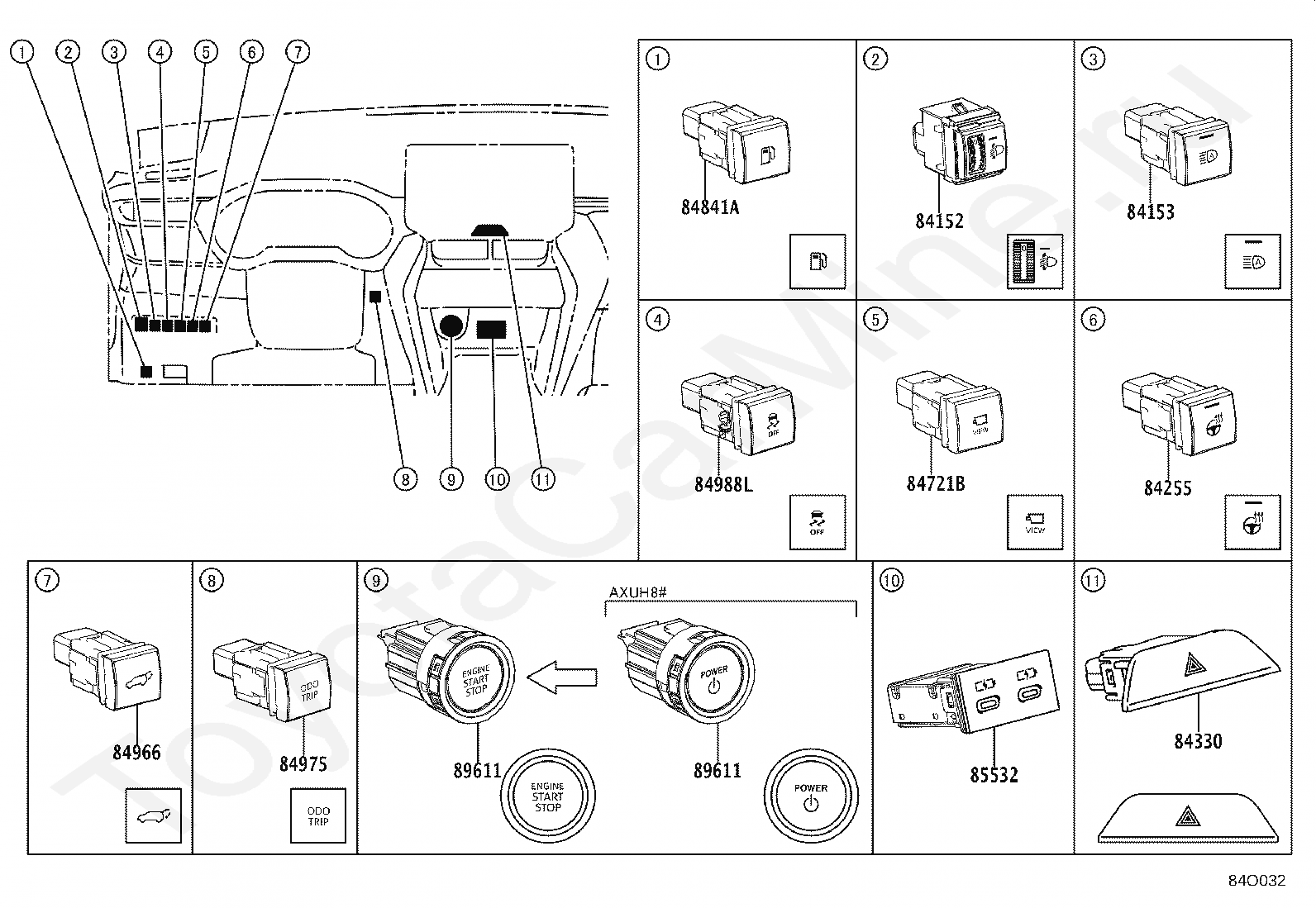

Код

Описание

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84255

SWITCH, STEERING HEATER

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84721B

SWITCH, PANORAMIC VIEW MONITOR

84841A

SWITCH, FUEL LID OPENER

84966

SWITCH, POWER BACK DOOR CONTROL

84975

SWITCH, TRIP

84988L

SWITCH, VSC OFF

85532

SOCKET, USB CHARGER

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

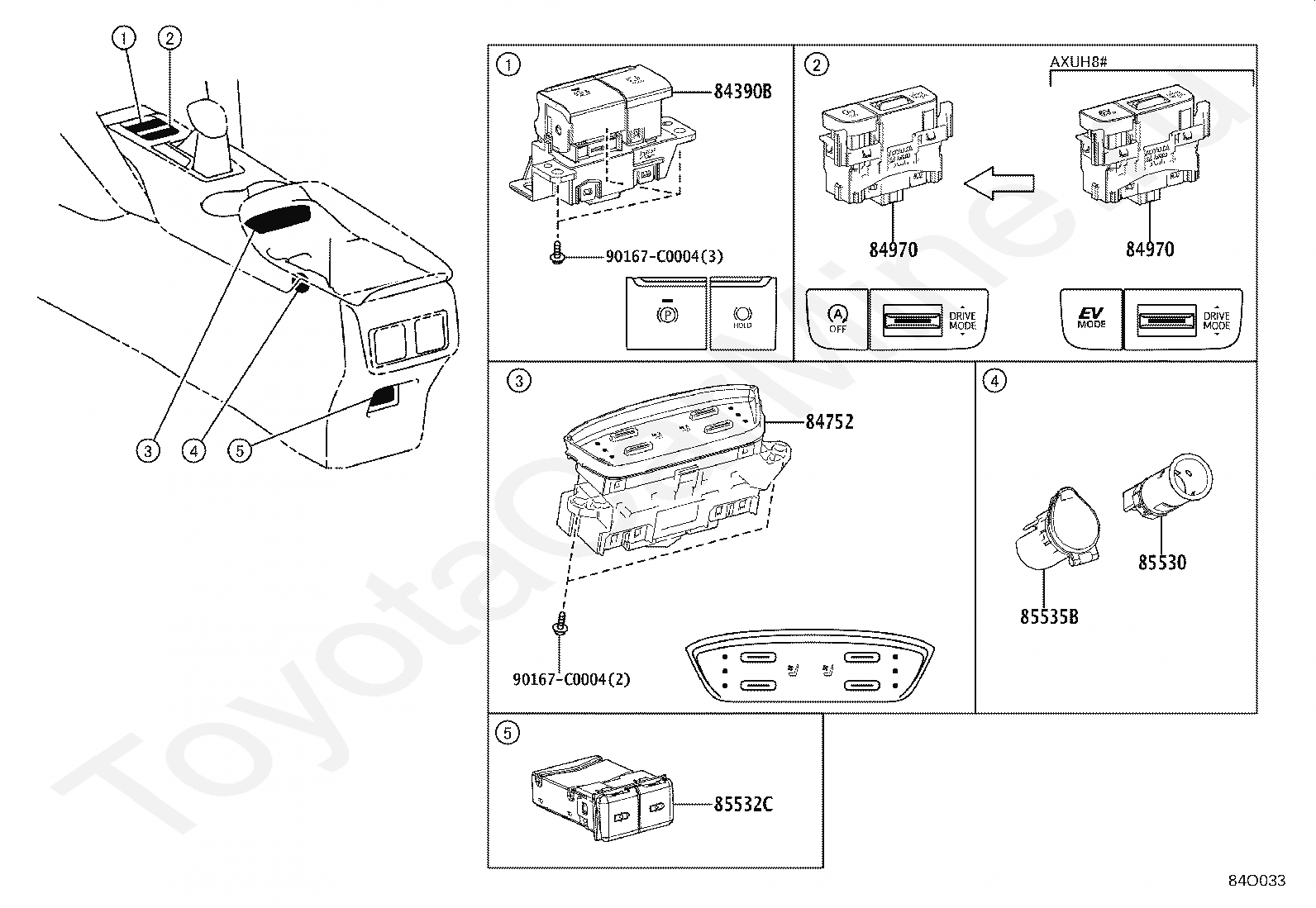

Код

Описание

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84752

SWITCH, REFRESHING SEAT

84970

SWITCH ASSY, COMBINATION

84970

SWITCH ASSY, COMBINATION

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532C

SOCKET, USB CHARGER, NO.2

85535B

COVER, POWER OUTLET SOCKET, NO.1

90167C0004

Крепеж

90167C0004

Крепеж

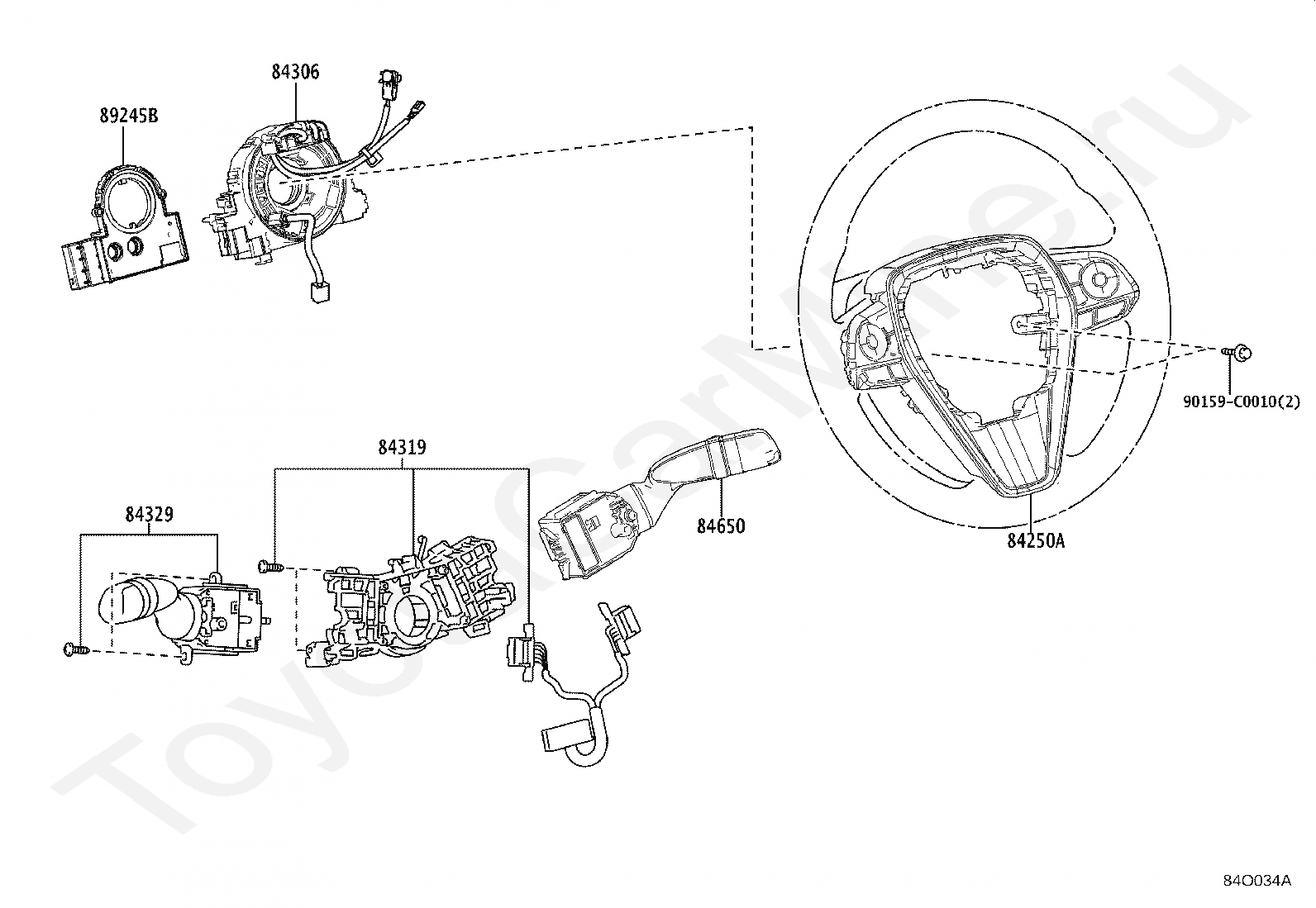

Код

Описание

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

90159C0010

Крепеж

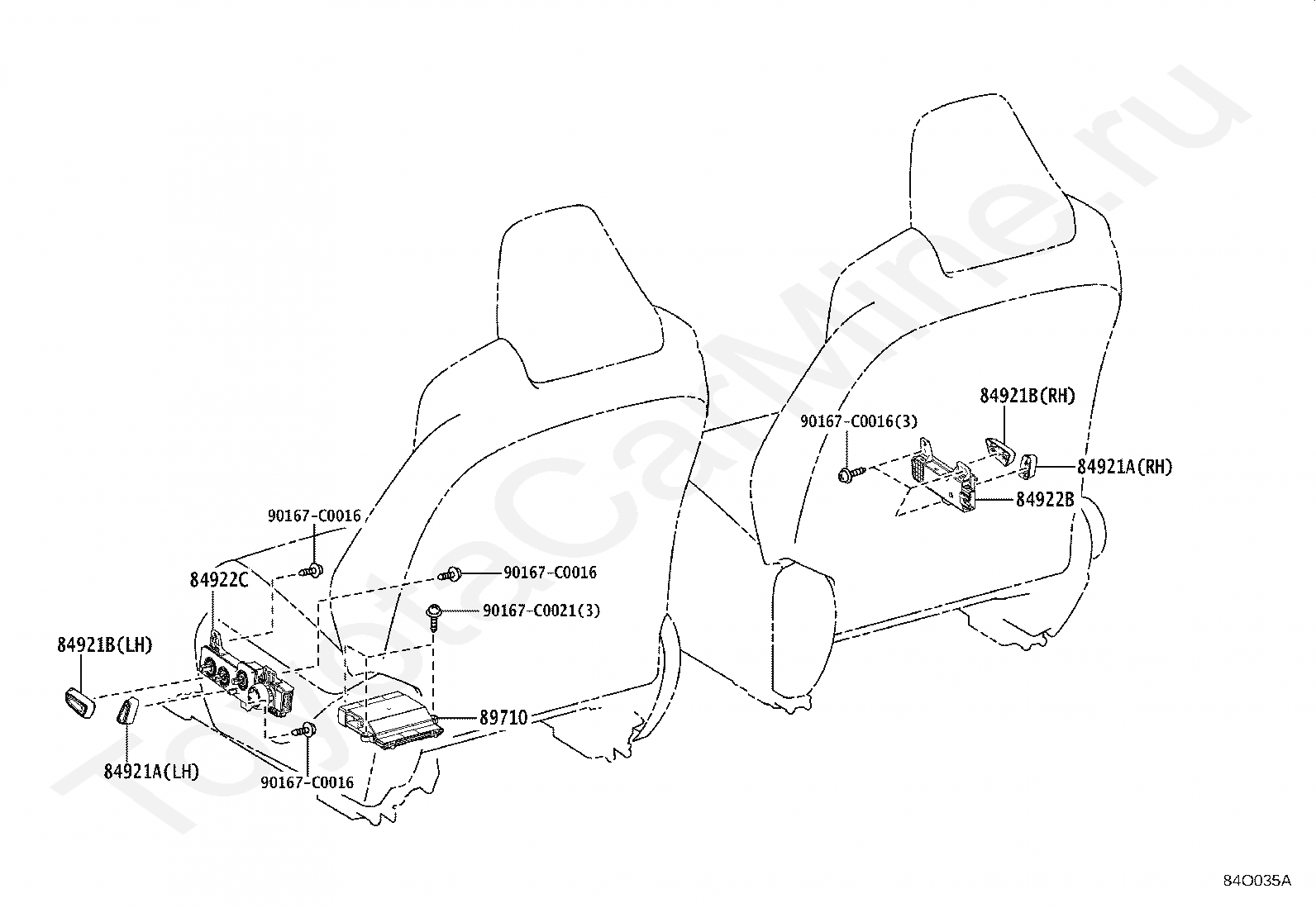

Код

Описание

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922B

SWITCH, FRONT POWER SEAT, RH

84922C

SWITCH, FRONT POWER SEAT, LH

89710

COMPUTER ASSY, POSITION CONTROL

90167C0016

Крепеж

90167C0016

Крепеж

90167C0016

Крепеж

90167C0016

Крепеж

90167C0021

Крепеж

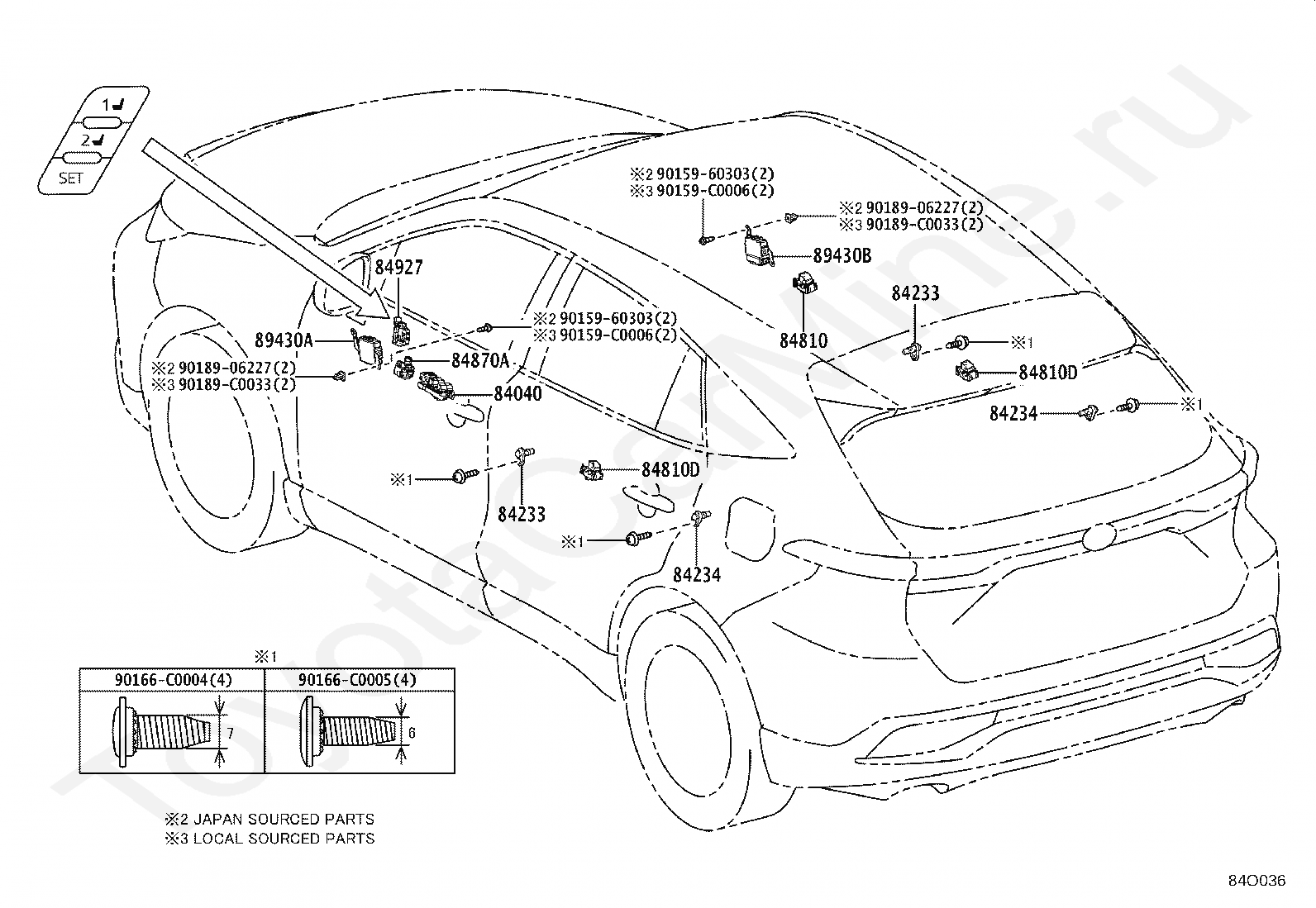

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84927

SWITCH, SEAT MEMORY

89430A

COMPUTER ASSY, OUTER MIRROR CONTROL, LH

89430B

COMPUTER ASSY, OUTER MIRROR CONTROL, RH

9015960303

Крепеж

9015960303

Крепеж

90159C0006

Крепеж

90159C0006

Крепеж

90166C0004

Крепеж

90166C0005

Крепеж

9018906227

Крепеж

9018906227

Крепеж

90189C0033

Крепеж

90189C0033

Крепеж

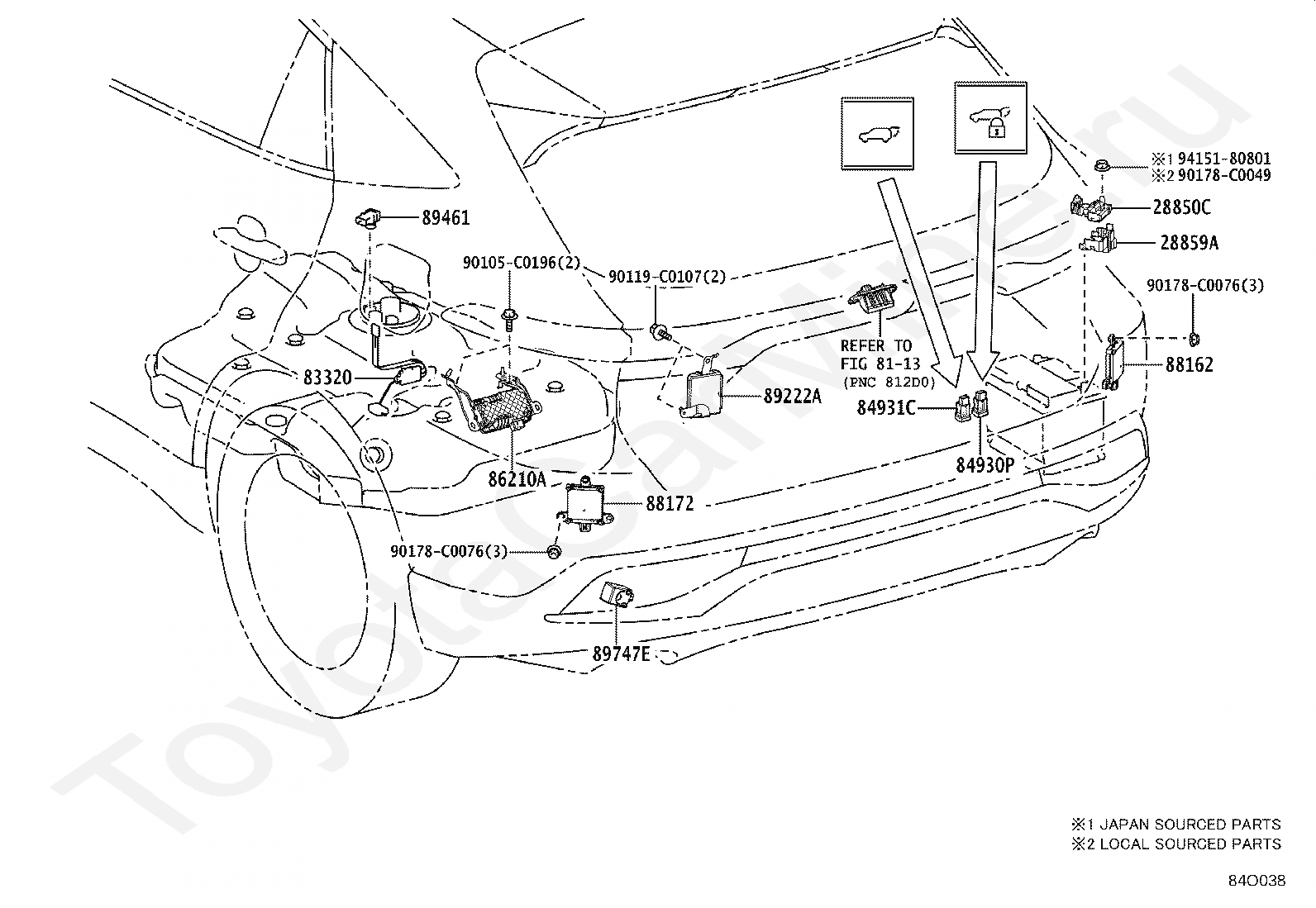

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

8113

переход к группе запчастей

83320

GAGE ASSY, FUEL SENDER

84930P

SWITCH ASSY, DOOR CONTROL

84931C

SWITCH, BACK DOOR CONTROL

86210A

INVERTER ASSY, VOLTAGE

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

89222A

COMPUTER, MULTIPLEX NETWORK DOOR

89461

SENSOR, VAPOR PRESSURE

89747E

BUZZER, POWER BACK DOOR WARNING

90105C0196

Крепеж

90119C0107

Крепеж

90178C0049

Крепеж

90178C0076

Крепеж

90178C0076

Крепеж

9415180801

Крепеж

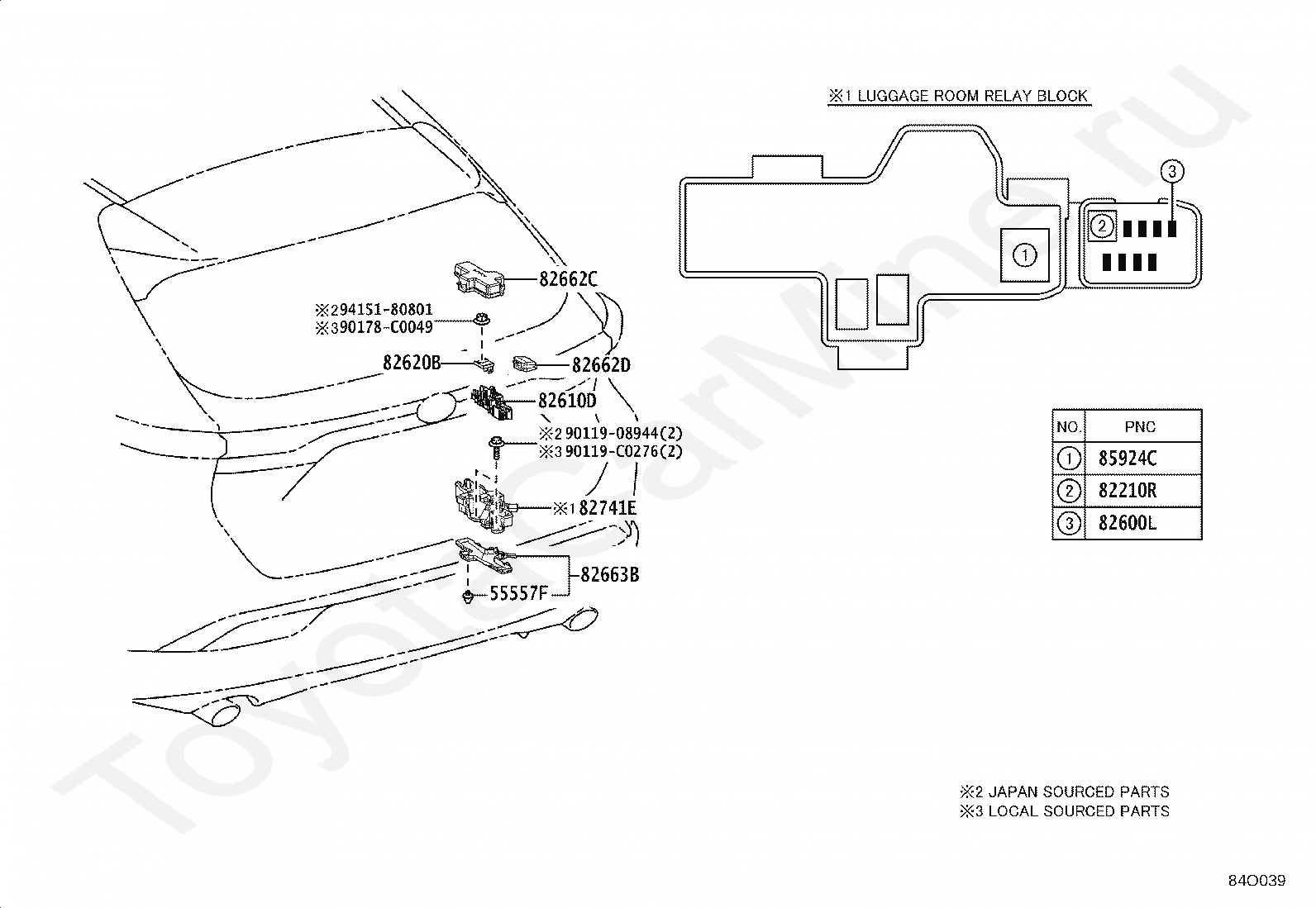

Код

Описание

55557F

CUSHION, RELAY BLOCK

82210R

LUGGAGE ROOM FUSIBLE LINK

82600L

LUGGAGE ROOM FUSE

82610D

BLOCK ASSY, FUSE

82620B

BLOCK ASSY, FUSIBLE LINK

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82662D

COVER, RELAY BLOCK, UPPER, NO.4

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82741E

BLOCK, LUGGAGE ROOM RELAY, NO.1

85924C

RELAY, IGCT

9011908944

Крепеж

90119C0276

Крепеж

90178C0049

Крепеж

9415180801

Крепеж
