Каталог

Ближний Восток

Модель

HARRIER HEV (CHINA)

VIN

Дата

2021/11

Двигатель

2500CC 16-VALVE DOHC

Фрейм

AXUH80

КПП

вариатор

Опции

левый руль METERS 829W

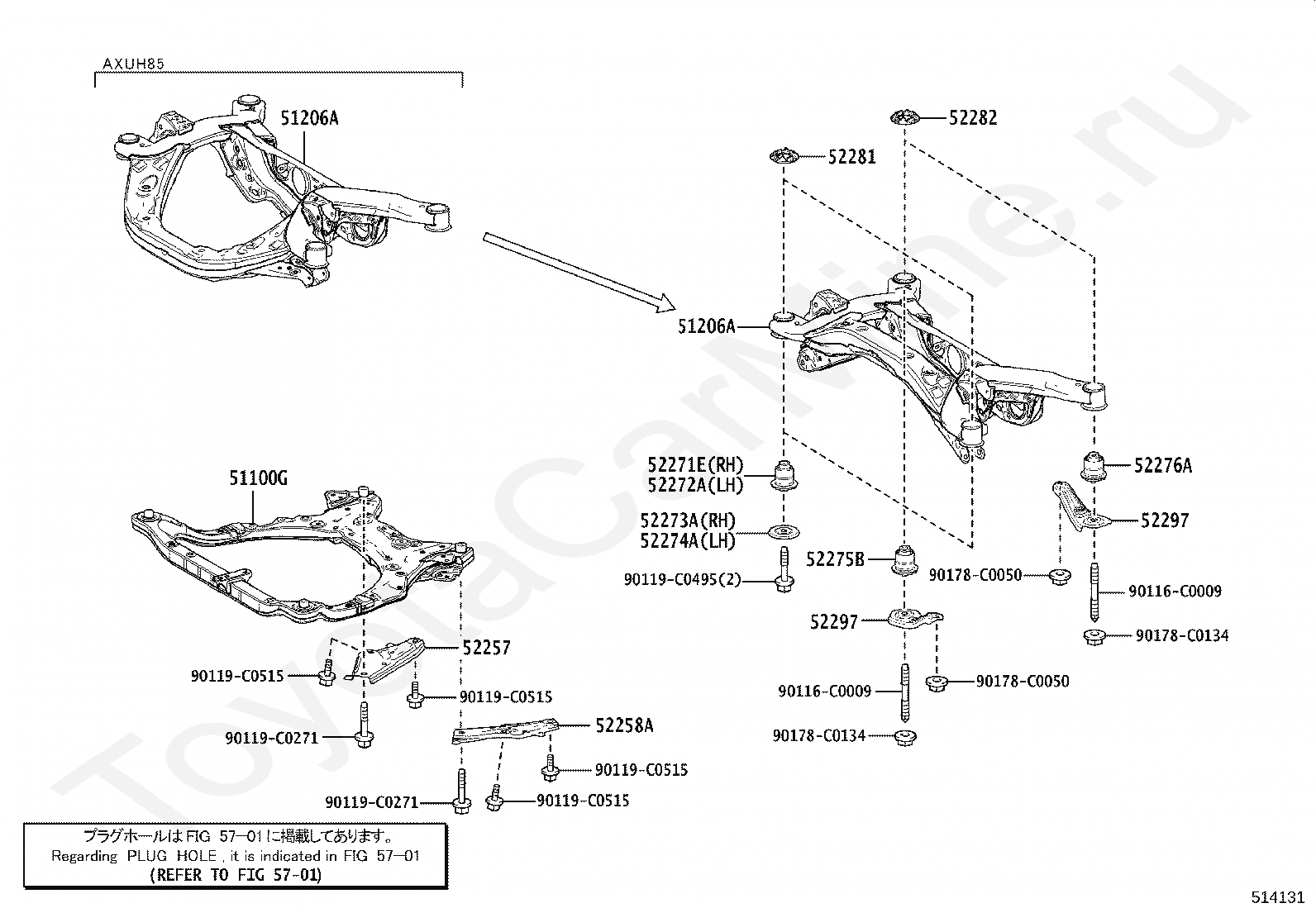

SUSPENSION CROSSMEMBER & UNDER COVER TOYOTA HARRIER HEV (CHINA)

Код

Описание

51100G

FRAME ASSY, FRONT

51206A

MEMBER SUB-ASSY, REAR SUSPENSION

51206A

MEMBER SUB-ASSY, REAR SUSPENSION

52257

BRACE, FRONT SUSPENSION MEMBER, REAR RH

52258A

BRACE, FRONT SUSPENSION MEMBER, REAR LH

52271E

CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

52272A

CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

52273A

STOPPER, REAR SUSPENSION MEMBER, LOWER RH

52274A

STOPPER, REAR SUSPENSION MEMBER, LOWER LH

52275B

CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

52276A

CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

52281

CUSHION, DIFFERENTIAL SUPPORT MEMBER

52282

STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

52297

BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

52297

BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

5701

переход к группе запчастей

90116C0009

Крепеж

90116C0009

Крепеж

90119C0271

Крепеж

90119C0271

Крепеж

90119C0495

Крепеж

90119C0515

Крепеж

90119C0515

Крепеж

90119C0515

Крепеж

90119C0515

Крепеж

90178C0050

Крепеж

90178C0050

Крепеж

90178C0134

Крепеж

90178C0134

Крепеж

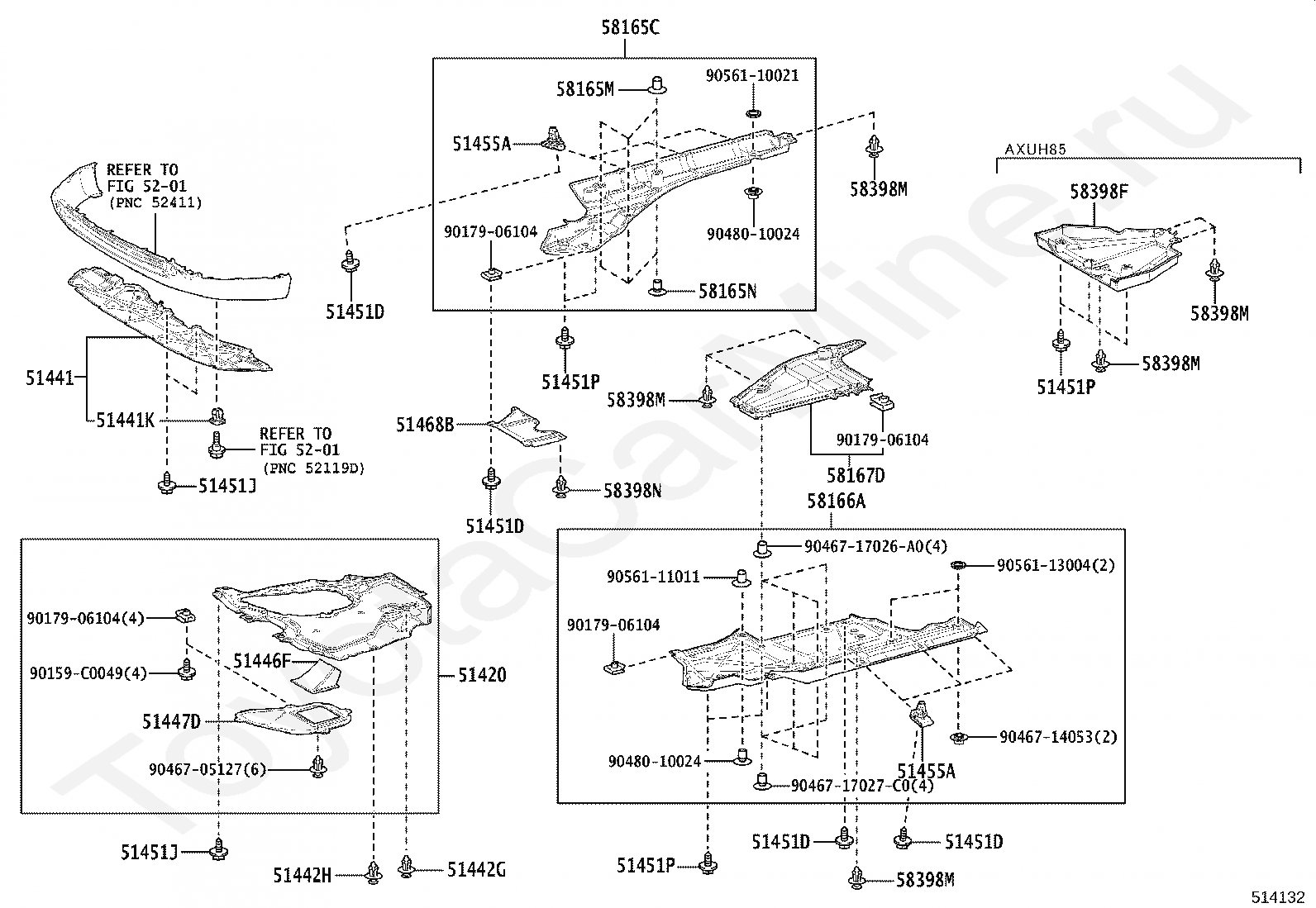

Код

Описание

51420

COVER ASSY, ENGINE UNDER, NO.2

51441

COVER, ENGINE UNDER, NO.1

51441K

GROMMET(FOR ENGINE UNDER COVER)

51442G

CLIP, ENGINE UNDER COVER, NO.1

51442H

CLIP, ENGINE UNDER COVER, NO.2

51446F

DUCT, ENGINE UNDER COVER

51447D

COVER, ENGINE UNDER, NO.4 CENTER

51451D

SCREW, NO.1

51451D

SCREW, NO.1

51451D

SCREW, NO.1

51451D

SCREW, NO.1

51451J

BOLT, NO.1

51451J

BOLT, NO.1

51451P

BOLT, NO.2

51451P

BOLT, NO.2

51451P

BOLT, NO.2

51455A

SEAL, ENGINE UNDER COVER, NO.1

51455A

SEAL, ENGINE UNDER COVER, NO.1

51468B

INSULATOR, ENGINE UNDER COVER HEAT

5201

переход к группе запчастей

5201

переход к группе запчастей

58165C

COVER, FRONT FLOOR, RH

58165M

CLIP, FRONT FLOOR COVER, NO.1

58165N

CLIP, FRONT FLOOR COVER, NO.2

58166A

COVER, FRONT FLOOR, LH

58167D

COVER, FRONT FLOOR, CENTER RH

58398F

COVER, FLOOR UNDER, NO.1

58398M

CLIP, FLOOR UNDER COVER, NO.1

58398M

CLIP, FLOOR UNDER COVER, NO.1

58398M

CLIP, FLOOR UNDER COVER, NO.1

58398M

CLIP, FLOOR UNDER COVER, NO.1

58398M

CLIP, FLOOR UNDER COVER, NO.1

58398N

CLIP, FLOOR UNDER COVER, NO.2

90159C0049

Крепеж

9017906104

Крепеж

9017906104

Крепеж

9017906104

Крепеж

9017906104

Крепеж

9046705127

Крепеж

9046714053

Крепеж

9046717026A0

Крепеж

9046717027C0

Крепеж

9048010024

Крепеж

9048010024

Крепеж

9056110021

Крепеж

9056111011

Крепеж

9056113004

Крепеж

SUSPENSION CROSSMEMBER & UNDER COVER TOYOTA HARRIER HEV (CHINA)
