Ближний Восток

Модель

HARRIER

VIN

Дата

2017/05

Двигатель

2 литра, 16 клапанов, DOHC, EFI, турбо

Кузов

фургон

Фрейм

ASU60

КПП

автомат АКПП, 6 скоростей

Опции

правый руль 5-местный GRAMS WITH TURBO (HARGER) GENERAL COUNTRIES 726W

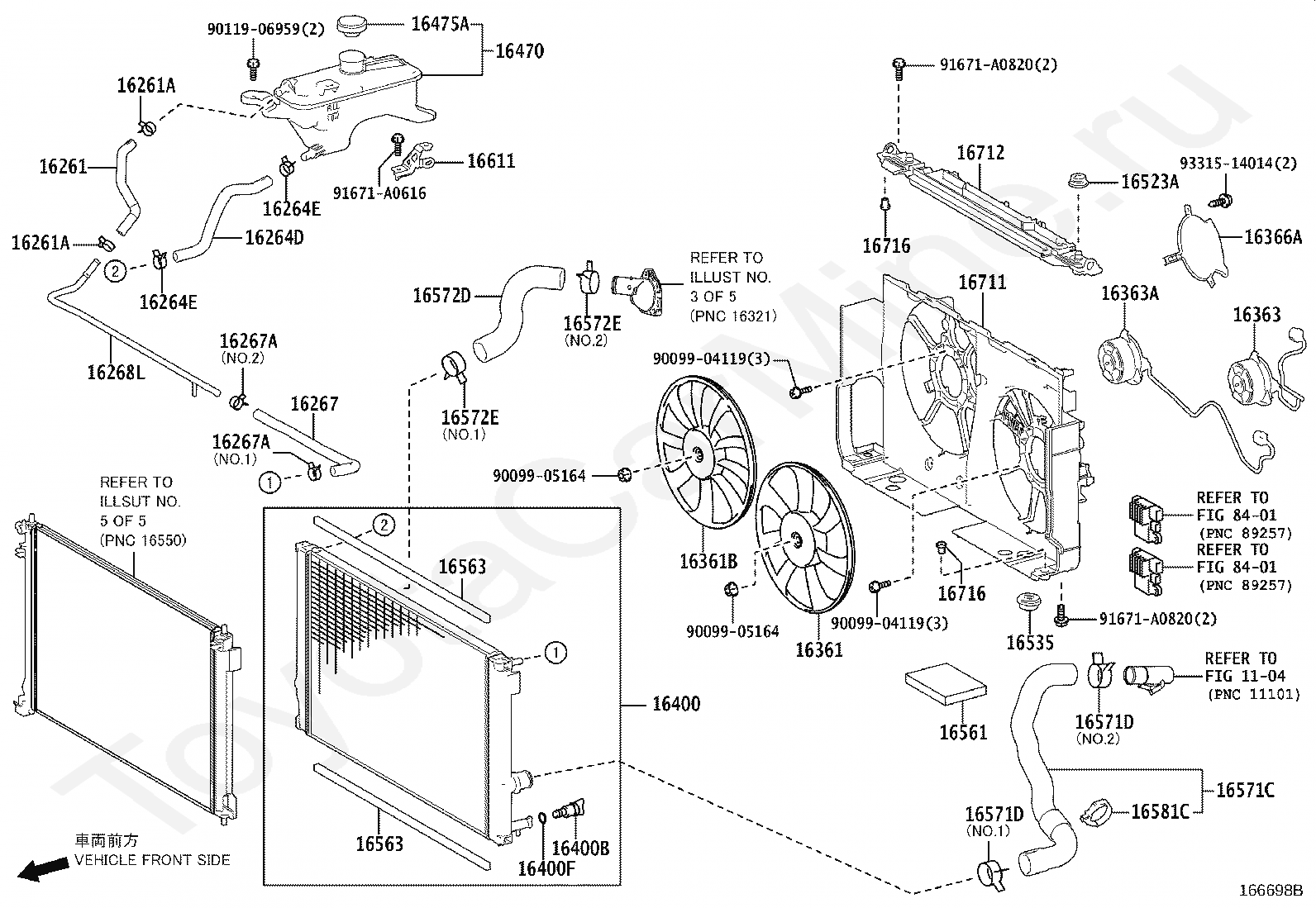

Радиатор и шланги TOYOTA HARRIER

Код

Описание

1104

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268L

PIPE, WATER BY-PASS

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16366A

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470

TANK ASSY, RADIATOR RESERVE

16475A

CAP, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16563

SEAL, RADIATOR TO SUPPORT, NO.3

16563

SEAL, RADIATOR TO SUPPORT, NO.3

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16581C

CLAMP, HOSE(FOR RADIATOR HOSE NO.2)

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

16712

SHROUD, FAN, NO.2

16716

CUSHION, FAN SHROUD

16716

CUSHION, FAN SHROUD

8401

переход к группе запчастей

8401

переход к группе запчастей

9009904119

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9009905164

Крепеж

9011906959

Крепеж

91671A0616

Крепеж

91671A0820

Крепеж

91671A0820

Крепеж

9331514014

Крепеж

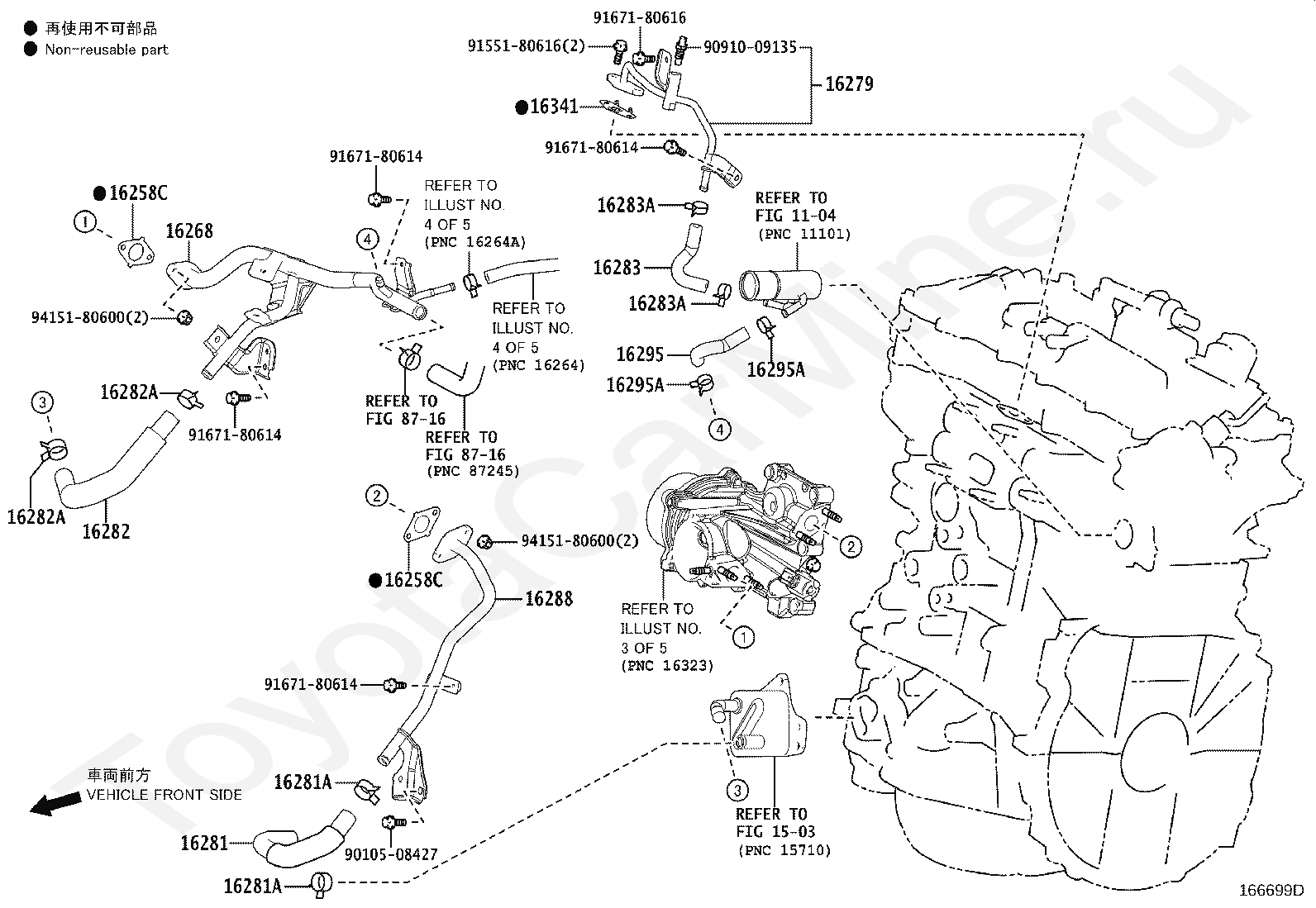

Код

Описание

1104

переход к группе запчастей

1503

переход к группе запчастей

16258C

GASKET(FOR WATER BY-PASS PIPE)

16258C

GASKET(FOR WATER BY-PASS PIPE)

16268

PIPE, WATER BY-PASS, NO.1

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16288

PIPE, WATER BY-PASS, NO.4

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16341

GASKET, WATER OUTLET

8716

переход к группе запчастей

8716

переход к группе запчастей

9010508427

Крепеж

9091009135

Крепеж

9155180616

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167180616

Крепеж

9415180600

Крепеж

9415180600

Крепеж

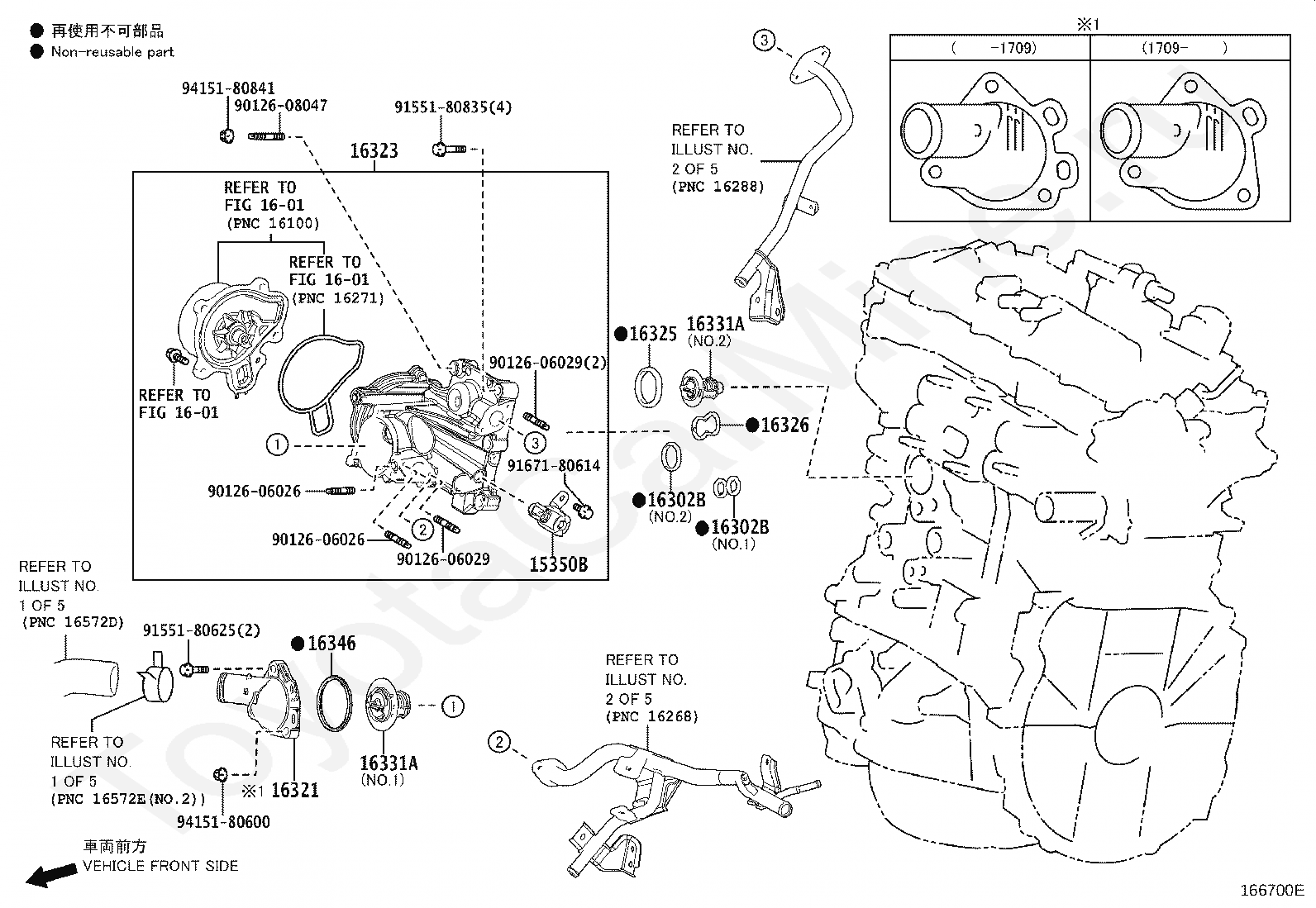

Код

Описание

15350B

VALVE ASSY, OIL PRESSURE SWITCHING

1601

переход к группе запчастей

1601

переход к группе запчастей

1601

переход к группе запчастей

16302B

GASKET(FOR WATER INLET HOUSING)

16302B

GASKET(FOR WATER INLET HOUSING)

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

16331A

THERMOSTAT

16346

GASKET, THERMOSTAT

9012606026

Крепеж

9012606026

Крепеж

9012606029

Крепеж

9012606029

Крепеж

9012608047

Крепеж

9155180625

Крепеж

9155180835

Крепеж

9167180614

Крепеж

9415180600

Крепеж

9415180841

Крепеж

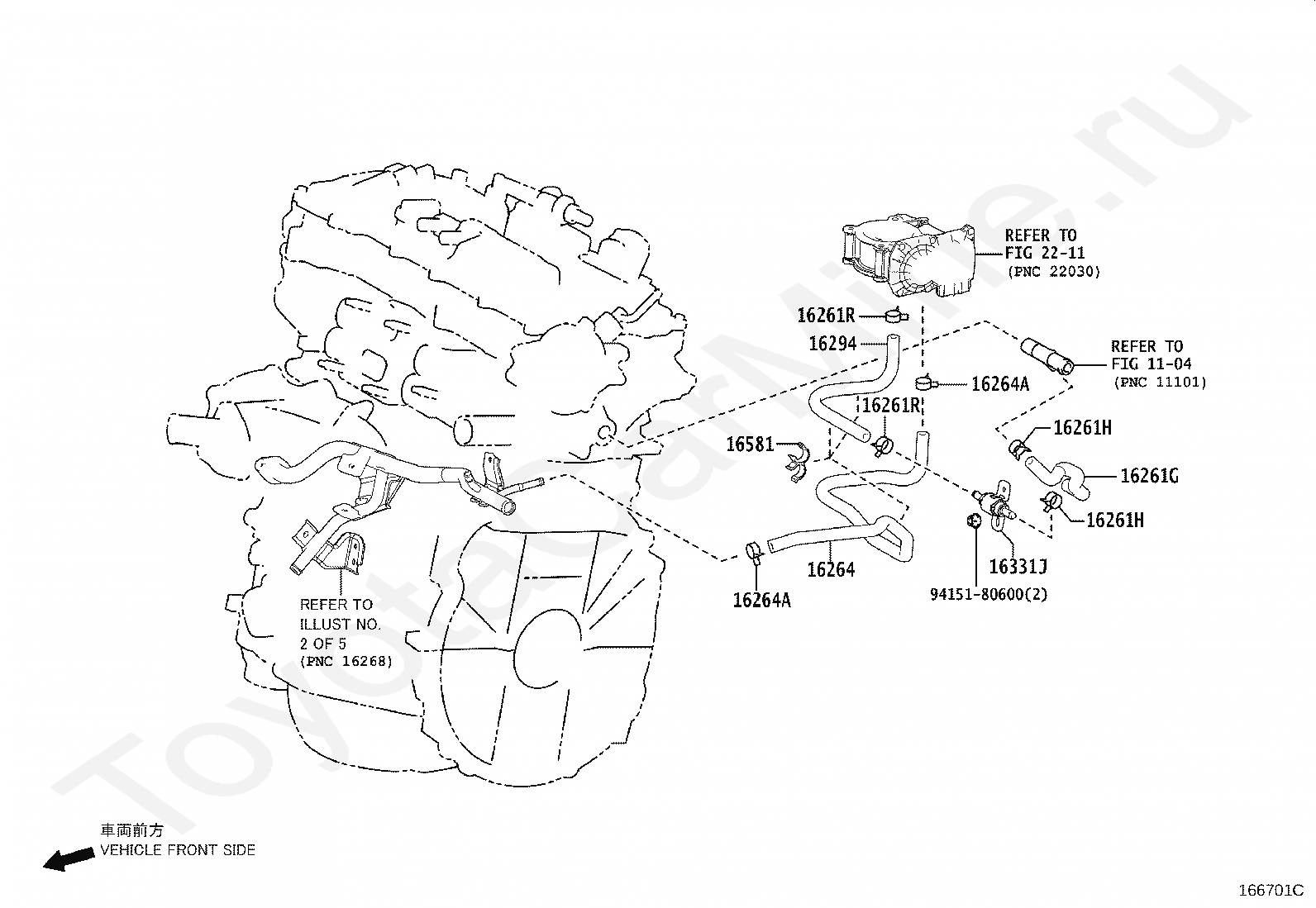

Код

Описание

1104

переход к группе запчастей

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16294

HOSE, WATER BY-PASS, NO.11

16331J

THERMOSTAT, MANIFOLD

16581

CLAMP, HOSE(FOR WATER HOSE)

2211

переход к группе запчастей

9415180600

Крепеж

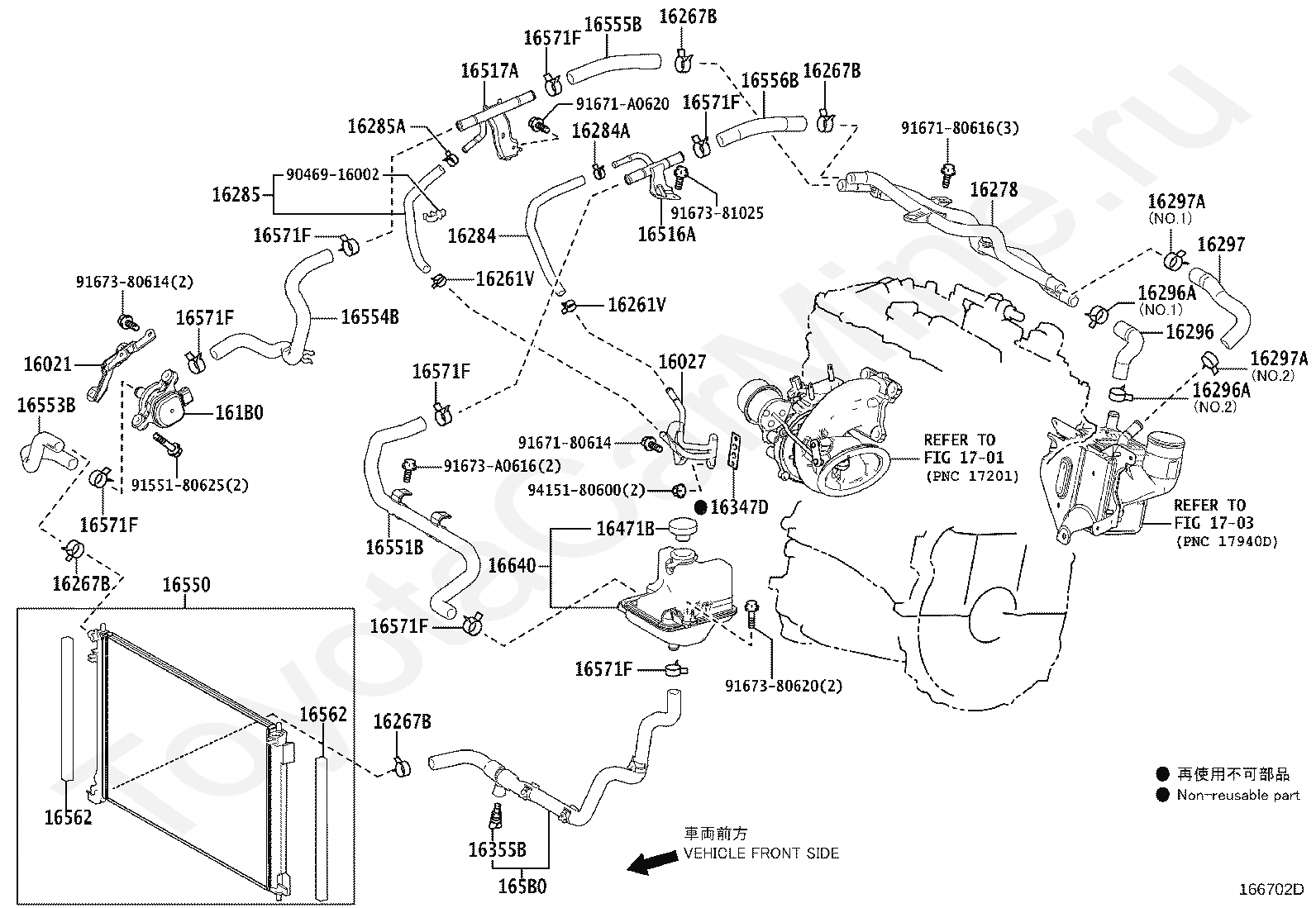

Код

Описание

16021

BRACKET SUB-ASSY, WATER PUMP

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

161B0

PUMP ASSY, ELECTRIC WATER

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16278

PIPE, WATER BY-PASS, NO.2

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16347D

GASKET, WATER BY-PASS

16355B

COCK SUB-ASSY, WATER DRAIN(FOR WATER BY-PASS JOINT)

16471B

CAP, RESERVE TANK

16516A

PIPE, INTERCOOLER COOLING WATER, NO.2

16517A

PIPE, INTERCOOLER COOLING WATER, NO.3

16550

RADIATOR ASSY, INTERCOOLER COOLING

16551B

HOSE, SUB-RADIATOR, NO.1

16553B

HOSE, SUB RADIATOR, NO.3

16554B

HOSE, SUB RADIATOR, NO.4

16555B

HOSE, SUB RADIATOR, NO.5

16556B

HOSE, SUB-RADIATOR, NO.6

16562

SEAL, RADIATOR TO SUPPORT, NO.2

16562

SEAL, RADIATOR TO SUPPORT, NO.2

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

165B0

HOSE ASSY, INTERCOOLER COOLING WATER, NO.2

16640

TANK ASSY, INTERCOOLER RESERVE

1701

переход к группе запчастей

1703

переход к группе запчастей

9046916002

Крепеж

9155180625

Крепеж

9167180614

Крепеж

9167180616

Крепеж

91671A0620

Крепеж

9167380614

Крепеж

9167380620

Крепеж

9167381025

Крепеж

91673A0616

Крепеж

9415180600

Крепеж

Радиатор и шланги TOYOTA HARRIER
