Топливный бак и горловина Тойота GT86/86, Ближний восток, 2013/08 - 2025/, 2000CC 16-VALVE DOHC, HIGH TYPE, ZN6BL, автомат, АКПП, 6 скоростей, левый руль, Европа, 3 литра, дизель, 538W

Код

Описание

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77023B

FILTER SUB-ASSY, FUEL SUCTION TUBE, NO.2

77100

TANK ASSY, FUEL

77144

RETAINER, FUEL PUMP GAUGE

77144

RETAINER, FUEL PUMP GAUGE

77166

CUSHION, FUEL TANK PROTECTOR

77169A

GASKET, FUEL SUCTION TUBE SET

77169A

GASKET, FUEL SUCTION TUBE SET

77197A

CLAMP, EVAPORATION VENT TUBE, NO.2

77204C

TUBE SUB-ASSY, FUEL TANK MAIN, NO.2

77209F

TUBE SUB-ASSY, FUEL TANK MAIN

77211B

CLAMP (FOR FUEL FILLER PIPE)

77213B

HOSE, FUEL TANK TO FILLER PIPE

77226A

TUBE, FUEL TANK BREATHER, NO.6

77229C

CLAMP, BREATHER TUBE

77404

HOSE SUB-ASSY, FUEL TANK VENT

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77651A

CUSHION, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77652A

CUSHION, FUEL TANK, NO.2

8401

переход к группе запчастей

SU00301015

Крепеж

SU00301016

Крепеж

SU00304078

Крепеж

SU00304167

Крепеж

SU00304167

Крепеж

Код

Описание

23220A

PUMP ASSY, FUEL W/FILTER

23225A

SPACER, FUEL PUMP

23225A

SPACER, FUEL PUMP

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77131C

SUB-TANK, FUEL, NO.1

77203C

BRACKET, FUEL PUMP

77652C

SPRING, FUEL PUMP

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

SU00304159

Крепеж

SU00304515

Крепеж

SU00304516

Крепеж

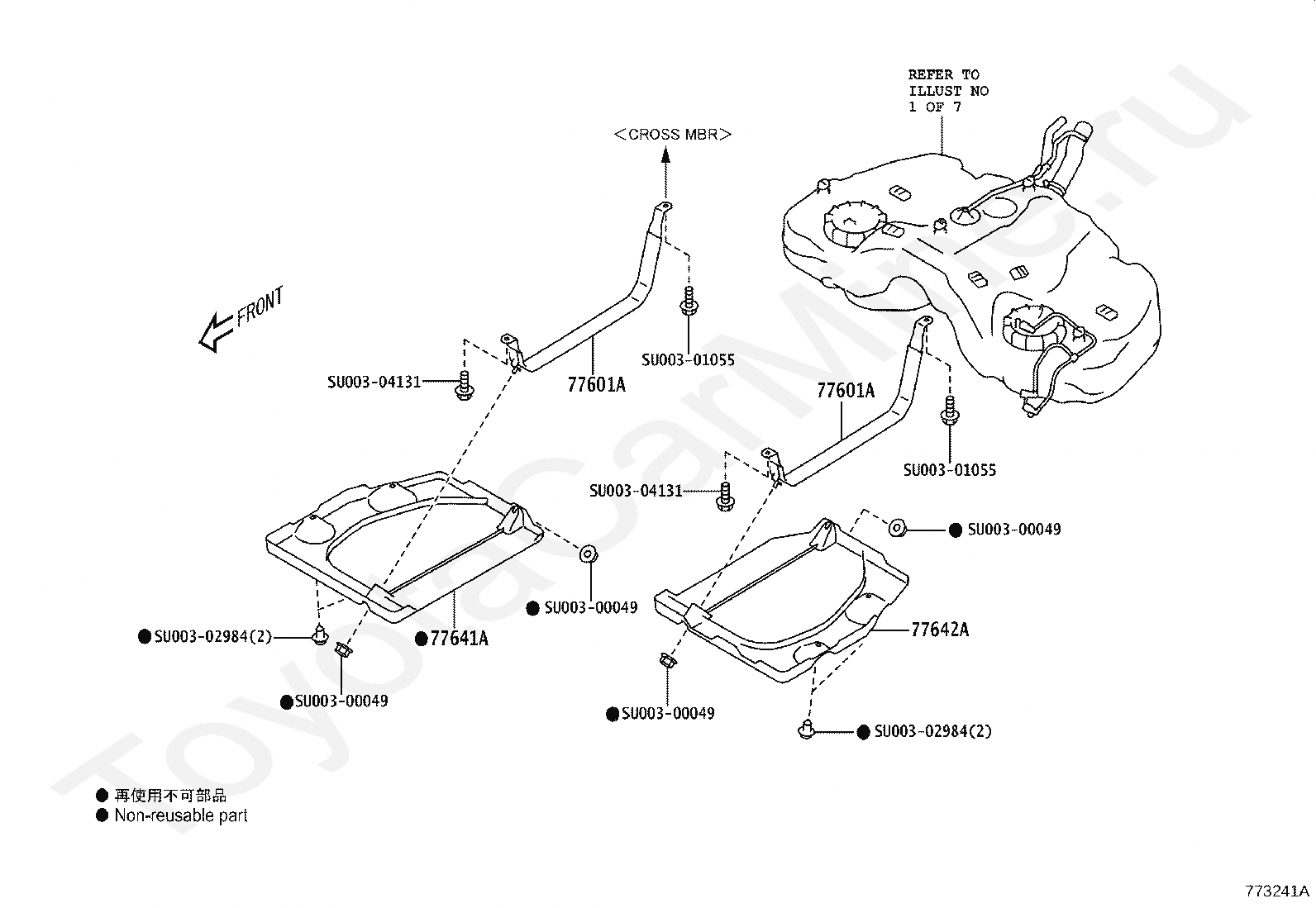

Код

Описание

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77641A

PROTECTOR, FUEL TANK, NO.1

77642A

PROTECTOR, FUEL TANK, NO.2

SU00300049

Крепеж

SU00300049

Крепеж

SU00300049

Крепеж

SU00300049

Крепеж

SU00301055

Крепеж

SU00301055

Крепеж

SU00302984

Крепеж

SU00302984

Крепеж

SU00304131

Крепеж

SU00304131

Крепеж

Код

Описание

77201E

PIPE SUB-ASSY, FUEL TANK FILLER

77202

TUBE SUB-ASSY, BREATHER

77202A

HOSE, FUEL, NO.1 (FOR BREATHER TUBE)

77202B

HOSE, FUEL, NO.2 (FOR BREATHER TUBE)

77202K

CLAMP (FOR BREATHER HOSE)

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77216B

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77216C

SUPPORT, FUEL TANK FILLER PIPE NO.3

77231A

CONNECTOR, FUEL TANK BREATHER TUBE

77248A

HOLDER, FUEL TANK FILLER PIPE COVER

77248A

HOLDER, FUEL TANK FILLER PIPE COVER

77291A

SHIELD, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77701A

HOSE, FUEL, NO.1 (FOR BREATHER VALVE)

77701B

HOSE, FUEL, NO.2 (FOR BREATHER VALVE)

77720H

VALVE ASSY, FUEL OUTLET

77740

CANISTER ASSY, CHARCOAL

77747

PIPE, CHARCOAL CANISTER, NO.1

77751

BRACKET, CHARCOAL CANISTER BASE

77753

BRACKET, CHARCOAL CANISTER, NO.3

SU00300008

Крепеж

SU00300012

Крепеж

SU00300051

Крепеж

SU00300053

Крепеж

SU00300068

Крепеж

SU00300068

Крепеж

SU00300068

Крепеж

SU00300068

Крепеж

SU00300068

Крепеж

SU00301024

Крепеж

SU00301032

Крепеж

SU00301038

Крепеж

SU00301040

Крепеж

SU00301041

Крепеж

SU00302878

Крепеж

SU00302896

Крепеж

SU00302993

Крепеж

SU00303009

Крепеж

SU00304078

Крепеж

Код

Описание

2211

переход к группе запчастей

4708

переход к группе запчастей

4708

переход к группе запчастей

77200A

PIPE ASSY, CENTER

77241U

BRACKET, FUEL CLAMP

77251H

CUSHION, FUEL MAIN TUBE

77252

PROTECTOR, FUEL TUBE

77259D

HOSE, FUEL, NO.1

77279G

HOSE, FUEL, NO.2

77283

BRACKET, FUEL TUBE

77283A

BRACKET, FUEL TUBE CLAMP, NO.1

77285D

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77286H

CLAMP, FUEL TUBE, NO.3

77286J

CLAMP, FUEL TUBE, NO.4

77419

HOSE, FUEL, NO.3

77740F

TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

SU00300013

Крепеж

SU00300013

Крепеж

SU00300013

Крепеж

SU00300068

Крепеж

SU00301043

Крепеж

SU00301043

Крепеж

SU00302128

Крепеж

SU00302128

Крепеж

SU00302997

Крепеж

SU00302997

Крепеж

SU00302997

Крепеж

SU00304080

Крепеж

Код

Описание

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77035A

CLAMP (FOR FUEL LID LOCK CONTROL CABLE)

77035A

CLAMP (FOR FUEL LID LOCK CONTROL CABLE)

77035A

CLAMP (FOR FUEL LID LOCK CONTROL CABLE)

77035A

CLAMP (FOR FUEL LID LOCK CONTROL CABLE)

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77306C

COVER, HANDLE

SU00302874

Крепеж

SU00302935

Крепеж

SU00303017

Крепеж

Код

Описание

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77035A

CLAMP (FOR FUEL LID LOCK CONTROL CABLE)

77035A

CLAMP (FOR FUEL LID LOCK CONTROL CABLE)

77035A

CLAMP (FOR FUEL LID LOCK CONTROL CABLE)

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77306C

COVER, HANDLE

SU00302874

Крепеж

SU00302935

Крепеж

SU00303017

Крепеж

Код

Описание

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77391A

RING, FUEL INLET BOX

SU00302941

Крепеж

Топливный бак и горловина TOYOTA GT86/86
