Каталог

Европа

Модель

GT86/86

VIN

Дата

2013/09

Двигатель

2000CC 16-VALVE DOHC

Класс

HIGH TYPE

Фрейм

ZN6BC

КПП

механика МКПП, 6 скоростей

Опции

левый руль Китай EMISSION REGULATION(CHINA 5) 3 литра, дизель 538W

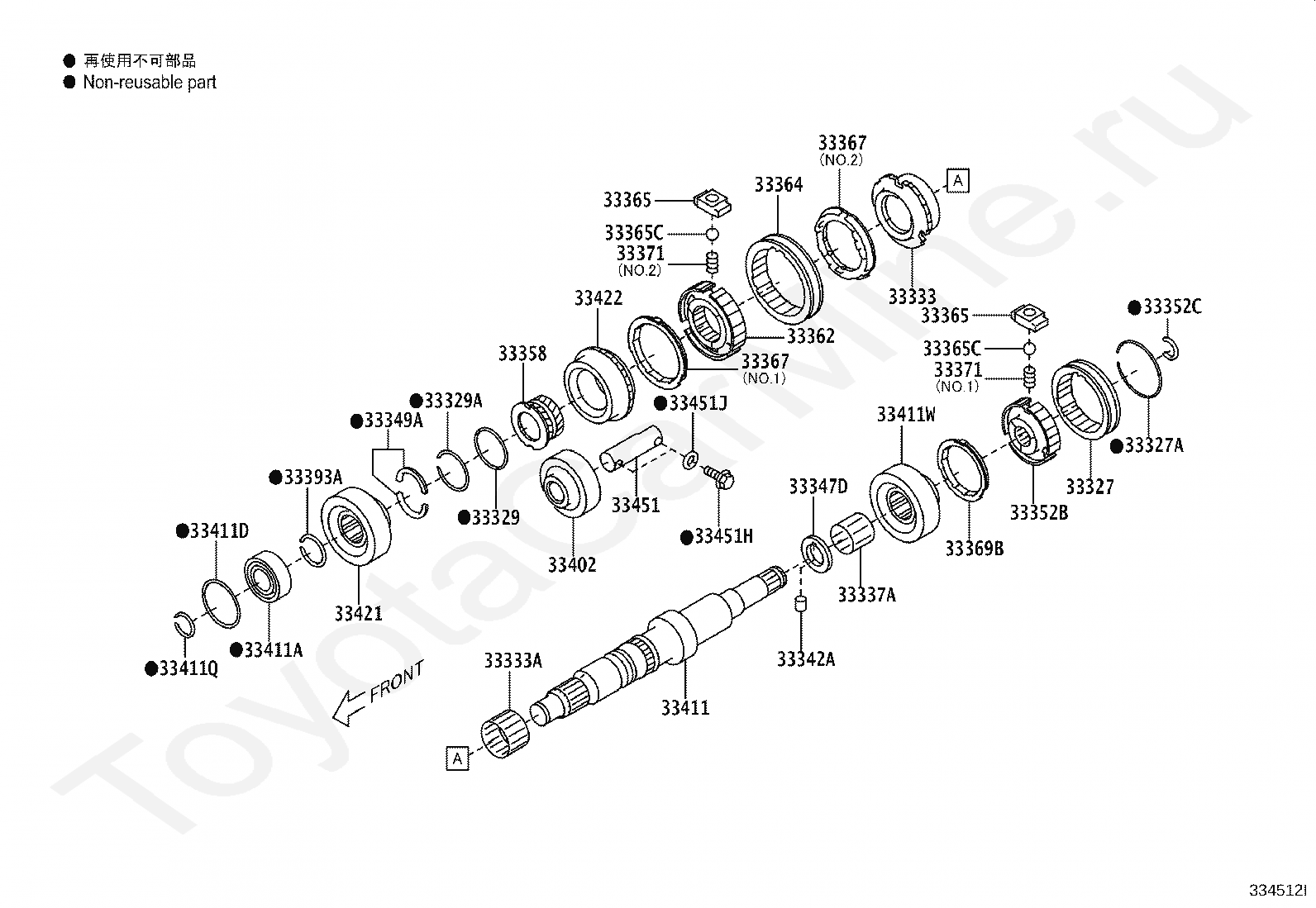

TRANSMISSION GEAR (MTM) TOYOTA GT86/86

Код

Описание

33037B

RING SET, SYNCHRONIZER, NO.1

33037B

RING SET, SYNCHRONIZER, NO.1

33311

SHAFT, INPUT

33311A

BEARING (FOR INPUT SHAFT FRONT)

33311B

RING, SHAFT SNAP (FOR FRONT BEARING)

33311D

BEARING, INPUT SHAFT

33311G

RING, SHAFT SNAP (FOR FRONT BEARING)

33321

SHAFT, OUTPUT

33321A

BEARING (FOR OUTPUT SHAFT REAR)

33321B

RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

33331

GEAR, REVERSE

33331A

BEARING (FOR REVERSE GEAR)

33332

GEAR, 2ND

33332B

BEARING, NEEDLE ROLLER (FOR 2ND GEAR)

33335

GEAR, 1ST

33335A

BALL, 1ST SHIFT RESTRICT

33335C

BEARING, NEEDLE ROLLER(FOR 1ST GEAR)

33337

GEAR SUB-ASSY, 6TH

33337C

RING, SHAFT SNAP(FOR 6TH GEAR)

33355

RACE, 1ST GEAR BEARING INNER

33361

HUB, TRANSMISSION CLUTCH, NO.1

33363

SLEEVE, TRANSMISSION HUB, NO.1

33365

KEY, SYNCHROMESH SHIFTING, NO.1

33365

KEY, SYNCHROMESH SHIFTING, NO.1

33365C

BALL(FOR SYNCHROMESH SHIFTING KEY)

33365C

BALL(FOR SYNCHROMESH SHIFTING KEY)

33368

RING, SYNCHRONIZER, NO.2

33369

RING, SYNCHRONIZER, NO.3

33371

SPRING, SYNCHROMESH SHIFTING KEY, NO.1

33371

SPRING, SYNCHROMESH SHIFTING KEY, NO.1

33393

HUB, TRANSMISSION CLUTCH, NO.3

33393A

RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

33395

SLEEVE, TRANSMISSION HUB, NO.3

Код

Описание

33327

SLEEVE, TRANSMISSION HUB, NO.4

33327A

RING, SNAP(FOR CLUTCH HUB NO.4)

33329

RING, 4TH WASHER RETAINING

33329A

RING, SNAP(FOR 4TH WASHER RETAINING RING)

33333

GEAR, 3RD

33333A

BEARING, NEEDLE ROLLER (FOR 3RD GEAR)

33337A

BEARING, NEEDLE ROLLER (FOR 6TH GEAR)

33342A

PIN, STRAIGHT (FOR GEAR THRUST WASHER)

33347D

WASHER, 6TH GEAR THRUST

33349A

WASHER, 4TH GEAR

33352B

HUB, TRANSMISSION CLUTCH, NO.4

33352C

RING, SHAFT SNAP

33358

RACE, 4TH GEAR BEARING INNER

33362

HUB, TRANSMISSION CLUTCH, NO.2

33364

SLEEVE, TRANSMISSION HUB, NO.2

33365

KEY, SYNCHROMESH SHIFTING, NO.1

33365

KEY, SYNCHROMESH SHIFTING, NO.1

33365C

BALL(FOR SYNCHROMESH SHIFTING KEY)

33365C

BALL(FOR SYNCHROMESH SHIFTING KEY)

33367

RING, SYNCHRONIZER, NO.1

33367

RING, SYNCHRONIZER, NO.1

33369B

RING, SYNCHRONIZER, NO.4

33371

SPRING, SYNCHROMESH SHIFTING KEY, NO.1

33371

SPRING, SYNCHROMESH SHIFTING KEY, NO.1

33393A

RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

33402

GEAR SUB-ASSY, REVERSE IDLER

33411

COUNTERSHAFT

33411A

BEARING OR ROLLER(FOR COUNTER GEAR FRONT)

33411D

RING, COUNTER GEAR FRONT BEARING SNAP, NO.1

33411Q

RING, COUNTER GEAR FRONT BEARING SNAP, NO.2

33411W

GEAR, COUNTER, 6TH

33421

GEAR, COUNTER

33422

GEAR, COUNTER SHAFT 4TH SPEED

33451

SHAFT, REVERSE IDLER GEAR

33451H

BOLT (FOR REVERSE IDLER GEAR SHAFT)

33451J

GASKET (FOR REVERSE IDLER GEAR SHAFT)
