Каталог

Ближний Восток

Модель

GRNVA/HIACE/MJSTY

VIN

Дата

2019/03

Двигатель

3,5 литра, 24 клапана, DOHC

Фрейм

GRH320

КПП

автомат АКПП, 6 скоростей

Опции

правый руль высокая крыша 4 двери боковое стекло D GEN 694W

Нижняя часть кузова TOYOTA GRNVA/HIACE/MJSTY

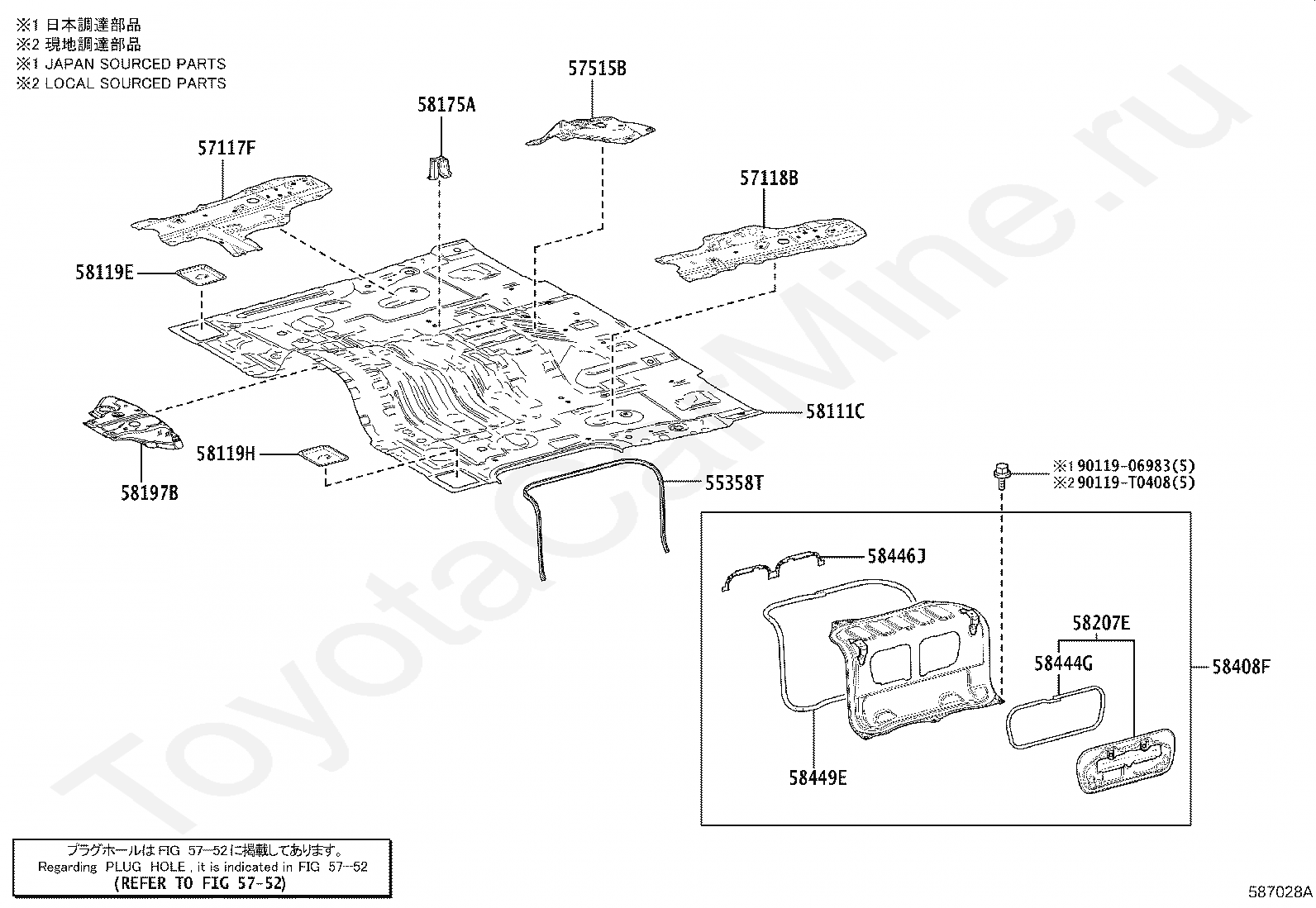

Код

Описание

55358T

PROTECTOR, EDGE

57117F

PLATE, FRONT SIDE MEMBER, NO.2 RH

57118B

PLATE, FRONT SIDE MEMBER, NO.2 LH

57515B

BRACKET, PARKING BRAKE, RH

5752

переход к группе запчастей

58111C

PAN, FRONT FLOOR

58119E

COVER, FRONT FLOOR SIDE, FRONT

58119H

COVER, FRONT FLOOR SIDE, FRONT

58175A

REINFORCEMENT, PARKING BRAKE BASE, NO.1

58197B

RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET

58207E

COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH

58408F

COVER SUB-ASSY, BATTERY SERVICE HOLE, LH

58444G

PACKING, BATTERY SERVICE OPENING LID

58446J

PROTECTOR, BATTERY SERVICE OPENING LID

58449E

PACKING, BATTERY SERVICE HOLE COVER

9011906983

Крепеж

90119T0408

Крепеж

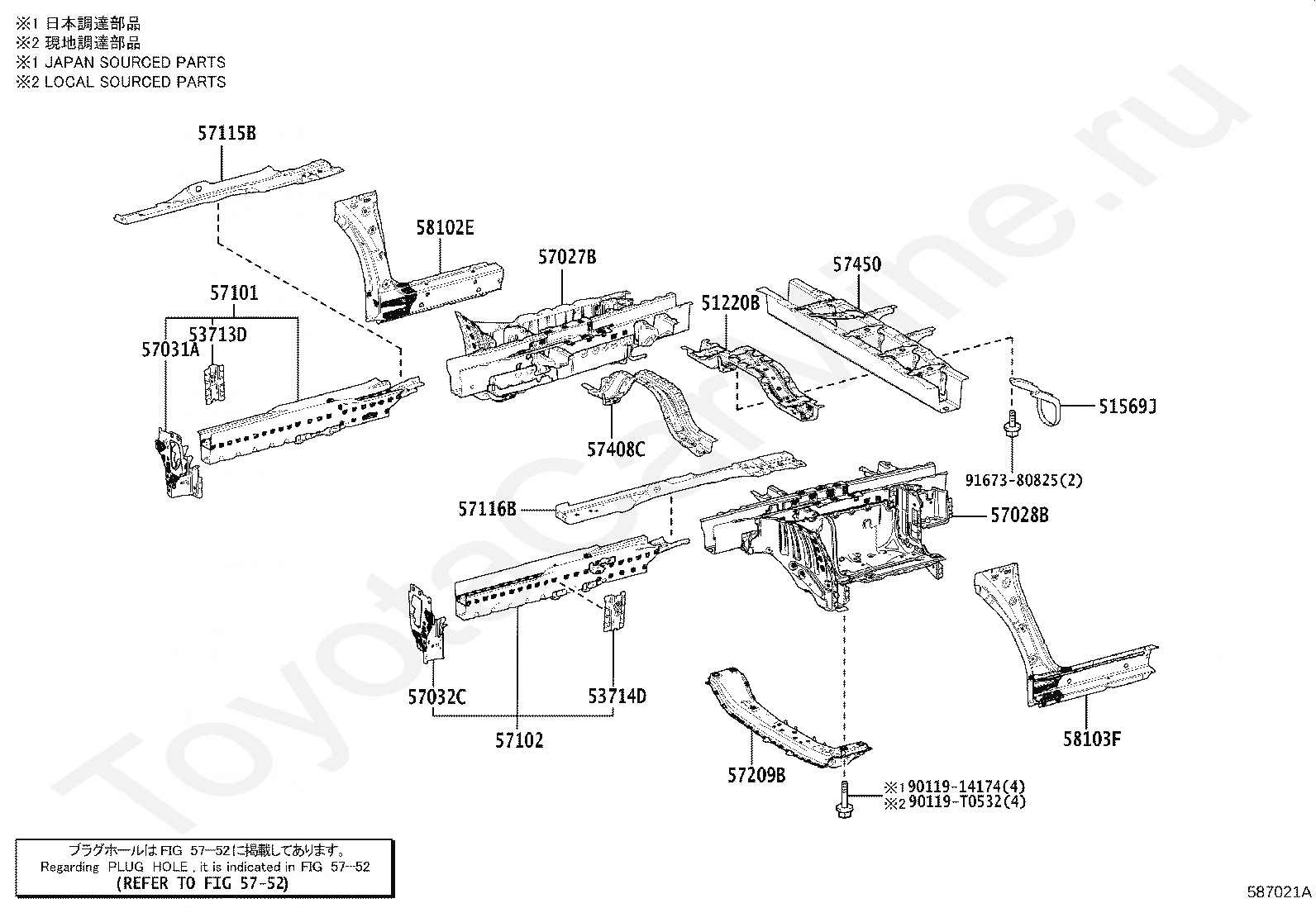

Код

Описание

51220B

CROSSMEMBER ASSY, FRAME, NO.2

51569J

GUARD, PROPELLER SHAFT

53713D

EXTENSION, FRONT FENDER APRON, RH

53714D

EXTENSION, FRONT FENDER APRON, LH

57027B

MEMBER SUB-ASSY, FRONT SIDE, INNER RH

57028B

MEMBER SUB-ASSY, FRONT SIDE, INNER LH

57031A

REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

57032C

REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57115B

PLATE, FRONT SIDE MEMBER, NO.1 RH

57116B

PLATE, FRONT SIDE MEMBER, NO.1 LH

57209B

MEMBER SUB-ASSY, ENGINE REAR MOUNTING

57408C

MEMBER SUB-ASSY, FRONT FLOOR CROSS

57450

MEMBER ASSY, FRONT FLOOR CROSS

5752

переход к группе запчастей

58102E

REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

58103F

REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

9011914174

Крепеж

90119T0532

Крепеж

9167380825

Крепеж
