Каталог

Ближний Восток

Модель

GRNVA/HIACE/MJSTY

VIN

Дата

2019/03

Двигатель

3,5 литра, 24 клапана, DOHC

Фрейм

GRH320

КПП

автомат АКПП, 6 скоростей

Опции

правый руль высокая крыша 4 двери боковое стекло D GEN 694W

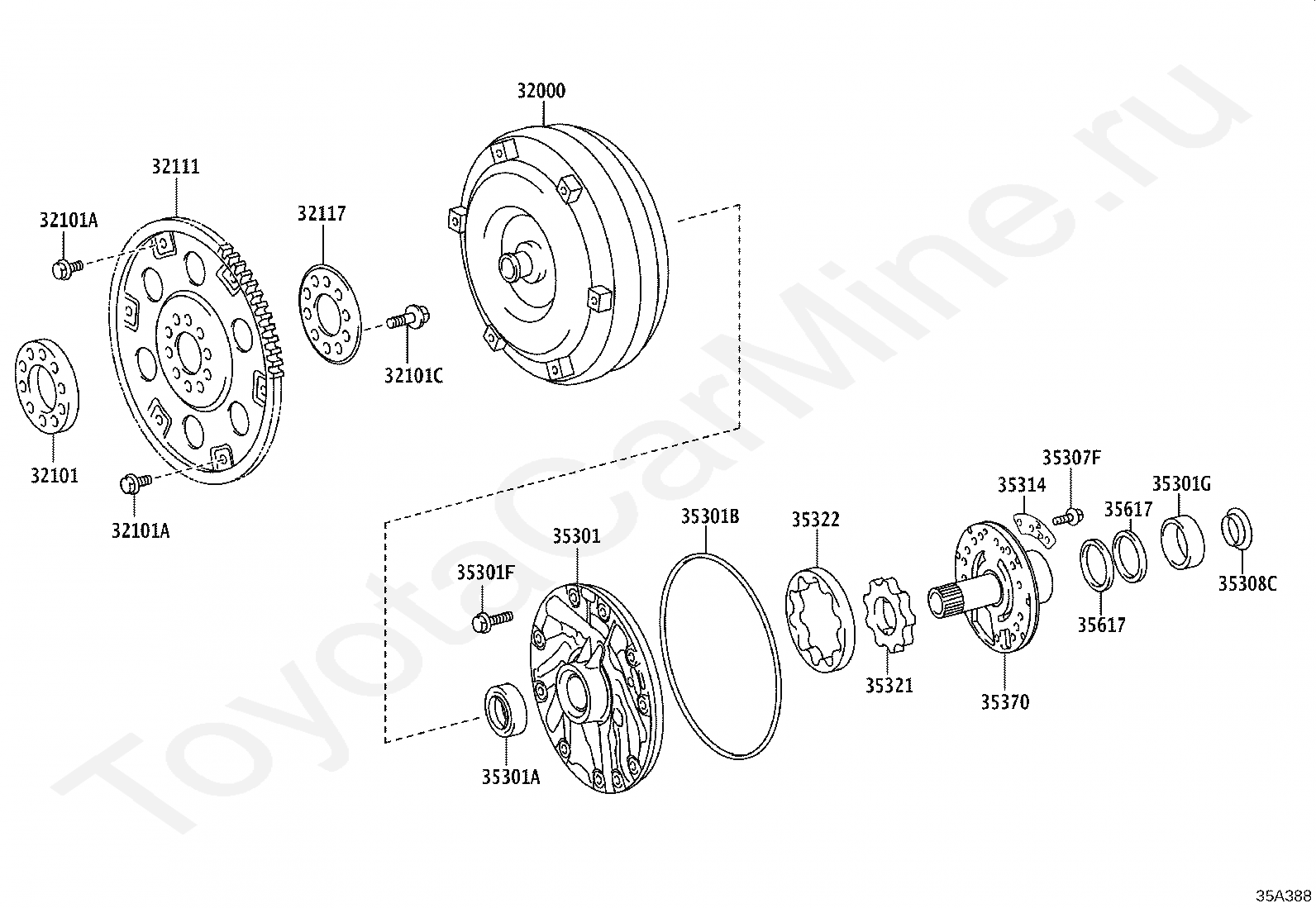

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA GRNVA/HIACE/MJSTY

Код

Описание

32000

CONVERTER ASSY, TORQUE

32101A

BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32101A

BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32101C

BOLT, HEXAGON(FOR DRIVE PLATE SETTING)

32111

PLATE, PUMP IMPELLER DRIVE

32117

SPACER, DRIVE PLATE, REAR

35301

BODY SUB-ASSY, FRONT OIL PUMP

35301A

SEAL, OIL (FOR FRONT OIL PUMP)

35301B

RING, O (FOR FRONT OIL PUMP BODY)

35301F

BOLT (FOR FRONT OIL PUMP SETTING)

35301G

BEARING,NEEDLE ROLLER

35307F

BOLT (FOR STATOR SHAFT)

35308C

RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)

35314

PLATE, FRONT OIL PUMP

35321

GEAR, FRONT OIL PUMP DRIVE

35322

GEAR, FRONT OIL PUMP DRIVEN

35370

SHAFT ASSY, STATOR

35617

RING, CLUTCH DRUM OIL SEAL

35617

RING, CLUTCH DRUM OIL SEAL

Код

Описание

32000

CONVERTER ASSY, TORQUE

32101

GEAR SUB-ASSY, DRIVE PLATE & RING

32101A

BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32101A

BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32101C

BOLT, HEXAGON(FOR DRIVE PLATE SETTING)

32111

PLATE, PUMP IMPELLER DRIVE

32117

SPACER, DRIVE PLATE, REAR

35301

BODY SUB-ASSY, FRONT OIL PUMP

35301A

SEAL, OIL (FOR FRONT OIL PUMP)

35301B

RING, O (FOR FRONT OIL PUMP BODY)

35301F

BOLT (FOR FRONT OIL PUMP SETTING)

35301G

BEARING,NEEDLE ROLLER

35307F

BOLT (FOR STATOR SHAFT)

35308C

RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)

35314

PLATE, FRONT OIL PUMP

35321

GEAR, FRONT OIL PUMP DRIVE

35322

GEAR, FRONT OIL PUMP DRIVEN

35370

SHAFT ASSY, STATOR

35617

RING, CLUTCH DRUM OIL SEAL

35617

RING, CLUTCH DRUM OIL SEAL

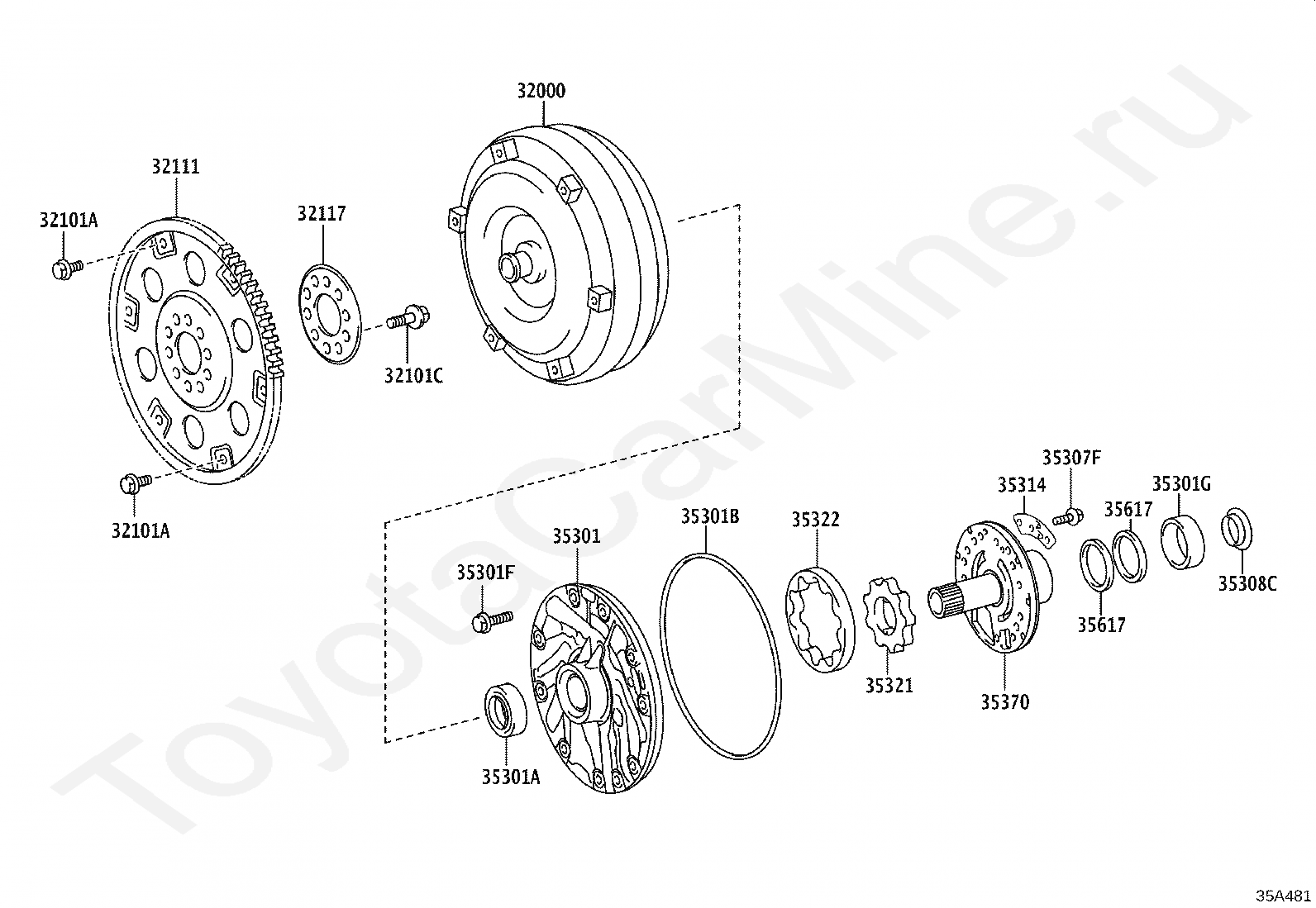

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA GRNVA/HIACE/MJSTY
