1104
переход к группе запчастей
1104
переход к группе запчастей
1503
переход к группе запчастей

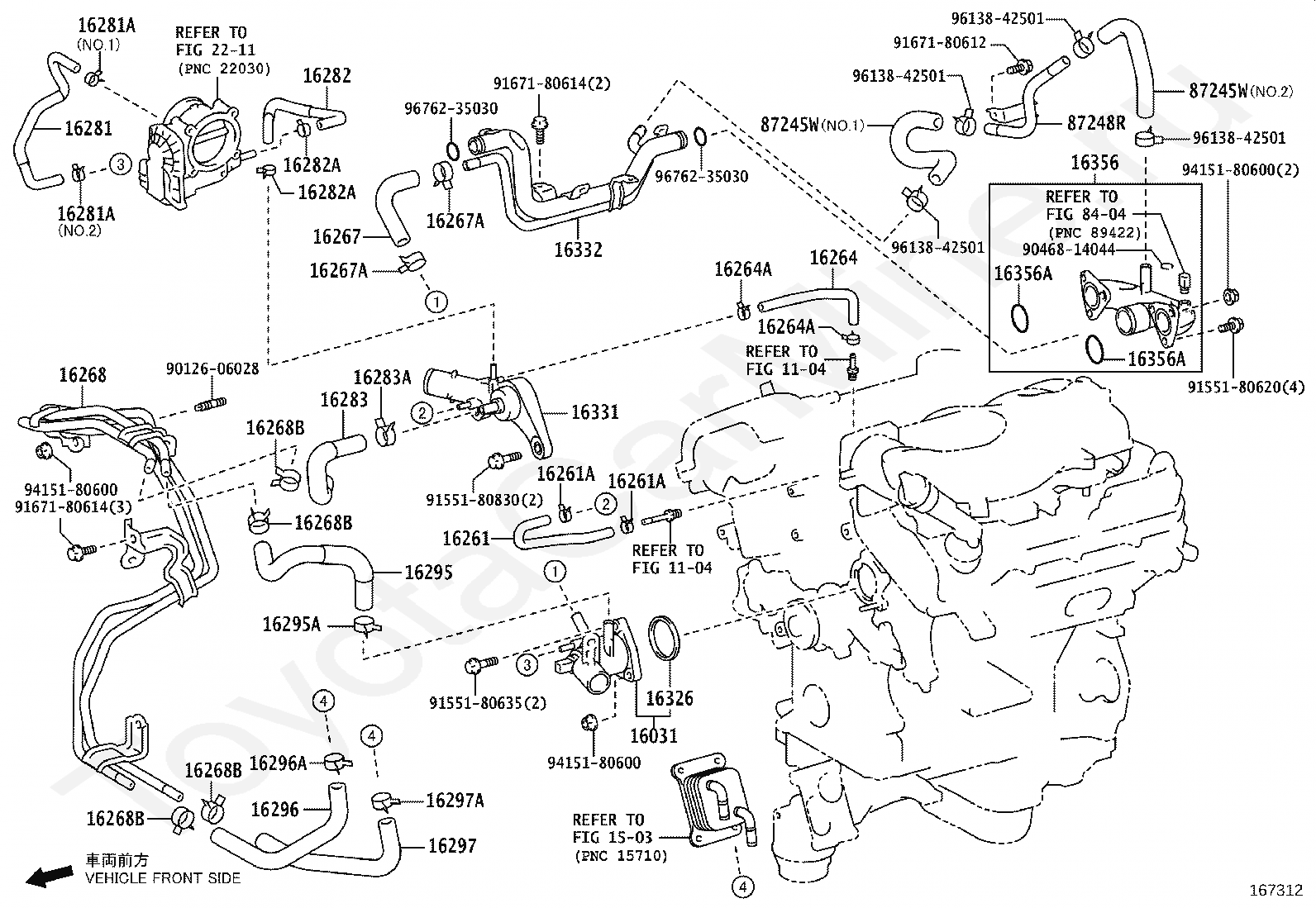

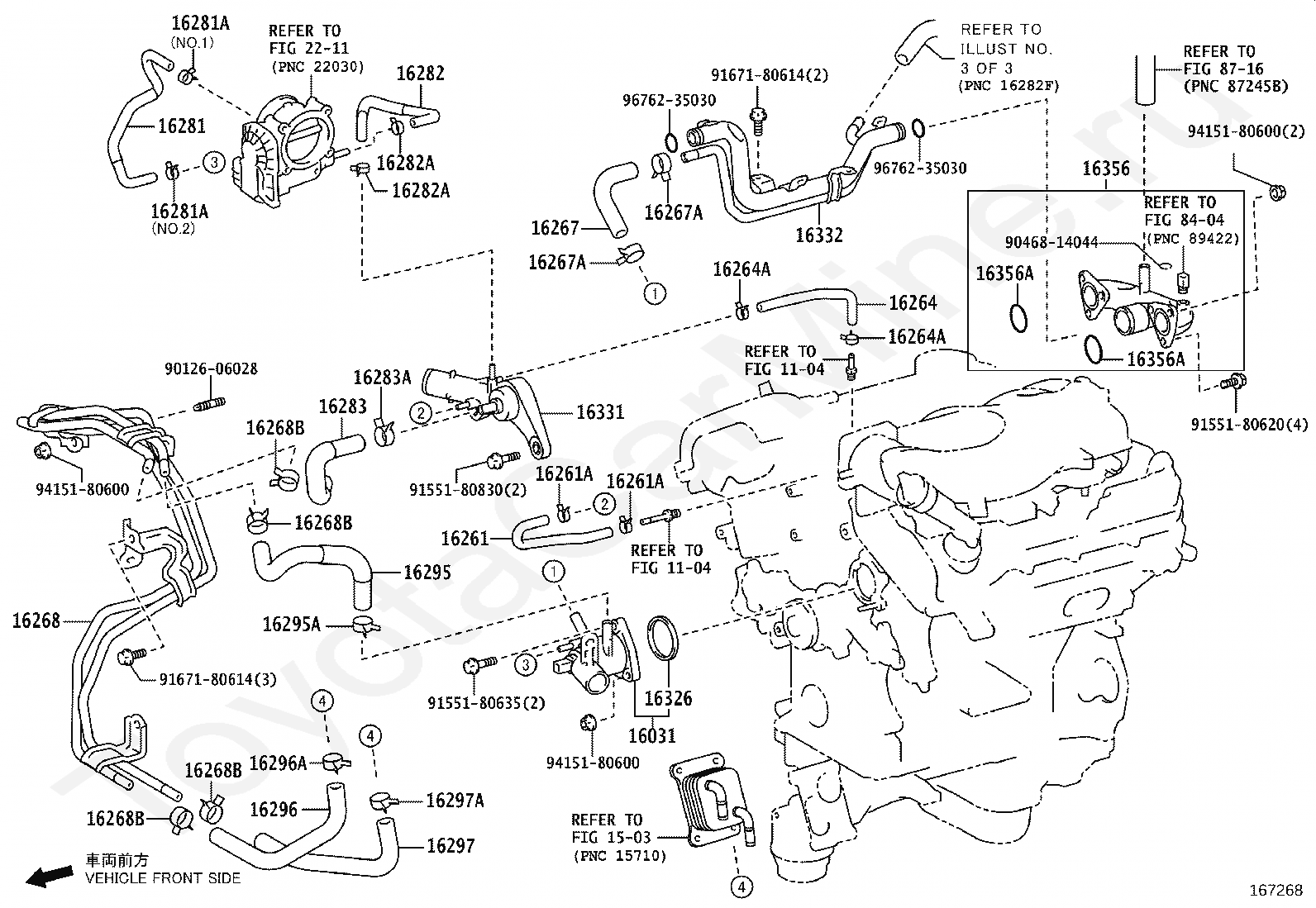

16031
WATER INLET SUB-ASSY, W/THERMOSTAT
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16268B
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
16268B
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
16268B
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
16268B
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
16281
HOSE, WATER BY-PASS, NO.4
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16295
HOSE, WATER BY-PASS, NO.7
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16296
HOSE, WATER BY-PASS, NO.8
16296A
CLIP(FOR WATER BY-PASS HOSE NO.8)
16297
HOSE, WATER BY-PASS, NO.9
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16326
GASKET, WATER INLET HOUSING, NO.2
16332
PIPE, WATER OUTLET, NO.1
16356
JOINT, WATER BY-PASS, REAR
16356A
GASKET(WATER BY-PASS JOINT, REAR)
16356A
GASKET(WATER BY-PASS JOINT, REAR)
2211
переход к группе запчастей
8404
переход к группе запчастей
8716
переход к группе запчастей
