Каталог

Ближний Восток

Модель

GRNVA/HIACE/MJSTY

VIN

Дата

2019/03

Двигатель

3,5 литра, 24 клапана, DOHC

Фрейм

GRH320

КПП

автомат АКПП, 6 скоростей

Опции

правый руль высокая крыша 4 двери боковое стекло D GEN 694W

Головка блока цилиндров TOYOTA GRNVA/HIACE/MJSTY

Код

Описание

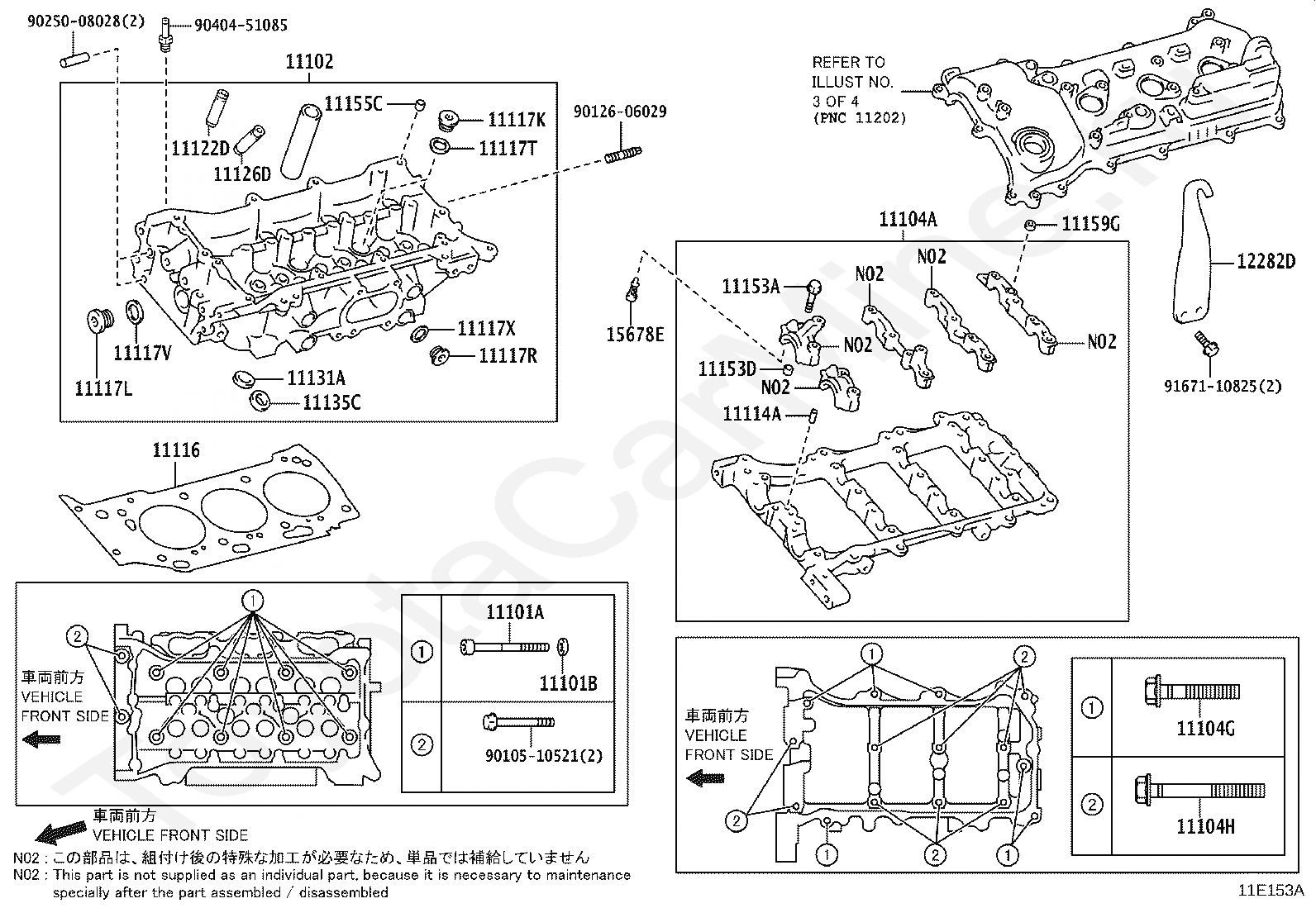

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11102

HEAD, CYLINDER, LH

11104A

HOUSING SUB-ASSY, CAMSHAFT, LH

11104G

BOLT(FOR CAMSHAFT HOUSING SET, LH NO.1)

11104H

BOLT(FOR CAMSHAFT HOUSING SET, LH NO.2)

11114A

PIN, STRAIGHT

11116

GASKET, CYLINDER HEAD, NO.2

11117K

PLUG, W/HEAD STRAIGHT SCREW, LH NO.1

11117L

PLUG, W/HEAD STRAIGHT SCREW, LH NO.2

11117R

PLUG, W/HEAD STRAIGHT SCREW, LH NO.3

11117T

GASKET(FOR WATER HOLE LH)

11117V

GASKET(FOR CYLINDER HEAD SCREW PLUG, LH NO.1)

11117X

GASKET(FOR CYLINDER HEAD SCREW PLUG, LH NO.2)

11122D

BUSH, INTAKE VALVE GUIDE, LH

11126D

BUSH, EXHAUST VALVE GUIDE, LH

11131A

SEAT, INTAKE VALVE, NO.2

11135C

SEAT, EXHAUST VALVE, LH

11153A

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)

11153D

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)

11155C

PIN, RING NO.2

11159G

GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH

12282D

HANGER, ENGINE, NO.2

15678E

FILTER, OIL CONTROL VALVE, LH

9010510521

Крепеж

9012606029

Крепеж

9025008028

Крепеж

9040451085

Крепеж

9167110825

Крепеж

Код

Описание

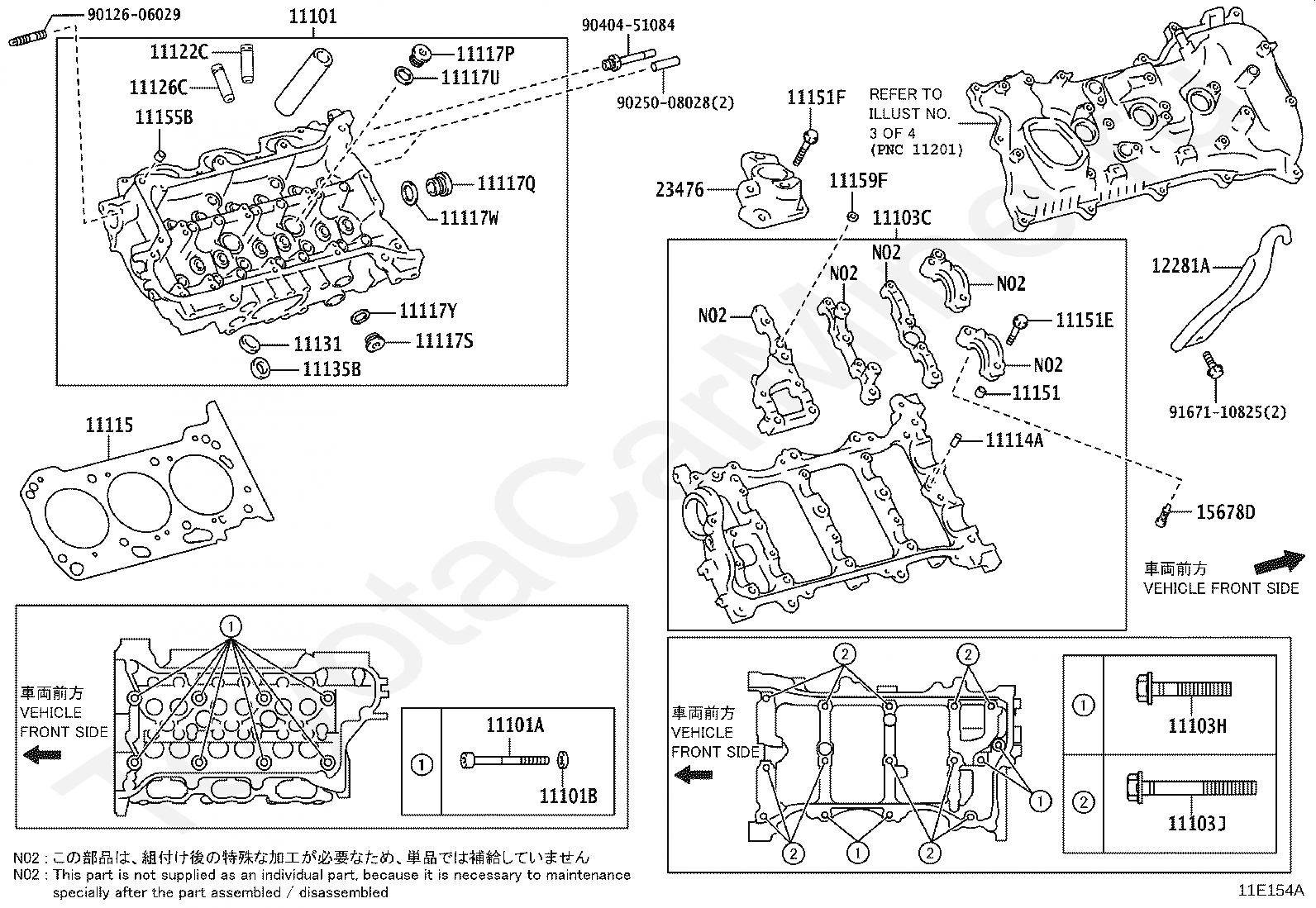

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11103C

HOUSING SUB-ASSY, CAMSHAFT, RH

11103H

BOLT(FOR CAMSHAFT HOUSING SET, RH NO.1)

11103J

BOLT(FOR CAMSHAFT HOUSING SET, RH NO.2)

11114A

PIN, STRAIGHT

11115

GASKET, CYLINDER HEAD

11117P

PLUG, W/HEAD STRAIGHT SCREW, RH NO.1

11117Q

PLUG, W/HEAD STRAIGHT SCREW, RH NO.2

11117S

PLUG, W/HEAD STRAIGHT SCREW, RH NO.3

11117U

GASKET(FOR WATER HOLE RH)

11117W

GASKET(FOR CYLINDER HEAD SCREW PLUG, RH NO.1)

11117Y

GASKET(FOR CYLINDER HEAD SCREW PLUG, RH NO.2)

11122C

BUSH, INTAKE VALVE GUIDE, RH

11126C

BUSH, EXHAUST VALVE GUIDE, RH

11131

SEAT, INTAKE VALVE

11135B

SEAT, EXHAUST VALVE, RH

11151

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)

11151E

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)

11151F

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)

11155B

PIN, RING

11159F

GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH

12281A

HANGER, ENGINE, NO.1

15678D

FILTER, OIL CONTROL VALVE, RH

23476

HOUSING, FUEL PUMP LIFTER

9012606029

Крепеж

9025008028

Крепеж

9040451084

Крепеж

9167110825

Крепеж

Код

Описание

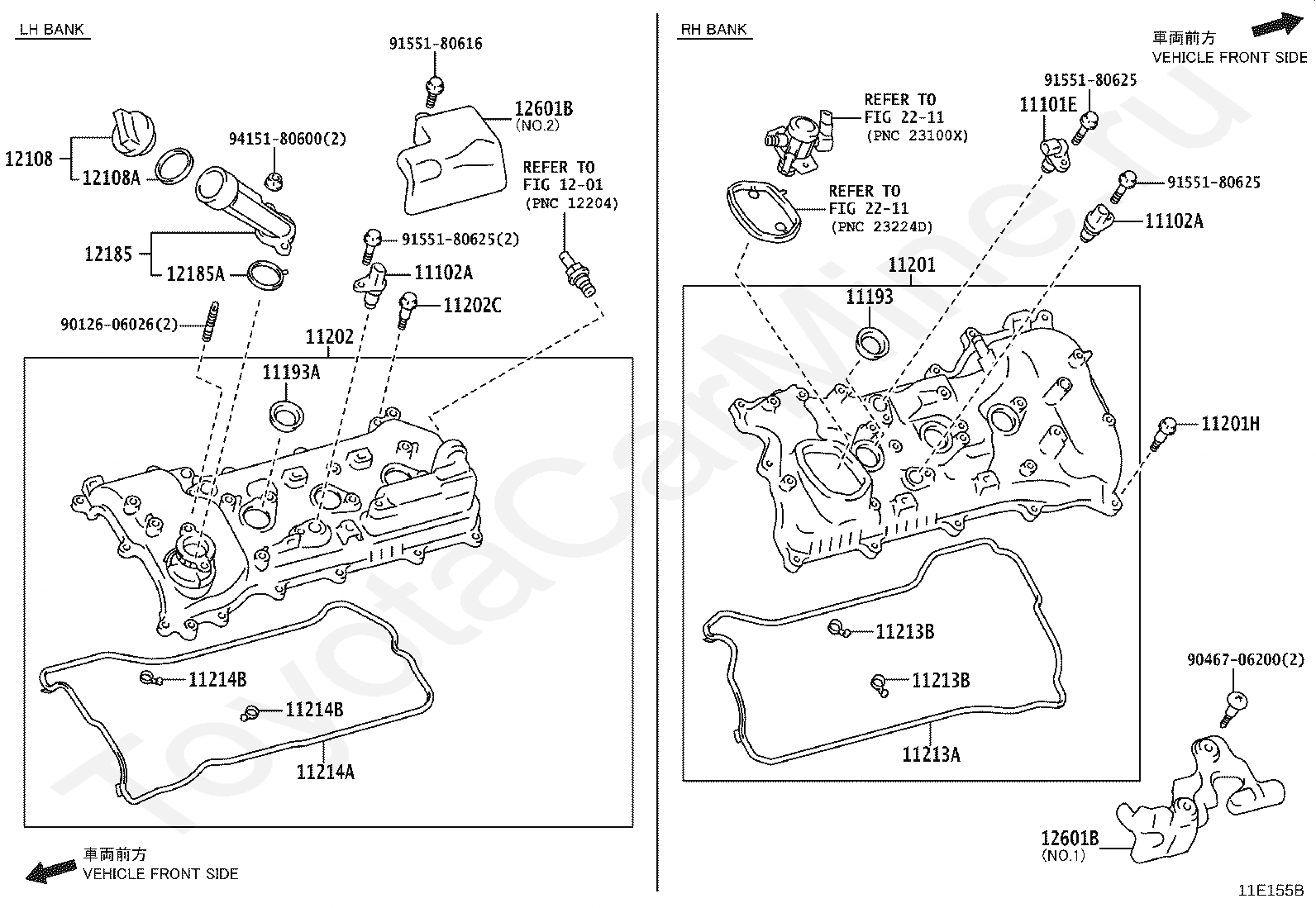

11101E

SENSOR, CAM POSITION

11102A

SENSOR, CAMSHAFT POSITION

11102A

SENSOR, CAMSHAFT POSITION

11193

GASKET, SPARK PLUG TUBE

11193A

GASKET, SPARK PLUG TUBE, LH

11201

COVER SUB-ASSY, CYLINDER HEAD

11201H

BOLT(FOR CYLINDER HEAD COVER)

11202

COVER SUB-ASSY, CYLINDER HEAD, LH

11202C

BOLT(FOR CYLINDER HEAD COVER LH)

11213A

GASKET, CYLINDER HEAD COVER, RH NO.1

11213B

GASKET, CYLINDER HEAD COVER, RH NO.2

11213B

GASKET, CYLINDER HEAD COVER, RH NO.2

11214A

GASKET, CYLINDER HEAD COVER, LH NO.1

11214B

GASKET, CYLINDER HEAD COVER, LH NO.2

11214B

GASKET, CYLINDER HEAD COVER, LH NO.2

1201

переход к группе запчастей

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

12185

HOUSING, OIL FILLER CAP

12185A

GASKET, OIL FILLER CAP HOUSING

12601B

COVER SUB-ASSY, ENGINE, NO.1

12601B

COVER SUB-ASSY, ENGINE, NO.1

2211

переход к группе запчастей

2211

переход к группе запчастей

9012606026

Крепеж

9046706200

Крепеж

9155180616

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9415180600

Крепеж

Код

Описание

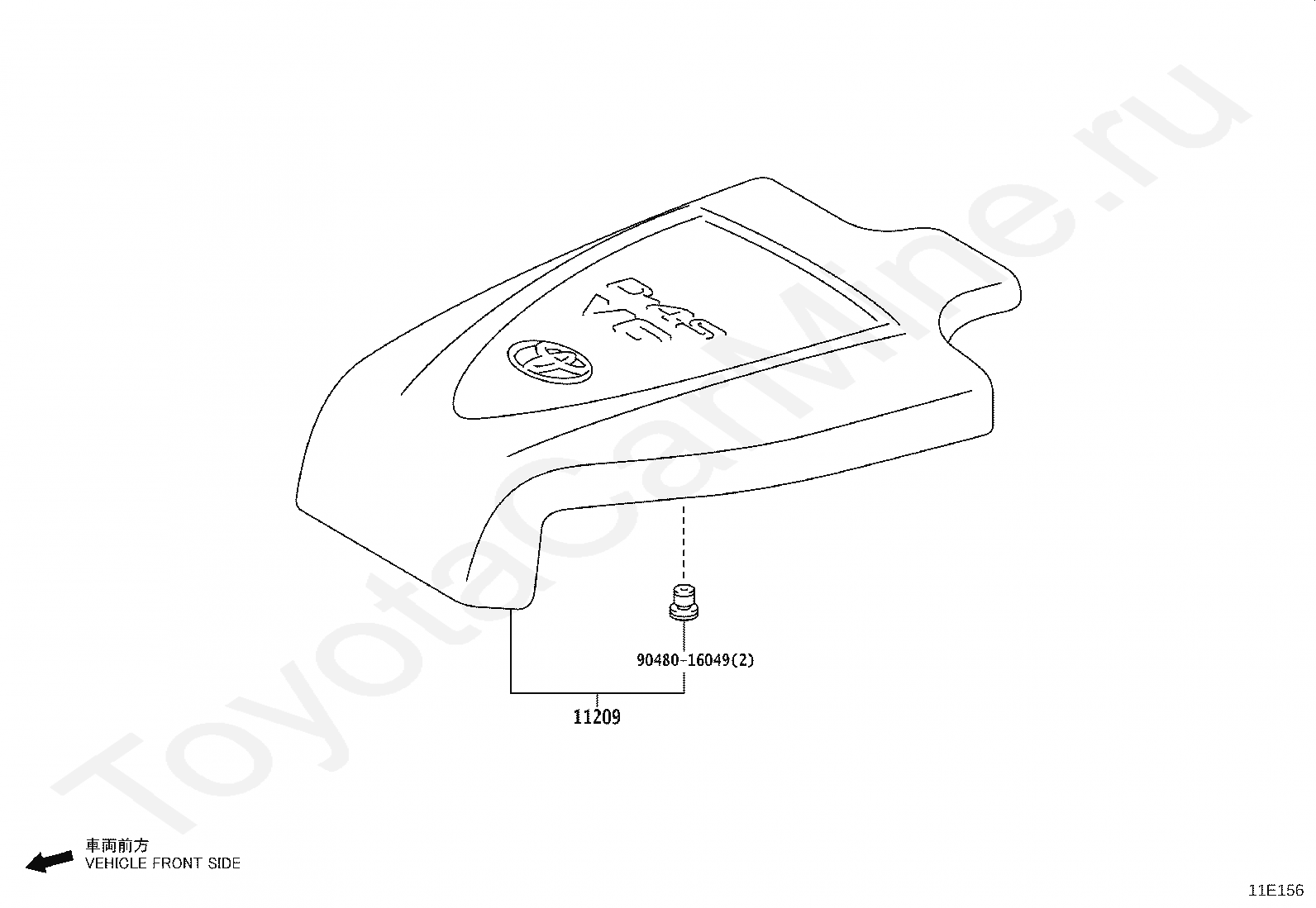

11209

COVER SUB-ASSY, V-BANK

9048016049

Крепеж

Головка блока цилиндров TOYOTA GRNVA/HIACE/MJSTY
