Каталог

Ближний Восток

Модель

GRNVA/HIACE/MJSTY

VIN

Дата

2019/03

Двигатель

2,8 литра, турбо-дизель

Фрейм

GDH320

КПП

механика МКПП, 6 скоростей

Опции

левый руль высокая крыша 5 дверей SEPARATE SEAT D GEN 694W

Ремни безопасности TOYOTA GRNVA/HIACE/MJSTY







Код

Описание

73023

PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

73024

PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

73120

BELT ASSY, FRONT SEAT 3 POINT TYPE, LH

7313460010

Крепеж

73178A

CAP, SEAT BELT ANCHOR COVER

73178C

CAP, SEAT BELT ANCHOR COVER

73178C

CAP, SEAT BELT ANCHOR COVER

73187

GUIDE, FRONT SEAT SHOULDER BELT

73200A

ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

73210

BELT ASSY, FRONT SEAT OUTER, RH

73214

PLATE, FRONT SEAT BELT ANCHOR

73219

STOPPER, TONGUE PLATE

73220

BELT ASSY, FRONT SEAT OUTER, LH

73230

BELT ASSY, FRONT SEAT INNER, RH

73233

COVER, LAP BELT OUTER ANCHOR

73233

COVER, LAP BELT OUTER ANCHOR

73240

BELT ASSY, FRONT SEAT INNER, LH

73250

BELT ASSY, FRONT SEAT, CENTER

73373

COVER, REAR SEAT SHOULDER BELT

9010510523

Крепеж

9010511053

Крепеж

9010511058

Крепеж

9010911059

Крепеж

9010911064

Крепеж

9017811002

Крепеж

9017905011

Крепеж

9155380612

Крепеж

9415180600

Крепеж

Код

Описание

73023

PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

73024

PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

73119

PLATE, SEAT BELT WEBBING CLIP

73150

BELT ASSY, FRONT SEAT LAP TYPE, CENTER

73178C

CAP, SEAT BELT ANCHOR COVER

73200A

ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

73210

BELT ASSY, FRONT SEAT OUTER, RH

73219

STOPPER, TONGUE PLATE

73230

BELT ASSY, FRONT SEAT INNER, RH

73233

COVER, LAP BELT OUTER ANCHOR

82191B

WIRE, FRONT SEAT BELT

9010510523

Крепеж

9010511053

Крепеж

9010511058

Крепеж

9010911059

Крепеж

9010911064

Крепеж

9155380612

Крепеж

Код

Описание

73023

PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

73023

PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

73024

PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

73024

PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

73119

PLATE, SEAT BELT WEBBING CLIP

73135

COVER, SHOULDER BELT ANCHORAGE PLATE

73136

COVER, SHOULDER BELT ANCHORAGE PLATE, INNER

73178C

CAP, SEAT BELT ANCHOR COVER

73200A

ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

73210

BELT ASSY, FRONT SEAT OUTER, RH

73214

PLATE, FRONT SEAT BELT ANCHOR

73219

STOPPER, TONGUE PLATE

73220

BELT ASSY, FRONT SEAT OUTER, LH

73230

BELT ASSY, FRONT SEAT INNER, RH

73233

COVER, LAP BELT OUTER ANCHOR

73240

BELT ASSY, FRONT SEAT INNER, LH

9010510523

Крепеж

9010511053

Крепеж

90105T0056

Крепеж

90105T0064

Крепеж

90105T0378

Крепеж

9010911059

Крепеж

9010911064

Крепеж

90109T0041

Крепеж

90109T0056

Крепеж

9017811002

Крепеж

90178T0017

Крепеж

9155380612

Крепеж

Код

Описание

73330L

BELT ASSY, REAR SEAT LAP TYPE(FOR 1 PERSON)

73330L

BELT ASSY, REAR SEAT LAP TYPE(FOR 1 PERSON)

73330L

BELT ASSY, REAR SEAT LAP TYPE(FOR 1 PERSON)

73330L

BELT ASSY, REAR SEAT LAP TYPE(FOR 1 PERSON)

73380L

BELT ASSY, REAR SEAT, INNER(FOR 1 PERSON)

73380L

BELT ASSY, REAR SEAT, INNER(FOR 1 PERSON)

73380L

BELT ASSY, REAR SEAT, INNER(FOR 1 PERSON)

73380L

BELT ASSY, REAR SEAT, INNER(FOR 1 PERSON)

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

Код

Описание

73330M

BELT ASSY, REAR SEAT LAP TYPE(FOR 2 PERSONS)

73330M

BELT ASSY, REAR SEAT LAP TYPE(FOR 2 PERSONS)

73330N

BELT ASSY, REAR SEAT LAP TYPE, CENTER(FOR 2 PERSONS)

73330N

BELT ASSY, REAR SEAT LAP TYPE, CENTER(FOR 2 PERSONS)

73380M

BELT ASSY, REAR SEAT, INNER CENTER(FOR 2 PERSONS)

73380M

BELT ASSY, REAR SEAT, INNER CENTER(FOR 2 PERSONS)

73380M

BELT ASSY, REAR SEAT, INNER CENTER(FOR 2 PERSONS)

73380M

BELT ASSY, REAR SEAT, INNER CENTER(FOR 2 PERSONS)

73380M

BELT ASSY, REAR SEAT, INNER CENTER(FOR 2 PERSONS)

73380M

BELT ASSY, REAR SEAT, INNER CENTER(FOR 2 PERSONS)

73380N

BELT ASSY, REAR SEAT, INNER(FOR 2 PERSONS)

73380N

BELT ASSY, REAR SEAT, INNER(FOR 2 PERSONS)

73380N

BELT ASSY, REAR SEAT, INNER(FOR 2 PERSONS)

73380N

BELT ASSY, REAR SEAT, INNER(FOR 2 PERSONS)

73380N

BELT ASSY, REAR SEAT, INNER(FOR 2 PERSONS)

73380N

BELT ASSY, REAR SEAT, INNER(FOR 2 PERSONS)

73460B

BELT ASSY, REAR SEAT CENTER, INNER LH

73460B

BELT ASSY, REAR SEAT CENTER, INNER LH

73460C

BELT ASSY, REAR SEAT CENTER, INNER

73460C

BELT ASSY, REAR SEAT CENTER, INNER

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

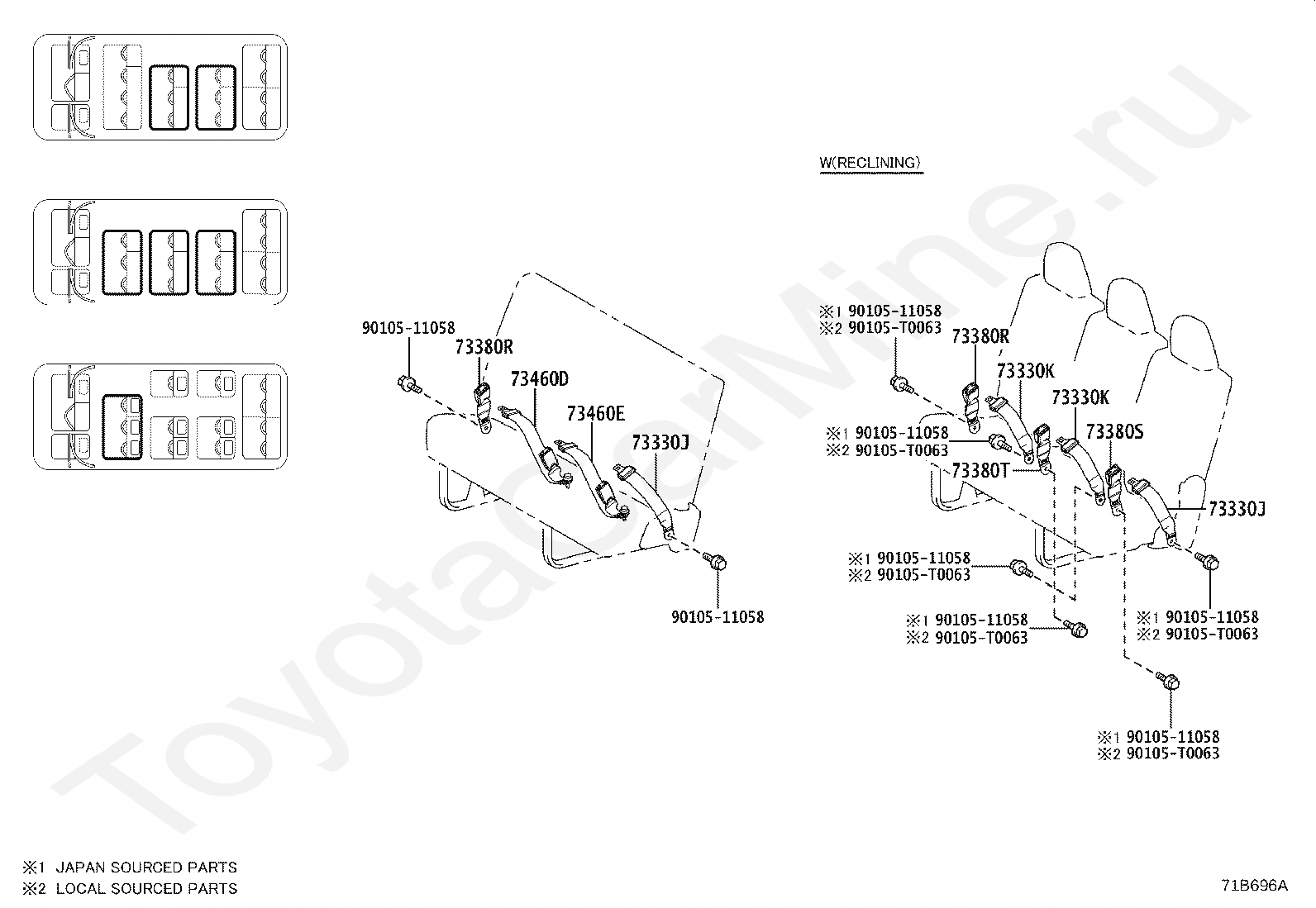

Код

Описание

73330J

BELT ASSY, REAR SEAT LAP TYPE(FOR 3 PERSONS)

73330J

BELT ASSY, REAR SEAT LAP TYPE(FOR 3 PERSONS)

73330K

BELT ASSY, REAR SEAT LAP TYPE, CENTER(FOR 3 PERSONS)

73330K

BELT ASSY, REAR SEAT LAP TYPE, CENTER(FOR 3 PERSONS)

73380R

BELT ASSY, REAR SEAT, INNER CENTER(FOR 3 PERSONS)

73380R

BELT ASSY, REAR SEAT, INNER CENTER(FOR 3 PERSONS)

73380S

BELT ASSY, REAR SEAT, INNER(FOR 3 PERSONS)

73380T

BELT ASSY, REAR SEAT, INNER CENTER NO.2(FOR 3 PERSONS)

73460D

BELT ASSY, REAR SEAT CENTER, INNER CENTER(FOR 3 PERSONS)

73460E

BELT ASSY, REAR SEAT CENTER, INNER(FOR 3 PERSONS)

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

90105T0063

Крепеж

Код

Описание

73330G

BELT ASSY, RR SEAT LAP TYPE

73330G

BELT ASSY, RR SEAT LAP TYPE

73330H

BELT ASSY, RR SEAT LAP TYPE

73330H

BELT ASSY, RR SEAT LAP TYPE

73380A

BELT ASSY, REAR SEAT, INNER

73380A

BELT ASSY, REAR SEAT, INNER

73380D

BELT ASSY, REAR SEAT, INNER

73380D

BELT ASSY, REAR SEAT, INNER

73460A

BELT ASSY, REAR SEAT CENTER, INNER

73460A

BELT ASSY, REAR SEAT CENTER, INNER

73470A

BELT ASSY, REAR SEAT, INNER CENTER

73470A

BELT ASSY, REAR SEAT, INNER CENTER

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

Код

Описание

73233D

COVER, LAP BELT OUTER ANCHOR

73233D

COVER, LAP BELT OUTER ANCHOR

73330P

BELT ASSY, REAR SEAT LAP TYPE(FOR SPACE UP SEAT)

73330P

BELT ASSY, REAR SEAT LAP TYPE(FOR SPACE UP SEAT)

73330Q

BELT ASSY, REAR SEAT LAP TYPE, CENTER(FOR SPACE UP SEAT)

73330Q

BELT ASSY, REAR SEAT LAP TYPE, CENTER(FOR SPACE UP SEAT)

73380P

BELT ASSY, REAR SEAT, INNER(FOR SPACE UP SEAT)

73380P

BELT ASSY, REAR SEAT, INNER(FOR SPACE UP SEAT)

73380Q

BELT ASSY, REAR SEAT, INNER CENTER(FOR SPACE UP SEAT)

73380Q

BELT ASSY, REAR SEAT, INNER CENTER(FOR SPACE UP SEAT)

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010911060

Крепеж

9010911060

Крепеж

90109T0042

Крепеж

90109T0042

Крепеж

Код

Описание

7157

переход к группе запчастей

7157

переход к группе запчастей

7157

переход к группе запчастей

7157

переход к группе запчастей

73317

CAP, REAR SEAT BELT, RH

73317

CAP, REAR SEAT BELT, RH

73318

CAP, REAR SEAT BELT, LH

73343

GUIDE, REAR SEAT SHOULDER BELT, RH

73343

GUIDE, REAR SEAT SHOULDER BELT, RH

73343

GUIDE, REAR SEAT SHOULDER BELT, RH

73350B

BELT ASSY, SEAT LAP TYPE, NO.3

73360F

BELT ASSY, REAR SEAT, OUTER RH(FOR 3 PERSONS)

73370G

BELT ASSY, REAR SEAT, OUTER LH(FOR 3 PERSONS)

73375X

COVER, REAR SEAT SHOULDER BELT, LH NO.1

73375Y

COVER, REAR SEAT SHOULDER BELT, LH NO.2

73375Z

COVER, REAR SEAT SHOULDER BELT, LH NO.3

73380R

BELT ASSY, REAR SEAT, INNER CENTER(FOR 3 PERSONS)

73380S

BELT ASSY, REAR SEAT, INNER(FOR 3 PERSONS)

73380S

BELT ASSY, REAR SEAT, INNER(FOR 3 PERSONS)

73C73D

COVER, REAR SEAT SHOULDER BELT, RH NO.1

73C73D

COVER, REAR SEAT SHOULDER BELT, RH NO.1

73C73E

COVER, REAR SEAT SHOULDER BELT, RH NO.2

73C73E

COVER, REAR SEAT SHOULDER BELT, RH NO.2

73C73F

COVER, REAR SEAT SHOULDER BELT, RH NO.3

73C73F

COVER, REAR SEAT SHOULDER BELT, RH NO.3

73C73G

COVER, REAR SEAT SHOULDER BELT, RH NO.4

73C73G

COVER, REAR SEAT SHOULDER BELT, RH NO.4

73C73H

COVER, REAR SEAT SHOULDER BELT HOLE, RH

73C73H

COVER, REAR SEAT SHOULDER BELT HOLE, RH

73C75

COVER, REAR SEAT SHOULDER BELT, LH NO.4

73C75A

COVER, REAR SEAT SHOULDER BELT HOLE, LH

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9016440105

Крепеж

9016440105

Крепеж

9016440105

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9356855014

Крепеж

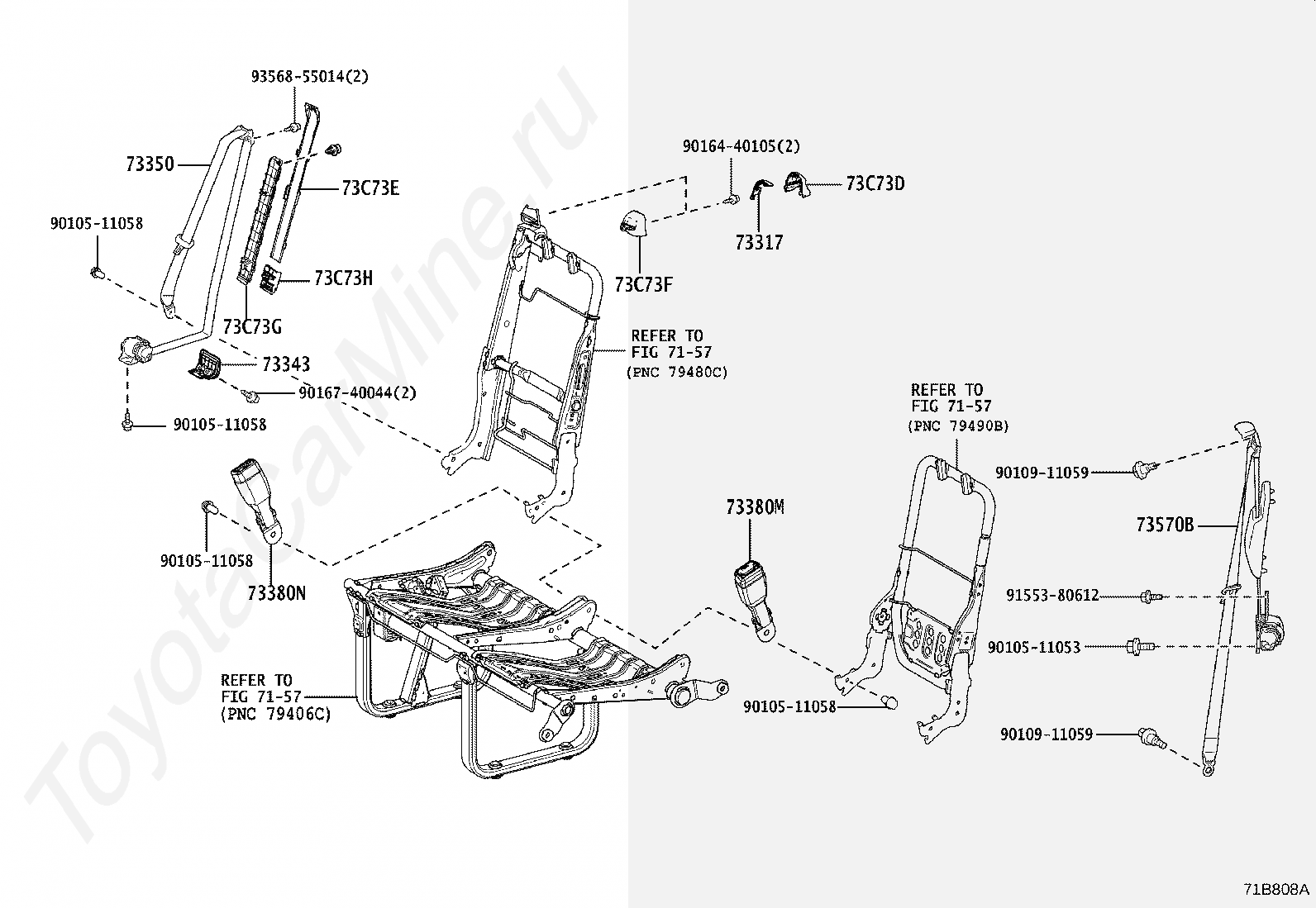

Код

Описание

7157

переход к группе запчастей

7157

переход к группе запчастей

7157

переход к группе запчастей

73317

CAP, REAR SEAT BELT, RH

73318

CAP, REAR SEAT BELT, LH

73343

GUIDE, REAR SEAT SHOULDER BELT, RH

73343

GUIDE, REAR SEAT SHOULDER BELT, RH

73360B

BELT ASSY, REAR SEAT, OUTER

73370F

BELT ASSY, REAR SEAT, OUTER LH(FOR 2 PERSONS)

73375X

COVER, REAR SEAT SHOULDER BELT, LH NO.1

73375Y

COVER, REAR SEAT SHOULDER BELT, LH NO.2

73375Z

COVER, REAR SEAT SHOULDER BELT, LH NO.3

73380M

BELT ASSY, REAR SEAT, INNER CENTER(FOR 2 PERSONS)

73380N

BELT ASSY, REAR SEAT, INNER(FOR 2 PERSONS)

73C73D

COVER, REAR SEAT SHOULDER BELT, RH NO.1

73C73E

COVER, REAR SEAT SHOULDER BELT, RH NO.2

73C73F

COVER, REAR SEAT SHOULDER BELT, RH NO.3

73C73G

COVER, REAR SEAT SHOULDER BELT, RH NO.4

73C73H

COVER, REAR SEAT SHOULDER BELT HOLE, RH

73C75

COVER, REAR SEAT SHOULDER BELT, LH NO.4

73C75A

COVER, REAR SEAT SHOULDER BELT HOLE, LH

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9016440105

Крепеж

9016440105

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9356855014

Крепеж

9356855014

Крепеж

Код

Описание

7157

переход к группе запчастей

73380L

BELT ASSY, REAR SEAT, INNER(FOR 1 PERSON)

73560C

BELT ASSY, REAR NO.4 SEAT, OUTER RH

9010511053

Крепеж

9010511058

Крепеж

9010911059

Крепеж

9010911059

Крепеж

9155380612

Крепеж

Код

Описание

7157

переход к группе запчастей

7157

переход к группе запчастей

7157

переход к группе запчастей

73317

CAP, REAR SEAT BELT, RH

73343

GUIDE, REAR SEAT SHOULDER BELT, RH

73350

BELT ASSY, REAR SEAT LAP TYPE, CENTER

73380M

BELT ASSY, REAR SEAT, INNER CENTER(FOR 2 PERSONS)

73380N

BELT ASSY, REAR SEAT, INNER(FOR 2 PERSONS)

73570B

BELT ASSY, REAR SEAT, OUTER

73C73D

COVER, REAR SEAT SHOULDER BELT, RH NO.1

73C73E

COVER, REAR SEAT SHOULDER BELT, RH NO.2

73C73F

COVER, REAR SEAT SHOULDER BELT, RH NO.3

73C73G

COVER, REAR SEAT SHOULDER BELT, RH NO.4

73C73H

COVER, REAR SEAT SHOULDER BELT HOLE, RH

9010511053

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010911059

Крепеж

9010911059

Крепеж

9016440105

Крепеж

9016740044

Крепеж

9155380612

Крепеж

9356855014

Крепеж

Код

Описание

72667C

BEZEL, REAR SEAT BACK LOCK, UPPER RH

72667D

BEZEL, REAR SEAT BACK LOCK, UPPER LH

73119

PLATE, SEAT BELT WEBBING CLIP

73219

STOPPER, TONGUE PLATE

73233D

COVER, LAP BELT OUTER ANCHOR

73233D

COVER, LAP BELT OUTER ANCHOR

73373A

COVER, REAR SEAT SHOULDER BELT, RH

73375

COVER, REAR SEAT SHOULDER BELT, LH

73380

BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

73380P

BELT ASSY, REAR SEAT, INNER(FOR SPACE UP SEAT)

73380P

BELT ASSY, REAR SEAT, INNER(FOR SPACE UP SEAT)

73380Q

BELT ASSY, REAR SEAT, INNER CENTER(FOR SPACE UP SEAT)

73380Q

BELT ASSY, REAR SEAT, INNER CENTER(FOR SPACE UP SEAT)

73390

BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

73560D

BELT ASSY, REAR SEAT, OUTER RH(FOR SPACE UP SEAT)

73560D

BELT ASSY, REAR SEAT, OUTER RH(FOR SPACE UP SEAT)

73570D

BELT ASSY, REAR SEAT, OUTER LH(FOR SPACE UP SEAT)

73570D

BELT ASSY, REAR SEAT, OUTER LH(FOR SPACE UP SEAT)

9010511053

Крепеж

9010511058

Крепеж

9010911059

Крепеж

9010911060

Крепеж

9016740044

Крепеж

9017811002

Крепеж

9155380612

Крепеж

9356054014

Крепеж

> Запчасти GRNVA/HIACE/MJSTY > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
