Ближний Восток

Модель

GRNVA/HIACE/MJSTY

VIN

Дата

2019/03

Двигатель

2,8 литра, турбо-дизель

Фрейм

GDH320

КПП

механика МКПП, 6 скоростей

Опции

левый руль высокая крыша 5 дверей SEPARATE SEAT D GEN 694W

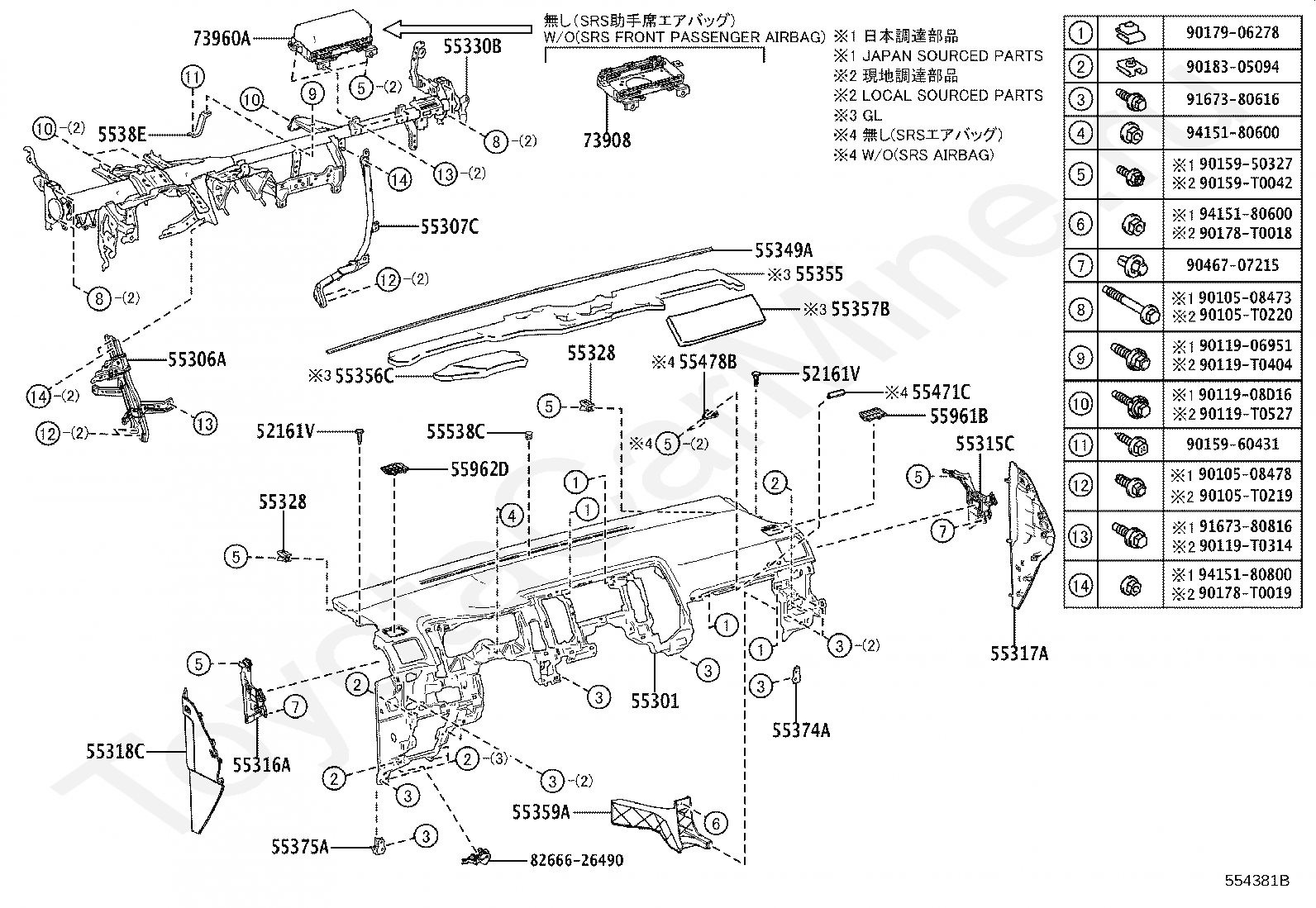

Торпеда с бардачком TOYOTA GRNVA/HIACE/MJSTY







Код

Описание

52161V

PIECE, INSTRUMENT PANEL

52161V

PIECE, INSTRUMENT PANEL

55301

PANEL SUB-ASSY, INSTRUMENT

55306A

BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

55307C

BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

55315C

PATCH, INSTRUMENT SIDE, UPPER RH

55316A

PATCH, INSTRUMENT SIDE, UPPER LH

55317A

PANEL, INSTRUMENT SIDE, RH

55318C

PANEL, INSTRUMENT SIDE, LH

55328

PIN, INSTRUMENT PANEL, NO.1

55328

PIN, INSTRUMENT PANEL, NO.1

55330B

REINFORCEMENT ASSY, INSTRUMENT PANEL

55349A

CUSHION, INSTRUMENT PANEL

55355

CUSHION, INSTRUMENT PANEL, NO.1

55356C

CUSHION, INSTRUMENT PANEL, NO.2

55357B

CUSHION, INSTRUMENT PANEL, NO.3

55359A

PROTECTOR, INSTRUMENT PANEL, NO.2

55374A

BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

55375A

BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

5538E

BRACKET, ELECTRICAL PARTS MOUNTING

55471C

PLATE, INSTRUMENT PANEL NAME

55478B

RETAINER, INSTRUMENT PANEL SAFETY PAD, NO.4

55538C

COVER, COOLER SWITCH HOLE

55961B

NOZZLE, SIDE DEFROSTER, NO.1

55962D

NOZZLE, SIDE DEFROSTER, NO.2

73908

CASE SUB-ASSY, INSTRUMENT PANEL PASSENGER AIR BAG

73960A

AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

8266626490

Крепеж

9010508473

Крепеж

9010508478

Крепеж

90105T0219

Крепеж

90105T0220

Крепеж

9011906951

Крепеж

9011908D16

Крепеж

90119T0314

Крепеж

90119T0404

Крепеж

90119T0527

Крепеж

9015950327

Крепеж

9015960431

Крепеж

90159T0042

Крепеж

90178T0018

Крепеж

90178T0019

Крепеж

9017906278

Крепеж

9018305094

Крепеж

9046707215

Крепеж

9167380616

Крепеж

9167380816

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180800

Крепеж

Код

Описание

55011A

GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1

55012A

GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2

55044C

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH

55308D

BOX SUB-ASSY, INSTRUMENT PANEL, CENTER

55404E

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR

55405B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55405B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55405B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55410C

PANEL ASSY, INSTRUMENT CLUSTER FINISH

55414A

PANEL, INSTRUMENT CLUSTER FINISH, END

55446A

BASE, SWITCH HOLE, NO.1

55447C

BASE, SWITCH HOLE, NO.2

55473A

RETAINER, INSTRUMENT PANEL FINISH PANEL

55476A

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3

55522C

COVER, RADIO RECEIVER OPENING

55532B

COVER, CIGAR LIGHTER HOLE

55539

COVER, SPARE SWITCH HOLE

55539

COVER, SPARE SWITCH HOLE

55539

COVER, SPARE SWITCH HOLE

55539

COVER, SPARE SWITCH HOLE

55539

COVER, SPARE SWITCH HOLE

55539C

COVER, SPARE SWITCH HOLE

55539F

COVER, SPARE SWITCH HOLE

55618B

BASE, SWITCH HOLE, NO.3

55620

HOLDER ASSY, INSTRUMENT PANEL CUP

55620

HOLDER ASSY, INSTRUMENT PANEL CUP

55631A

STOPPER, INSTRUMENT PANEL UNDER TRAY, NO.1

55632B

SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2

55650

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55660

REGISTER ASSY, INSTRUMENT PANEL, NO.2

55670

REGISTER ASSY, INSTRUMENT PANEL, NO.3

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

8401

переход к группе запчастей

8401

переход к группе запчастей

9015950327

Крепеж

9015950327

Крепеж

90159T0042

Крепеж

Код

Описание

55312

PANEL, INSTRUMENT, LOWER

55312A

CLIP, INSTRUMENT PANEL

55313

PANEL, INSTRUMENT, LOWER LH

55314A

PANEL, INSTRUMENT, LOWER CENTER

55314A

PANEL, INSTRUMENT, LOWER CENTER

55320

PANEL ASSY, INSTRUMENT, LOWER NO.2

55413D

PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

55413D

PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

55414A

PANEL, INSTRUMENT CLUSTER FINISH, END

55432D

PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1

55433B

PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55437A

RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

55438A

RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2

55443D

KNOB, INSTRUMENT PANEL BOX DOOR

55445B

PLATE, INSTRUMENT PANEL FINISH

55465B

KNOB, INSTRUMENT PANEL BOX LOCK

55465B

KNOB, INSTRUMENT PANEL BOX LOCK

55524

COVER, SWITCH BACE HOLE

55539

COVER, SPARE SWITCH HOLE

55539D

COVER, SPARE SWITCH HOLE

55550

DOOR ASSY, GLOVE COMPARTMENT

55557A

CUSHION, GLOVE COMPARTMENT DOOR CHECK

55557A

CUSHION, GLOVE COMPARTMENT DOOR CHECK

55641

COVER, INSTRUMENT PANEL UNDER, NO.1

55642

COVER, INSTRUMENT PANEL UNDER, NO.2

55646

COVER, INSTRUMENT PANEL UNDER, NO.3

55646

COVER, INSTRUMENT PANEL UNDER, NO.3

58533C

COVER, FLOOR CARPET, CENTER RH

58534E

COVER, FLOOR CARPET, CENTER LH

58840Q

COVER ASSY, SHIFTING HOLE

58840Q

COVER ASSY, SHIFTING HOLE

73900

AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1

9011906951

Крепеж

9015950327

Крепеж

9015960383

Крепеж

9015960383

Крепеж

90159T0005

Крепеж

90159T0042

Крепеж

9017906278

Крепеж

9046705172

Крепеж

9046709240

Крепеж

9046709241

Крепеж

9167380616

Крепеж
