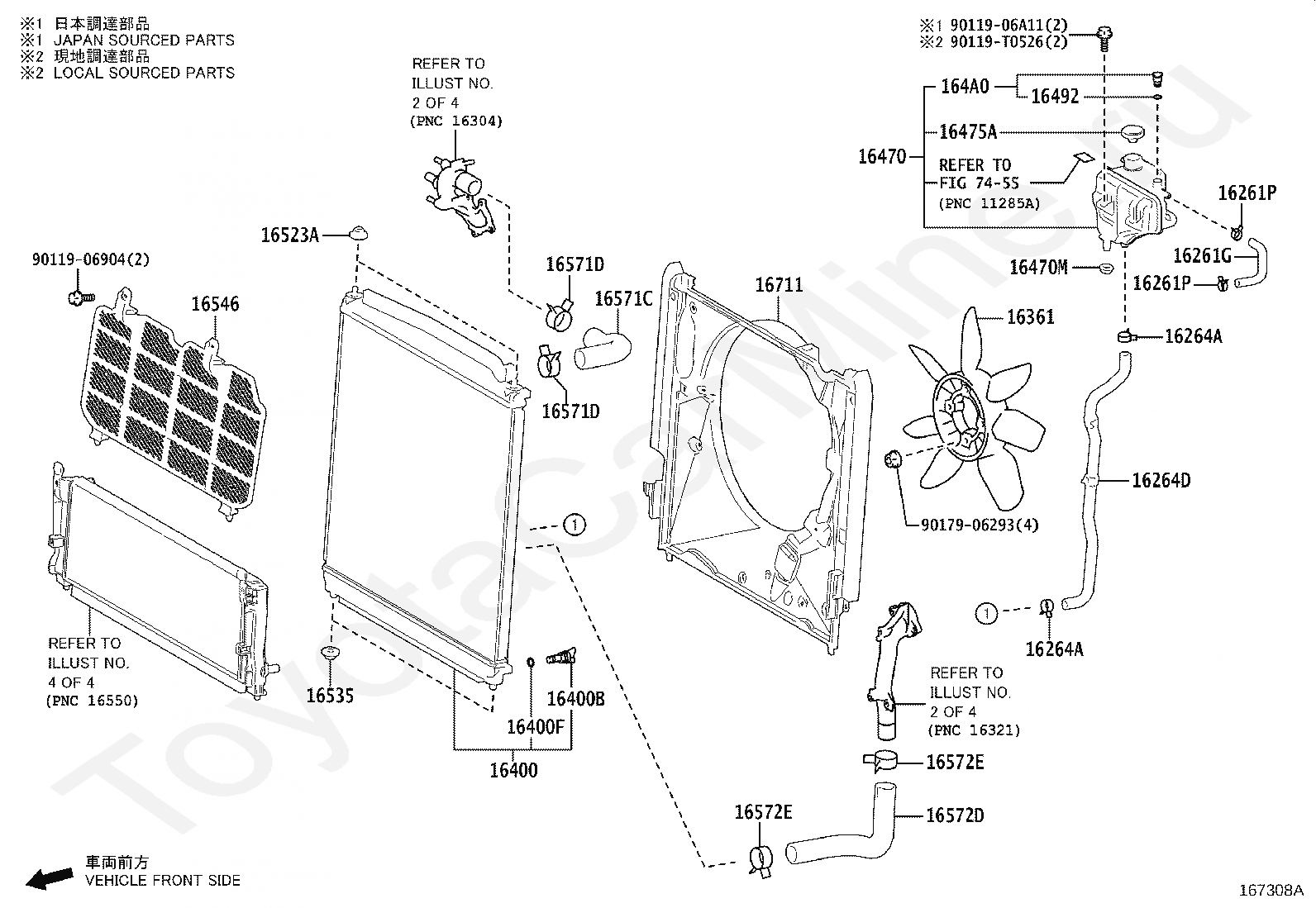

Радиатор и шланги Тойота GRNVA/HIACE/MJSTY, Ближний восток, 2019/03 - 2025/, 2,8 литра, турбо-дизель, GDH320, механика, МКПП, 6 скоростей, левый руль, высокая крыша, 5 дверей, SEPARATE SEAT, D GEN, 694W

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16361

FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16475A

CAP, RESERVE TANK

16492

RING, O(FOR RADIATOR RESERVE TANK COCK)

164A0

COCK ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16546

PROTECTOR, RADIATOR

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

1703

переход к группе запчастей

7455

переход к группе запчастей

9011906904

Крепеж

9011906A11

Крепеж

90119T0526

Крепеж

9017906293

Крепеж

Код

Описание

1201

переход к группе запчастей

1601

переход к группе запчастей

16268

PIPE, WATER BY-PASS, NO.1

16268

PIPE, WATER BY-PASS, NO.1

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

1629B

HOSE, WATER BY-PASS, NO.15

1629BA

CLIP(FOR WATER BY-PASS HOSE NO.15)

1629BA

CLIP(FOR WATER BY-PASS HOSE NO.15)

16321

INLET, WATER

16328

GASKET, WATER INLET PIPE

16331A

THERMOSTAT

16346

GASKET, THERMOSTAT

90105T0051

Крепеж

90105T0052

Крепеж

9155180616

Крепеж

9155180625

Крепеж

Код

Описание

1201

переход к группе запчастей

1601

переход к группе запчастей

16268

PIPE, WATER BY-PASS, NO.1

16268

PIPE, WATER BY-PASS, NO.1

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

1629B

HOSE, WATER BY-PASS, NO.15

1629BA

CLIP(FOR WATER BY-PASS HOSE NO.15)

1629BA

CLIP(FOR WATER BY-PASS HOSE NO.15)

16321

INLET, WATER

16328

GASKET, WATER INLET PIPE

16331A

THERMOSTAT

16346

GASKET, THERMOSTAT

90105T0051

Крепеж

90105T0052

Крепеж

9155180616

Крепеж

9155180625

Крепеж

Код

Описание

16278

PIPE, WATER BY-PASS, NO.2

16278

PIPE, WATER BY-PASS, NO.2

16278

PIPE, WATER BY-PASS, NO.2

16298

HOSE, WATER BY-PASS, NO.12

16299A

HOSE, WATER BY-PASS, NO.13

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

1629C

HOSE, WATER BY-PASS, NO.16

1629CA

CLIP(FOR WATER BY-PASS HOSE NO.16)

1629CA

CLIP(FOR WATER BY-PASS HOSE NO.16)

1629E

HOSE, WATER BY-PASS, NO.18

1629E

HOSE, WATER BY-PASS, NO.18

2501

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9010906385

Крепеж

9010906385

Крепеж

9010906385

Крепеж

90109T0062

Крепеж

90109T0062

Крепеж

9046400166

Крепеж

9613842101

Крепеж

9613842101

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613852101

Крепеж

9613852101

Крепеж

Код

Описание

16206B

PIPE SUB-ASSY, WATER BY-PASS, NO.3

16206B

PIPE SUB-ASSY, WATER BY-PASS, NO.3

16274

PLUG, WATER BY-PASS

16274A

CLIP(FOR WATER BY-PASS PLUG)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16304

OUTLET SUB-ASSY, WATER

16304

OUTLET SUB-ASSY, WATER

16304

OUTLET SUB-ASSY, WATER

16341

GASKET, WATER OUTLET

8716

переход к группе запчастей

8716

переход к группе запчастей

90105T0051

Крепеж

9012606029

Крепеж

90178T0018

Крепеж

9046910005

Крепеж

9155180616

Крепеж

9167180616

Крепеж

9415180600

Крепеж

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16347A

GASKET(FOR TURBO WATER PIPE)

16575C

BRACKET, WATER HOSE CLAMP, NO.1

1701

переход к группе запчастей

1701

переход к группе запчастей

90119T0260

Крепеж

90119T0260

Крепеж

90178T0018

Крепеж

9046914003

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9415180600

Крепеж

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16287

HOSE, TURBO WATER, NO.4

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

1629H

HOSE, WATER BY-PASS, NO.21

1629HA

CLIP(FOR WATER BY-PASS HOSE NO.21)

1629HA

CLIP(FOR WATER BY-PASS HOSE NO.21)

16347A

GASKET(FOR TURBO WATER PIPE)

16575C

BRACKET, WATER HOSE CLAMP, NO.1

1701

переход к группе запчастей

1701

переход к группе запчастей

90119T0260

Крепеж

90119T0260

Крепеж

90178T0018

Крепеж

9046914003

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9415180600

Крепеж

Код

Описание

1503

переход к группе запчастей

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16279

PIPE, WATER BY-PASS, NO.3

16279

PIPE, WATER BY-PASS, NO.3

16286

HOSE, TURBO WATER, NO.3

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16293

HOSE, WATER BY-PASS, NO.10

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

1701

переход к группе запчастей

90105T0120

Крепеж

90119T0136

Крепеж

9155180820

Крепеж

9167180614

Крепеж

Код

Описание

16025

PIPE SUB-ASSY, WATER BY-PASS, NO.5

16025

PIPE SUB-ASSY, WATER BY-PASS, NO.5

16209

PIPE SUB-ASSY, WATER BY-PASS, NO.4

16209

PIPE SUB-ASSY, WATER BY-PASS, NO.4

16209

PIPE SUB-ASSY, WATER BY-PASS, NO.4

16258C

GASKET(FOR WATER BY-PASS PIPE)

16258C

GASKET(FOR WATER BY-PASS PIPE)

16278D

HOSE, WATER BY-PASS

16278E

CLIP(FOR WATER BY-PASS HOSE)

16278E

CLIP(FOR WATER BY-PASS HOSE)

16283

HOSE, WATER BY-PASS, NO.6

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16294

HOSE, WATER BY-PASS, NO.11

16294A

CLIP(FOR WATER BY-PASS HOSE NO.11)

16294A

CLIP(FOR WATER BY-PASS HOSE NO.11)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

1629A

HOSE, WATER BY-PASS, NO.14

1629AA

CLIP(FOR WATER BY-PASS HOSE NO.14)

1629AA

CLIP(FOR WATER BY-PASS HOSE NO.14)

16571E

HOSE, WATER

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16581

CLAMP, HOSE(FOR WATER HOSE)

2501

переход к группе запчастей

2606

переход к группе запчастей

90119T0260

Крепеж

90119T0342

Крепеж

90119T0342

Крепеж

9167180612

Крепеж

9167180616

Крепеж

9167180820

Крепеж

9167180820

Крепеж

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16361

FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16475A

CAP, RESERVE TANK

16492

RING, O(FOR RADIATOR RESERVE TANK COCK)

164A0

COCK ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16546

PROTECTOR, RADIATOR

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

7455

переход к группе запчастей

9011906904

Крепеж

9011906A11

Крепеж

90119T0526

Крепеж

9017906293

Крепеж

Код

Описание

1503

переход к группе запчастей

1601

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16286

HOSE, TURBO WATER, NO.3

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16287

HOSE, TURBO WATER, NO.4

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

16293

HOSE, WATER BY-PASS, NO.10

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

1629H

HOSE, WATER BY-PASS, NO.21

1629HA

CLIP(FOR WATER BY-PASS HOSE NO.21)

1629HA

CLIP(FOR WATER BY-PASS HOSE NO.21)

16304

OUTLET SUB-ASSY, WATER

16321

INLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16346

GASKET, THERMOSTAT

16347A

GASKET(FOR TURBO WATER PIPE)

16575C

BRACKET, WATER HOSE CLAMP, NO.1

1701

переход к группе запчастей

1701

переход к группе запчастей

1701

переход к группе запчастей

90105T0120

Крепеж

90119T0260

Крепеж

90119T0260

Крепеж

90119T0260

Крепеж

9012606029

Крепеж

90126T0012

Крепеж

90178T0018

Крепеж

90178T0018

Крепеж

9046914003

Крепеж

9155180625

Крепеж

9155180820

Крепеж

9167180614

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

1201

переход к группе запчастей

16025

PIPE SUB-ASSY, WATER BY-PASS, NO.5

16206B

PIPE SUB-ASSY, WATER BY-PASS, NO.3

16209

PIPE SUB-ASSY, WATER BY-PASS, NO.4

16258C

GASKET(FOR WATER BY-PASS PIPE)

16268

PIPE, WATER BY-PASS, NO.1

16278

PIPE, WATER BY-PASS, NO.2

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16294

HOSE, WATER BY-PASS, NO.11

16294A

CLIP(FOR WATER BY-PASS HOSE NO.11)

16294A

CLIP(FOR WATER BY-PASS HOSE NO.11)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16299A

HOSE, WATER BY-PASS, NO.13

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

1629A

HOSE, WATER BY-PASS, NO.14

1629AA

CLIP(FOR WATER BY-PASS HOSE NO.14)

1629AA

CLIP(FOR WATER BY-PASS HOSE NO.14)

1629B

HOSE, WATER BY-PASS, NO.15

1629BA

CLIP(FOR WATER BY-PASS HOSE NO.15)

1629BA

CLIP(FOR WATER BY-PASS HOSE NO.15)

1629C

HOSE, WATER BY-PASS, NO.16

1629CA

CLIP(FOR WATER BY-PASS HOSE NO.16)

1629CA

CLIP(FOR WATER BY-PASS HOSE NO.16)

1629D

HOSE, WATER BY-PASS, NO.17

1629DA

CLIP(FOR WATER BY-PASS HOSE NO.17)

1629DA

CLIP(FOR WATER BY-PASS HOSE NO.17)

1629E

HOSE, WATER BY-PASS, NO.18

16328

GASKET, WATER INLET PIPE

16571E

HOSE, WATER

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16581

CLAMP, HOSE(FOR WATER HOSE)

2501

переход к группе запчастей

2606

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9010906385

Крепеж

90119T0260

Крепеж

90119T0260

Крепеж

90119T0342

Крепеж

9046718008

Крепеж

9046910005

Крепеж

9155180616

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9167180820

Крепеж

9613751701

Крепеж

Код

Описание

161B0

PUMP ASSY, ELECTRIC WATER

16400L

CLAMP, NO.1

16400L

CLAMP, NO.1

16407A

COCK SUB-ASSY, RADIATOR DRAIN

16475D

CAP, RESERVE TANK

16515A

PIPE, INTERCOOLER COOLING WATER, NO.1

16517A

PIPE, INTERCOOLER COOLING WATER, NO.3

16550

RADIATOR ASSY, INTERCOOLER COOLING

16551C

HOSE, INTERCOOLER COOLING WATER, NO.1

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16552C

HOSE, INTERCOOLER COOLING WATER, NO.2

16552D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2)

16552D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2)

16553D

HOSE, INTERCOOLER COOLING WATER, NO.3

16553E

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3)

16553E

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3)

16554C

HOSE, INTERCOOLER COOLING WATER, NO.4

16554D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4)

16554D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4)

16555C

HOSE, INTERCOOLER COOLING WATER, NO.5

16555D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)

16555D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)

165A0

HOSE ASSY, INTERCOOLER COOLING WATER, NO.1

165A0A

CLIP, HOSE

165A0A

CLIP, HOSE

16640

TANK ASSY, INTERCOOLER RESERVE

1703

переход к группе запчастей

9011906864

Крепеж

9011906A11

Крепеж

90119T0260

Крепеж

9048018006

Крепеж

9048025025

Крепеж

9155180625

Крепеж

9167180616

Крепеж

Радиатор и шланги TOYOTA GRNVA/HIACE/MJSTY

Купить

Поиск
