Ближний Восток

Модель

GRNVA/HIACE/MJSTY

VIN

Дата

2019/07

Двигатель

2,8 литра, турбо-дизель

Фрейм

GDH304

КПП

автомат АКПП, 6 скоростей

Опции

правый руль STANDARD ROOF 5 дверей боковое стекло H TH 694W

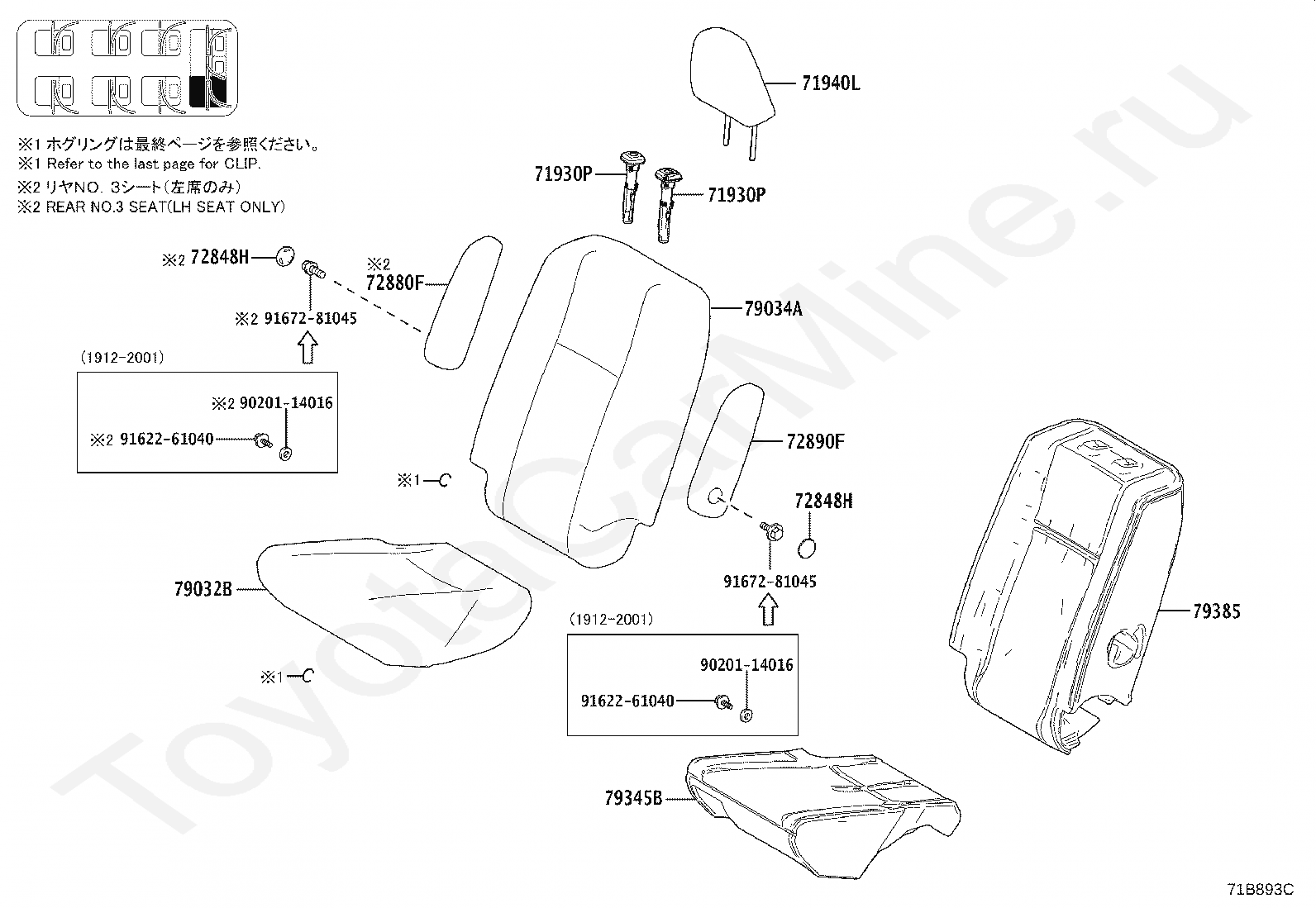

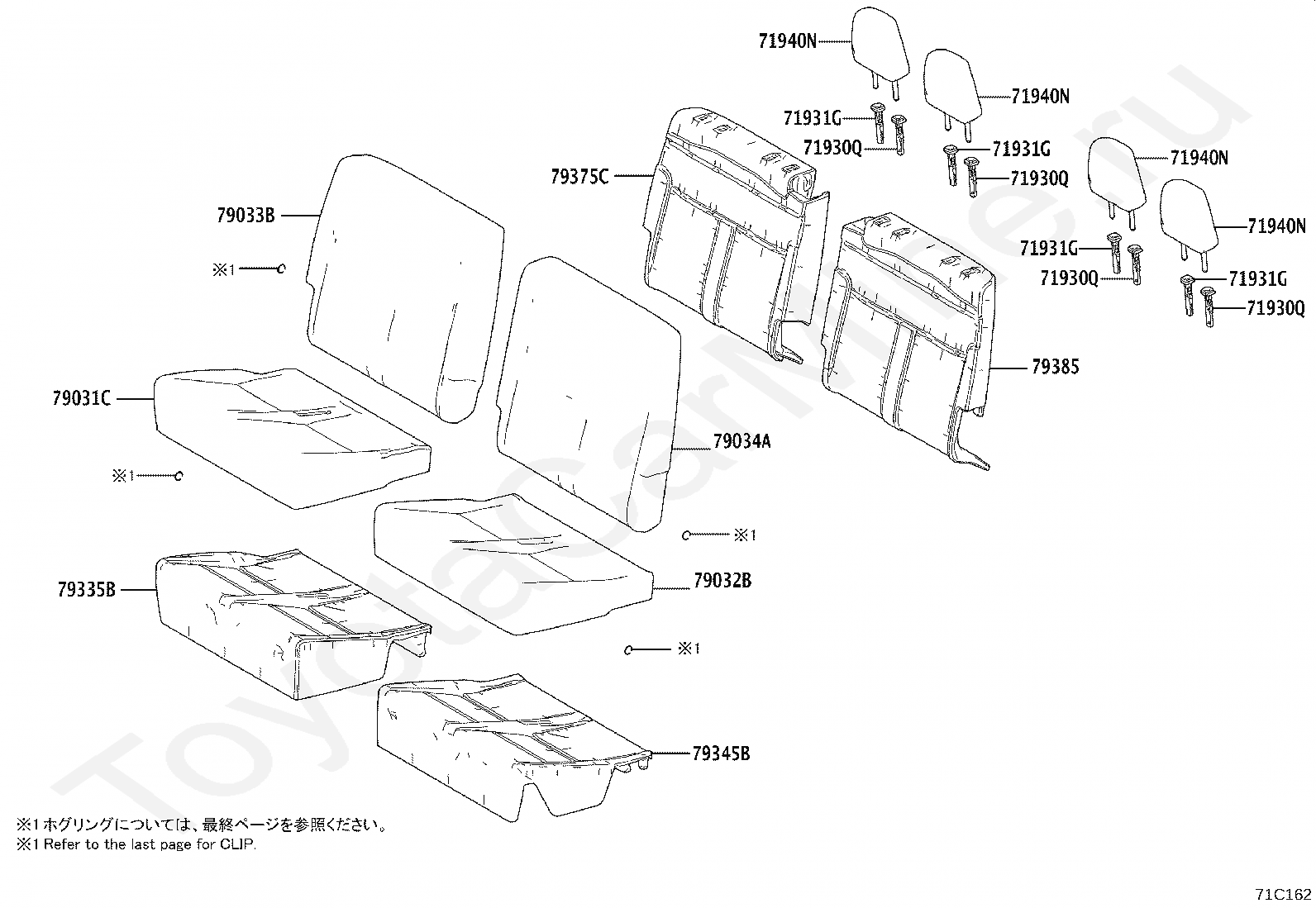

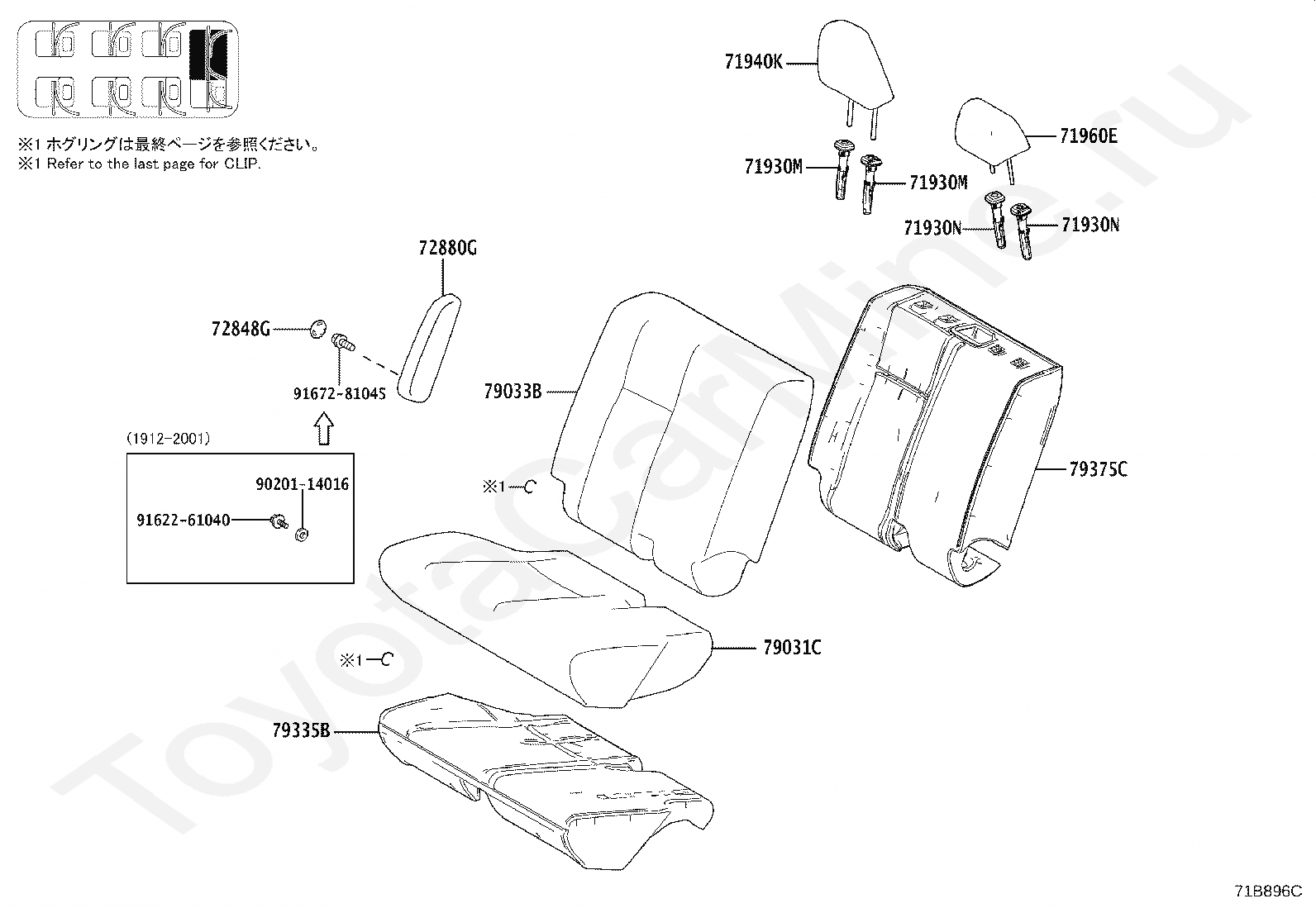

REAR SEAT & SEAT TRACK TOYOTA GRNVA/HIACE/MJSTY







Код

Описание

71731P

FASTENER, SEAT COVER, RH

71731Q

FASTENER, SEAT COVER, LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

71940N

HEADREST ASSY, REAR SEAT, NO.2

71940N

HEADREST ASSY, REAR SEAT, NO.2

71940N

HEADREST ASSY, REAR SEAT, NO.2

79031C

COVER, SUB-ASSY, NO.3 SEAT CUSHION, RH

79032B

COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH

79033B

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034A

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79041C

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042A

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043B

COVER SUB-ASSY, NO.4 SEAT BACK, RH(FOR RH SEAT)

79044B

COVER SUB-ASSY, NO.4 SEAT BACK, LH(FOR LH SEAT)

79335B

PAD, NO.3 SEAT CUSHION, RH

79345B

PAD, NO.3 SEAT CUSHION, LH

79375C

PAD, NO.3 SEAT BACK, RH

79385

PAD, NO.3 SEAT BACK, LH

79435B

PAD, NO.4 SEAT CUSHION, RH

79435C

PAD, NO.4 SEAT CUSHION, LH

79475B

PAD, NO.4 SEAT BACK, RH(FOR RH SEAT)

79485B

PAD, NO.4 SEAT BACK, LH(FOR LH SEAT)

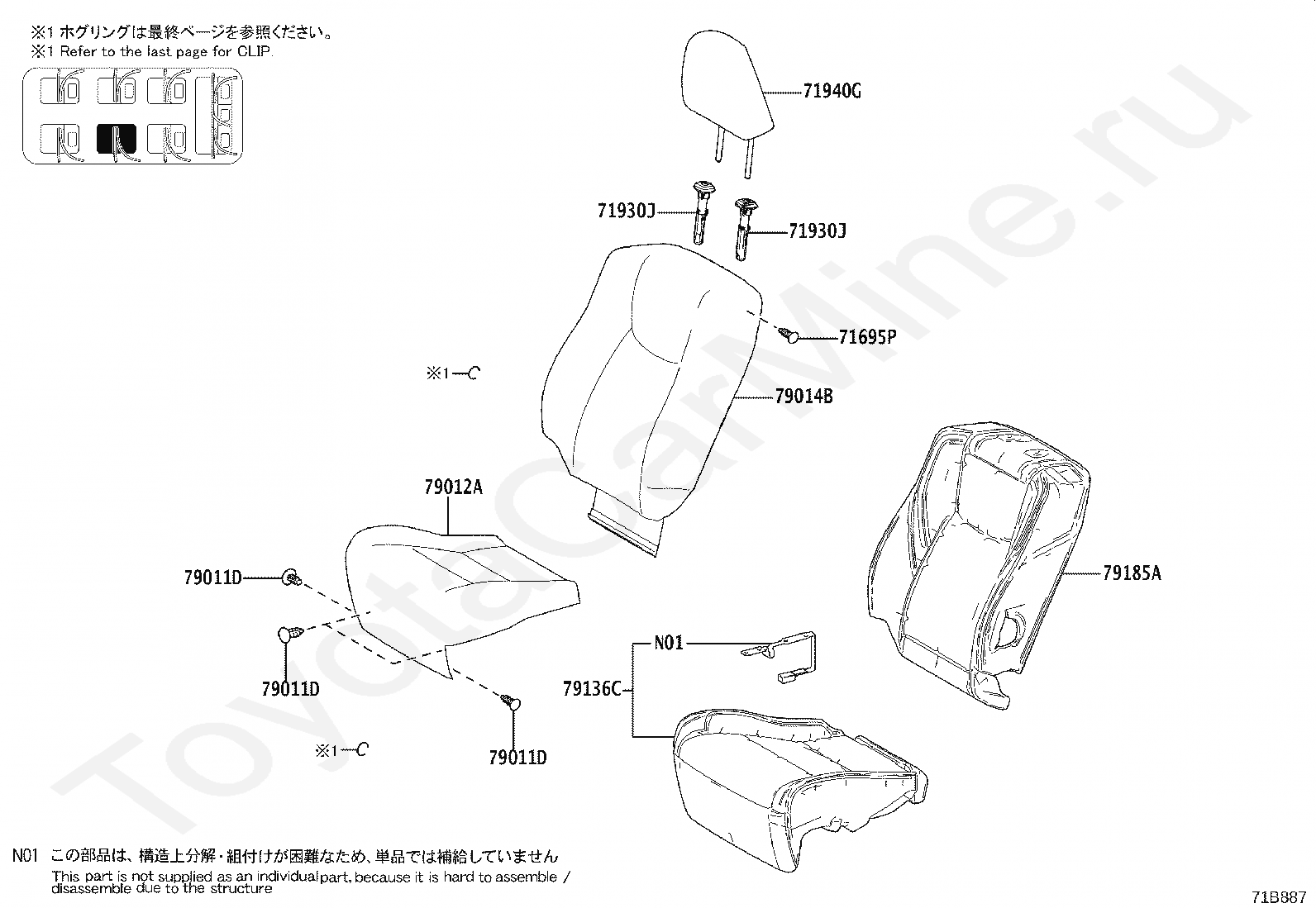

Код

Описание

71695P

CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 LH

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71940G

HEADREST ASSY, NO.1 SEAT, LH

79011D

CLIP, NO.1 SEAT CUSHION COVER, LH

79011D

CLIP, NO.1 SEAT CUSHION COVER, LH

79011D

CLIP, NO.1 SEAT CUSHION COVER, LH

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

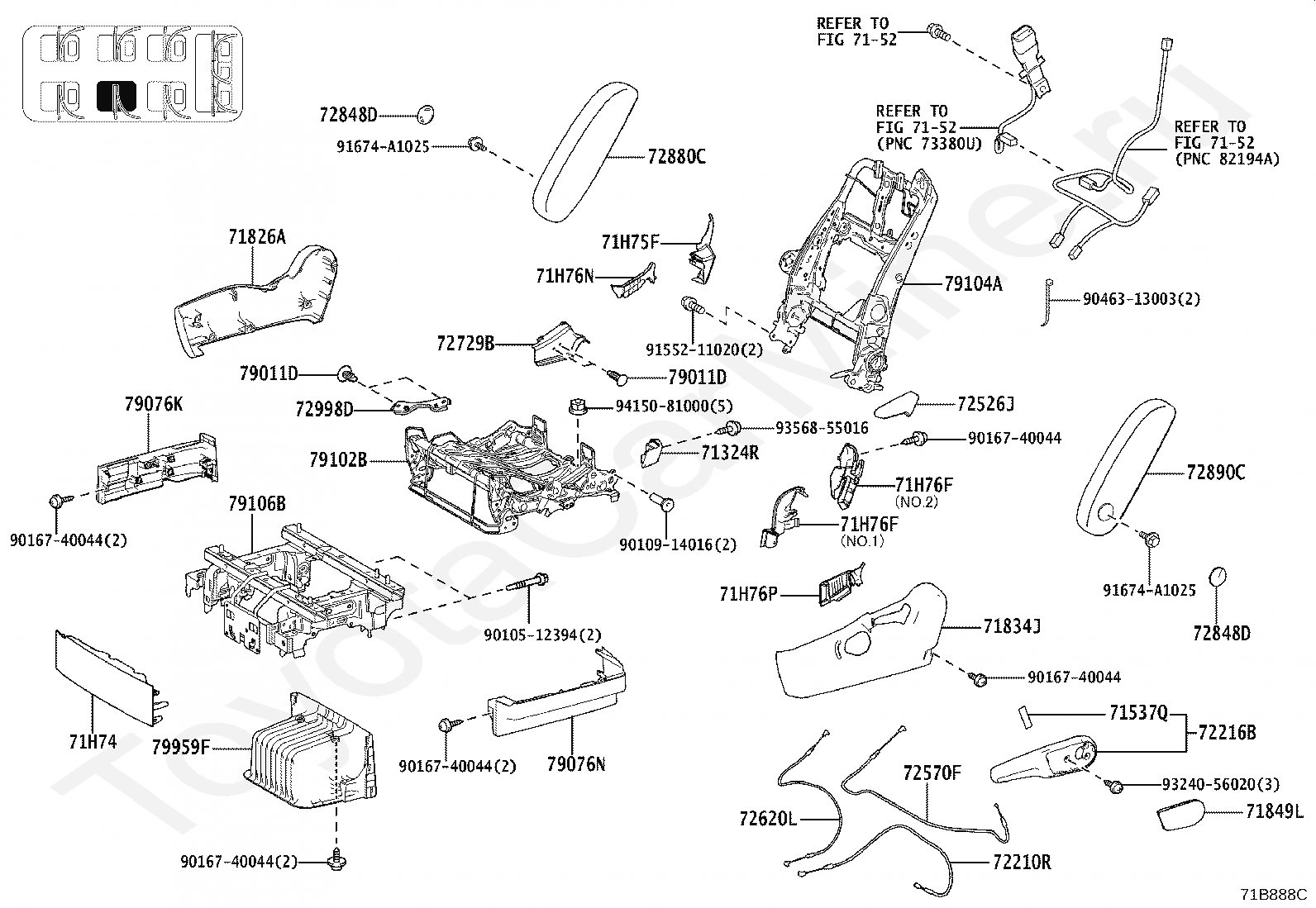

Код

Описание

71324R

CUSHION, REAR NO.1 SEAT, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537Q

PROTECTOR, REAR NO.1 SEAT CUSHION, LH

71826A

MOULDING, NO.1 SEAT CUSHION, LH INNER

71834J

COVER, NO.1 SEAT RECLINING, NO.1 LH OUTER

71849L

CAP, NO.1 SEAT ADJUSTER COVER, LH

71H74

SHIELD, REAR SEAT CUSHION, LOWER LH

71H75F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH SEAT)

71H76F

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH SEAT)

71H76F

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

71H76P

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT)

72210R

CABLE ASSY, NO.1 SEAT SLIDE, LH

72216B

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72570F

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, LH

72620L

CABLE ASSY, NO.1 SEAT WALK-IN, LH

72729B

PROTECTOR, NO.1 SEAT RECLINING, INNER LH

72848D

CAP, NO.1 SEAT ARMREST, NO.1 LH

72848D

CAP, NO.1 SEAT ARMREST, NO.1 LH

72880C

ARMREST ASSY, NO.1 SEAT, C RH(FOR LH SEAT)

72890C

ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)

72998D

COVER, REAR SEAT CUSHION, LH

79011D

CLIP, NO.1 SEAT CUSHION COVER, LH

79011D

CLIP, NO.1 SEAT CUSHION COVER, LH

79076K

COVER SUB-ASSY, NO.1 SEAT LEG, LH INNER

79076N

COVER SUB-ASSY, NO.1 SEAT LEG, LH OUTER

79102B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79959F

COVER, NO.1 SEAT LEG, LH

9010512394

Крепеж

9010914016

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046313003

Крепеж

9155211020

Крепеж

91674A1025

Крепеж

91674A1025

Крепеж

9324056020

Крепеж

9356855016

Крепеж

9415081000

Крепеж

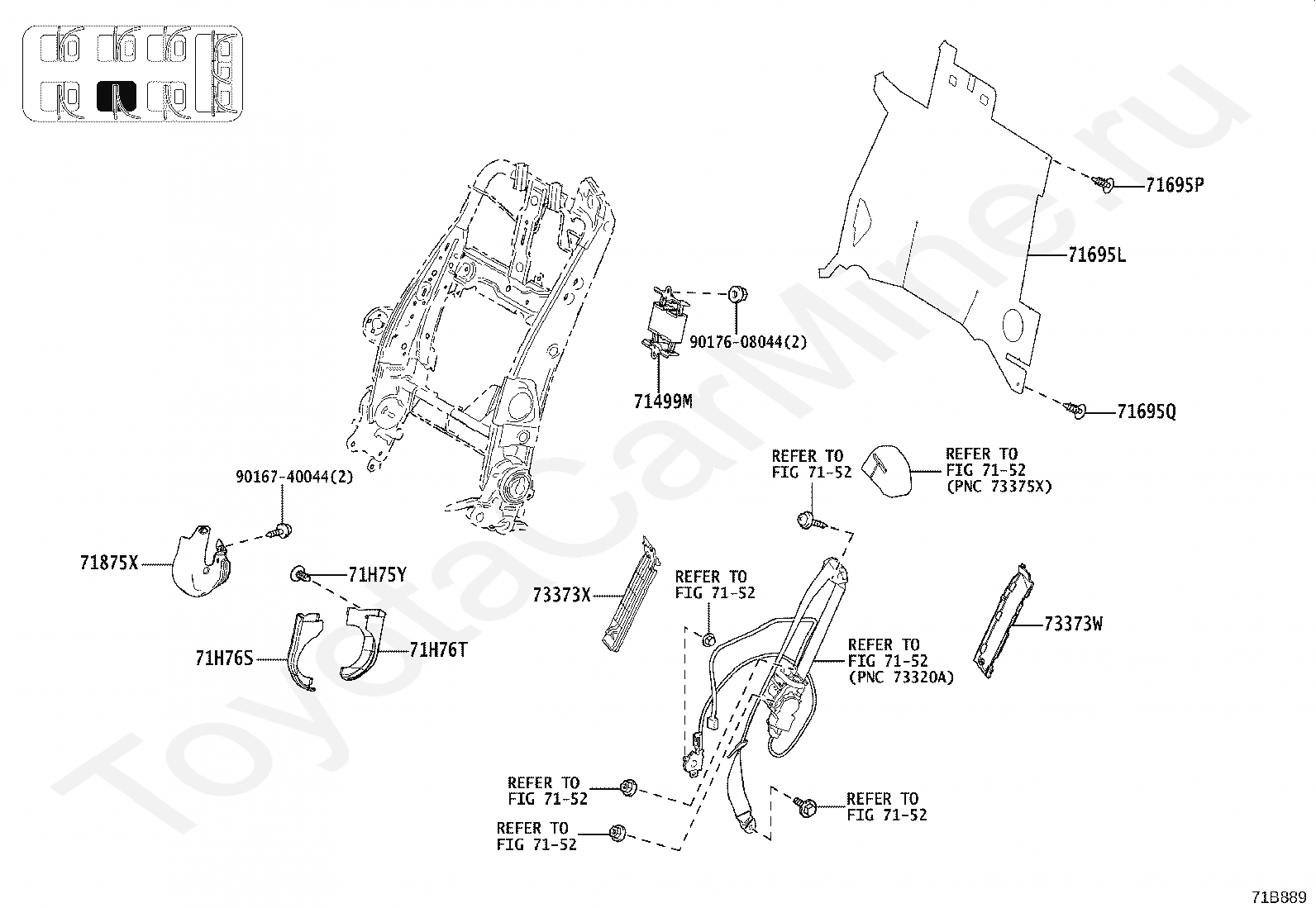

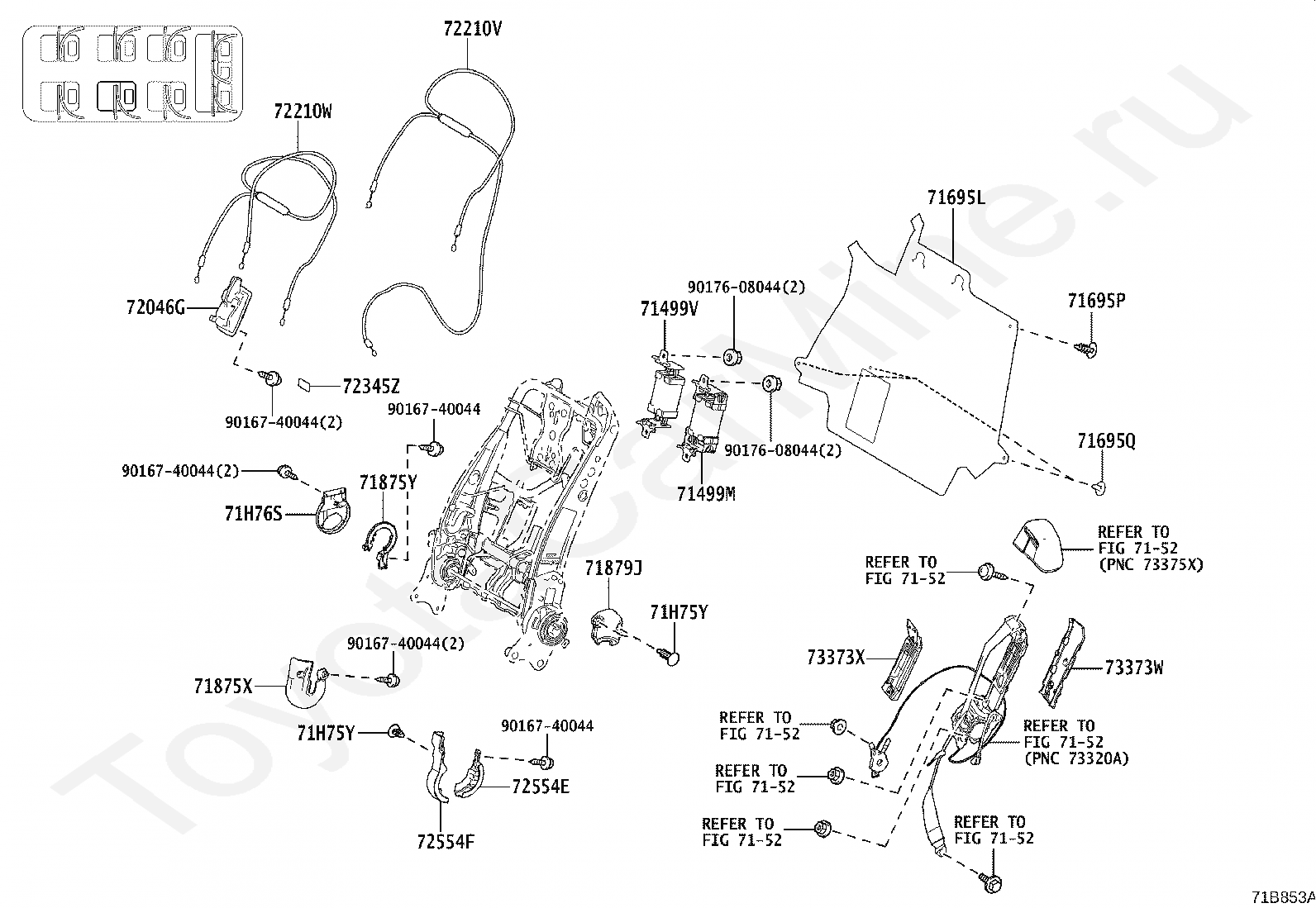

Код

Описание

71499M

DAMPER, NO.1 SEAT BACK SPRING, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695L

PROTECTOR, NO.1 SEAT BACK, LH

71695P

CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 LH

71695Q

CLIP, REAR NO.1 SEAT PROTECTOR, NO.2 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H76S

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT BACK)

71H76T

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT BACK)

73373W

COVER, NO.1 SEAT SHOULDER BELT, LH NO.2

73373X

COVER, NO.1 SEAT SHOULDER BELT, LH NO.1

9016740044

Крепеж

9017608044

Крепеж

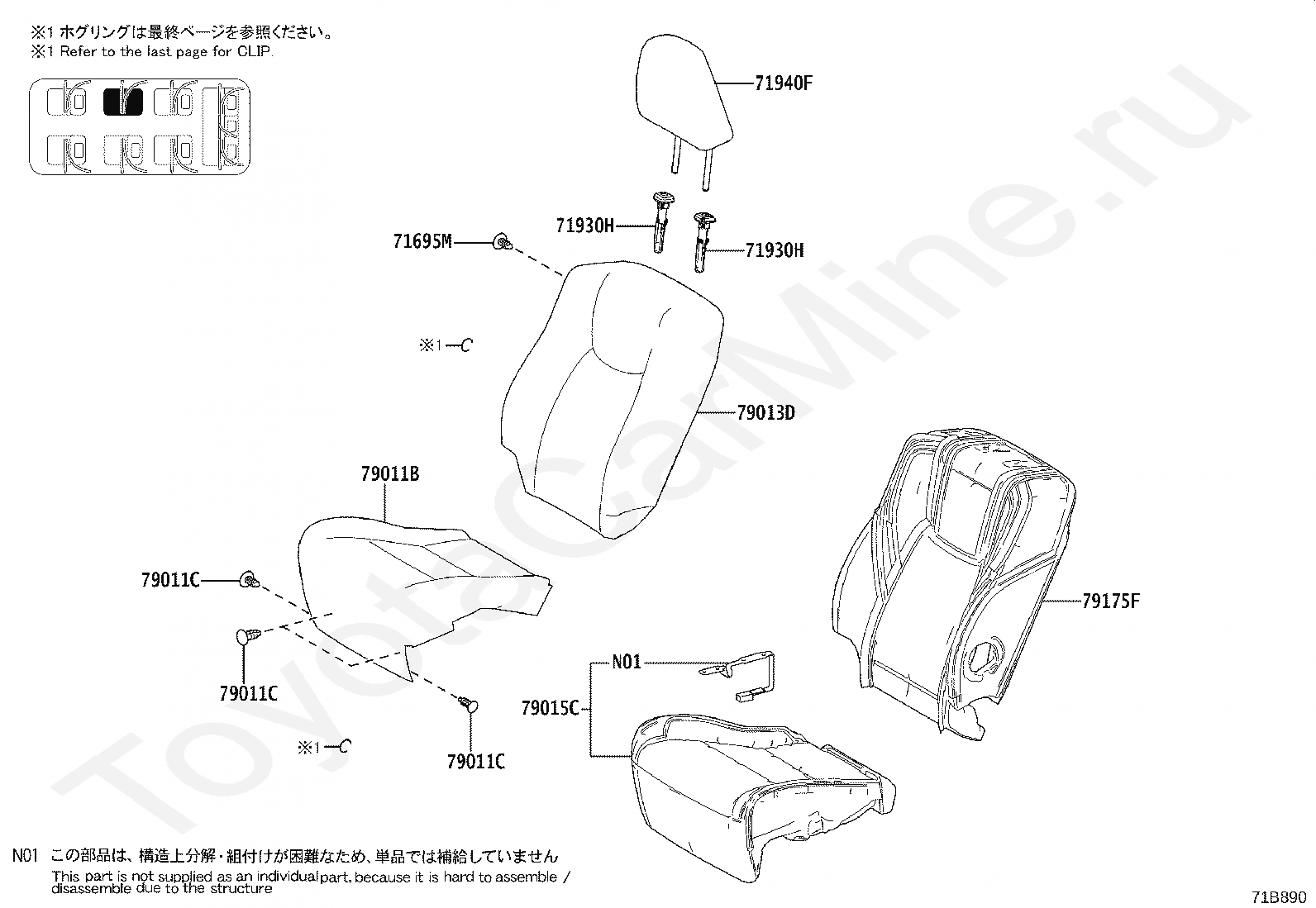

Код

Описание

71695M

CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 RH

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71940F

HEADREST ASSY, NO.1 SEAT, RH

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79011C

CLIP, NO.1 SEAT CUSHION COVER, RH

79011C

CLIP, NO.1 SEAT CUSHION COVER, RH

79011C

CLIP, NO.1 SEAT CUSHION COVER, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79015C

PAD SUB-ASSY, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

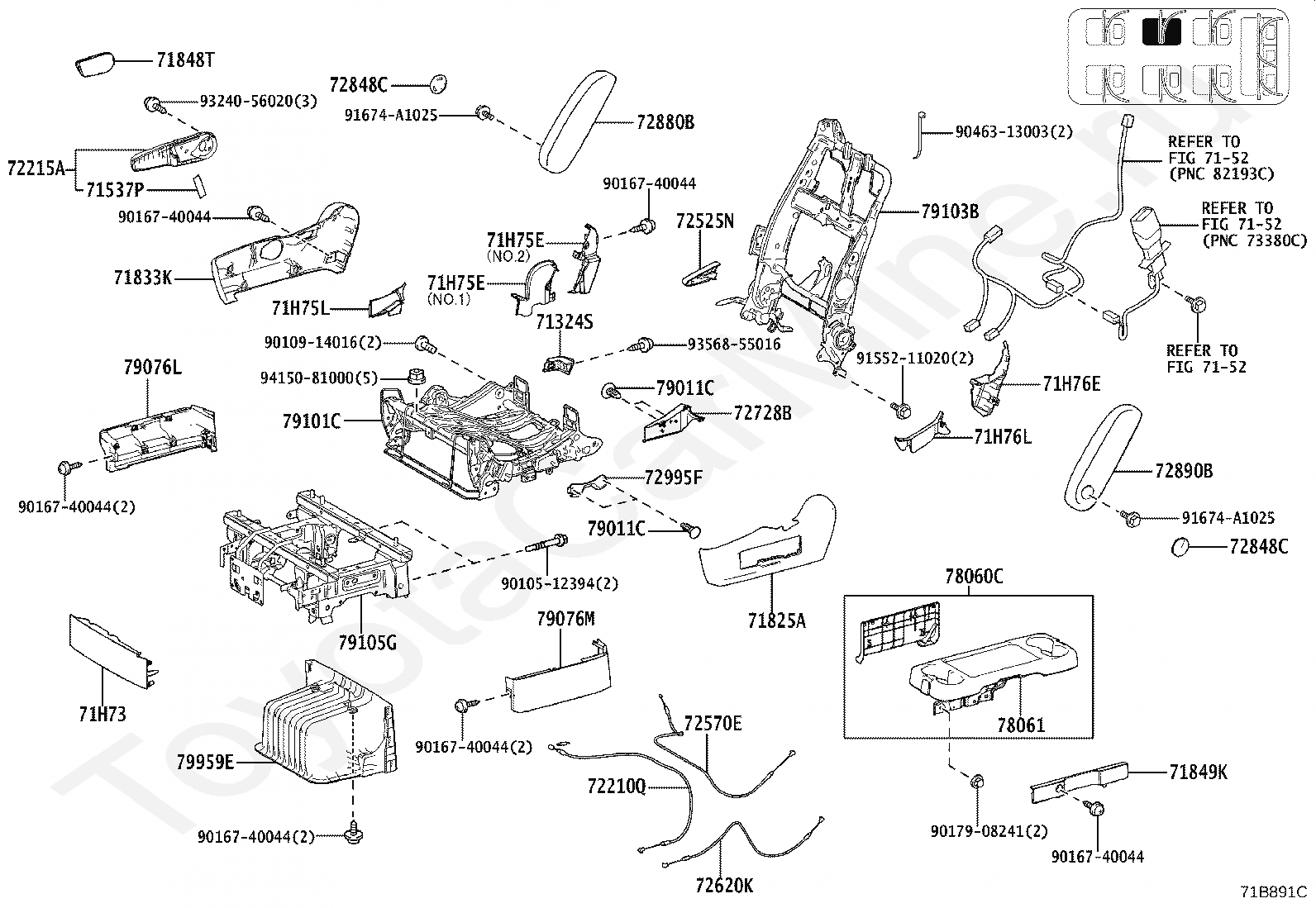

Код

Описание

71324S

CUSHION, REAR NO.1 SEAT, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537P

PROTECTOR, REAR NO.1 SEAT CUSHION, RH

71825A

MOULDING, NO.1 SEAT CUSHION, RH INNER

71833K

COVER, NO.1 SEAT RECLINING, NO.1 RH OUTER

71848T

CAP, NO.1 SEAT ADJUSTER COVER, RH

71849K

CAP, SEAT ADJUSTER COVER(FOR SEAT SIDE TABLE)

71H73

SHIELD, REAR SEAT CUSHION, LOWER RH

71H75E

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)

71H75E

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H76E

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH SEAT)

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

72210Q

CABLE ASSY, NO.1 SEAT SLIDE, RH

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72620K

CABLE ASSY, NO.1 SEAT WALK-IN, RH

72728B

PROTECTOR, NO.1 SEAT RECLINING, INNER RH

72848C

CAP, NO.1 SEAT ARMREST, NO.1 RH

72848C

CAP, NO.1 SEAT ARMREST, NO.1 RH

72880B

ARMREST ASSY, NO.1 SEAT, C RH(FOR RH SEAT)

72890B

ARMREST ASSY, NO.1 SEAT, C LH(FOR RH SEAT)

72995F

COVER, REAR SEAT CUSHION, RH

78060C

TABLE ASSY, NO.1 SEAT SIDE

78061

TABLE SUB-ASSY, REAR NO.1 SEAT SIDE

79011C

CLIP, NO.1 SEAT CUSHION COVER, RH

79011C

CLIP, NO.1 SEAT CUSHION COVER, RH

79076L

COVER SUB-ASSY, NO.1 SEAT LEG, RH OUTER

79076M

COVER SUB-ASSY, NO.1 SEAT LEG, RH INNER

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79959E

COVER, NO.1 SEAT LEG, RH

9010512394

Крепеж

9010914016

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908241

Крепеж

9046313003

Крепеж

9155211020

Крепеж

91674A1025

Крепеж

91674A1025

Крепеж

9324056020

Крепеж

9356855016

Крепеж

9415081000

Крепеж

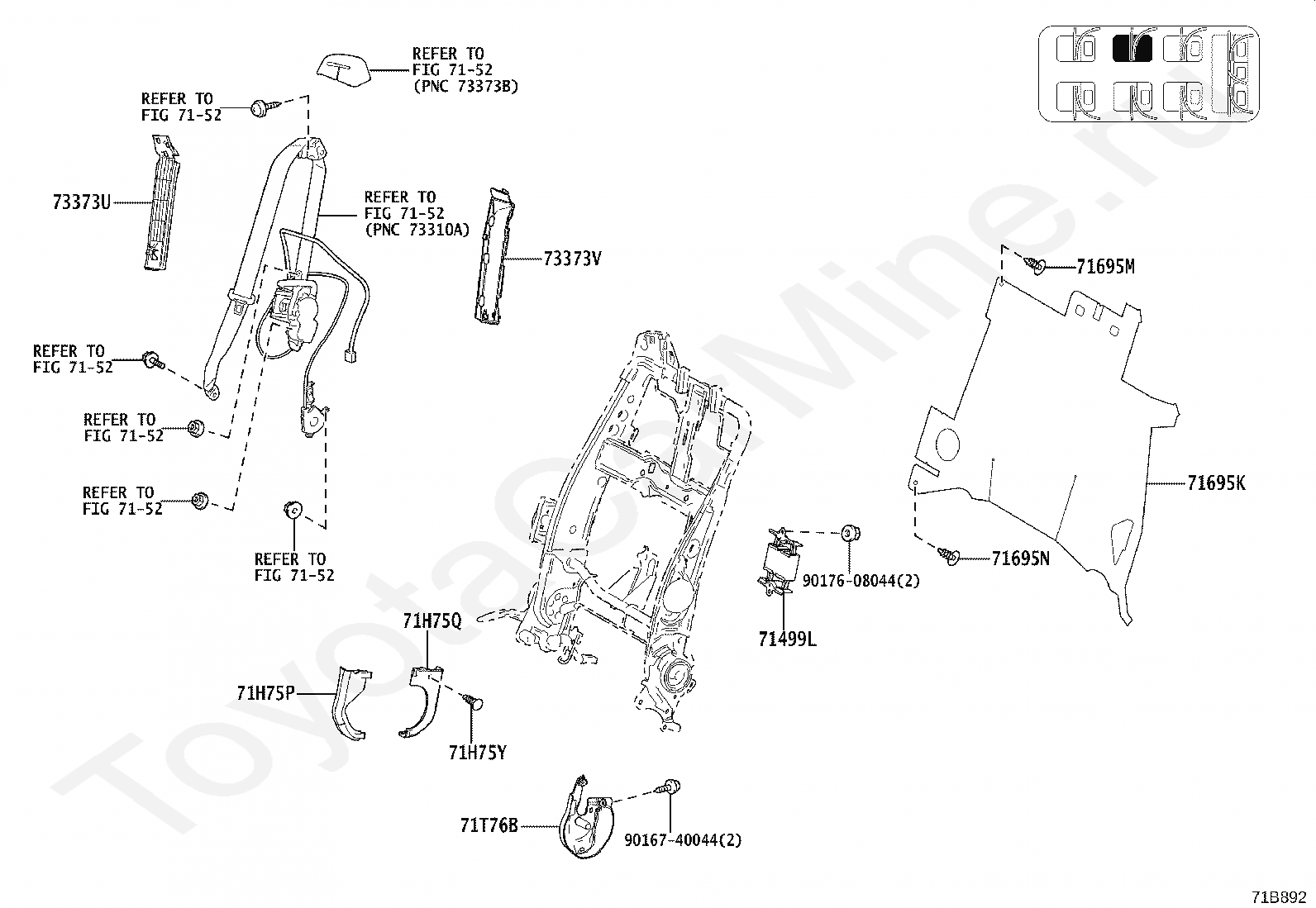

Код

Описание

71499L

DAMPER, NO.1 SEAT BACK SPRING, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695K

PROTECTOR, NO.1 SEAT BACK, RH

71695M

CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 RH

71695N

CLIP, REAR NO.1 SEAT PROTECTOR, NO.2 RH

71H75P

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT BACK)

71H75Q

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT BACK)

71H75Y

CLIP, REAR SEAT RECLINING COVER

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

73373V

COVER, NO.1 SEAT SHOULDER BELT, RH NO.2

9016740044

Крепеж

9017608044

Крепеж

Код

Описание

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71940G

HEADREST ASSY, NO.1 SEAT, LH

71H75Y

CLIP, REAR SEAT RECLINING COVER

72998E

CLIP, REAR SEAT CUSHION COVER, LH

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79018

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

87510Y

HEATER ASSY, REAR NO.1 SEAT CUSHION, LH

87530

HEATER ASSY, REAR NO.1 SEAT BACK, LH

Код

Описание

66990E

HOLDER ASSY, REAR NO.1 SEAT CUP, LH

66993E

PLATE, REAR NO.1 SEAT CUP HOLDER, LH

71324R

CUSHION, REAR NO.1 SEAT, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

71826C

MOULDING, REAR SEAT CUSHION, LH

71844J

COVER, REAR NO.1 SEAT RECLINING, NO.2 LH

71848W

CAP, NO.1 SEAT ADJUSTER COVER, RH(FOR LH SEAT)

71849L

CAP, NO.1 SEAT ADJUSTER COVER, LH

71866D

BEZEL, REAR NO.1 SEAT COVER, NO.2(FOR LH SEAT)

71H74

SHIELD, REAR SEAT CUSHION, LOWER LH

71H75F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH SEAT)

71H75R

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H76F

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

71H76P

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT)

72046F

COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.1(FOR LH SEAT)

72075C

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR LH SEAT)

72210R

CABLE ASSY, NO.1 SEAT SLIDE, LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72345Y

CAP, NO.1 SEAT STAND FRAME, NO.1(FOR LH SEAT)

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72781E

SPRING, REAR NO.1 SEAT PLATE, LH

72803H

FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, RH(FOR LH SEAT)

72804E

FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, LH(FOR LH SEAT)

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72890C

ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)

72C45

CAP, NO.1 SEAT STAND FRAME, NO.3(FOR LH SEAT)

78656K

COVER, REAR SEAT LEGREST, LH

78987B

COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH

79102B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79959F

COVER, NO.1 SEAT LEG, LH

79968W

COVER, REAR NO.1 SEAT LEG SIDE, NO.5(FOR LH SEAT)

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010512394

Крепеж

9010914016

Крепеж

9014940012

Крепеж

9015940206

Крепеж

9015940206

Крепеж

9015960613

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9046313003

Крепеж

9052302002

Крепеж

9054103006

Крепеж

9155100840

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155211225

Крепеж

9155301225

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9415081000

Крепеж

Код

Описание

71499M

DAMPER, NO.1 SEAT BACK SPRING, LH

71499V

DAMPER, NO.1 SEAT BACK SPRING, LH NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695L

PROTECTOR, NO.1 SEAT BACK, LH

71695P

CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 LH

71695Q

CLIP, REAR NO.1 SEAT PROTECTOR, NO.2 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71875Y

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT BACK)

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H76S

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT BACK)

72046G

COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.2(FOR LH SEAT)

72210V

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1

72210W

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.2

72345Z

CAP, NO.1 SEAT STAND FRAME, NO.2(FOR LH SEAT)

72554E

PROTECTOR, RECLINING COVER, LH NO.1

72554F

PROTECTOR, RECLINING COVER, LH NO.2

73373W

COVER, NO.1 SEAT SHOULDER BELT, LH NO.2

73373X

COVER, NO.1 SEAT SHOULDER BELT, LH NO.1

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

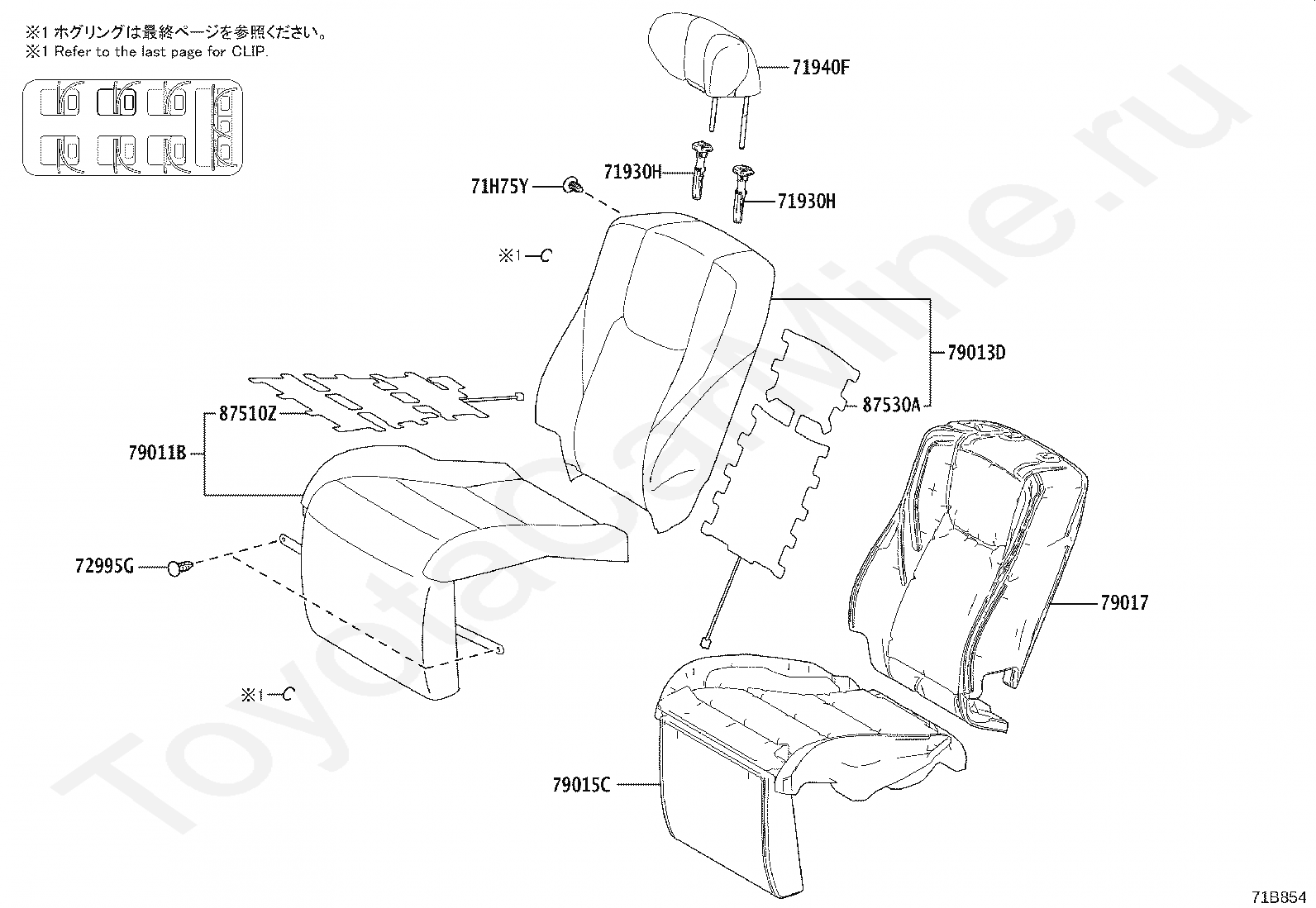

Код

Описание

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71940F

HEADREST ASSY, NO.1 SEAT, RH

71H75Y

CLIP, REAR SEAT RECLINING COVER

72995G

CLIP, REAR SEAT CUSHION COVER, RH

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79015C

PAD SUB-ASSY, NO.1 SEAT CUSHION, RH

79017

PAD SUB-ASSY, NO.1 SEAT BACK, RH

87510Z

HEATER ASSY, REAR NO.1 SEAT CUSHION, RH

87530A

HEATER ASSY, REAR NO.1 SEAT BACK, RH

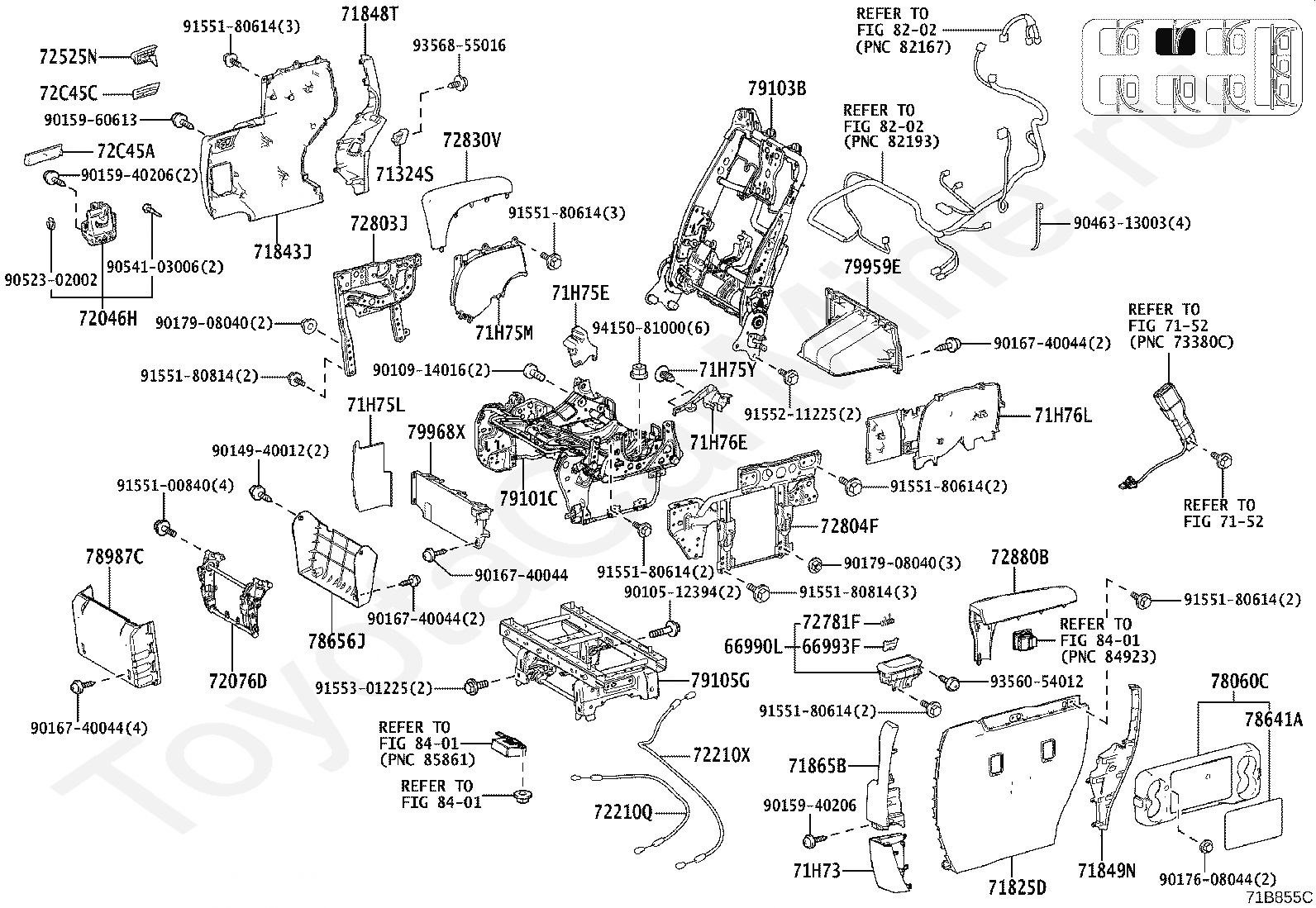

Код

Описание

66990L

HOLDER ASSY, REAR NO.1 SEAT CUP, RH

66993F

PLATE, REAR NO.1 SEAT CUP HOLDER, RH

71324S

CUSHION, REAR NO.1 SEAT, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71825D

MOULDING, REAR NO.1 SEAT CUSHION, RH

71843J

COVER, REAR NO.1 SEAT RECLINING, NO.2 RH

71848T

CAP, NO.1 SEAT ADJUSTER COVER, RH

71849N

CAP, NO.1 SEAT ADJUSTER COVER, LH(FOR RH SEAT)

71865B

BEZEL, REAR NO.1 SEAT COVER, NO.1(FOR RH SEAT)

71H73

SHIELD, REAR SEAT CUSHION, LOWER RH

71H75E

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H75M

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT)

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H76E

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH SEAT)

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

72046H

COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.1(FOR RH SEAT)

72076D

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR RH SEAT)

72210Q

CABLE ASSY, NO.1 SEAT SLIDE, RH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72781F

SPRING, REAR NO.1 SEAT PLATE, RH

72803J

FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, RH(FOR RH SEAT)

72804F

FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, LH(FOR RH SEAT)

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72880B

ARMREST ASSY, NO.1 SEAT, C RH(FOR RH SEAT)

72C45A

CAP, NO.1 SEAT STAND FRAME, NO.1(FOR RH SEAT)

72C45C

CAP, NO.1 SEAT STAND FRAME, NO.3(FOR RH SEAT)

78060C

TABLE ASSY, NO.1 SEAT SIDE

78641A

BOARD, REAR NO.1 SEAT SIDE TABLE

78656J

COVER, REAR SEAT LEGREST, RH

78987C

COVER, REAR NO.1 SEAT FOOTREST, NO.1 RH

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79959E

COVER, NO.1 SEAT LEG, RH

79968X

COVER, REAR NO.1 SEAT LEG SIDE, NO.5(FOR RH SEAT)

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010512394

Крепеж

9010914016

Крепеж

9014940012

Крепеж

9015940206

Крепеж

9015940206

Крепеж

9015960613

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9046313003

Крепеж

9052302002

Крепеж

9054103006

Крепеж

9155100840

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155211225

Крепеж

9155301225

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9415081000

Крепеж

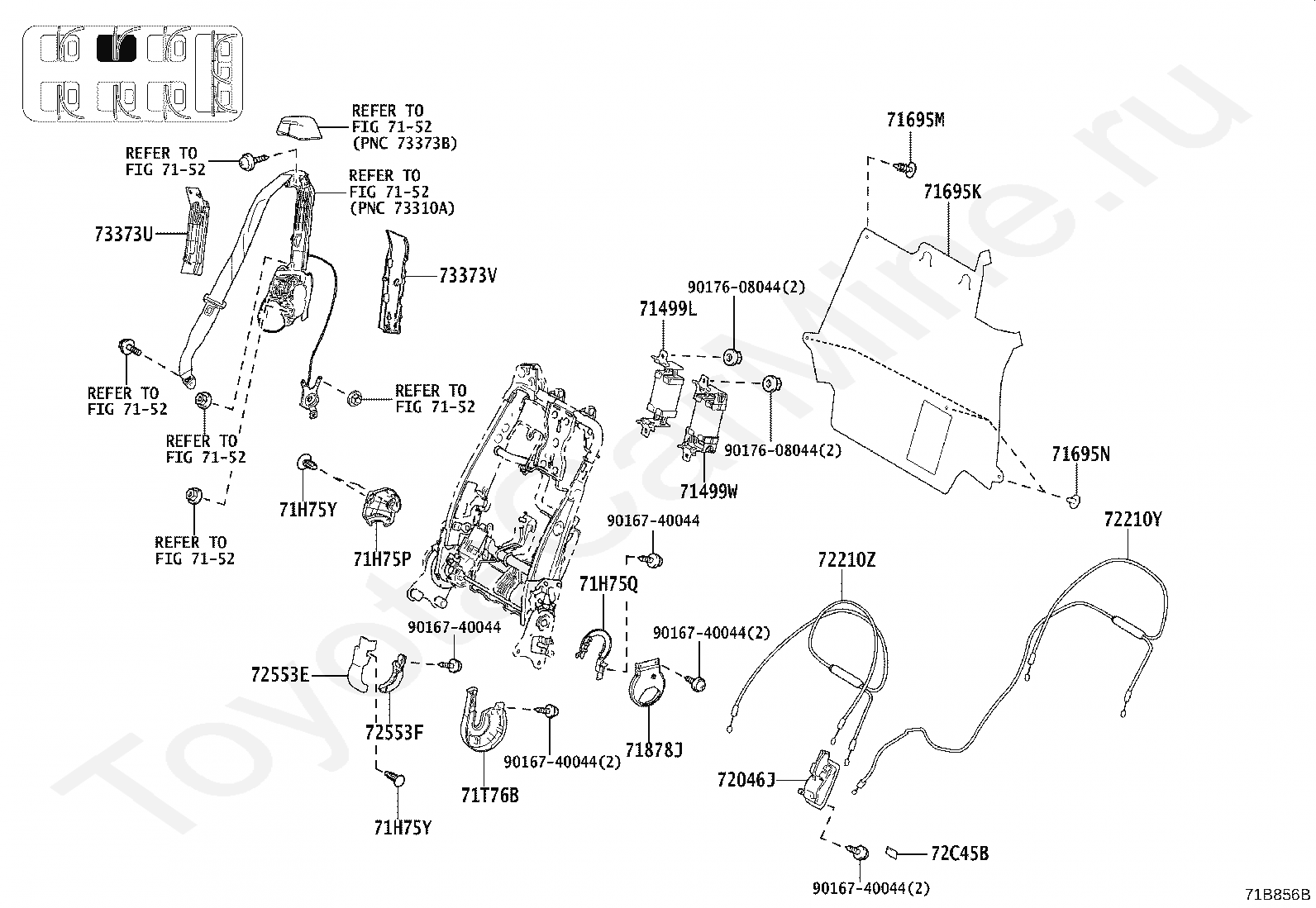

Код

Описание

71499L

DAMPER, NO.1 SEAT BACK SPRING, RH

71499W

DAMPER, NO.1 SEAT CUSHION SPRING, RH NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695K

PROTECTOR, NO.1 SEAT BACK, RH

71695M

CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 RH

71695N

CLIP, REAR NO.1 SEAT PROTECTOR, NO.2 RH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71H75P

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT BACK)

71H75Q

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT BACK)

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H75Y

CLIP, REAR SEAT RECLINING COVER

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72046J

COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.2(FOR RH SEAT)

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72210Z

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2

72553E

PROTECTOR, RECLINING COVER, RH NO.1

72553F

PROTECTOR, RECLINING COVER, RH NO.2

72C45B

CAP, NO.1 SEAT STAND FRAME, NO.2(FOR RH SEAT)

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

73373V

COVER, NO.1 SEAT SHOULDER BELT, RH NO.2

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

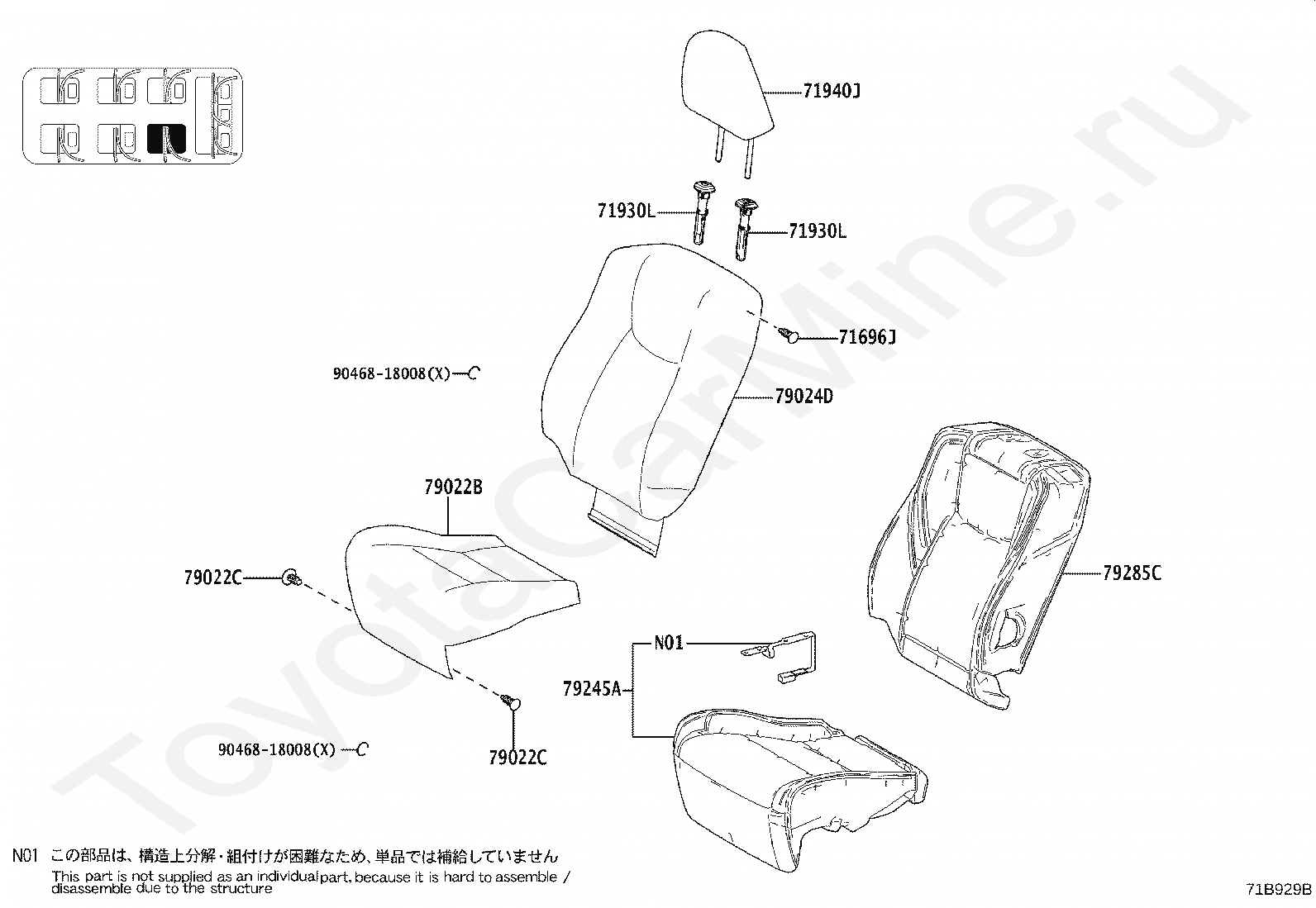

Код

Описание

71696J

CLIP, NO.2 SEAT BACK PROTECTOR, LH NO.2

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71940J

HEADREST ASSY, NO.2 SEAT, LH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79022C

CLIP, NO.2 SEAT CUSHION COVER, LH

79022C

CLIP, NO.2 SEAT CUSHION COVER, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79285C

PAD, NO.2 SEAT BACK, LH

9046818008

Крепеж

9046818008

Крепеж

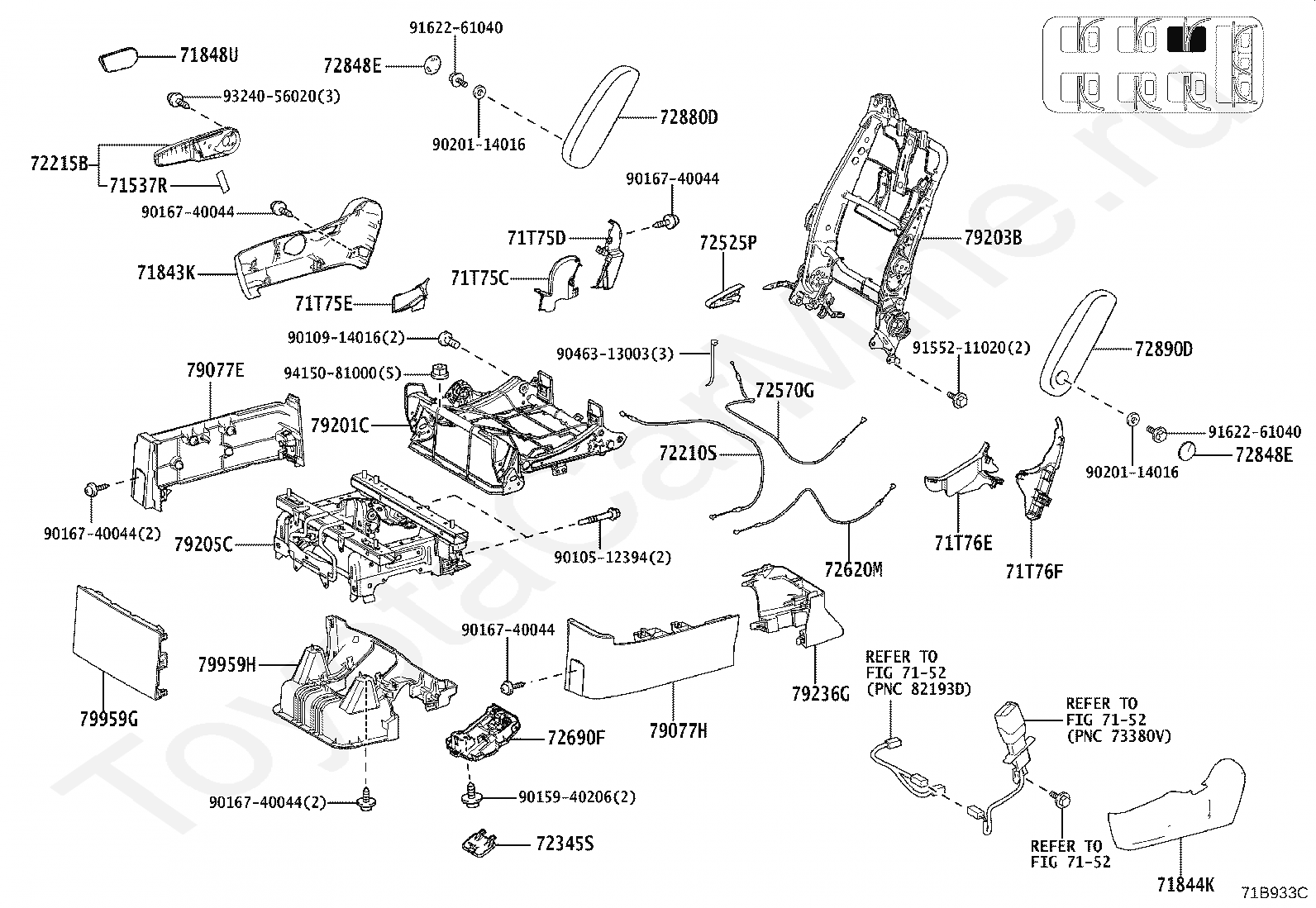

Код

Описание

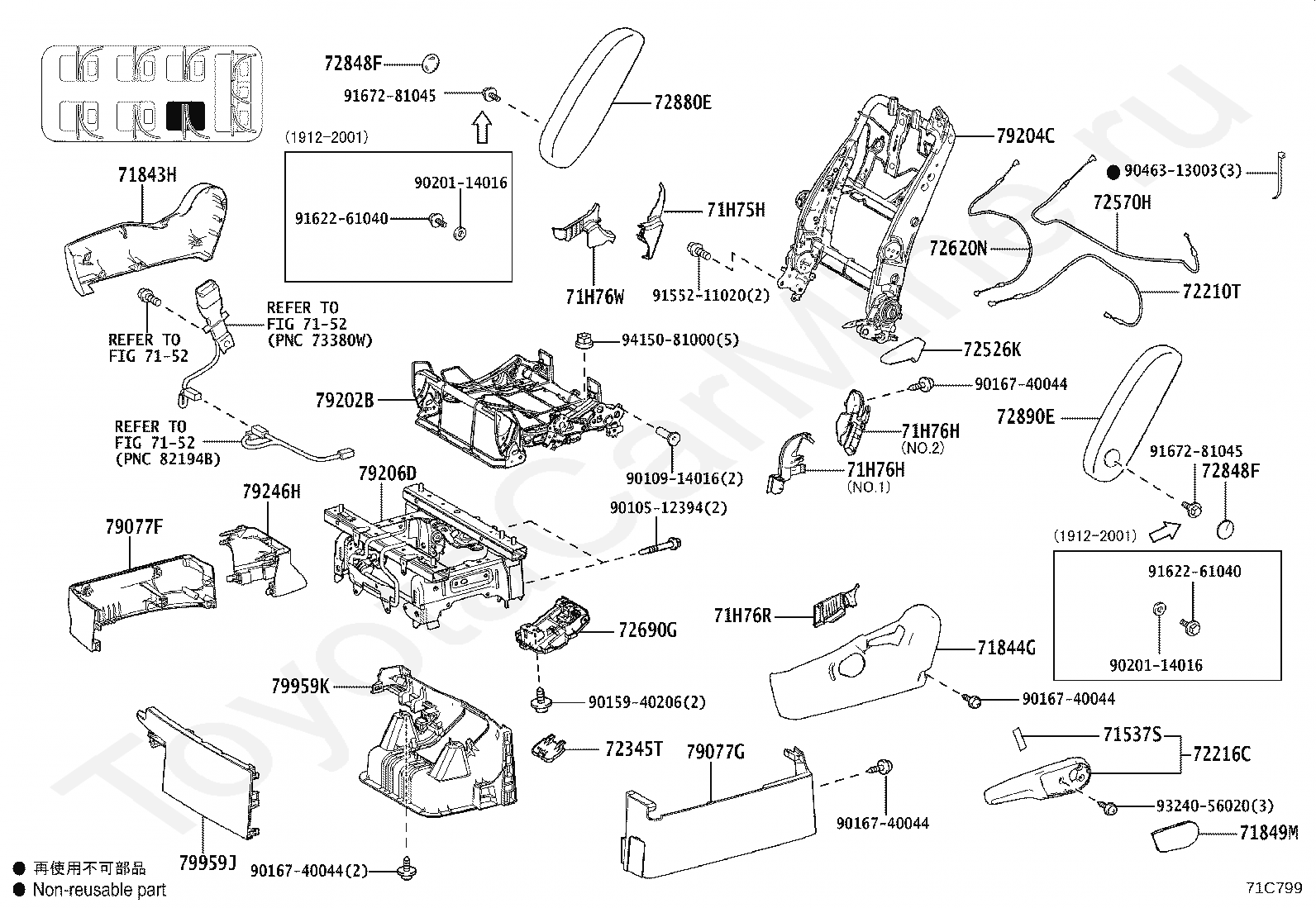

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537S

PROTECTOR, REAR NO.2 SEAT CUSHION, LH

71843H

COVER, NO.2 SEAT RECLINING, NO.2 RH INNER

71844G

COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER

71849M

CAP, NO.2 SEAT ADJUSTER COVER, LH

71H75H

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 LH SEAT)

71H76H

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH SEAT)

71H76H

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH SEAT)

71H76R

COVER, RECLINING ADJUSTER INSIDE, LH NO.4(FOR LH SEAT)

71H76W

COVER, RECLINING ADJUSTER INSIDE, LH NO.5(FOR LH SEAT)

72210T

CABLE ASSY, NO.2 SEAT SLIDE, LH

72216C

LEVER, NO.2 SEAT TRACK HANDLE CONTROL, LH

72345T

CAP, NO.2 SEAT STAND FRAME, LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

72570H

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, LH

72620N

CABLE ASSY, NO.2 SEAT WALK-IN, LH

72690G

LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, LH

72848F

CAP, NO.2 SEAT ARMREST, NO.1 LH

72848F

CAP, NO.2 SEAT ARMREST, NO.1 LH

72880E

ARMREST ASSY, NO.2 SEAT, C RH(FOR LH SEAT)

72890E

ARMREST ASSY, NO.2 SEAT, C LH(FOR LH SEAT)

79077F

COVER SUB-ASSY, NO.2 SEAT LEG, LH INNER

79077G

COVER SUB-ASSY, NO.2 SEAT LEG, LH OUTER

79202B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204C

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79206D

LEG SUB-ASSY, NO.2 SEAT, LH

79246H

COVER, NO.2 SEAT LEG, LH

79959J

COVER, NO.2 SEAT LEG, LH NO.1

79959K

COVER, NO.2 SEAT LEG, LH NO.2

9010512394

Крепеж

9010914016

Крепеж

9015940206

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9020114016

Крепеж

9020114016

Крепеж

9046313003

Крепеж

9155211020

Крепеж

9162261040

Крепеж

9162261040

Крепеж

9167281045

Крепеж

9167281045

Крепеж

9324056020

Крепеж

9415081000

Крепеж

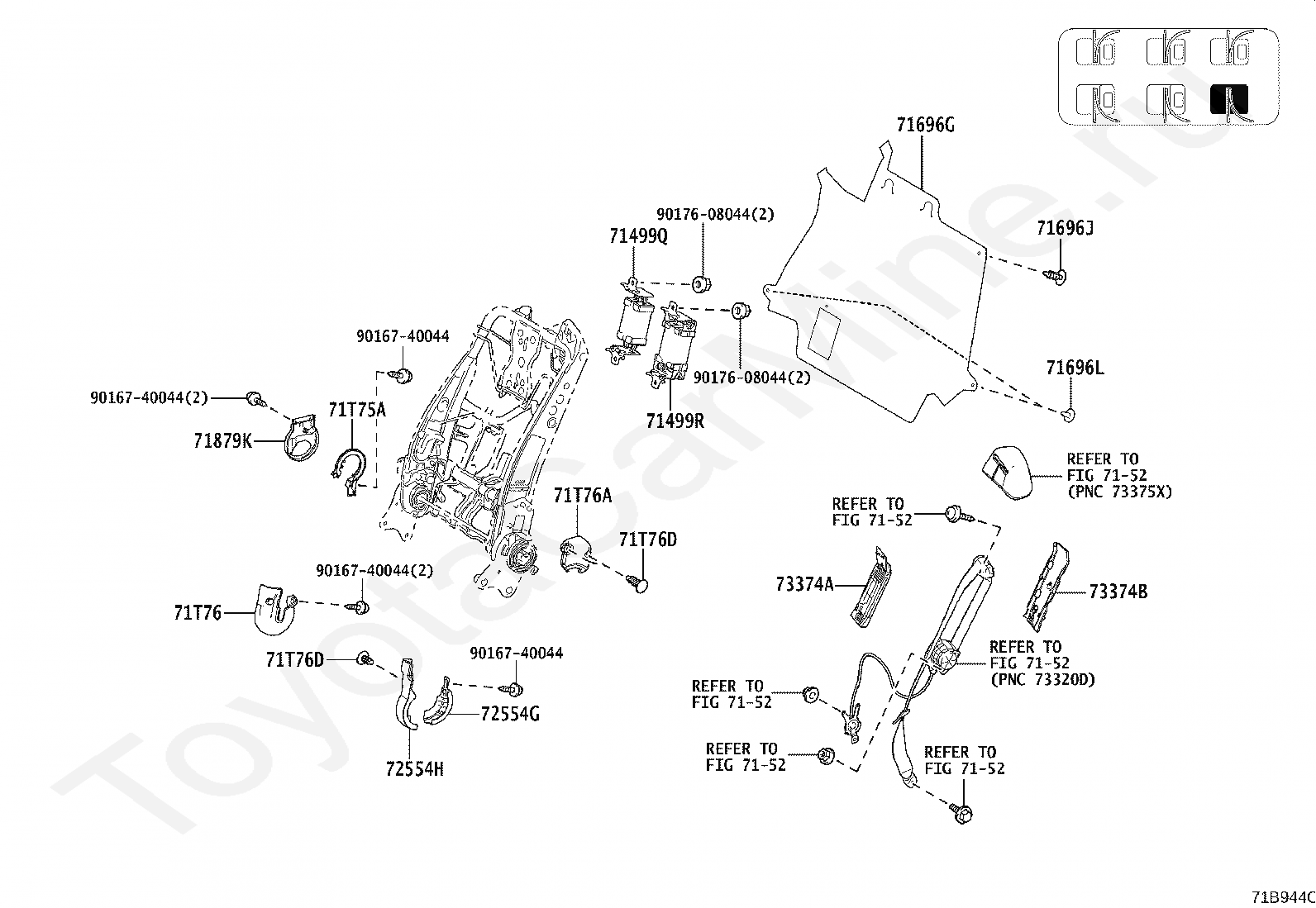

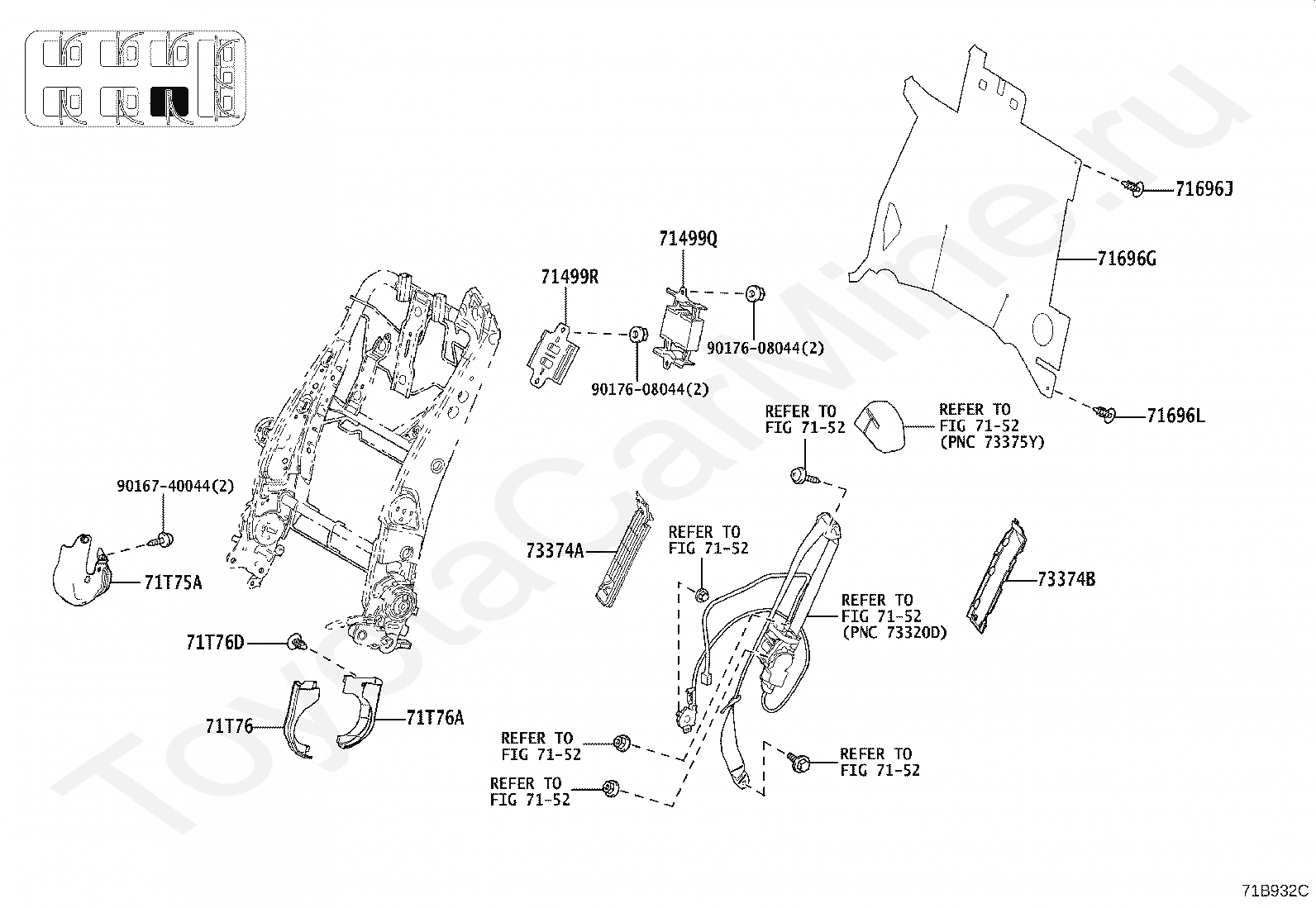

Код

Описание

71499Q

DAMPER, NO.2 SEAT BACK SPRING, LH NO.1

71499R

DAMPER, NO.2 SEAT BACK SPRING, LH NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71696J

CLIP, NO.2 SEAT BACK PROTECTOR, LH NO.2

71696L

CLIP, NO.2 SEAT BACK PROTECTOR, LH NO.1

71T75A

COVER, RECLINING ADJUSTER INSIDE, RH NO.2

71T76

COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR LH SEAT BACK)

71T76A

COVER, RECLINING ADJUSTER INSIDE, LH NO.4(FOR LH SEAT BACK)

71T76D

CLIP, RECLINING ADJUSTER INSIDE COVER, LH

73374A

COVER, NO.2 SEAT SHOULDER BELT, LH NO.1

73374B

COVER, NO.2 SEAT SHOULDER BELT, LH NO.2

9016740044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

Код

Описание

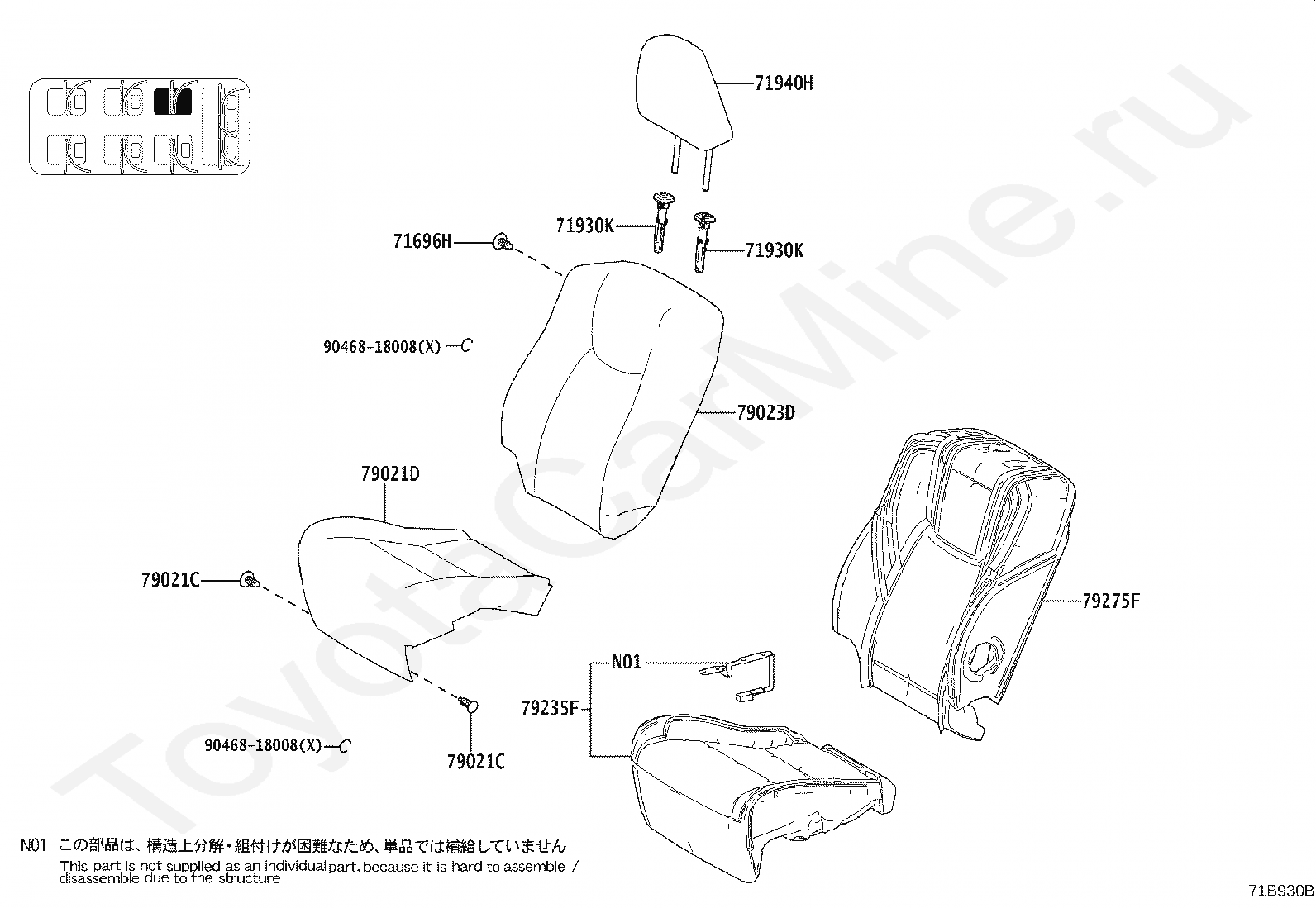

71696H

CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.2

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71940H

HEADREST ASSY, NO.2 SEAT, RH

79021C

CLIP, NO.2 SEAT CUSHION COVER, RH

79021C

CLIP, NO.2 SEAT CUSHION COVER, RH

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79275F

PAD, NO.2 SEAT BACK, RH

9046818008

Крепеж

9046818008

Крепеж

Код

Описание

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537R

PROTECTOR, REAR NO.2 SEAT CUSHION, RH

71843K

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH

71844K

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH

71848U

CAP, NO.2 SEAT ADJUSTER COVER, RH

71T75C

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR NO.2 RH SEAT)

71T75D

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR NO.2 RH SEAT)

71T75E

COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR NO.2 RH SEAT)

71T76E

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR NO.2 RH SEAT)

71T76F

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR NO.2 RH SEAT)

72210S

CABLE ASSY, NO.2 SEAT SLIDE, RH

72215B

LEVER, NO.2 SEAT TRACK HANDLE CONTROL, RH

72345S

CAP, NO.2 SEAT STAND FRAME, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72570G

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72620M

CABLE ASSY, NO.2 SEAT WALK-IN, RH

72690F

LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, RH

72848E

CAP, NO.2 SEAT ARMREST, NO.1 RH

72848E

CAP, NO.2 SEAT ARMREST, NO.1 RH

72880D

ARMREST ASSY, NO.2 SEAT, C RH(FOR RH SEAT)

72890D

ARMREST ASSY, NO.2 SEAT, C LH(FOR RH SEAT)

79077E

COVER SUB-ASSY, NO.2 SEAT LEG, RH OUTER

79077H

COVER SUB-ASSY, NO.2 SEAT LEG, RH INNER

79201C

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203B

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79205C

LEG SUB-ASSY, NO.2 SEAT, RH

79236G

COVER, NO.2 SEAT LEG, RH

79959G

COVER, NO.2 SEAT LEG, RH NO.1

79959H

COVER, NO.2 SEAT LEG, RH NO.2

9010512394

Крепеж

9010914016

Крепеж

9015940206

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9020114016

Крепеж

9020114016

Крепеж

9046313003

Крепеж

9155211020

Крепеж

9162261040

Крепеж

9162261040

Крепеж

9324056020

Крепеж

9415081000

Крепеж

Код

Описание

71499N

DAMPER, NO.2 SEAT BACK SPRING, RH NO.1

71499P

DAMPER, NO.2 SEAT BACK SPRING, RH NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71696F

PROTECTOR, NO.2 SEAT BACK, RH

71696H

CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.2

71696K

CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.1

71H75V

COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR RH SEAT BACK)

71H75W

COVER, RECLINING ADJUSTER INSIDE, RH NO.4(FOR RH SEAT BACK)

71H76G

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 RH SEAT)

71T75B

CLIP, RECLINING ADJUSTER INSIDE COVER, RH

73373Y

COVER, NO.2 SEAT SHOULDER BELT, RH NO.1

73373Z

COVER, NO.2 SEAT SHOULDER BELT, RH NO.2

9016740044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

Код

Описание

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71940J

HEADREST ASSY, NO.2 SEAT, LH

71H75Y

CLIP, REAR SEAT RECLINING COVER

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79022C

CLIP, NO.2 SEAT CUSHION COVER, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79028

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

87530B

HEATER ASSY, REAR NO.2 SEAT BACK, LH

87E10

HEATER ASSY, REAR NO.2 SEAT, LH

9046818008

Крепеж

9046818008

Крепеж

Код

Описание

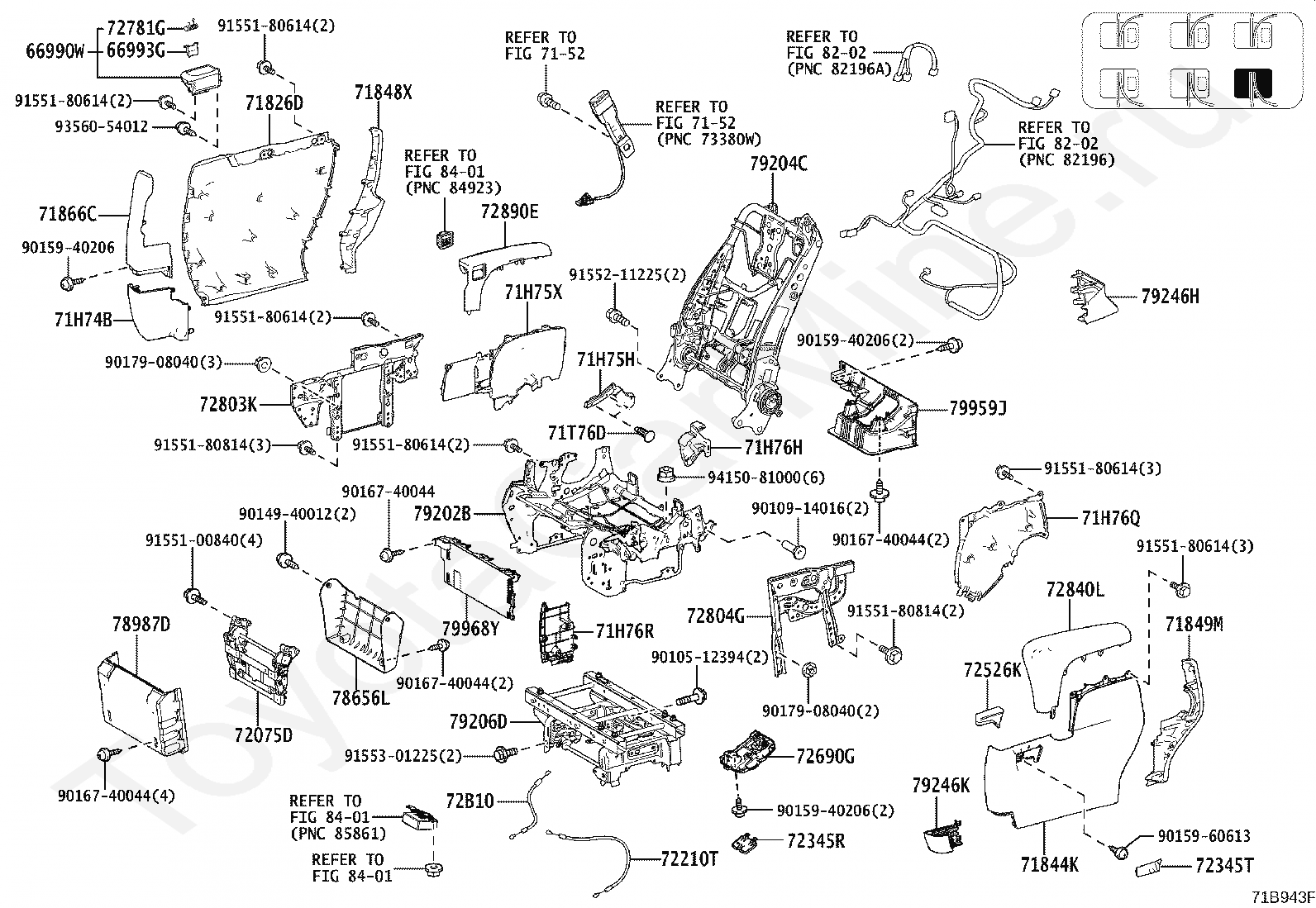

66990W

HOLDER ASSY, REAR NO.2 SEAT CUP, LH

66993G

PLATE, REAR NO.2 SEAT CUP HOLDER, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

71826D

MOULDING, REAR NO.2 SEAT CUSHION, LH

71844K

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH

71848X

CAP, NO.2 SEAT ADJUSTER COVER, RH(FOR LH SEAT)

71849M

CAP, NO.2 SEAT ADJUSTER COVER, LH

71866C

BEZEL, REAR SEAT COVER, NO.2

71H74B

SHIELD, NO.2 SEAT CUSHION, LOWER LH

71H75H

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 LH SEAT)

71H75X

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR LH SEAT)

71H76H

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH SEAT)

71H76Q

COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR LH SEAT)

71H76R

COVER, RECLINING ADJUSTER INSIDE, LH NO.4(FOR LH SEAT)

71T76D

CLIP, RECLINING ADJUSTER INSIDE COVER, LH

72075D

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, LOWER INNER RH

72210T

CABLE ASSY, NO.2 SEAT SLIDE, LH

72345R

CAP, SEAT STAND FRAME, LH NO.2

72345T

CAP, NO.2 SEAT STAND FRAME, LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

72690G

LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, LH

72781G

SPRING, REAR NO.2 SEAT PLATE, LH

72803K

FRAME SUB-ASSY, REAR NO.2 SEAT ARMREST, RH(FOR LH SEAT)

72804G

FRAME SUB-ASSY, REAR NO.2 SEAT ARMREST, LH(FOR LH SEAT)

72840L

ARMREST ASSY, REAR NO.2 SEAT, LH

72890E

ARMREST ASSY, NO.2 SEAT, C LH(FOR LH SEAT)

72B10

CABLE ASSY, REAR NO.2 SEAT TRACK CONTROL(FOR LH SEAT)

78656L

COVER, REAR NO.2 SEAT LEGREST(FOR LH SEAT)

78987D

COVER, REAR NO.2 SEAT FOOTREST, NO.1(FOR LH SEAT)

79202B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204C

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79206D

LEG SUB-ASSY, NO.2 SEAT, LH

79246H

COVER, NO.2 SEAT LEG, LH

79246K

COVER, NO.2 SEAT LEG, LH OUTER

79959J

COVER, NO.2 SEAT LEG, LH NO.1

79968Y

COVER, REAR NO.2 SEAT LEG SIDE, NO.5(FOR LH SEAT)

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010512394

Крепеж

9010914016

Крепеж

9014940012

Крепеж

9015940206

Крепеж

9015940206

Крепеж

9015940206

Крепеж

9015960613

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9155100840

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155211225

Крепеж

9155301225

Крепеж

9356054012

Крепеж

9415081000

Крепеж

Код

Описание

71499Q

DAMPER, NO.2 SEAT BACK SPRING, LH NO.1

71499R

DAMPER, NO.2 SEAT BACK SPRING, LH NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71696J

CLIP, NO.2 SEAT BACK PROTECTOR, LH NO.2

71696L

CLIP, NO.2 SEAT BACK PROTECTOR, LH NO.1

71879K

COVER, REAR NO.2 SEAT RECLINING, INNER LH

71T75A

COVER, RECLINING ADJUSTER INSIDE, RH NO.2

71T76

COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR LH SEAT BACK)

71T76A

COVER, RECLINING ADJUSTER INSIDE, LH NO.4(FOR LH SEAT BACK)

71T76D

CLIP, RECLINING ADJUSTER INSIDE COVER, LH

71T76D

CLIP, RECLINING ADJUSTER INSIDE COVER, LH

72554G

PROTECTOR, REAR NO.2 SEAT RECLINING COVER, LH NO.1

72554H

PROTECTOR, REAR NO.2 SEAT RECLINING COVER, LH NO.2

73374A

COVER, NO.2 SEAT SHOULDER BELT, LH NO.1

73374B

COVER, NO.2 SEAT SHOULDER BELT, LH NO.2

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

Код

Описание

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71940H

HEADREST ASSY, NO.2 SEAT, RH

71H75Y

CLIP, REAR SEAT RECLINING COVER

79021C

CLIP, NO.2 SEAT CUSHION COVER, RH

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79027C

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

87530C

HEATER ASSY, REAR NO.2 SEAT BACK, RH

87E10A

HEATER ASSY, REAR NO.2 SEAT, RH

9046818008

Крепеж

9046818008

Крепеж

Код

Описание

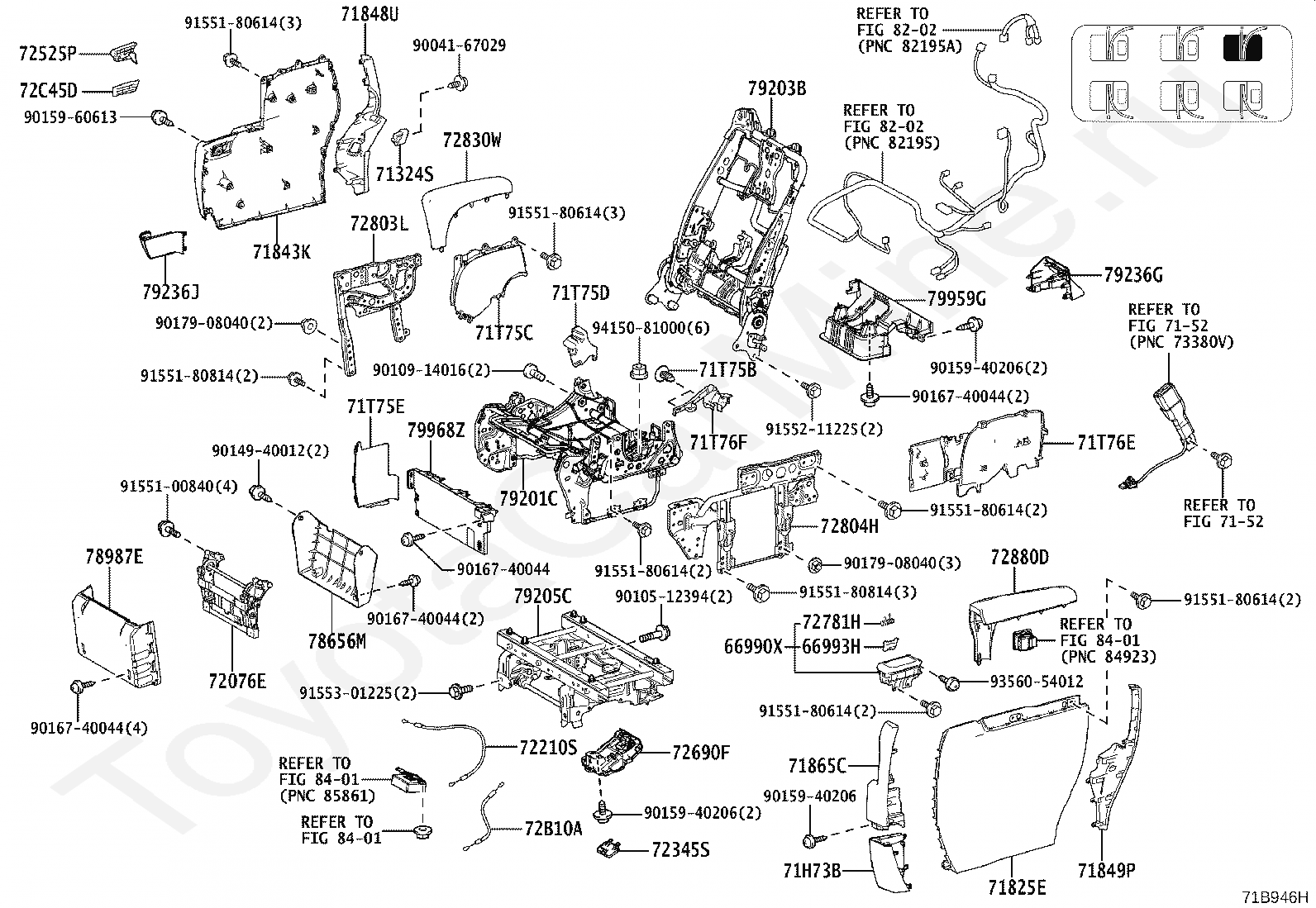

66990X

HOLDER ASSY, REAR NO.2 SEAT CUP, RH

66993H

PLATE, REAR NO.2 SEAT CUP HOLDER, RH

71324S

CUSHION, REAR NO.1 SEAT, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71825E

MOULDING, REAR NO.2 SEAT CUSHION, RH

71843K

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH

71848U

CAP, NO.2 SEAT ADJUSTER COVER, RH

71849P

CAP, NO.2 SEAT ADJUSTER COVER, LH(FOR RH SEAT)

71865C

BEZEL, REAR NO.2 SEAT COVER, RH

71H73B

SHIELD, REAR NO.2 SEAT CUSHION, LOWER

71T75B

CLIP, RECLINING ADJUSTER INSIDE COVER, RH

71T75C

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR NO.2 RH SEAT)

71T75D

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR NO.2 RH SEAT)

71T75E

COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR NO.2 RH SEAT)

71T76E

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR NO.2 RH SEAT)

71T76F

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR NO.2 RH SEAT)

72076E

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, LOWER INNER LH

72210S

CABLE ASSY, NO.2 SEAT SLIDE, RH

72345S

CAP, NO.2 SEAT STAND FRAME, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72690F

LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, RH

72781H

SPRING, REAR NO.2 SEAT PLATE, RH

72803L

FRAME SUB-ASSY, REAR NO.2 SEAT ARMREST, RH(FOR RH SEAT)

72804H

FRAME SUB-ASSY, REAR NO.2 SEAT ARMREST, LH(FOR RH SEAT)

72830W

ARMREST ASSY, REAR NO.2 SEAT, RH

72880D

ARMREST ASSY, NO.2 SEAT, C RH(FOR RH SEAT)

72B10A

CABLE ASSY, REAR NO.2 SEAT TRACK CONTROL(FOR RH SEAT)

72C45D

CAP, REAR NO.2 SEAT STAND FRAME(FOR RH SEAT)

78656M

COVER, REAR NO.2 SEAT LEGREST(FOR RH SEAT)

78987E

COVER, REAR NO.2 SEAT FOOTREST, NO.1(FOR RH SEAT)

79201C

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203B

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79205C

LEG SUB-ASSY, NO.2 SEAT, RH

79236G

COVER, NO.2 SEAT LEG, RH

79236J

COVER, NO.2 SEAT LEG, RH OUTER

79959G

COVER, NO.2 SEAT LEG, RH NO.1

79968Z

COVER, REAR NO.2 SEAT LEG SIDE, NO.5(FOR RH SEAT)

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9004167029

Крепеж

9010512394

Крепеж

9010914016

Крепеж

9014940012

Крепеж

9015940206

Крепеж

9015940206

Крепеж

9015940206

Крепеж

9015960613

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9155100840

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155211225

Крепеж

9155301225

Крепеж

9356054012

Крепеж

9415081000

Крепеж

Код

Описание

71499N

DAMPER, NO.2 SEAT BACK SPRING, RH NO.1

71499P

DAMPER, NO.2 SEAT BACK SPRING, RH NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695R

PROTECTOR, REAR NO.2 SEAT BACK STAY, RH

71696H

CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.2

71696K

CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.1

71696K

CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.1

71878K

COVER, REAR NO.2 SEAT RECLINING, INNER RH

71878L

CLIP, REAR NO.2 SEAT RECLINING COVER, RH

71T75F

COVER, RECLINING ADJUSTER INSIDE, RH

71T76G

COVER, RECLINING ADJUSTER INSIDE, LH

71T76H

COVER, RECLINING ADJUSTER INSIDE, RH

72553G

PROTECTOR, REAR NO.2 SEAT RECLINING COVER, RH NO.1

72553H

PROTECTOR, REAR NO.2 SEAT RECLINING COVER, RH NO.2

72553J

CLIP, REAR NO.2 SEAT RECLINING COVER PROTECTOR, RH

73373Y

COVER, NO.2 SEAT SHOULDER BELT, RH NO.1

73373Z

COVER, NO.2 SEAT SHOULDER BELT, RH NO.2

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

Код

Описание

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

71940N

HEADREST ASSY, REAR SEAT, NO.2

71940N

HEADREST ASSY, REAR SEAT, NO.2

71940N

HEADREST ASSY, REAR SEAT, NO.2

79031C

COVER, SUB-ASSY, NO.3 SEAT CUSHION, RH

79032B

COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH

79033B

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034A

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79335B

PAD, NO.3 SEAT CUSHION, RH

79345B

PAD, NO.3 SEAT CUSHION, LH

79375C

PAD, NO.3 SEAT BACK, RH

79385

PAD, NO.3 SEAT BACK, LH

Код

Описание

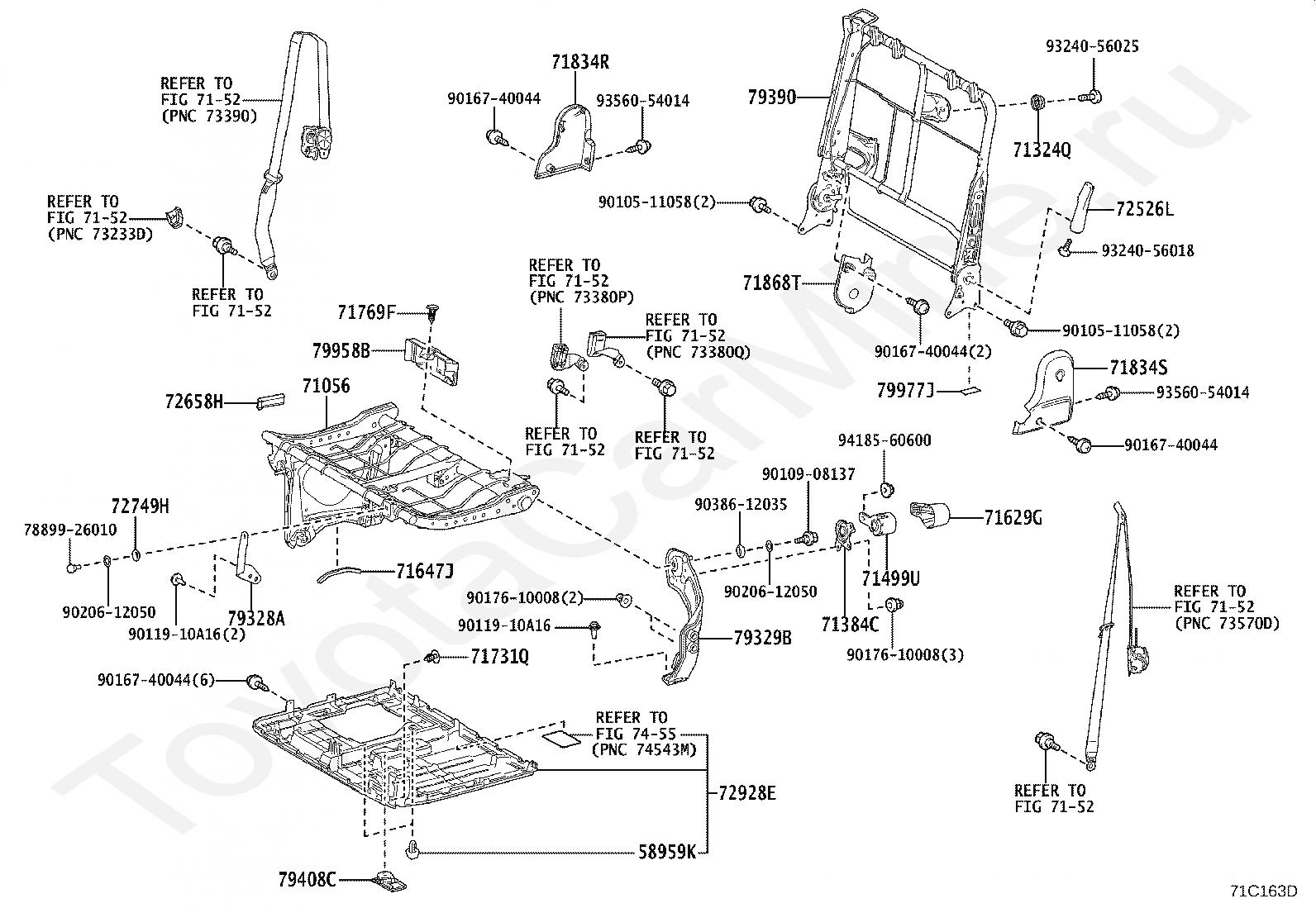

58959K

CUSHION, REAR SEAT CUSHION UNDER COVER, LH

71056

SPRING SUB-ASSY, REAR SEAT CUSHION, LH

71324Q

CUSHION, NO.1 SEAT, LH

71384C

BRACKET, REAR SEAT CUSHION SET, REAR LH

71499U

DAMPER, SEAT CUSHION SPRING, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71629G

COVER, REAR SEAT CUSHION HINGE

71647J

PROTECTOR, REAR SEAT CUSHION EDGE, LH

71731Q

FASTENER, SEAT COVER, LH

71769F

COVER, SEAT UNDER TRAY BRACKET, LH

71834R

COVER, REAR SEAT RECLINING, LH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71868T

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

72526L

HANDLE, RECLINING ADJUSTER RELEASE, LH

72658H

KNOB, REAR SEAT LOCK HANDLE, LH

72749H

SPACER, REAR SEAT RECLINING, LH

72928E

COVER, REAR SEAT CUSHION UNDER, LH

7455

переход к группе запчастей

7889926010

Крепеж

79328A

BRACKET, REAR SEAT LEG, FRONT LH

79329B

BRACKET, REAR SEAT LEG, REAR LH

79390

SPRING ASSY, REAR SEAT BACK, LH

79408C

HOOK SUB-ASSY, REAR SEAT, LH

79958B

COVER, REAR SEAT REAR BRACKET, LH

79977J

FELT, SEAT BACK

9010511058

Крепеж

9010511058

Крепеж

9010908137

Крепеж

9011910A16

Крепеж

9011910A16

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017610008

Крепеж

9017610008

Крепеж

9020612050

Крепеж

9020612050

Крепеж

9038612035

Крепеж

9324056018

Крепеж

9324056025

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9418560600

Крепеж

Код

Описание

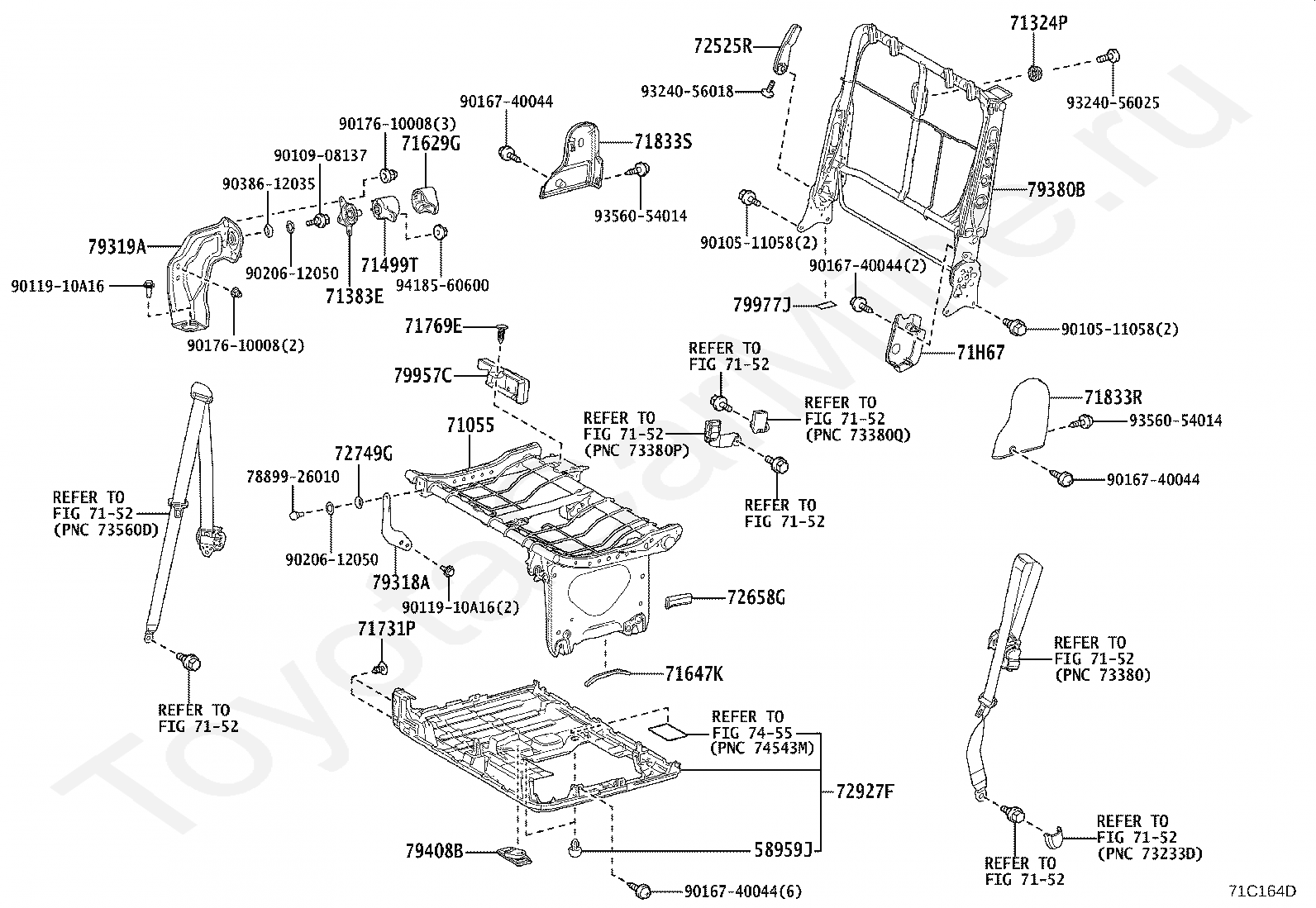

58959J

CUSHION, REAR SEAT CUSHION UNDER COVER, RH

71055

SPRING SUB-ASSY, REAR SEAT CUSHION, RH

71324P

CUSHION, NO.1 SEAT, RH

71383E

BRACKET, REAR SEAT CUSHION SET, REAR RH

71499T

DAMPER, SEAT CUSHION SPRING, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71629G

COVER, REAR SEAT CUSHION HINGE

71647K

PROTECTOR, REAR SEAT CUSHION EDGE, RH

71731P

FASTENER, SEAT COVER, RH

71769E

COVER, SEAT UNDER TRAY BRACKET, RH

71833R

COVER, REAR SEAT RECLINING, RH

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71H67

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

72525R

HANDLE, RECLINING ADJUSTER RELEASE, RH

72658G

KNOB, REAR SEAT LOCK HANDLE, RH

72749G

SPACER, REAR SEAT RECLINING, RH

72927F

COVER, REAR SEAT CUSHION UNDER, RH

7455

переход к группе запчастей

7889926010

Крепеж

79318A

BRACKET, REAR SEAT LEG, FRONT RH

79319A

BRACKET, REAR SEAT LEG, REAR RH

79380B

SPRING ASSY, REAR SEAT BACK, RH

79408B

HOOK SUB-ASSY, REAR SEAT, RH

79957C

COVER, REAR SEAT REAR BRACKET, RH

79977J

FELT, SEAT BACK

9010511058

Крепеж

9010511058

Крепеж

9010908137

Крепеж

9011910A16

Крепеж

9011910A16

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017610008

Крепеж

9017610008

Крепеж

9020612050

Крепеж

9020612050

Крепеж

9038612035

Крепеж

9324056018

Крепеж

9324056025

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9418560600

Крепеж

Код

Описание

71930P

SUPPORT ASSY, NO.3 SEAT HEADREST, LH

71930P

SUPPORT ASSY, NO.3 SEAT HEADREST, LH

71940L

HEADREST ASSY, NO.3 SEAT, LH

72848H

CAP, NO.3 SEAT ARMREST, NO.1 LH

72848H

CAP, NO.3 SEAT ARMREST, NO.1 LH

72880F

ARMREST ASSY, NO.3 SEAT, C RH(FOR LH SEAT)

72890F

ARMREST ASSY, NO.3 SEAT, C LH(FOR LH SEAT)

79032B

COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH

79034A

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79345B

PAD, NO.3 SEAT CUSHION, LH

79385

PAD, NO.3 SEAT BACK, LH

9020114016

Крепеж

9020114016

Крепеж

9162261040

Крепеж

9162261040

Крепеж

9167281045

Крепеж

9167281045

Крепеж

Код

Описание

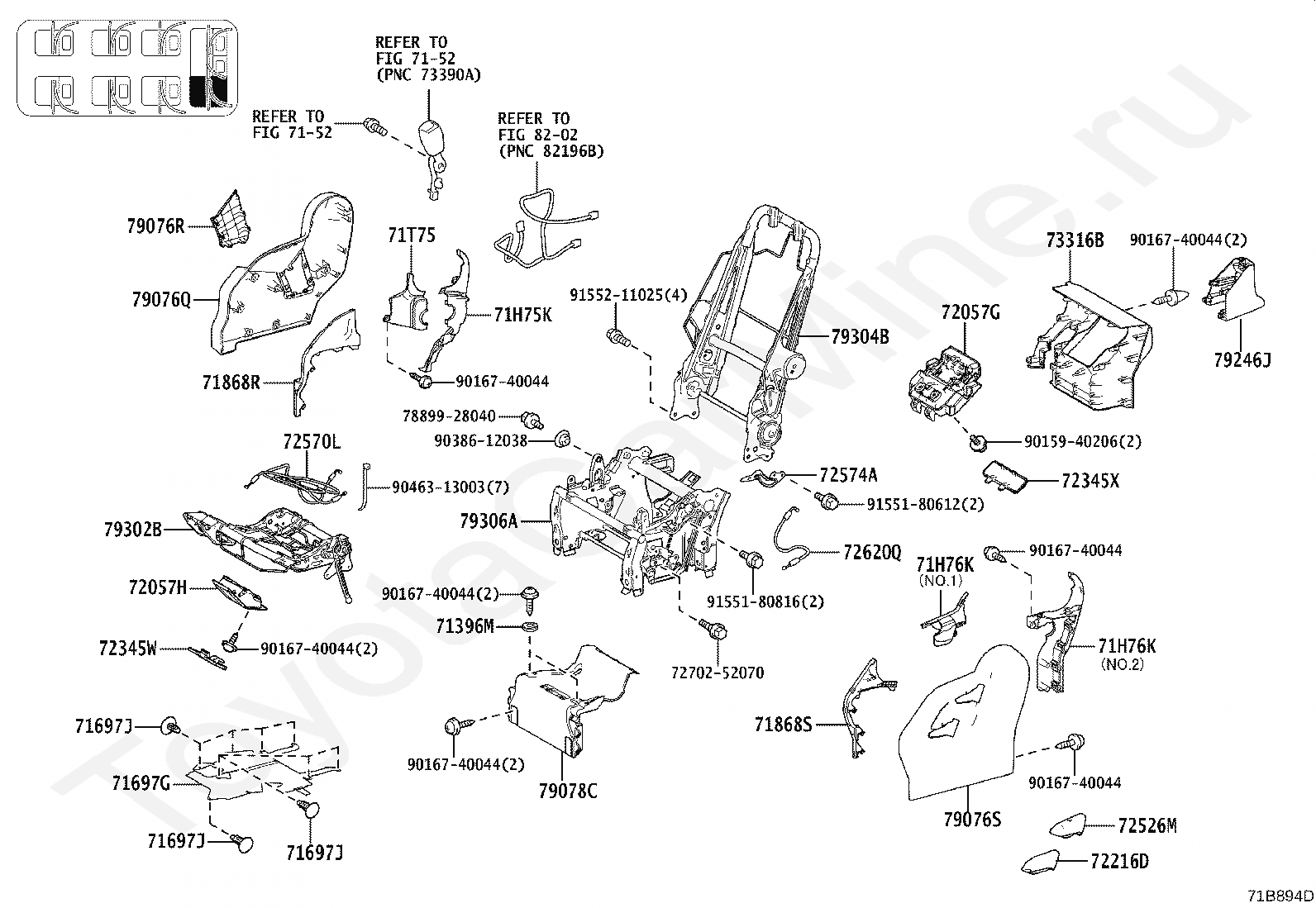

71396M

CUSHION, NO.3 SEAT SUPPORT, REAR LH

7152

переход к группе запчастей

7152

переход к группе запчастей

71697G

PROTECTOR, REAR SEAT CUSHION, NO.3 LH

71697J

CLIP, NO.3 SEAT CUSHION PROTECTOR, LH

71697J

CLIP, NO.3 SEAT CUSHION PROTECTOR, LH

71697J

CLIP, NO.3 SEAT CUSHION PROTECTOR, LH

71868R

SHIELD, NO.3 SEAT CUSHION, INNER NO.1 RH

71868S

SHIELD, NO.3 SEAT CUSHION, INNER NO.1 LH

71H75K

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.3 LH SEAT)

71H76K

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.3 LH SEAT)

71H76K

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.3 LH SEAT)

71T75

COVER, RECLINING ADJUSTER INSIDE, RH

72057G

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1

72057H

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.2

72216D

LEVER, NO.3 SEAT TRACK HANDLE CONTROL, LH

72345W

CAP, SEAT STAND FRAME, LH NO.3

72345X

CAP, SEAT STAND FRAME, LH NO.4

72526M

HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, LH

72570L

CABLE ASSY, NO.3 SEAT RECLINING ADJUSTING, LH

72574A

LEVER, RECLINING CONTROL, LH

72620Q

CABLE ASSY, NO.3 SEAT SLIDE, LH

7270252070

Крепеж

73316B

COVER, REAR NO.3 SEAT BELT, INNER LH

7889928040

Крепеж

79076Q

COVER SUB-ASSY, NO.3 SEAT LEG, INNER NO.1

79076R

COVER SUB-ASSY, NO.3 SEAT LEG, INNER NO.2

79076S

COVER SUB-ASSY, NO.3 SEAT LEG, LH

79078C

COVER SUB-ASSY, NO.3 SEAT LEG, LH

79246J

COVER, NO.3 SEAT LEG, LH

79302B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH

79304B

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79306A

LEG SUB-ASSY, NO.3 SEAT, LH

8202

переход к группе запчастей

9015940206

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9038612038

Крепеж

9046313003

Крепеж

9155180612

Крепеж

9155180816

Крепеж

9155211025

Крепеж

Код

Описание

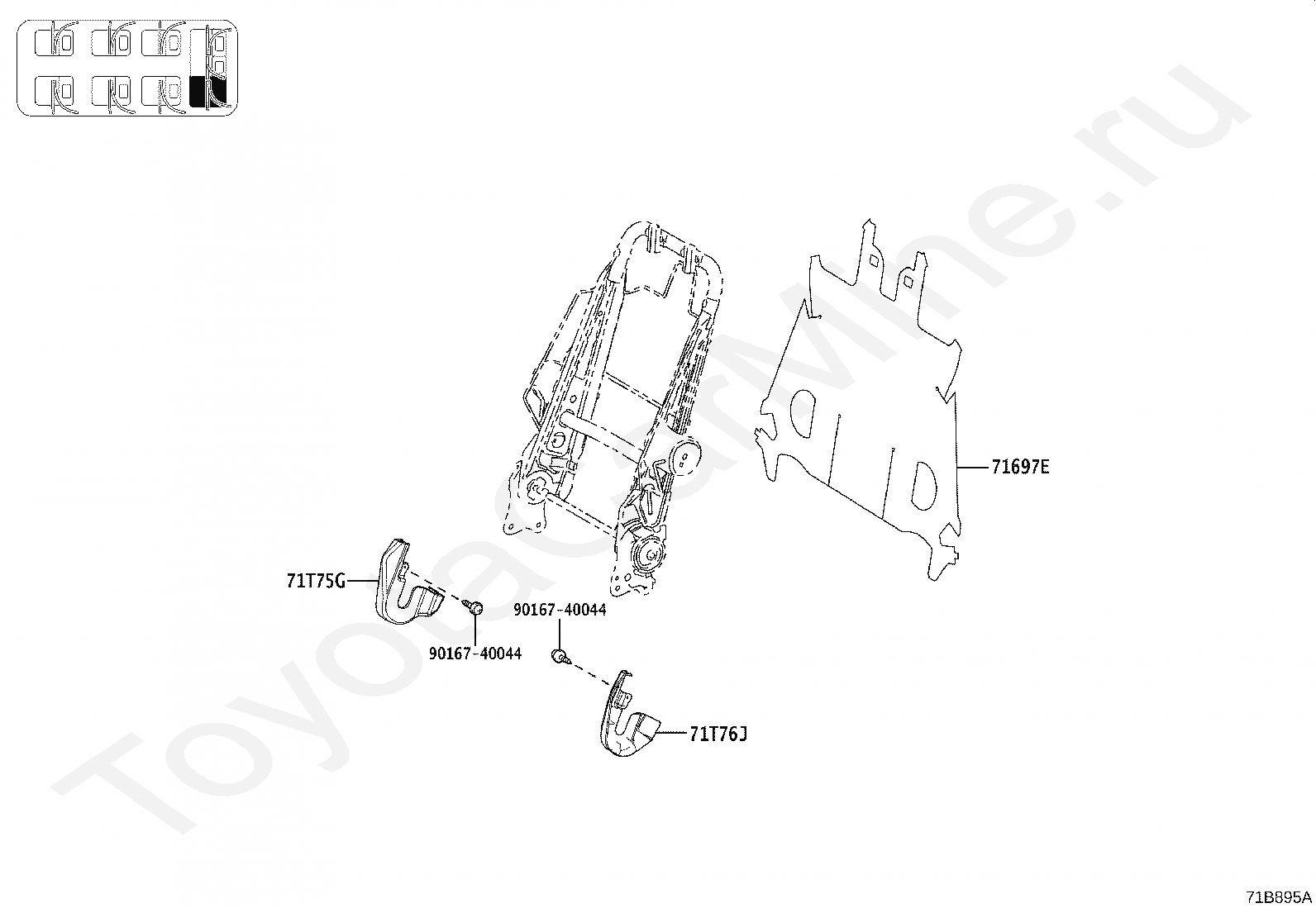

71697E

PROTECTOR, NO.3 SEAT BACK, LH

71T75G

COVER, RECLINING ADJUSTER INSIDE, RH(FOR NO.3 LH SEAT BACK)

71T76J

COVER, RECLINING ADJUSTER INSIDE, LH(FOR NO.3 LH SEAT BACK)

9016740044

Крепеж

9016740044

Крепеж

Код

Описание

71930M

SUPPORT ASSY, NO.3 SEAT HEADREST, RH

71930M

SUPPORT ASSY, NO.3 SEAT HEADREST, RH

71930N

SUPPORT ASSY, NO.3 SEAT HEADREST, CENTER

71930N

SUPPORT ASSY, NO.3 SEAT HEADREST, CENTER

71940K

HEADREST ASSY, NO.3 SEAT, RH

71960E

HEADREST ASSY, NO.3 SEAT, CENTER

72848G

CAP, NO.3 SEAT ARMREST, NO.1 RH

72880G

ARMREST ASSY, NO.3 SEAT, C RH(FOR RH SEAT)

79031C

COVER, SUB-ASSY, NO.3 SEAT CUSHION, RH

79033B

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79335B

PAD, NO.3 SEAT CUSHION, RH

79375C

PAD, NO.3 SEAT BACK, RH

9020114016

Крепеж

9162261040

Крепеж

9167281045

Крепеж

Код

Описание

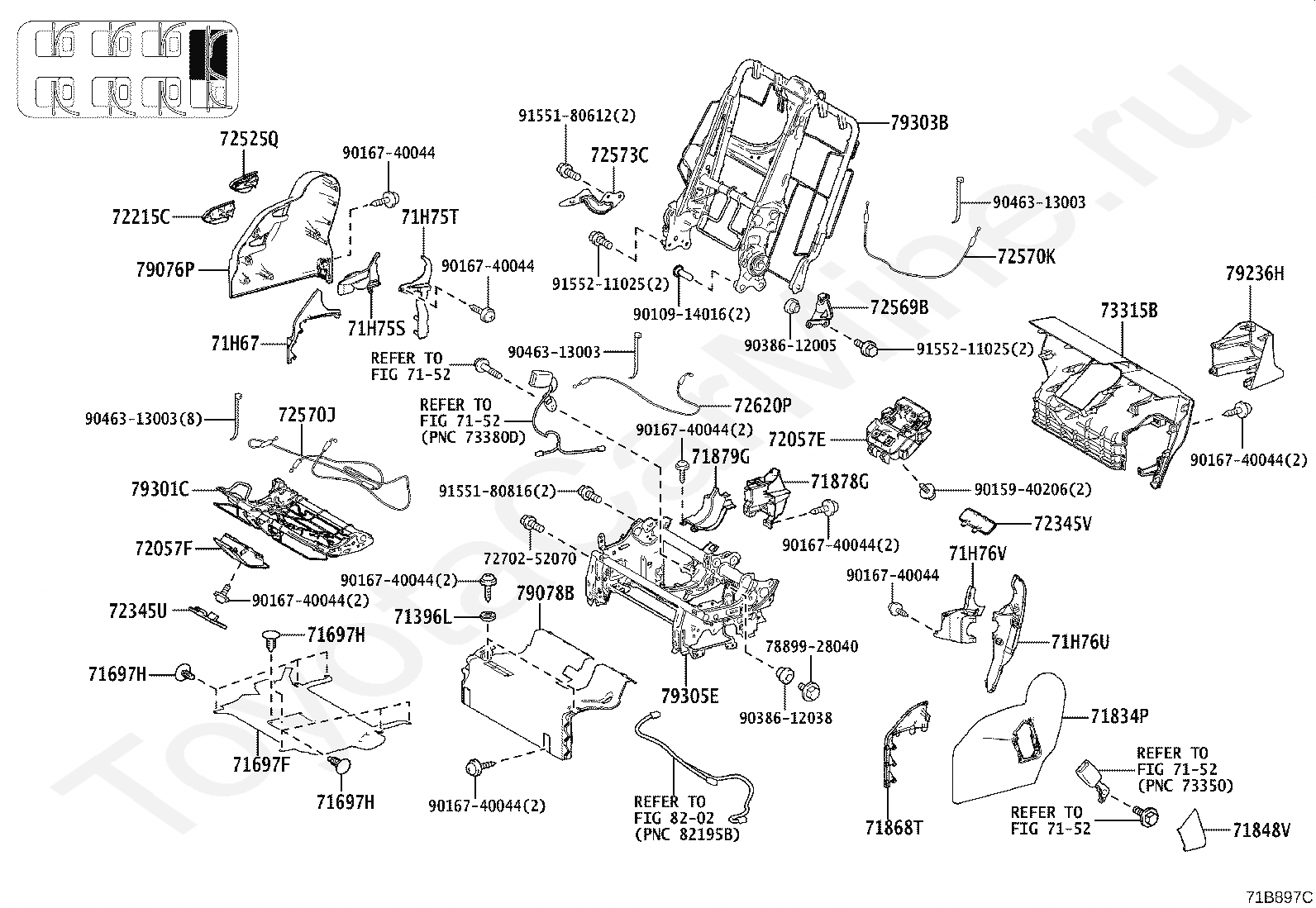

71396L

CUSHION, NO.3 SEAT SUPPORT, REAR RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71697F

PROTECTOR, REAR SEAT CUSHION, NO.3 RH

71697H

CLIP, NO.3 SEAT CUSHION PROTECTOR, RH

71697H

CLIP, NO.3 SEAT CUSHION PROTECTOR, RH

71697H

CLIP, NO.3 SEAT CUSHION PROTECTOR, RH

71834P

COVER, REAR NO.3 SEAT RECLINING, NO.1 LH(FOR RH SEAT)

71848V

CAP, NO.3 SEAT ADJUSTER COVER, RH

71868T

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71878G

COVER, NO.3 SEAT RECLINING, INNER RH

71879G

COVER, NO.3 SEAT RECLINING, INNER LH

71H67

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71H75S

COVER, RECLINING ADJUSTER INSIDE, RH NO.4(FOR RH SEAT)

71H75T

COVER, RECLINING ADJUSTER INSIDE, RH NO.5(FOR RH SEAT)

71H76U

COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR RH SEAT)

71H76V

COVER, RECLINING ADJUSTER INSIDE, LH NO.4(FOR RH SEAT)

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72057F

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.2

72215C

LEVER, NO.3 SEAT TRACK HANDLE CONTROL, RH

72345U

CAP, SEAT STAND FRAME, RH NO.3

72345V

CAP, SEAT STAND FRAME, RH NO.4

72525Q

HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, RH

72569B

PLATE, SEAT BACK STOPPER

72570J

CABLE ASSY, NO.3 SEAT RECLINING ADJUSTING, RH NO.1

72570K

CABLE ASSY, NO.3 SEAT RECLINING ADJUSTING, RH NO.2

72573C

LEVER, NO.3 SEAT RECLINING CONTROL, RH

72620P

CABLE ASSY, NO.3 SEAT SLIDE, RH

7270252070

Крепеж

73315B

COVER, REAR NO.3 SEAT BELT, INNER RH

7889928040

Крепеж

79076P

COVER SUB-ASSY, NO.3 SEAT LEG, RH

79078B

COVER SUB-ASSY, NO.3 SEAT LEG, RH

79236H

COVER, NO.3 SEAT LEG, RH

79301C

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303B

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305E

LEG SUB-ASSY, NO.3 SEAT, RH

8202

переход к группе запчастей

9010914016

Крепеж

9015940206

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9038612005

Крепеж

9038612038

Крепеж

9046313003

Крепеж

9046313003

Крепеж

9046313003

Крепеж

9155180612

Крепеж

9155180816

Крепеж

9155211025

Крепеж

9155211025

Крепеж

Код

Описание

7146126040

Крепеж

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71697D

PROTECTOR, NO.3 SEAT BACK, RH

71697K

CLIP, NO.3 SEAT BACK PROTECTOR, RH

71801D

COVER SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, RH

71H75J

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.3 RH SEAT)

73C73

COVER, REAR NO.3 SEAT SHOULDER BELT, RH NO.1

73C73B

COVER, REAR NO.3 SEAT SHOULDER BELT, RH NO.2

9016740044

Крепеж

9016740044

Крепеж

Код

Описание

71397G

STOPPER, REAR SEAT, RH

71397H

STOPPER, REAR SEAT, LH

72613H

STRIKER, REAR SEAT LOCK

72613H

STRIKER, REAR SEAT LOCK

72681E

HOOK, REAR SEAT

9011910709

Крепеж

9011910709

Крепеж

Код

Описание

7114930050

Крепеж

7178526020

Крепеж

9046816019

Крепеж

9046818008

Крепеж

> Запчасти GRNVA/HIACE/MJSTY > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
