Каталог

Ближний Восток

Модель

GRNVA/HIACE/MJSTY

VIN

Дата

2019/07

Двигатель

2,8 литра, турбо-дизель

Фрейм

GDH304

КПП

автомат АКПП, 6 скоростей

Опции

правый руль STANDARD ROOF 5 дверей боковое стекло H TH 694W

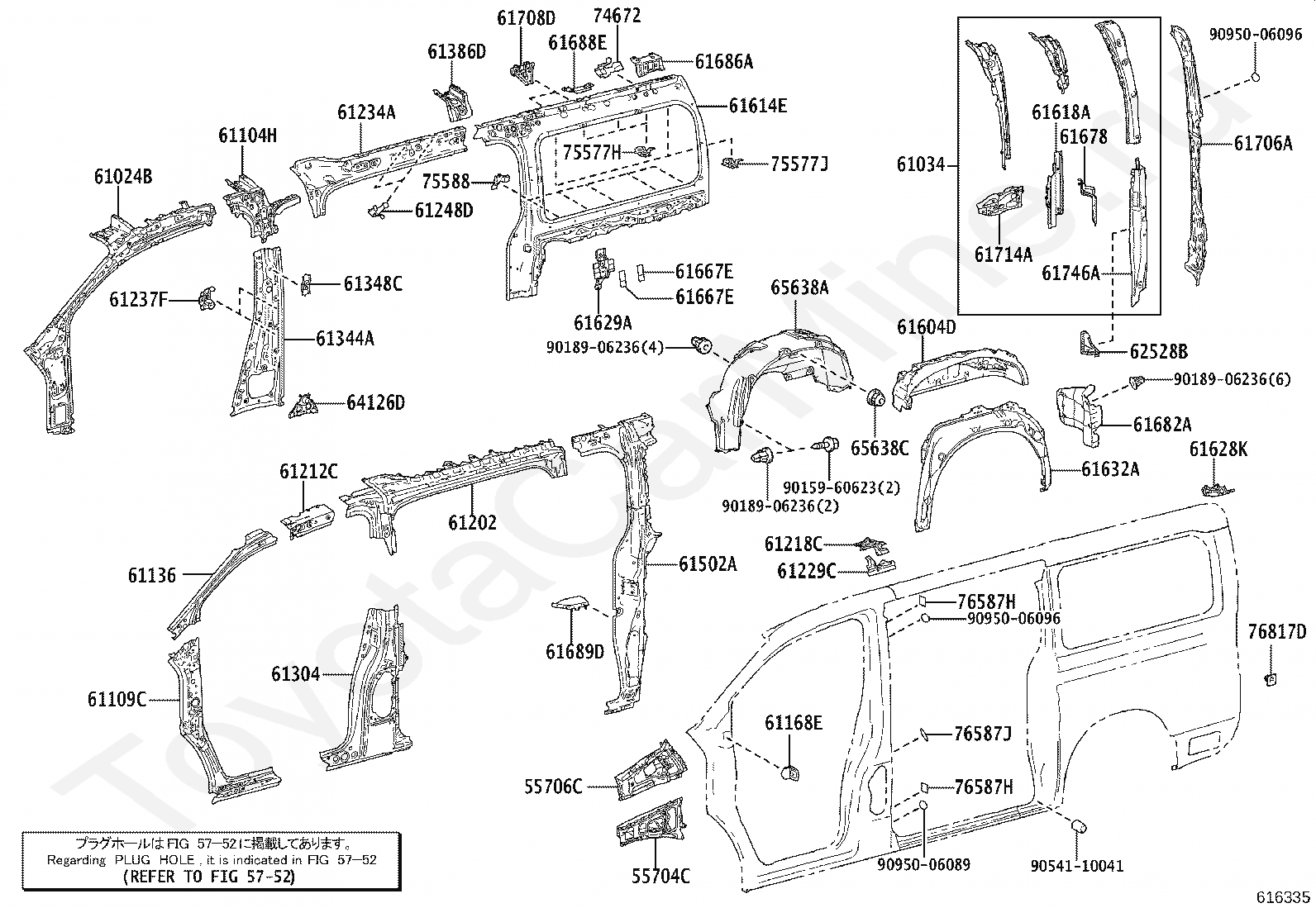

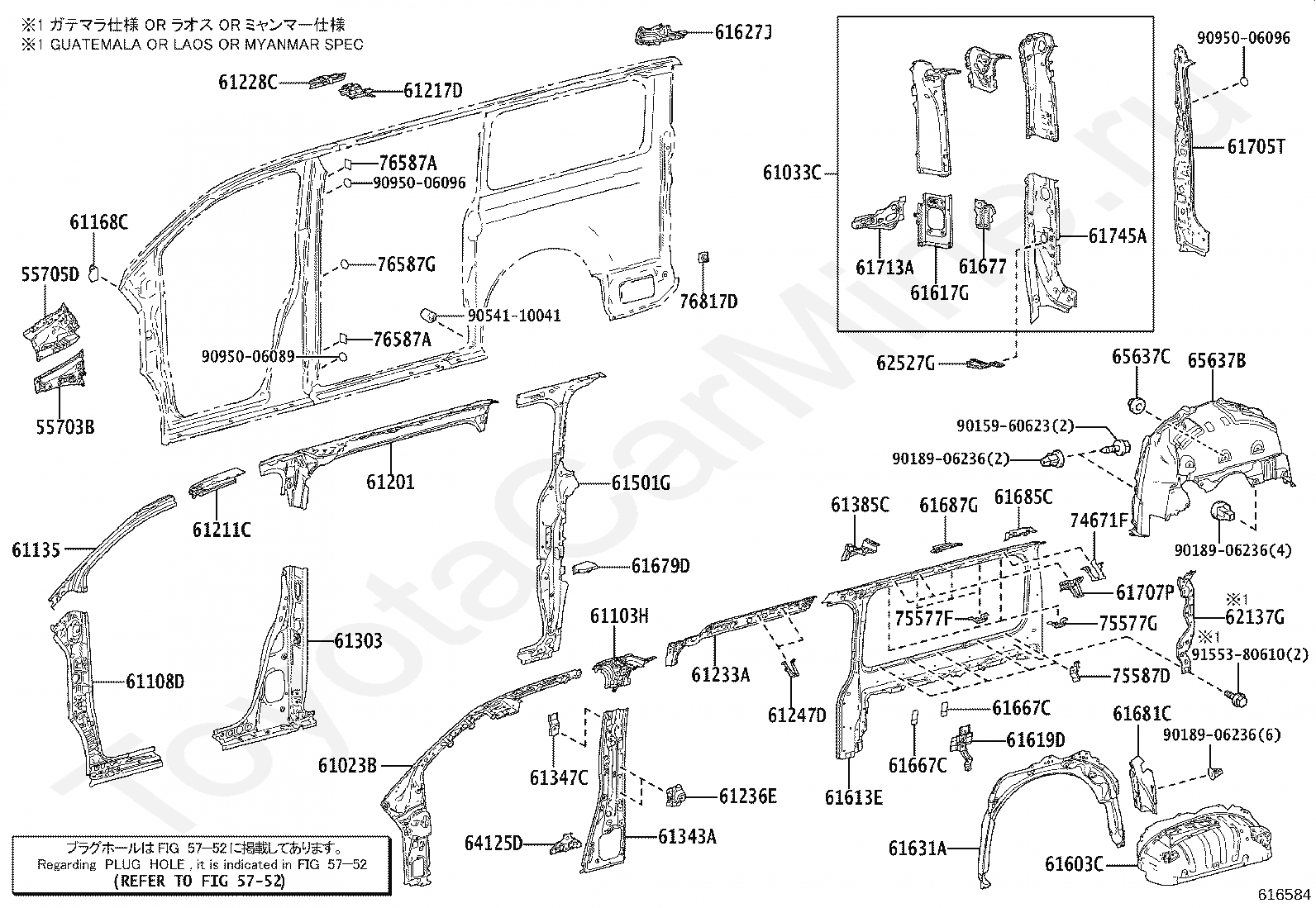

Боковая панель кузова TOYOTA GRNVA/HIACE/MJSTY







Код

Описание

61111A

PANEL, FRONT SIDE, OUTER RH

61112A

PANEL, FRONT SIDE, OUTER LH

61225A

RAIL, ROOF SIDE OUTER UPPER NO.1, RH

61225B

RAIL, ROOF SIDE OUTER UPPER NO.2, RH

61226A

RAIL, ROOF SIDE OUTER UPPER NO.1, LH

61226B

RAIL, ROOF SIDE OUTER UPPER NO.2, LH

61431

PANEL, ROCKER, OUTER REAR RH

61432

PANEL, ROCKER, OUTER REAR LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

Код

Описание

55703B

PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH

55705D

PANEL SUB-ASSY, COWL TOP SIDE, RH,

5752

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61033C

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH

61103H

PANEL SUB-ASSY, SIDE, NO.2 RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61135

REINFORCEMENT, FRONT BODY PILLAR, UPPER RH

61168C

BRACKET, NO.6 PILLAR OUTER

61201

RAIL SUB-ASSY, ROOF SIDE, RH

61211C

RAIL, ROOF SIDE, RH

61217D

RAIL, ROOF SIDE, OUTER NO.4 RH

61228C

RAIL, ROOF SIDE OUTER UPPER NO.3, RH

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61236E

BRACKET, PILLAR ASSIST GRIP, LOWER

61247D

BRACKET, ASSIST GRIP, RH

61303

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

61343A

PILLAR, CENTER BODY, INNER RH

61347C

REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH

61385C

EXTENSION, CENTER BODY PILLAR, UPPER RH

61501G

PILLAR SUB-ASSY, QUARTER LOCK, RH

61603C

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

61613E

PANEL, QUARTER, INNER RH

61617G

PANEL, QUARTER, INNER REAR RH

61619D

REINFORCEMENT, QUARTER PANEL, RH

61627J

PANEL, QUARTER INNER, UPPER REAR RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61667C

SEAL, QAURTER PANEL, NO.1

61667C

SEAL, QAURTER PANEL, NO.1

61677

REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH

61679D

SEAL, QUARTER WHEEL HOUSE

61681C

EXTENSION, REAR WHEEL OPENING, RH

61685C

BRACKET, REAR SEAT BACK STOPPER, RH

61687G

BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH

61705T

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

61707P

BRACKET SUB-ASSY, ROOF SIDE RAIL, RH

61713A

EXTENSION, ROOF SIDE, OUTER RH

61745A

REINFORCEMENT, BACK DOOR OPENING, LOWER RH

62137G

REINFORCE, SIDE WINDOW PANEL

62527G

PAD, QUARTER TRIM, LOWER RH

64125D

ANCHOR, PILLAR SEAT BELT, RH

65637B

LINER, REAR WHEEL HOUSE, RH

65637C

CLIP, REAR WHEEL HOUSE LINER

74671F

SUPPORT,ASSIST GRIP, NO.1

75577F

BRACKET, ROOF SIDE GARNISH

75577G

BRACKET, ROOF SIDE GARNISH

75587D

BRACKET, ROOF SIDE GARNISH, NO.2 RH

76587A

PROTECTOR, CENTER PILLAR OUTER

76587A

PROTECTOR, CENTER PILLAR OUTER

76587G

PROTECTOR, CENTER PILLAR OUTER

76817D

CLIP, BACK DOOR OUTSIDE GARNISH

9015960623

Крепеж

9018906236

Крепеж

9018906236

Крепеж

9018906236

Крепеж

9054110041

Крепеж

9095006089

Крепеж

9095006096

Крепеж

9095006096

Крепеж

9155380610

Крепеж

Код

Описание

55704C

PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH

55706C

PANEL SUB-ASSY, COWL TOP SIDE, LH

5752

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61034

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

61104H

PANEL SUB-ASSY, SIDE, NO.2 LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61136

REINFORCEMENT, FRONT BODY PILLAR, UPPER LH

61168E

BRACKET, NO.6 PILLAR OUTER

61202

RAIL SUB-ASSY, ROOF SIDE, LH

61212C

RAIL, ROOF SIDE, LH

61218C

RAIL, ROOF SIDE, OUTER NO.4 LH

61229C

RAIL, ROOF SIDE OUTER UPPER NO.3. LH

61234A

RAIL, ROOF SIDE, INNER NO.2 LH

61237F

BRACKET, PILLAR ASSIST GRIP, LOWER

61248D

BRACKET, ASSIST GRIP, LH

61304

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

61344A

PILLAR, CENTER BODY, INNER LH

61348C

REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH

61386D

EXTENSION, CENTER BODY PILLAR, UPPER LH

61502A

PILLAR SUB-ASSY, QUARTER LOCK, LH

61604D

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH

61614E

PANEL, QUARTER, INNER LH

61618A

PANEL, QUARTER, INNER REAR LH

61628K

PANEL, QUARTER INNER, UPPER REAR LH

61629A

REINFORCEMENT, QUARTER PANEL, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61667E

SEAL, QUARTER PANEL, NO.1

61667E

SEAL, QUARTER PANEL, NO.1

61678

REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH

61682A

EXTENSION, REAR WHEEL OPENING, LH

61686A

BRACKET, REAR SEAT BACK STOPPER, LH

61688E

BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH

61689D

SEAL, QUARTER WHEEL HOUSE, LH

61706A

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

61708D

BRACKET SUB-ASSY, ROOF SIDE RAIL, LH

61714A

EXTENSION, ROOF SIDE, OUTER LH

61746A

REINFORCEMENT, BACK DOOR OPENING, LOWER LH

62528B

PAD, QUARTER TRIM, LOWER LH

64126D

ANCHOR, PILLAR SEAT BELT, LH

65638A

LINER, REAR WHEEL HOUSE, LH

65638C

CLIP, REAR WHEEL HOUSE LINER

74672

SUPPORT,ASSIST GRIP, NO.2

75577H

BRACKET, ROOF SIDE GARNISH

75577J

BRACKET, ROOF SIDE GARNISH

75588

BRACKET, ROOF SIDE GARNISH, NO.2 LH

76587H

PROTECTOR, CENTER PILLAR OUTER

76587H

PROTECTOR, CENTER PILLAR OUTER

76587J

PROTECTOR, CENTER PILLAR OUTER

76817D

CLIP, BACK DOOR OUTSIDE GARNISH

9015960623

Крепеж

9018906236

Крепеж

9018906236

Крепеж

9018906236

Крепеж

9054110041

Крепеж

9095006089

Крепеж

9095006096

Крепеж

9095006096

Крепеж

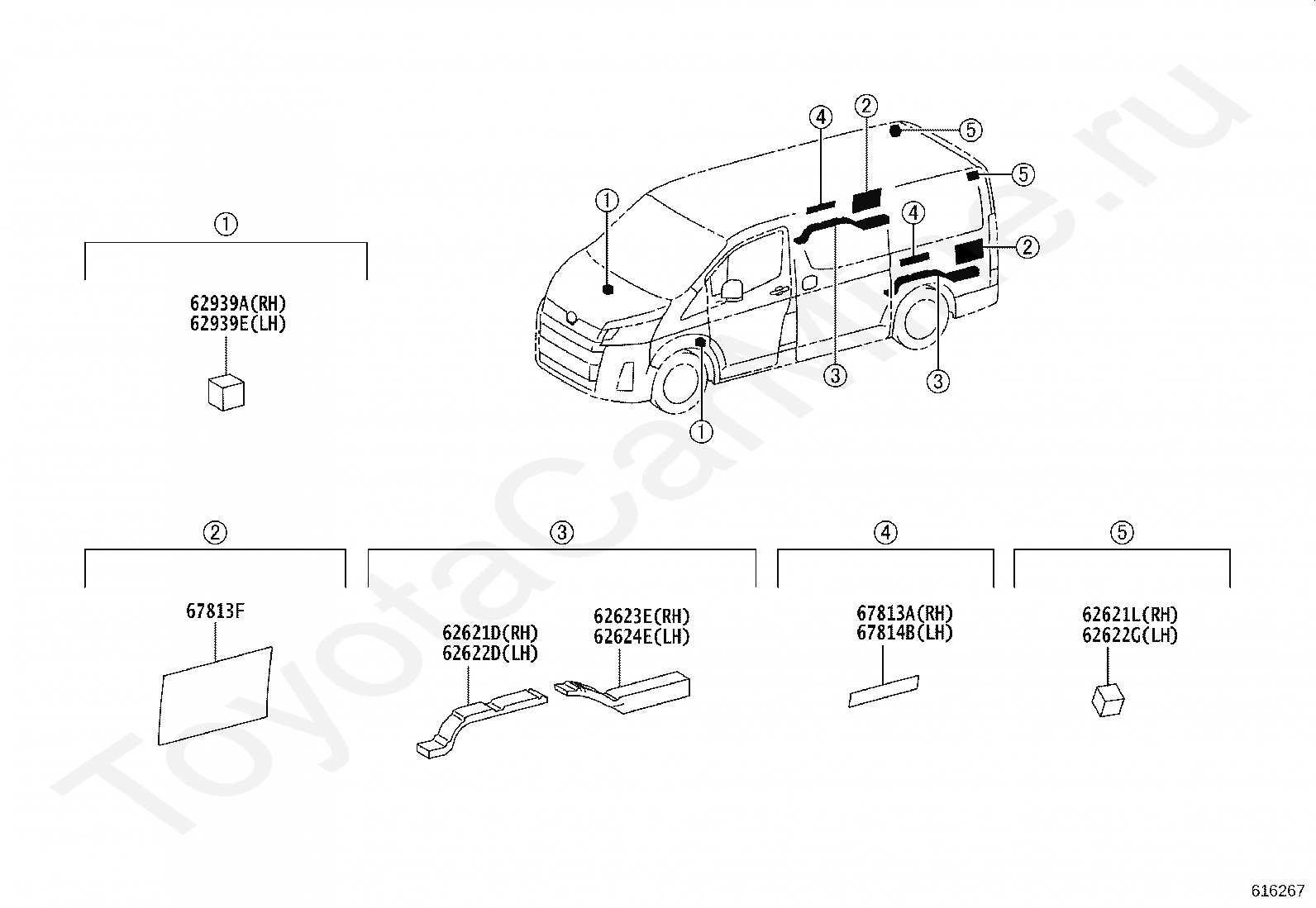

Код

Описание

62621D

PAD, QUARTER WHEEL HOUSE, INNER FRONT RH

62621L

PAD, QUARTER WHEEL HOUSE, INNER FRONT RH

62622D

PAD, QUARTER WHEEL HOUSE, INNER FRONT LH

62622G

PAD, QUARTER WHEEL HOUSE, INNER FRONT LH

62623E

PAD, QUARTER WHEEL HOUSE, INNER REAR RH

62624E

PAD, QUARTER WHEEL HOUSE, INNER REAR LH

62939A

SILENCER, QUARTER VENT

62939E

SILENCER, QUARTER VENT

67813A

SHEET, QUARTER PANEL SILENCER, RH

67813F

SHEET, QUARTER PANEL SILENCER

67814B

SHEET, QUARTER PANEL SILENCER, LH
