Япония

Модель

GRANVIA/GRAND HIACE

VIN

Дата

2000/04

Двигатель

3 литра, турбо-дизель

Кузов

фургон

Класс

GRAMS

Фрейм

KCH16

КПП

автомат

Опции

8-местный 5 дверей TURBO DIESEL WITH ECD

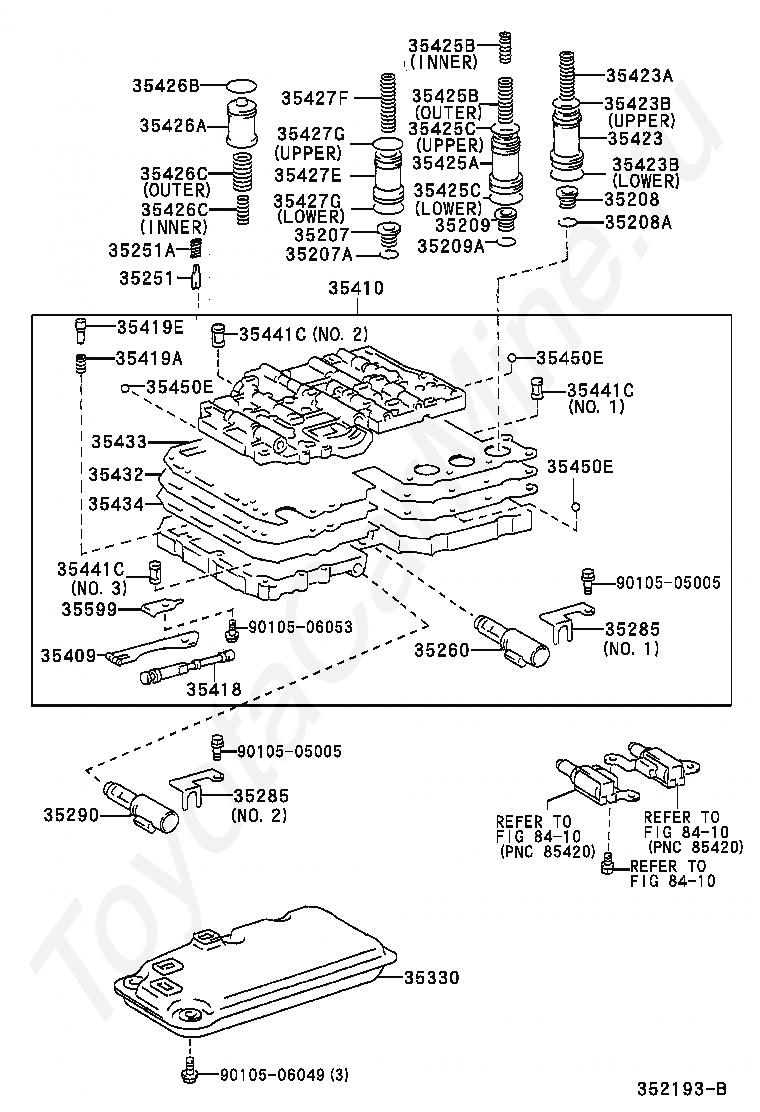

VALVE BODY & OIL STRAINER (ATM) TOYOTA GRANVIA/GRAND HIACE







Код

Описание

35207

SPRING SUB-ASSY, B-0 ACCUMULATOR

35207A

RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35209

SPRING SUB-ASSY, C-2 ACCUMULATOR

35209A

RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35260

ACCUMLATOR ASSY, THROTTLE PRESSURE

35285

PLATE, SOLENOID LOCK

35285

PLATE, SOLENOID LOCK

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35419E

VALVE, CHECK, NO.3

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426A

PISTON, C-0 ACCUMULATOR

35426B

RING, O (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35427E

PISTON, B-0 ACCUMULATOR

35427F

SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35441C

STRAINER, SOLENOID OIL

35441C

STRAINER, SOLENOID OIL

35441C

STRAINER, SOLENOID OIL

35450E

BALL (FOR UPPER VALVE BODY)

35450E

BALL (FOR UPPER VALVE BODY)

35450E

BALL (FOR UPPER VALVE BODY)

35599

COVER, MANUAL DETENT SPRING

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

9010505005

Крепеж

9010505005

Крепеж

9010506049

Крепеж

9010506053

Крепеж

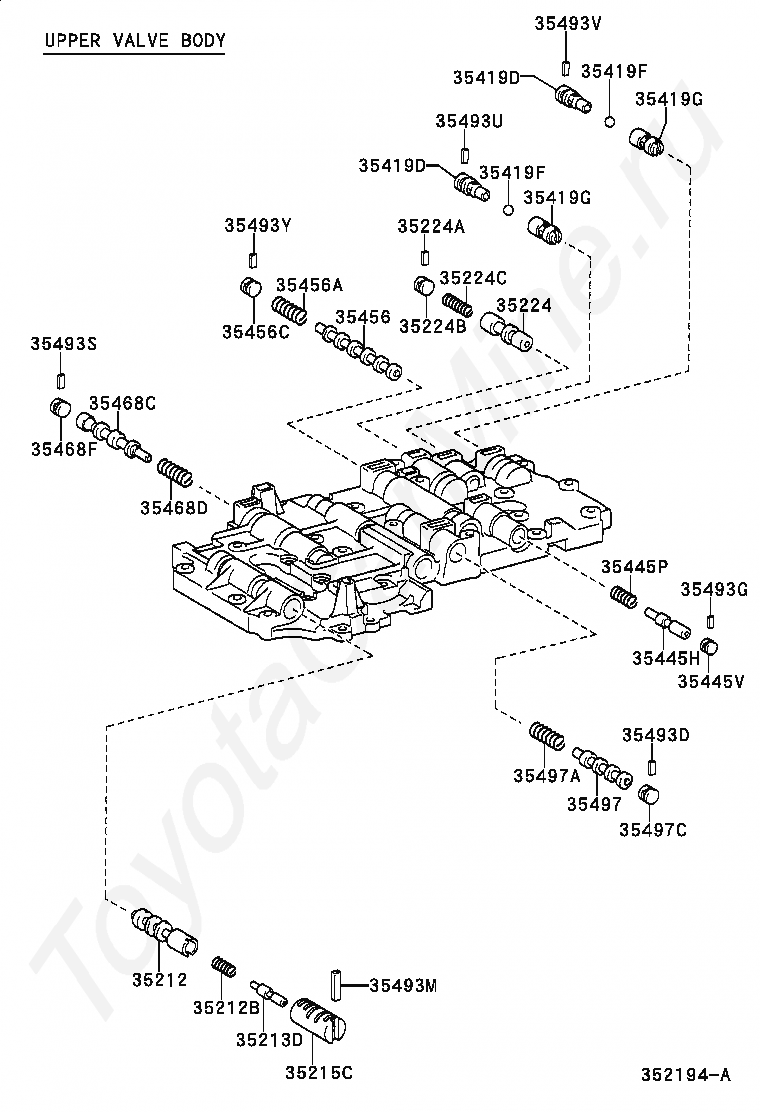

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224B

PLUG (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35419D

VALVE, CHECK, NO.2

35419D

VALVE, CHECK, NO.2

35419F

BALL, CHECK VALVE

35419F

BALL, CHECK VALVE

35419G

VALVE, CHECK, NO.4

35419G

VALVE, CHECK, NO.4

35445H

VALVE, 2ND COAST MODULATOR

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35445V

PLUG (FOR LOW COAST MODULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35493D

SEAT, 3-4 SHIFT VALVE PLUG

35493G

SEAT, LOW COAST MODULATOR VALVE PLUG

35493M

SEAT, LOCK UP CONTROL VALVE PLUG

35493S

SEAT, SECONDARY REGULATOR VALVE PLUG

35493U

SEAT, CHECK VALVE, NO.1

35493V

SEAT, CHECK VALVE, NO.2

35493Y

SEAT, 2-3 SHIFT VALVE PLUG

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

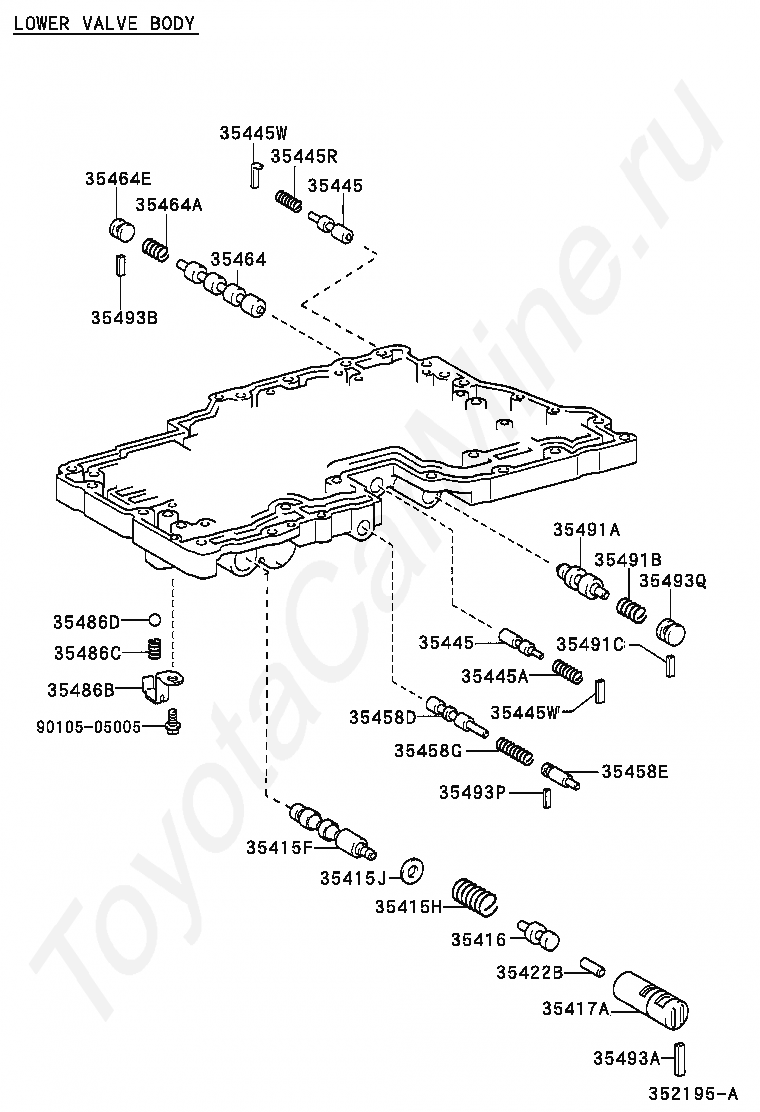

Код

Описание

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35422B

PLUNGER, PRIMARY REGULATOR VALVE, NO.2

35445

VALVE, LOW MODULATOR

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35445W

SEAT, SHIFT VALVE PLUG(FOR LOW MODULATOR VALVE)

35445W

SEAT, SHIFT VALVE PLUG(FOR LOW MODULATOR VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35486B

SEAT, PRESSURE RELIEF VALVE SPRING

35486C

SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)

35486D

BALL (FOR PRESSURE RELIFE VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35493A

SEAT, PRIMARY REGULATOR VALVE PLUG

35493B

SEAT, 1-2 SHIFT VALVE PLUG

35493P

SEAT, CUT BACK VALVE PLUG

35493Q

SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1

9010505005

Крепеж

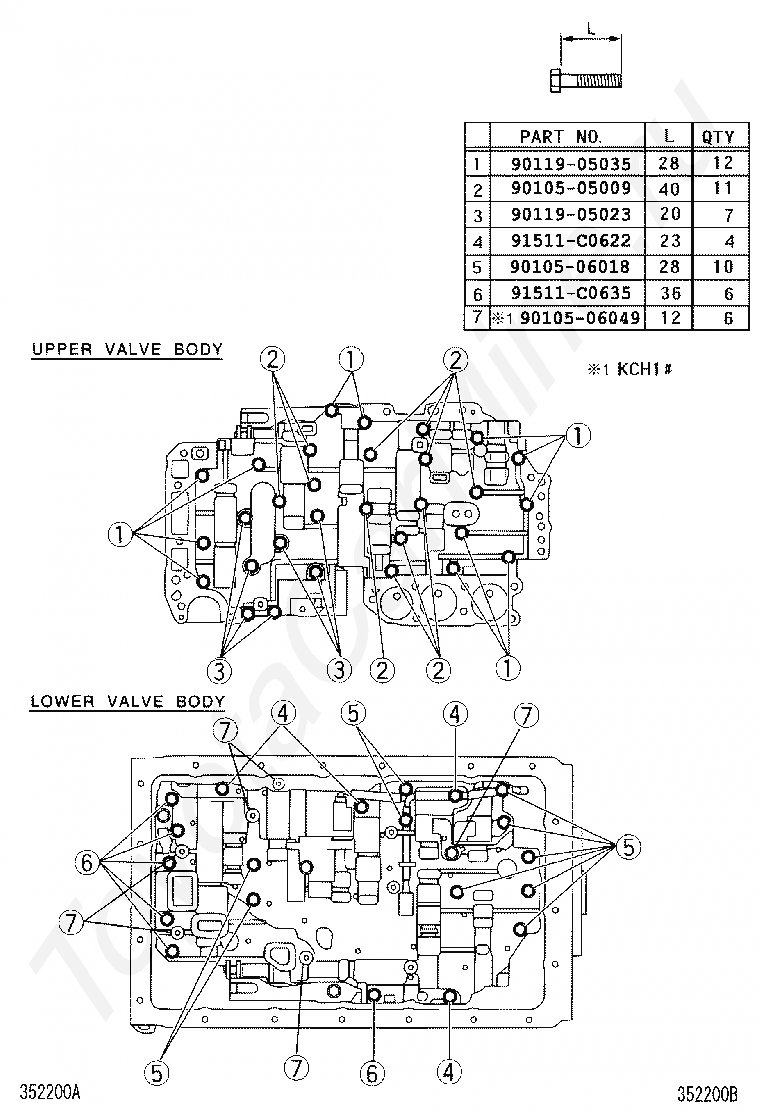

Код

Описание

9010505009

Крепеж

9010506018

Крепеж

9010506049

Крепеж

9011905023

Крепеж

9011905035

Крепеж

91511C0622

Крепеж

91511C0635

Крепеж

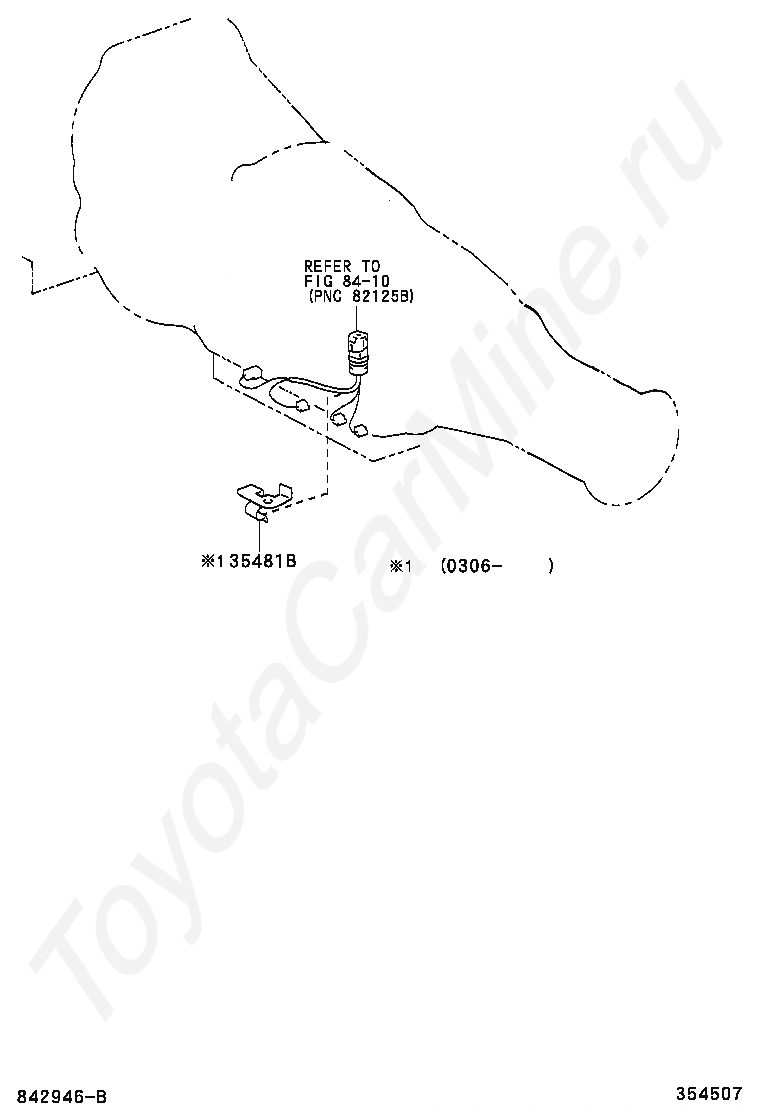

Код

Описание

35481B

CLAMP, VALVE BODY WIRE HARNESS

8410

переход к группе запчастей
