Каталог

Япония

Модель

GRANVIA/GRAND HIACE

VIN

Дата

1995/10

Двигатель

3 литра, турбо-дизель

Кузов

фургон

Класс

GRAMS

Фрейм

KCH16

КПП

автомат

Опции

8-местный 4 двери TURBO DIESEL WITH ECD

Кондиционер: охлаждающая система TOYOTA GRANVIA/GRAND HIACE

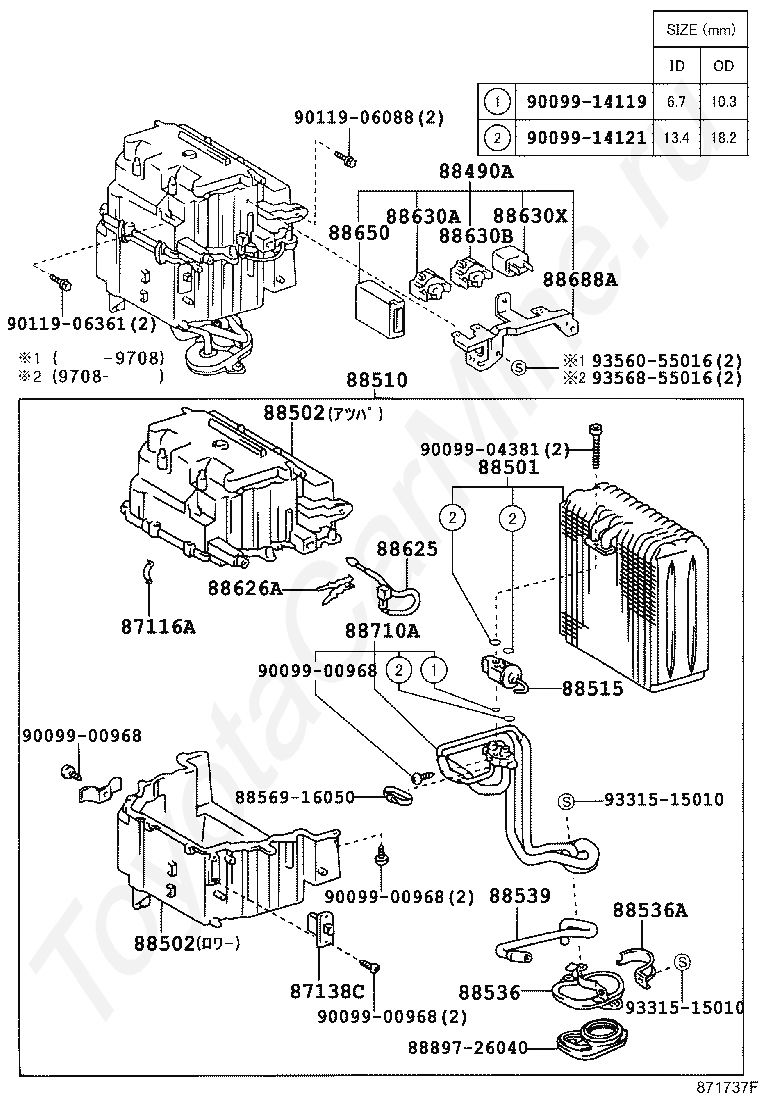

Код

Описание

87116A

SPRING, HOLDING (FOR COOLER UNIT CASE)

87138C

RESISTOR, BLOWER

88490A

PARTS ASSY, ELECTRICAL

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88502

CASE SUB-ASSY, COOLING UNIT

88502

CASE SUB-ASSY, COOLING UNIT

88510

UNIT ASSY, COOLER

88515

VALVE, COOLER EXPANSION

88536

BRACKET, COOLING UNIT, NO.1

88536A

BRACKET, COOLING UNIT, NO.2

88539

HOSE, COOLER UNIT DRAIN, NO.1

8856916050

Крепеж

88625

THERMISTOR, COOLER, NO.1

88626A

HOLDER, THERMISTOR

88630A

RELAY ASSY, COOLER

88630B

RELAY ASSY, COOLER

88630X

RELAY ASSY

88650

AMPLIFIER ASSY, COOLER STABILIZER

88688A

BRACKET, COOLER STABILIZER AMPLIFIER

88710A

TUBE ASSY, AIR CONDITIONER

8889726040

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009904381

Крепеж

9009914119

Крепеж

9009914121

Крепеж

9011906088

Крепеж

9011906361

Крепеж

9331515010

Крепеж

9331515010

Крепеж

9356055016

Крепеж

9356855016

Крепеж

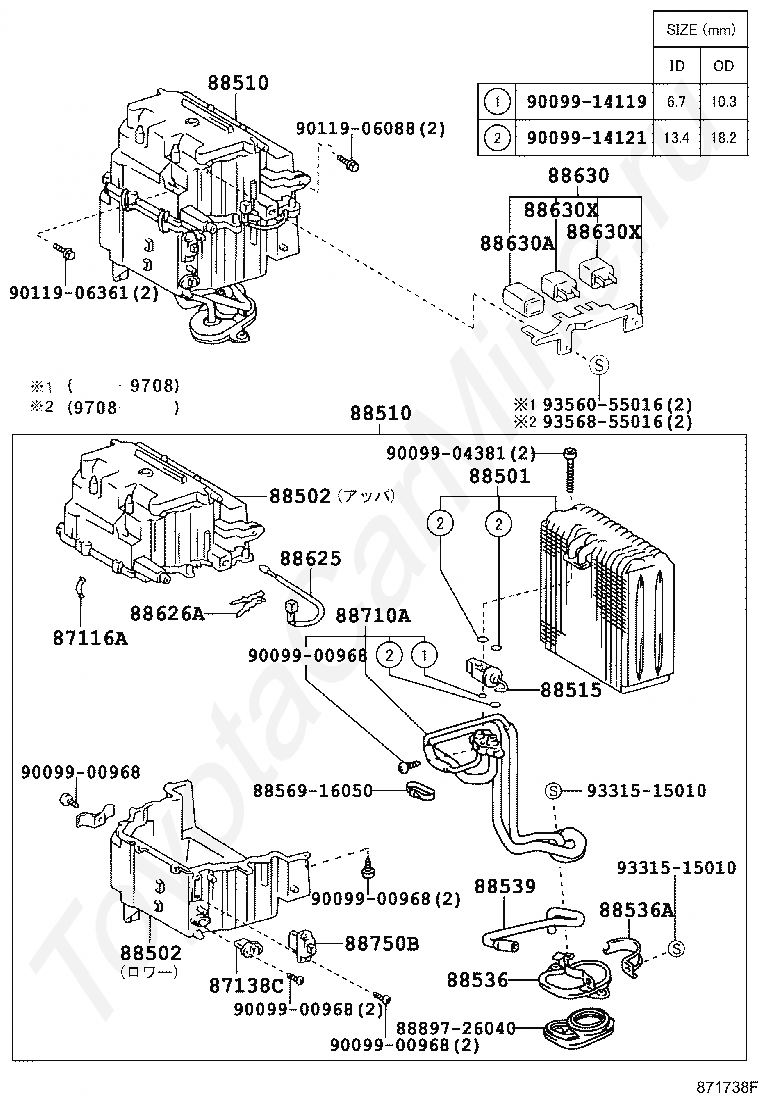

Код

Описание

87116A

SPRING, HOLDING (FOR COOLER UNIT CASE)

87138C

RESISTOR, BLOWER

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88502

CASE SUB-ASSY, COOLING UNIT

88502

CASE SUB-ASSY, COOLING UNIT

88510

UNIT ASSY, COOLER

88510

UNIT ASSY, COOLER

88515

VALVE, COOLER EXPANSION

88536

BRACKET, COOLING UNIT, NO.1

88536A

BRACKET, COOLING UNIT, NO.2

88539

HOSE, COOLER UNIT DRAIN, NO.1

8856916050

Крепеж

88625

THERMISTOR, COOLER, NO.1

88626A

HOLDER, THERMISTOR

88630

RELAY ASSY, COOLER

88630A

RELAY ASSY, COOLER

88630X

RELAY ASSY

88630X

RELAY ASSY

88710A

TUBE ASSY, AIR CONDITIONER

88750B

TRANSISTOR ASSY, BLOWER RESISTOR

8889726040

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009904381

Крепеж

9009914119

Крепеж

9009914121

Крепеж

9011906088

Крепеж

9011906361

Крепеж

9331515010

Крепеж

9331515010

Крепеж

9356055016

Крепеж

9356855016

Крепеж

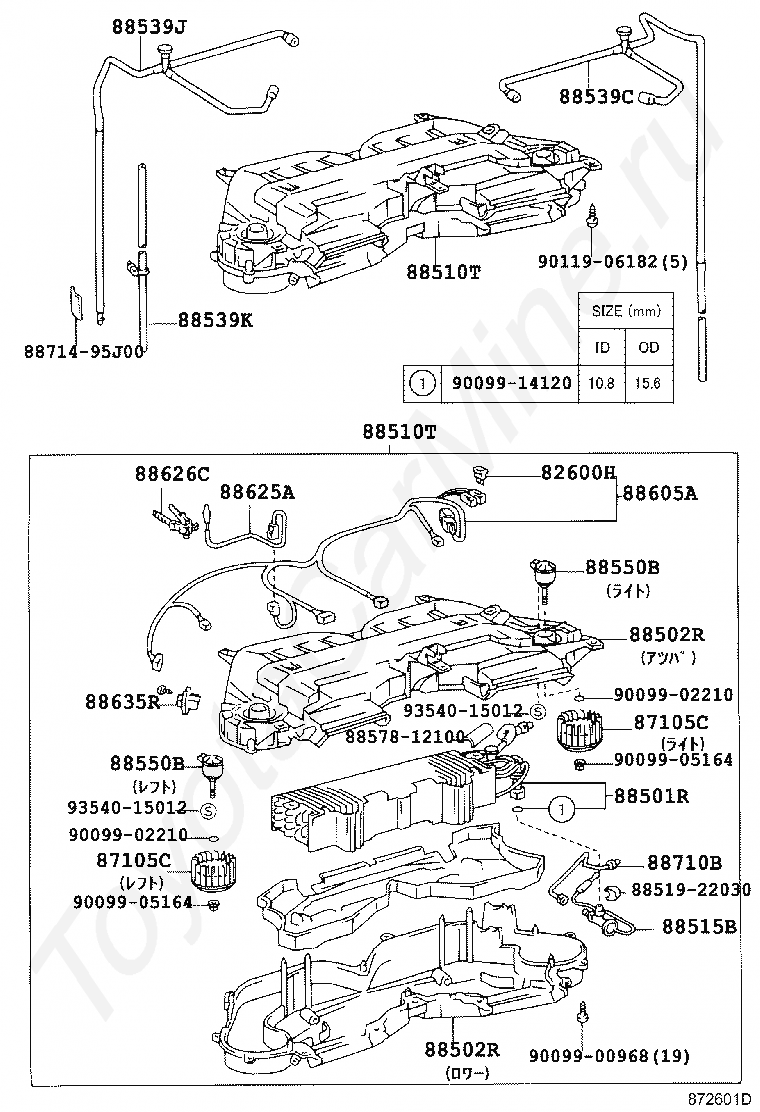

Код

Описание

82600H

FUSE, FUSE BLOCK

87105C

FAN SUB-ASSY, BLOWER, REAR

87105C

FAN SUB-ASSY, BLOWER, REAR

88501R

EVAPORATOR SUB-ASSY (REAR)

88502R

CASE SUB-ASSY, COOLING UNIT

88502R

CASE SUB-ASSY, COOLING UNIT

88510T

UNIT ASSY, COOLING (REAR)

88510T

UNIT ASSY, COOLING (REAR)

88515B

VALVE, REAR COOLING UNIT EXPANSION

8851922030

Крепеж

88539C

HOSE, COOLER UNIT DRAIN, NO.2

88539J

HOSE, DRAIN COOLER

88539K

HOSE, DRAIN COOLER

88550B

MOTOR ASSY, BLOWER

88550B

MOTOR ASSY, BLOWER

8857812100

Крепеж

88605A

HARNESS SUB-ASSY, COOLER WIRING

88625A

THERMISTOR, COOLER NO.2

88626C

HOLDER, THERMISTOR, REAR

88635R

RESISTOR, BLOWER

88710B

TUBE ASSY, AIR CONDITIONER

8871495J00

Крепеж

9009900968

Крепеж

9009902210

Крепеж

9009902210

Крепеж

9009905164

Крепеж

9009905164

Крепеж

9009914120

Крепеж

9011906182

Крепеж

9354015012

Крепеж

9354015012

Крепеж

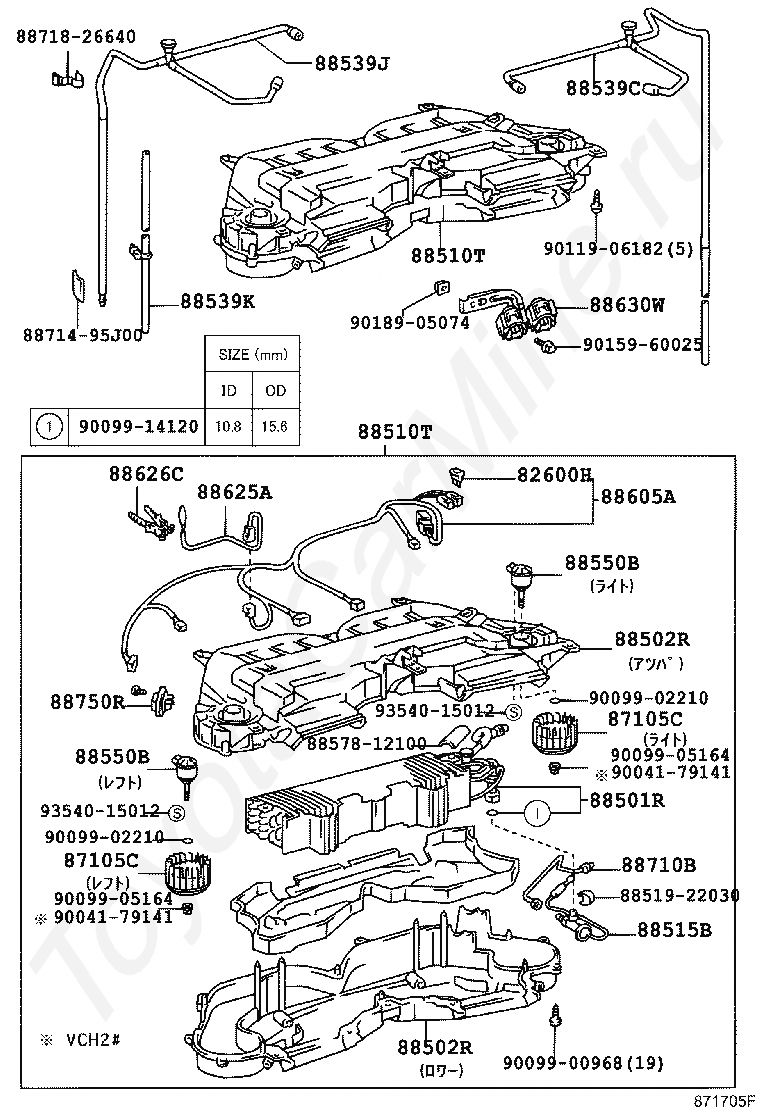

Код

Описание

82600H

FUSE, FUSE BLOCK

87105C

FAN SUB-ASSY, BLOWER, REAR

87105C

FAN SUB-ASSY, BLOWER, REAR

88501R

EVAPORATOR SUB-ASSY (REAR)

88502R

CASE SUB-ASSY, COOLING UNIT

88502R

CASE SUB-ASSY, COOLING UNIT

88510T

UNIT ASSY, COOLING (REAR)

88510T

UNIT ASSY, COOLING (REAR)

88515B

VALVE, REAR COOLING UNIT EXPANSION

8851922030

Крепеж

88539C

HOSE, COOLER UNIT DRAIN, NO.2

88539J

HOSE, DRAIN COOLER

88539K

HOSE, DRAIN COOLER

88550B

MOTOR ASSY, BLOWER

88550B

MOTOR ASSY, BLOWER

8857812100

Крепеж

88605A

HARNESS SUB-ASSY, COOLER WIRING

88625A

THERMISTOR, COOLER NO.2

88626C

HOLDER, THERMISTOR, REAR

88630W

RELAY ASSY

88710B

TUBE ASSY, AIR CONDITIONER

8871495J00

Крепеж

8871826640

Крепеж

88750R

TRANSISTOR ASSY, BLOWER RESISTOR(REAR)

9004179141

Крепеж

9004179141

Крепеж

9009900968

Крепеж

9009902210

Крепеж

9009902210

Крепеж

9009905164

Крепеж

9009905164

Крепеж

9009914120

Крепеж

9011906182

Крепеж

9015960025

Крепеж

9018905074

Крепеж

9354015012

Крепеж

9354015012

Крепеж

Код

Описание

88520

BOX ASSY, COOLING

8859287002

Крепеж

8859287002

Крепеж

88610S

SWITCH ASSY, CONTROL

88630V

RELAY ASSY

88649

WIRING, COOLER, NO.2

88649A

WIRING, COOLER, NO.3

88650E

AMPLIFIER ASSY, AIR CONDITIONER, NO.1

8868826140

Крепеж

8871832070

Крепеж

8889726020

Крепеж

8889926070

Крепеж

9017906115

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356055014

Крепеж

9356815012

Крепеж

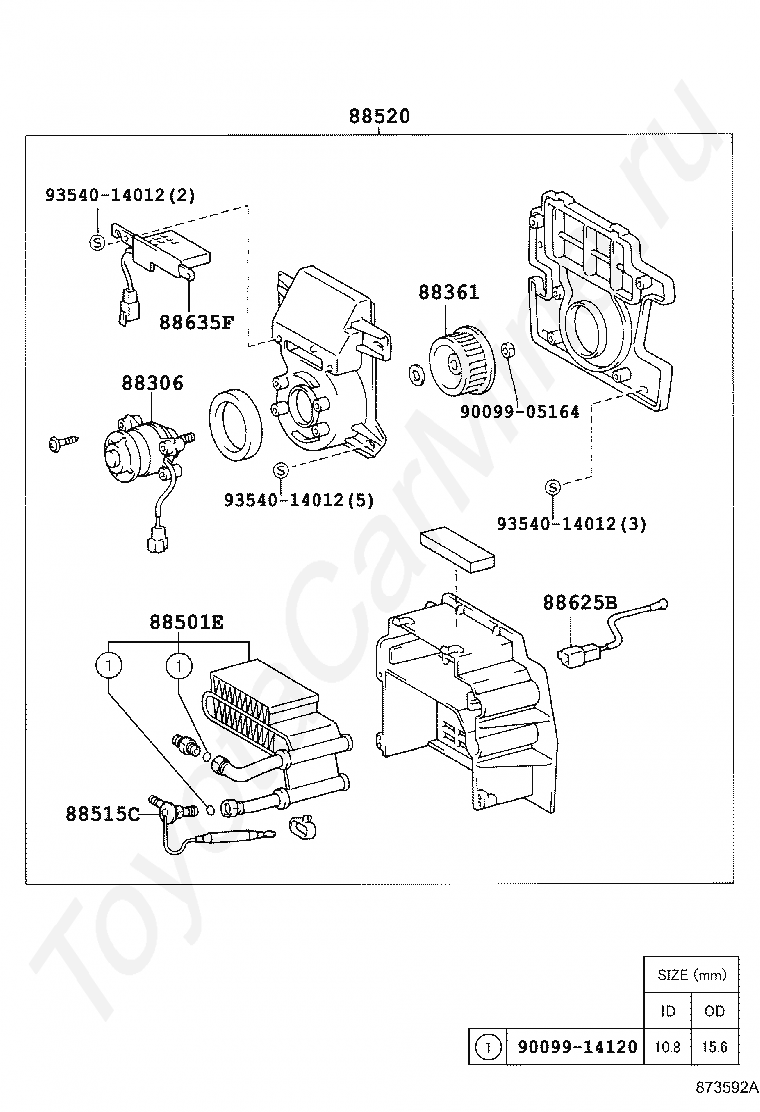

Код

Описание

88306

MOTOR SUB-ASSY, COOLER BLOWER, NO.1

88361

FAN, COOLER BLOWER, NO.1

88501E

EVAPOLATOR SUB-ASSY, COOLER (COOL BOX)

88515C

VALVE, COOLING BOX EXPANSION

88520

BOX ASSY, COOLING

88625B

THERMISTOR, COOLER NO.3

88635F

RESISTER, COOLER BLOWER

9009905164

Крепеж

9009914120

Крепеж

9354014012

Крепеж

9354014012

Крепеж

9354014012

Крепеж

Кондиционер: охлаждающая система TOYOTA GRANVIA/GRAND HIACE
