Каталог

Япония

Модель

GRANVIA/GRAND HIACE

VIN

Дата

1995/10

Двигатель

3 литра, турбо-дизель

Кузов

фургон

Класс

GRAMS

Фрейм

KCH16

КПП

автомат

Опции

8-местный 4 двери TURBO DIESEL WITH ECD

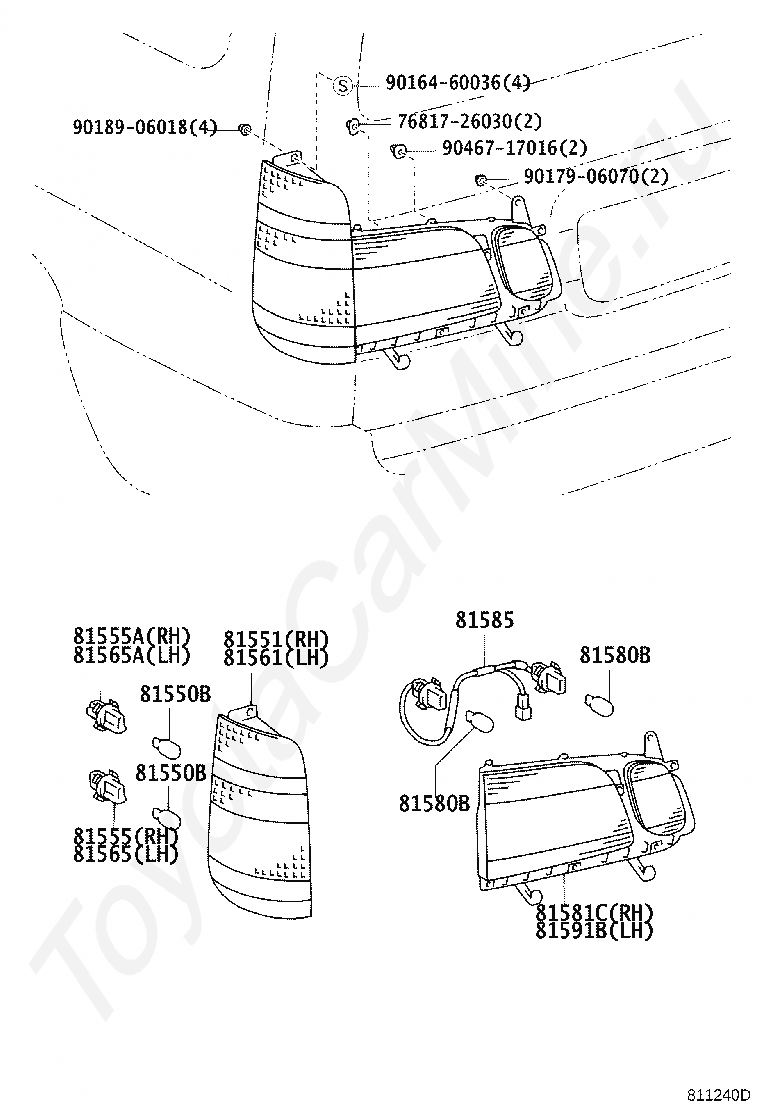

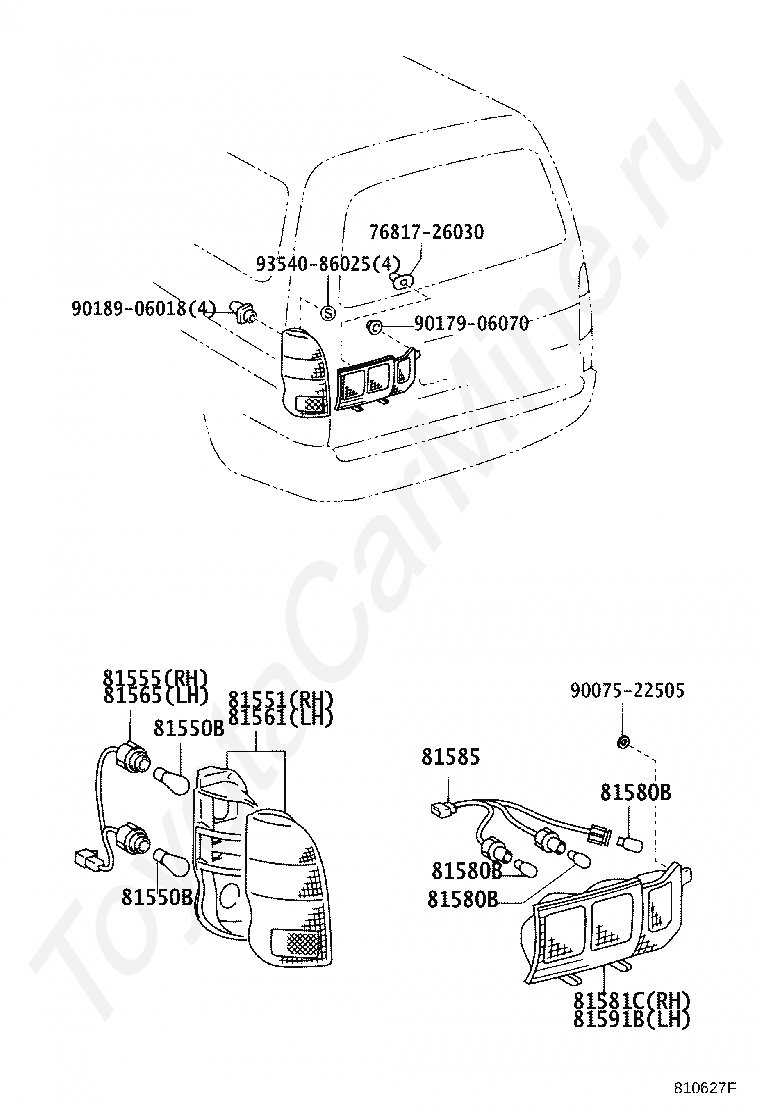

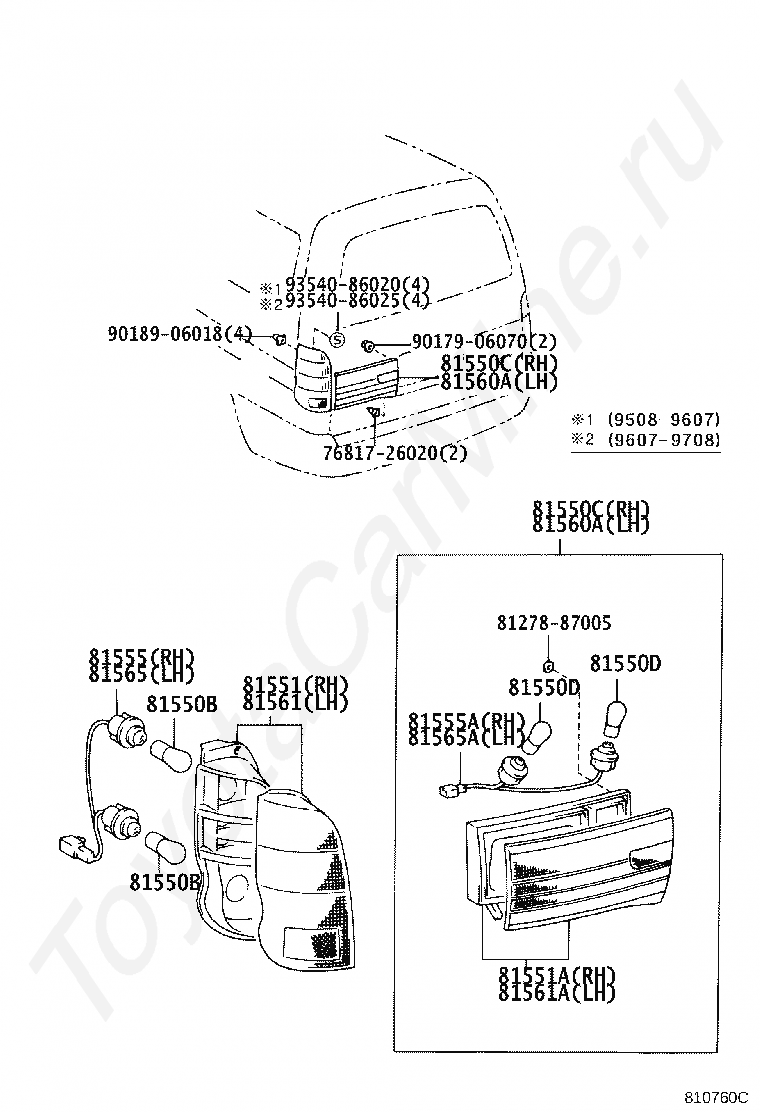

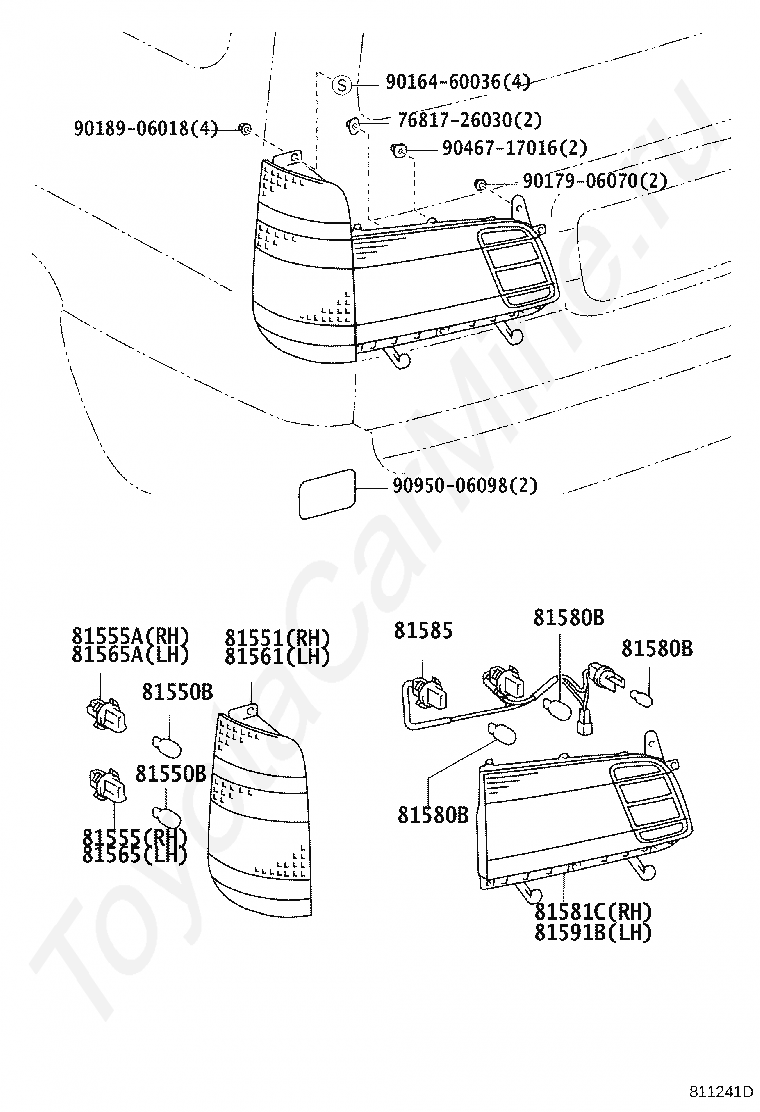

Задние фонари TOYOTA GRANVIA/GRAND HIACE

Код

Описание

7681726020

Крепеж

8127887005

Крепеж

81550B

BULB(FOR REAR COMBINATION LAMP)

81550B

BULB(FOR REAR COMBINATION LAMP)

81550C

LAMP ASSY, REAR COMBINATION, RH

81550C

LAMP ASSY, REAR COMBINATION, RH

81550D

BULB(FOR REAR COMBINATION LAMP)

81550D

BULB(FOR REAR COMBINATION LAMP)

81551

LENS, REAR COMBINATION LAMP, RH

81551A

LENS, REAR COMBINATION LAMP, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81555A

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560A

LAMP ASSY, REAR COMBINATION, LH

81560A

LAMP ASSY, REAR COMBINATION, LH

81561

LENS, REAR COMBINATION LAMP, LH

81561A

LENS, REAR COMBINATION LAMP, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81565A

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

9017906070

Крепеж

9018906018

Крепеж

9354086020

Крепеж

9354086025

Крепеж

Код

Описание

7681726030

Крепеж

81550B

BULB(FOR REAR COMBINATION LAMP)

81550B

BULB(FOR REAR COMBINATION LAMP)

81551

LENS, REAR COMBINATION LAMP, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81561

LENS, REAR COMBINATION LAMP, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81580B

BULB (FOR REAR LAMP)

81580B

BULB (FOR REAR LAMP)

81580B

BULB (FOR REAR LAMP)

81581C

LENS AND BODY, REAR LAMP, RH

81585

SOCKET & WIRE, REAR LAMP

81591B

LENS AND BODY, REAR LAMP, LH

9007522505

Крепеж

9017906070

Крепеж

9018906018

Крепеж

9354086025

Крепеж

Код

Описание

7681726030

Крепеж

81550B

BULB(FOR REAR COMBINATION LAMP)

81550B

BULB(FOR REAR COMBINATION LAMP)

81551

LENS, REAR COMBINATION LAMP, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81555A

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81561

LENS, REAR COMBINATION LAMP, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81565A

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81580B

BULB (FOR REAR LAMP)

81580B

BULB (FOR REAR LAMP)

81581C

LENS AND BODY, REAR LAMP, RH

81585

SOCKET & WIRE, REAR LAMP

81591B

LENS AND BODY, REAR LAMP, LH

9016460036

Крепеж

9017906070

Крепеж

9018906018

Крепеж

9046717016

Крепеж

Код

Описание

7681726030

Крепеж

81550B

BULB(FOR REAR COMBINATION LAMP)

81550B

BULB(FOR REAR COMBINATION LAMP)

81551

LENS, REAR COMBINATION LAMP, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81555A

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81561

LENS, REAR COMBINATION LAMP, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81565A

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81580B

BULB (FOR REAR LAMP)

81580B

BULB (FOR REAR LAMP)

81580B

BULB (FOR REAR LAMP)

81581C

LENS AND BODY, REAR LAMP, RH

81585

SOCKET & WIRE, REAR LAMP

81591B

LENS AND BODY, REAR LAMP, LH

9016460036

Крепеж

9017906070

Крепеж

9018906018

Крепеж

9046717016

Крепеж

9095006098

Крепеж
