Япония

Модель

GRANVIA/GRAND HIACE

VIN

Дата

1995/10

Двигатель

3 литра, турбо-дизель

Кузов

фургон

Класс

GRAMS

Фрейм

KCH16

КПП

автомат

Опции

8-местный 4 двери TURBO DIESEL WITH ECD

Кресла TOYOTA GRANVIA/GRAND HIACE







Код

Описание

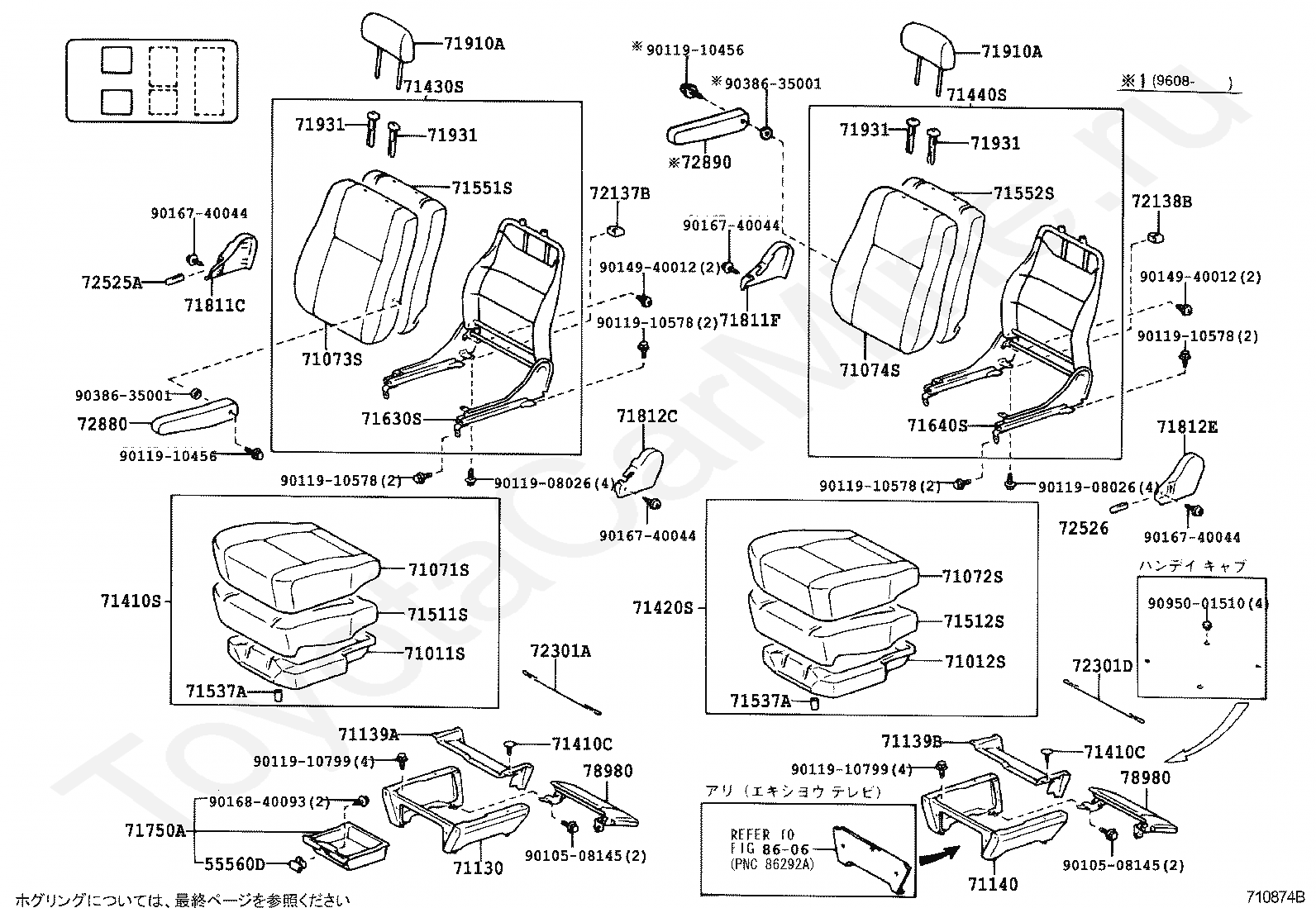

55560D

LOCK ASSY, SEAT UNDER TRAY

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71130

LEG ASSY, FRONT SEAT, RH

71139A

COVER, FRONT SEAT LEG, NO.1

71139B

COVER, FRONT SEAT LEG, NO.2

71140

LEG ASSY, FRONT SEAT, LH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71750A

TRAY ASSY, FRONT SEAT UNDER

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812E

COVER, RECLINING ADJUSTER, LH

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

78980

FOOTREST ASSY, REAR SEAT

78980

FOOTREST ASSY, REAR SEAT

8606

переход к группе запчастей

9010508145

Крепеж

9010508145

Крепеж

9011908026

Крепеж

9011908026

Крепеж

9011910456

Крепеж

9011910456

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910799

Крепеж

9011910799

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016840093

Крепеж

9038635001

Крепеж

9038635001

Крепеж

9095001510

Крепеж

Код

Описание

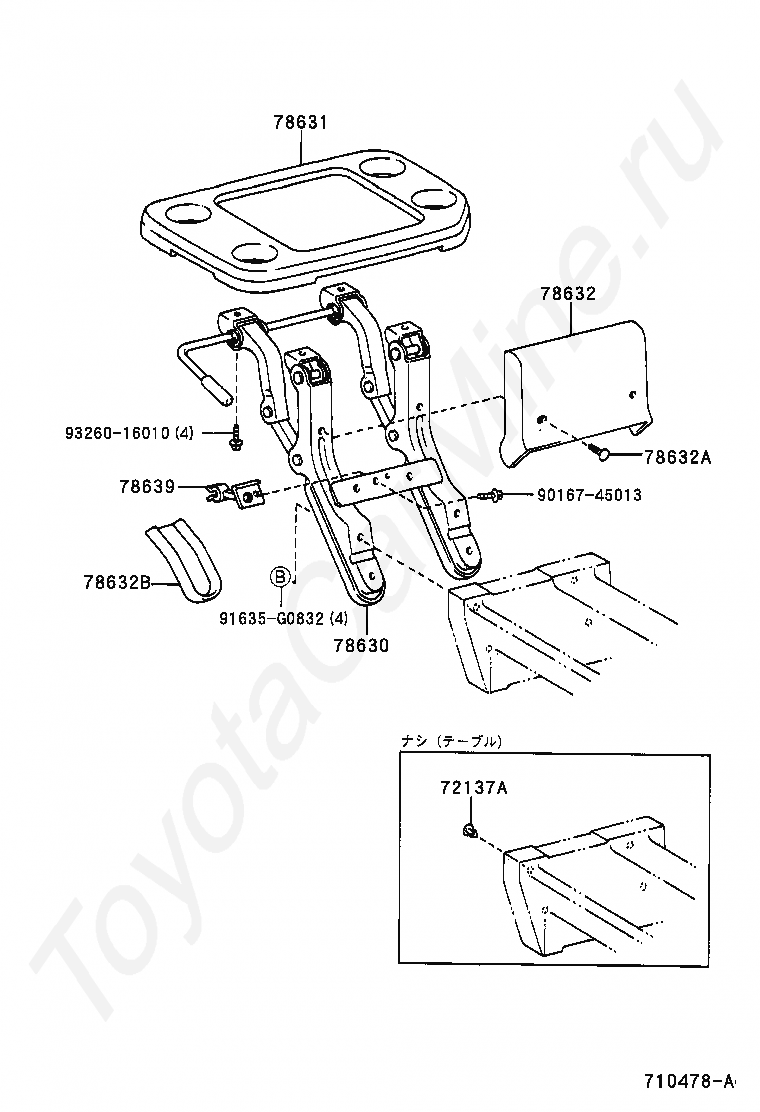

72137A

CLIP (FOR SEAT TRACK COVER)

78630

ADJUSTER ASSY, FR0NT SEAT SIDE TABLE

78631

TABLE, FRONT SEAT SIDE

78632

COVER, FRONT SEAT SIDE TABLE

78632A

CLIP, FRONT SEAT SIDE TABLE COVER

78632B

COVER, FRONT SEAT SIDE TABLE LEG

78639

CLIP, FRONT SEAT SIDE TABLE

9016745013

Крепеж

91635G0832

Крепеж

9326016010

Крепеж

Код

Описание

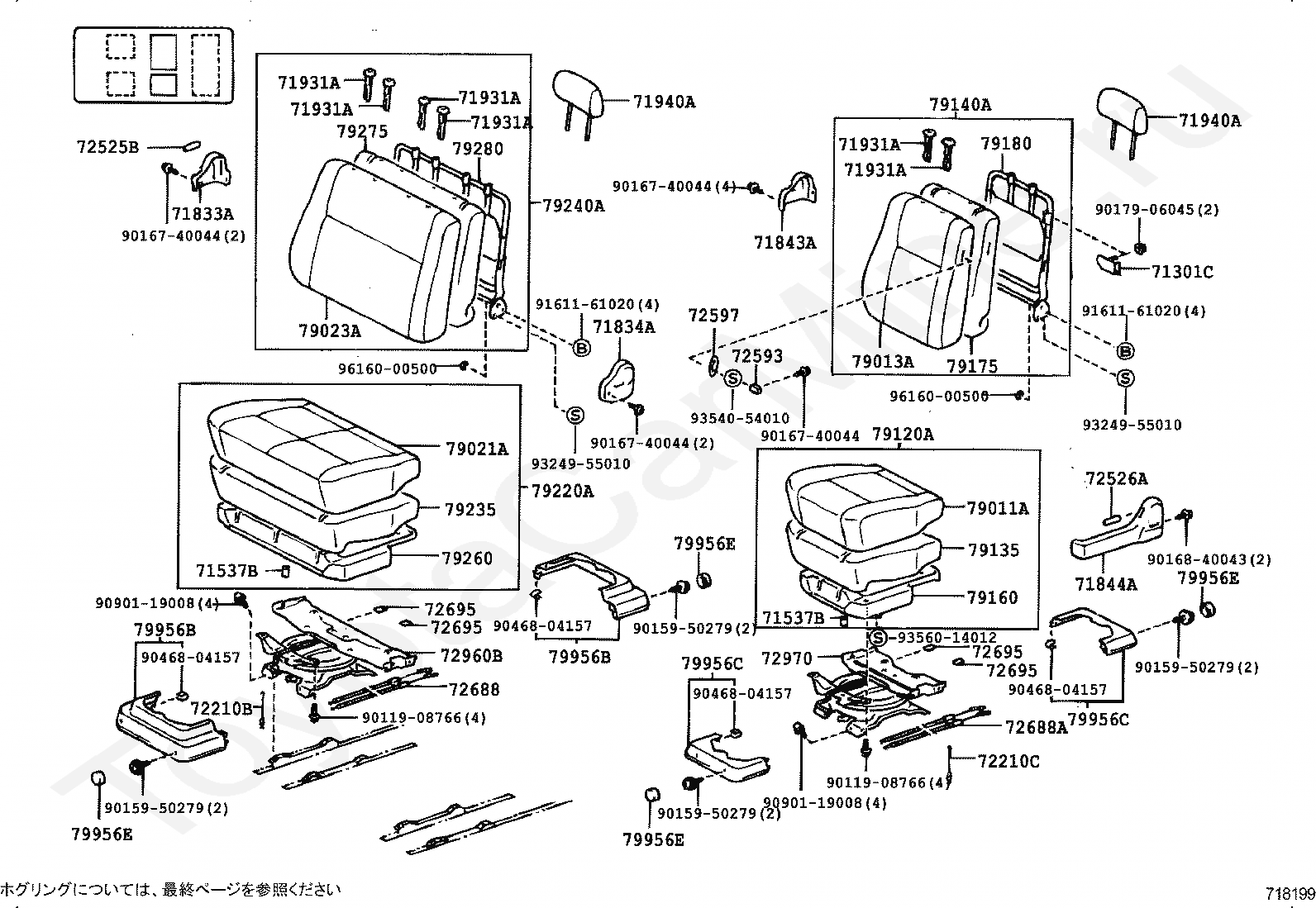

71301C

LINK SUB-ASSY, REAR SEAT CUSHION

71537B

PROTECTOR, REAR SEAT CUSHION

71537B

PROTECTOR, REAR SEAT CUSHION

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

72210B

CABLE ASSY, SEAT TRACK CONTROL, RH

72210C

CABLE ASSY, SEAT TRACK CONTROL, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72593

KNOB, RECLINING REMOTE CONTROL LEVER

72597

BEZEL, RECLINING REMOTE CONTROL

72688

CABLE, REAR SEAT TRACK & TURN CONTROL

72688A

CABLE, REAR TRACK & TURN CONTROL

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72960B

TABLE ASSY, REAR SEAT TURN, RH

72970

TABLE ASSY, REAR SEAT TURN, LH

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79120A

CUSHION ASSY, NO.1 SEAT

79135

PAD, NO.1 SEAT CUSHION

79140A

BACK ASSY, NO.1 SEAT

79160

SPRING ASSY, NO.1 SEAT CUSHION

79175

PAD, NO.1 SEAT BACK

79180

SPRING ASSY, NO.1 SEAT BACK

79220A

CUSHION ASSY, NO.2 SEAT

79235

PAD, NO.2 SEAT CUSHION

79240A

BACK ASSY, NO.2 SEAT

79260

SPRING ASSY, NO.2 SEAT CUSHION

79275

PAD, NO.2 SEAT BACK

79280

SPRING ASSY, NO.2 SEAT BACK

79956B

COVER, REAR SEAT LEG SIDE, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

79956C

COVER, REAR SEAT LEG SIDE, LH

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

9011908766

Крепеж

9011908766

Крепеж

9015950279

Крепеж

9015950279

Крепеж

9015950279

Крепеж

9015950279

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9017906045

Крепеж

9046804157

Крепеж

9046804157

Крепеж

9046804157

Крепеж

9046804157

Крепеж

9090119008

Крепеж

9090119008

Крепеж

9161161020

Крепеж

9161161020

Крепеж

9324955010

Крепеж

9324955010

Крепеж

9354054010

Крепеж

9356014012

Крепеж

9616000500

Крепеж

9616000500

Крепеж

Код

Описание

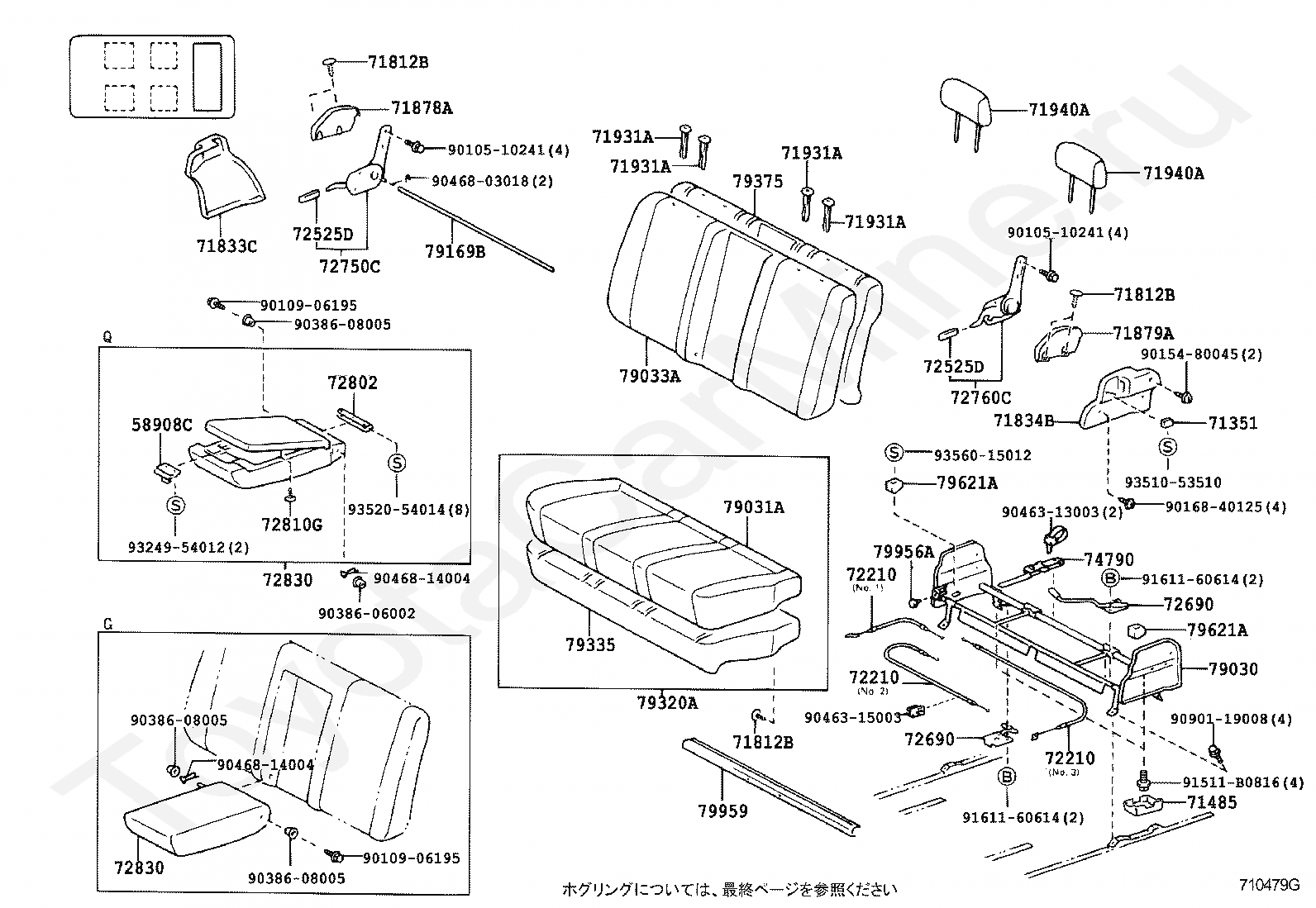

58908C

LOCK SUB-ASSY, REAR SEAT ARMREST

71351

KNOB, SEAT HINGE LEVER

71485

COVER, REAR SEAT HINGE

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

72210

CABLE ASSY, SEAT TRACK CONTROL

72210

CABLE ASSY, SEAT TRACK CONTROL

72210

CABLE ASSY, SEAT TRACK CONTROL

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760C

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

72802

HINGE SUB-ASSY, ARMREST CONSOLE

72810G

CLIP, REAR SEAT ARMREST

72830

ARMREST ASSY, REAR SEAT, CENTER

72830

ARMREST ASSY, REAR SEAT, CENTER

74790

HOLDER ASSY, WARNING REFLECTOR

79030

LEG ASSY, NO.3 SEAT, RH

79031A

COVER SUB-ASSY, NO.3 SEAT CUSHION

79033A

COVER SUB-ASSY, NO.3 SEAT BACK

79169B

ROD, REAR NO.2 SEAT HINGE CONNECTOR

79320A

CUSHION ASSY, NO.3 SEAT

79335

PAD, NO.3 SEAT CUSHION

79375

PAD, NO.3 SEAT BACK

79621A

STOPPER, NO.3 SEAT CUSHION

79621A

STOPPER, NO.3 SEAT CUSHION

79956A

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79959

COVER, RR SEAT LEG

9010510241

Крепеж

9010510241

Крепеж

9010906195

Крепеж

9010906195

Крепеж

9015480045

Крепеж

9016840125

Крепеж

9038606002

Крепеж

9038608005

Крепеж

9038608005

Крепеж

9038608005

Крепеж

9046313003

Крепеж

9046315003

Крепеж

9046803018

Крепеж

9046814004

Крепеж

9046814004

Крепеж

9090119008

Крепеж

91511B0816

Крепеж

9161160614

Крепеж

9161160614

Крепеж

9324954012

Крепеж

9351053510

Крепеж

9352054014

Крепеж

9356015012

Крепеж

Код

Описание

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

5854

переход к группе запчастей

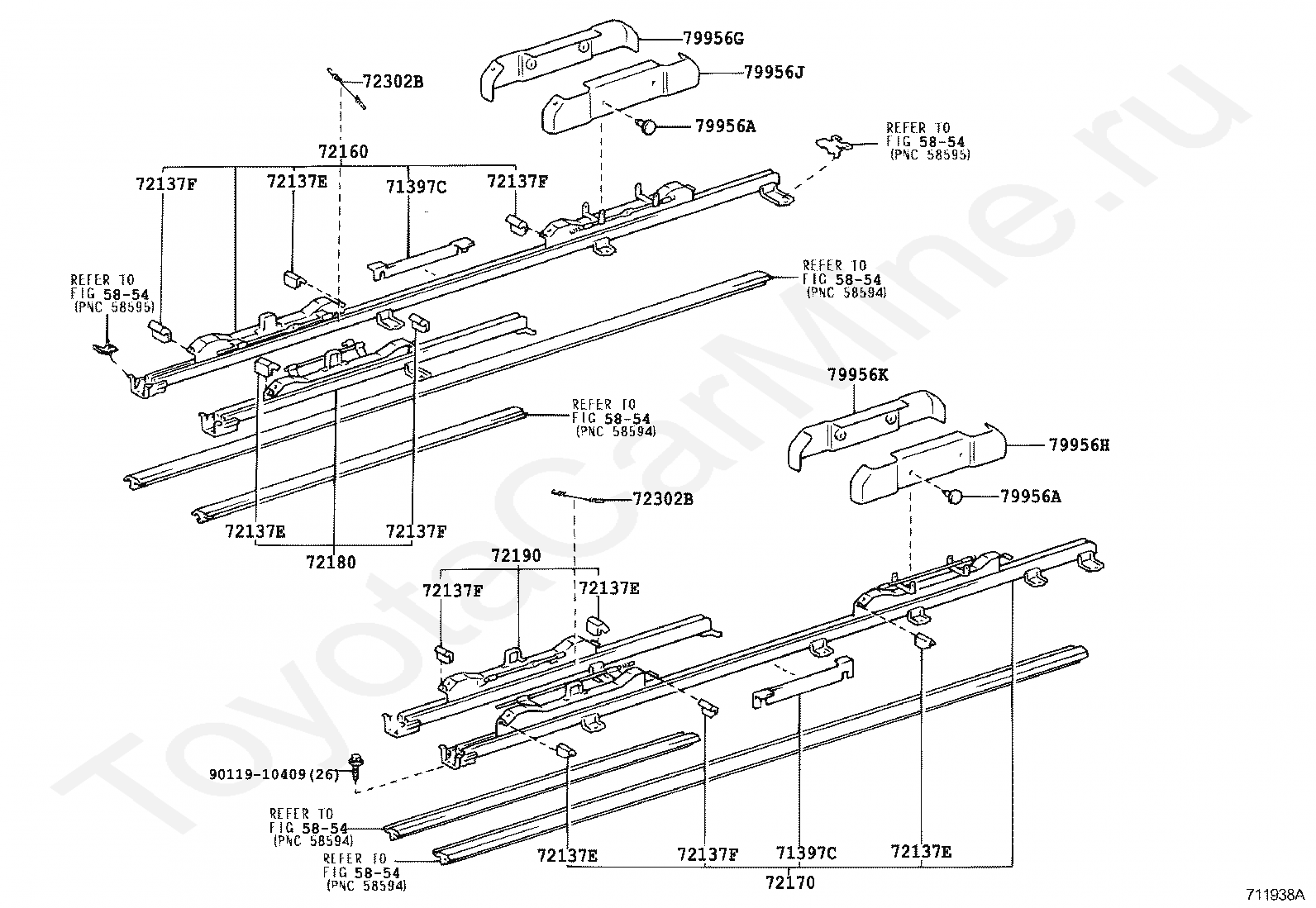

71397C

STOPPER, REAR SEAT

71397C

STOPPER, REAR SEAT

72137E

COVER, SEAT TRACK, NO.1

72137E

COVER, SEAT TRACK, NO.1

72137E

COVER, SEAT TRACK, NO.1

72137E

COVER, SEAT TRACK, NO.1

72137E

COVER, SEAT TRACK, NO.1

72137F

COVER, SEAT TRACK, NO.2

72137F

COVER, SEAT TRACK, NO.2

72137F

COVER, SEAT TRACK, NO.2

72137F

COVER, SEAT TRACK, NO.2

72137F

COVER, SEAT TRACK, NO.2

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72180

TRACK ASSY, REAR SEAT, INNER RH

72190

TRACK ASSY, REAR SEAT INNER, LH

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

79956A

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79956A

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79956G

COVER, NO.3 SEAT LEG SIDE, RH

79956H

COVER, NO.3 SEAT LEG SIDE, LH

79956J

COVER, NO.3 SEAT LEG, INNER RH

79956K

COVER, NO.3 SEAT LEG, INNER LH

9011910409

Крепеж

Код

Описание

55560D

LOCK ASSY, SEAT UNDER TRAY

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71130

LEG ASSY, FRONT SEAT, RH

71139A

COVER, FRONT SEAT LEG, NO.1

71139B

COVER, FRONT SEAT LEG, NO.2

71140

LEG ASSY, FRONT SEAT, LH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71750A

TRAY ASSY, FRONT SEAT UNDER

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812E

COVER, RECLINING ADJUSTER, LH

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72429

PLATE, FRONT SEAT ADJUSTER, RH

72439

PLATE, FRONT SEAT ADJUSTER, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

7282526020

Крепеж

7282526020

Крепеж

72877

COVER, SEAT ARMREST, RH

72878

COVER, SEAT ARMREST, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

78650

LEGREST ASSY, REAR SEAT

78656

COVER, REAR SEAT LEGREST

78670

ADJUSTER ASSY, REAR SEAT LEGREST

78980

FOOTREST ASSY, REAR SEAT

78980

FOOTREST ASSY, REAR SEAT

8513

переход к группе запчастей

8513

переход к группе запчастей

9010508145

Крепеж

9010508145

Крепеж

9011908026

Крепеж

9011908026

Крепеж

9011908026

Крепеж

9011908026

Крепеж

9011908134

Крепеж

9011908134

Крепеж

9011910456

Крепеж

9011910456

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910799

Крепеж

9011910799

Крепеж

9014940012

Крепеж

9016450020

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016840093

Крепеж

9038635001

Крепеж

9038635001

Крепеж

9046708008

Крепеж

9046708008

Крепеж

Код

Описание

55560D

LOCK ASSY, SEAT UNDER TRAY

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71130

LEG ASSY, FRONT SEAT, RH

71139A

COVER, FRONT SEAT LEG, NO.1

71139B

COVER, FRONT SEAT LEG, NO.2

71140

LEG ASSY, FRONT SEAT, LH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71750A

TRAY ASSY, FRONT SEAT UNDER

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812E

COVER, RECLINING ADJUSTER, LH

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72137B

COVER, SEAT TRACK, RH

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72138B

COVER, SEAT TRACK, LH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72877

COVER, SEAT ARMREST, RH

72877

COVER, SEAT ARMREST, RH

72878

COVER, SEAT ARMREST, LH

72878

COVER, SEAT ARMREST, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

78980

FOOTREST ASSY, REAR SEAT

78980

FOOTREST ASSY, REAR SEAT

9010508145

Крепеж

9010508145

Крепеж

9011908079

Крепеж

9011908079

Крепеж

9011910456

Крепеж

9011910500

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910799

Крепеж

9011910799

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016840093

Крепеж

9046708008

Крепеж

9046708008

Крепеж

9095001913

Крепеж

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71139A

COVER, FRONT SEAT LEG, NO.1

71139B

COVER, FRONT SEAT LEG, NO.2

71139D

COVER, FRONT SEAT LEG NO.1

71139E

COVER, FRONT SEAT LEG NO.2

71139F

COVER, SPARE SWITCH HOLE

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812E

COVER, RECLINING ADJUSTER, LH

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72080

TABLE ASSY, FRONT SEAT TURN, RH

72090A

TABLE ASSY, FRONT SEAT TURN, LH

72137A

CLIP (FOR SEAT TRACK COVER)

72137A

CLIP (FOR SEAT TRACK COVER)

72137A

CLIP (FOR SEAT TRACK COVER)

72137A

CLIP (FOR SEAT TRACK COVER)

72137A

CLIP (FOR SEAT TRACK COVER)

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72410A

CABLE ASSY, SEAT ADJUSTER DRIVE, NO.1

72429

PLATE, FRONT SEAT ADJUSTER, RH

72439

PLATE, FRONT SEAT ADJUSTER, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72570B

CABLE ASSY, RECLINING ADJUSTING, RH

72803C

FRAME SUB-ASSY, SEAT CENTER ARMREST, RH

72804

FRAME SUB-ASSY, SEAT CENTER ARMREST, LH

7282526020

Крепеж

7282526020

Крепеж

72877

COVER, SEAT ARMREST, RH

72878

COVER, SEAT ARMREST, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

72969

KNOB, REAR SEAT TURN LOCK

72969C

KNOB, REAR SEAT TURN LOCK, LH

72973C

COVER, FRONT SEAT TURN TABLE,NO.1

72973D

COVER, FRONT SEAT TURN TABLE, NO.2

72973E

COVER, FRONT SEAT TURN TABLE, NO.1

72973F

COVER, FRONT SEAT TURN TABLE, NO.2

79956M

CAP(FOR FRONT SEAT LEG SIDE COVER)

79956M

CAP(FOR FRONT SEAT LEG SIDE COVER)

9011908026

Крепеж

9011908026

Крепеж

9011908026

Крепеж

9011908026

Крепеж

9011908134

Крепеж

9011908134

Крепеж

9011910500

Крепеж

9011910500

Крепеж

9011910799

Крепеж

9011910799

Крепеж

9011910897

Крепеж

9011910897

Крепеж

9011910903

Крепеж

9011910903

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9015950367

Крепеж

9015950367

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9038614007

Крепеж

9046400799

Крепеж

9046708008

Крепеж

9046708008

Крепеж

9046804157

Крепеж

9046804157

Крепеж

9356055020

Крепеж

9356055020

Крепеж

9356055020

Крепеж

9356055020

Крепеж

Код

Описание

71537B

PROTECTOR, REAR SEAT CUSHION

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71705B

CAP(FOR FRONT SEAT BACK BOARD)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71881

BOARD, REAR SEAT BACK, RH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

7218926020

Крепеж

7218926020

Крепеж

72210B

CABLE ASSY, SEAT TRACK CONTROL, RH

72506A

ROD SUB-ASSY, RECLINING CONNECTING, RH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551B

COVER, RECLINING HINGE, RH

72551D

CLIP(FOR RECLINING HINGE)

72551D

CLIP(FOR RECLINING HINGE)

72552B

COVER, RECLINING HINGE, LH

72553

COVER, RECLINING PEDAL

72637A

HANDLE, REAR SEAT LOCK

72688

CABLE, REAR SEAT TRACK & TURN CONTROL

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

72830J

ARMREST ASSY, REAR NO.1 SEAT, RH

72877A

COVER, SEAT ARMREST, NO.2 RH

72960B

TABLE ASSY, REAR SEAT TURN, RH

72996

COVER, REAR SEAT BACK, RH

72997

COVER, REAR SEAT BACK, LH

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79169D

ROD, REAR NO.2 SEAT HINGE CONNECTOR

79220A

CUSHION ASSY, NO.2 SEAT

79235

PAD, NO.2 SEAT CUSHION

79240A

BACK ASSY, NO.2 SEAT

79260

SPRING ASSY, NO.2 SEAT CUSHION

79275

PAD, NO.2 SEAT BACK

79275

PAD, NO.2 SEAT BACK

79280

SPRING ASSY, NO.2 SEAT BACK

79956B

COVER, REAR SEAT LEG SIDE, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

9010510437

Крепеж

9011908766

Крепеж

9015950279

Крепеж

9015950279

Крепеж

9015950279

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9038614007

Крепеж

9046803018

Крепеж

9046803018

Крепеж

9046804157

Крепеж

9046804157

Крепеж

9054103112

Крепеж

9090119008

Крепеж

9161161020

Крепеж

9161161020

Крепеж

9161161045

Крепеж

9161161045

Крепеж

9161260612

Крепеж

9324955010

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9454201400

Крепеж

9616000800

Крепеж

9616000800

Крепеж

Код

Описание

71537B

PROTECTOR, REAR SEAT CUSHION

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71705B

CAP(FOR FRONT SEAT BACK BOARD)

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71882A

BOARD, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

7218926020

Крепеж

7218926020

Крепеж

72210C

CABLE ASSY, SEAT TRACK CONTROL, LH

72210E

CABLE ASSY, SEAT TRACK CONTROL(FOR WALK IN)

72506B

ROD SUB-ASSY, RECLINING CONNECTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551B

COVER, RECLINING HINGE, RH

72551D

CLIP(FOR RECLINING HINGE)

72551D

CLIP(FOR RECLINING HINGE)

72552B

COVER, RECLINING HINGE, LH

72553

COVER, RECLINING PEDAL

72637A

HANDLE, REAR SEAT LOCK

72688A

CABLE, REAR TRACK & TURN CONTROL

72690B

LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72878A

COVER, SEAT ARMREST, NO.2 LH

72970

TABLE ASSY, REAR SEAT TURN, LH

72996A

COVER, REAR SEAT BACK

72997

COVER, REAR SEAT BACK, LH

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79120A

CUSHION ASSY, NO.1 SEAT

79135

PAD, NO.1 SEAT CUSHION

79140A

BACK ASSY, NO.1 SEAT

79160

SPRING ASSY, NO.1 SEAT CUSHION

79169

ROD, REAR SEAT HINGE CONNECTOR

79175

PAD, NO.1 SEAT BACK

79175

PAD, NO.1 SEAT BACK

79180

SPRING ASSY, NO.1 SEAT BACK

79956C

COVER, REAR SEAT LEG SIDE, LH

79956C

COVER, REAR SEAT LEG SIDE, LH

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

9010510437

Крепеж

9011908766

Крепеж

9015950279

Крепеж

9015950279

Крепеж

9015950279

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9020118001

Крепеж

9038614007

Крепеж

9046803018

Крепеж

9046803018

Крепеж

9046804157

Крепеж

9046804157

Крепеж

9090119008

Крепеж

9161161020

Крепеж

9161161020

Крепеж

9161161045

Крепеж

9161161045

Крепеж

9161260612

Крепеж

9163160840

Крепеж

9324955010

Крепеж

9356014012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9454201400

Крепеж

9616000800

Крепеж

9616000800

Крепеж

Код

Описание

58908C

LOCK SUB-ASSY, REAR SEAT ARMREST

71063A

CLIP, FRONT SEAT BACK COVER, REAR

71351

KNOB, SEAT HINGE LEVER

71485

COVER, REAR SEAT HINGE

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71833E

COVER, REAR SEAT RECLINING, NO.3 RH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71865

BEZEL, REAR SEAT COVER, NO.1

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72210

CABLE ASSY, SEAT TRACK CONTROL

72210

CABLE ASSY, SEAT TRACK CONTROL

72210

CABLE ASSY, SEAT TRACK CONTROL

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72658B

KNOB, REAR SEAT LOCK HANDLE

72686

PLATE, REAR SEAT BACK LOCK BELT

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760C

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

72802

HINGE SUB-ASSY, ARMREST CONSOLE

72830

ARMREST ASSY, REAR SEAT, CENTER

72830

ARMREST ASSY, REAR SEAT, CENTER

74790

HOLDER ASSY, WARNING REFLECTOR

79030

LEG ASSY, NO.3 SEAT, RH

79031A

COVER SUB-ASSY, NO.3 SEAT CUSHION

79033A

COVER SUB-ASSY, NO.3 SEAT BACK

79033A

COVER SUB-ASSY, NO.3 SEAT BACK

79169B

ROD, REAR NO.2 SEAT HINGE CONNECTOR

79303

FRAME SUB-ASSY, NO.3 SEAT BACK

79320A

CUSHION ASSY, NO.3 SEAT

79335

PAD, NO.3 SEAT CUSHION

79375

PAD, NO.3 SEAT BACK

79375

PAD, NO.3 SEAT BACK

79621A

STOPPER, NO.3 SEAT CUSHION

79621A

STOPPER, NO.3 SEAT CUSHION

79956A

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79959

COVER, RR SEAT LEG

79959

COVER, RR SEAT LEG

79959

COVER, RR SEAT LEG

9010510241

Крепеж

9010510241

Крепеж

9010906195

Крепеж

9010906195

Крепеж

9015480045

Крепеж

9016840125

Крепеж

9020612050

Крепеж

9038606002

Крепеж

9038608005

Крепеж

9038608005

Крепеж

9038608005

Крепеж

9046313003

Крепеж

9046803018

Крепеж

9046814004

Крепеж

9046814004

Крепеж

9090119008

Крепеж

9090119053

Крепеж

91511B0816

Крепеж

9161160614

Крепеж

9161160614

Крепеж

9324954012

Крепеж

9351053510

Крепеж

9352054014

Крепеж

9356015012

Крепеж

9356054014

Крепеж

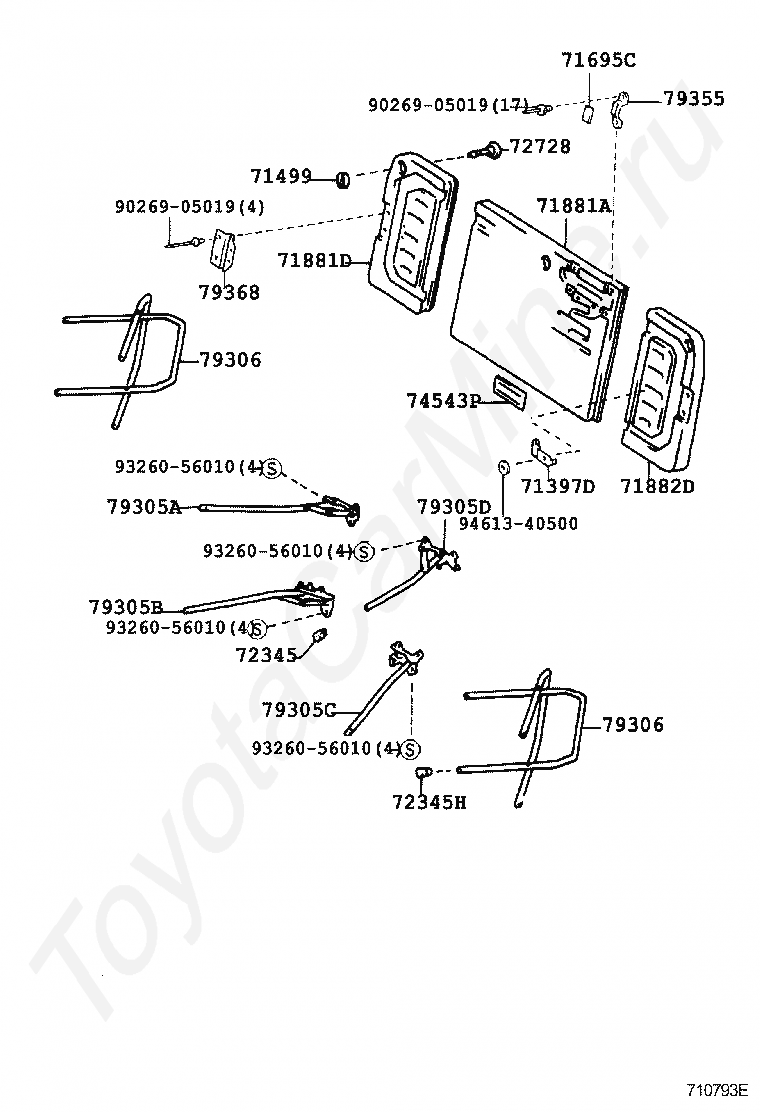

Код

Описание

71397D

STOPPER, REAR SEAT

71499

STOPPER, REAR SEAT BACK

71695C

PROTECTOR, REAR SEAT, NO.1

71881A

BOARD, REAR SEAT BACK

71881D

BOARD, REAR SEAT BACK, RH

71882D

BOARD, REAR SEAT BACK, LH

72345

CAP, SEAT STAND FRAME

72345H

CAP, SEAT STAND FRAME

72728

PROTECTOR, REAR SEAT RECLINING, INNER RH

74543P

LABEL, REAR SEAT CAUTION

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79305B

LEG SUB-ASSY, NO.3 SEAT NO.2

79305C

LEG SUB-ASSY, NO.3 SEAT NO.3

79305D

LEG SUB-ASSY, NO.3 SEAT NO.4

79306

LEG SUB ASSY, NO.3 SEAT, LH

79306

LEG SUB ASSY, NO.3 SEAT, LH

79355

PLATE, NO.3 SEAT BACK

79368

SUPPORT, NO.3 SEAT BACK

9026905019

Крепеж

9026905019

Крепеж

9326056010

Крепеж

9326056010

Крепеж

9326056010

Крепеж

9326056010

Крепеж

9461340500

Крепеж

Код

Описание

5854

переход к группе запчастей

5854

переход к группе запчастей

71397C

STOPPER, REAR SEAT

71397C

STOPPER, REAR SEAT

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72137E

COVER, SEAT TRACK, NO.1

72137E

COVER, SEAT TRACK, NO.1

72137E

COVER, SEAT TRACK, NO.1

72137E

COVER, SEAT TRACK, NO.1

72137E

COVER, SEAT TRACK, NO.1

72137F

COVER, SEAT TRACK, NO.2

72137F

COVER, SEAT TRACK, NO.2

72137F

COVER, SEAT TRACK, NO.2

72137F

COVER, SEAT TRACK, NO.2

72137F

COVER, SEAT TRACK, NO.2

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72180

TRACK ASSY, REAR SEAT, INNER RH

72190

TRACK ASSY, REAR SEAT INNER, LH

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

79956A

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79956A

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79956G

COVER, NO.3 SEAT LEG SIDE, RH

79956H

COVER, NO.3 SEAT LEG SIDE, LH

79956J

COVER, NO.3 SEAT LEG, INNER RH

79956K

COVER, NO.3 SEAT LEG, INNER LH

9011910409

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти GRANVIA/GRAND HIACE > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
