Каталог

Япония

Модель

GR 86

VIN

Дата

2021/10

Двигатель

2400CC 16-VALVE DOHC

Класс

SZ TYPE

Фрейм

ZN8

КПП

автомат АКПП, 6 скоростей

Опции

2 двери амперы 839W

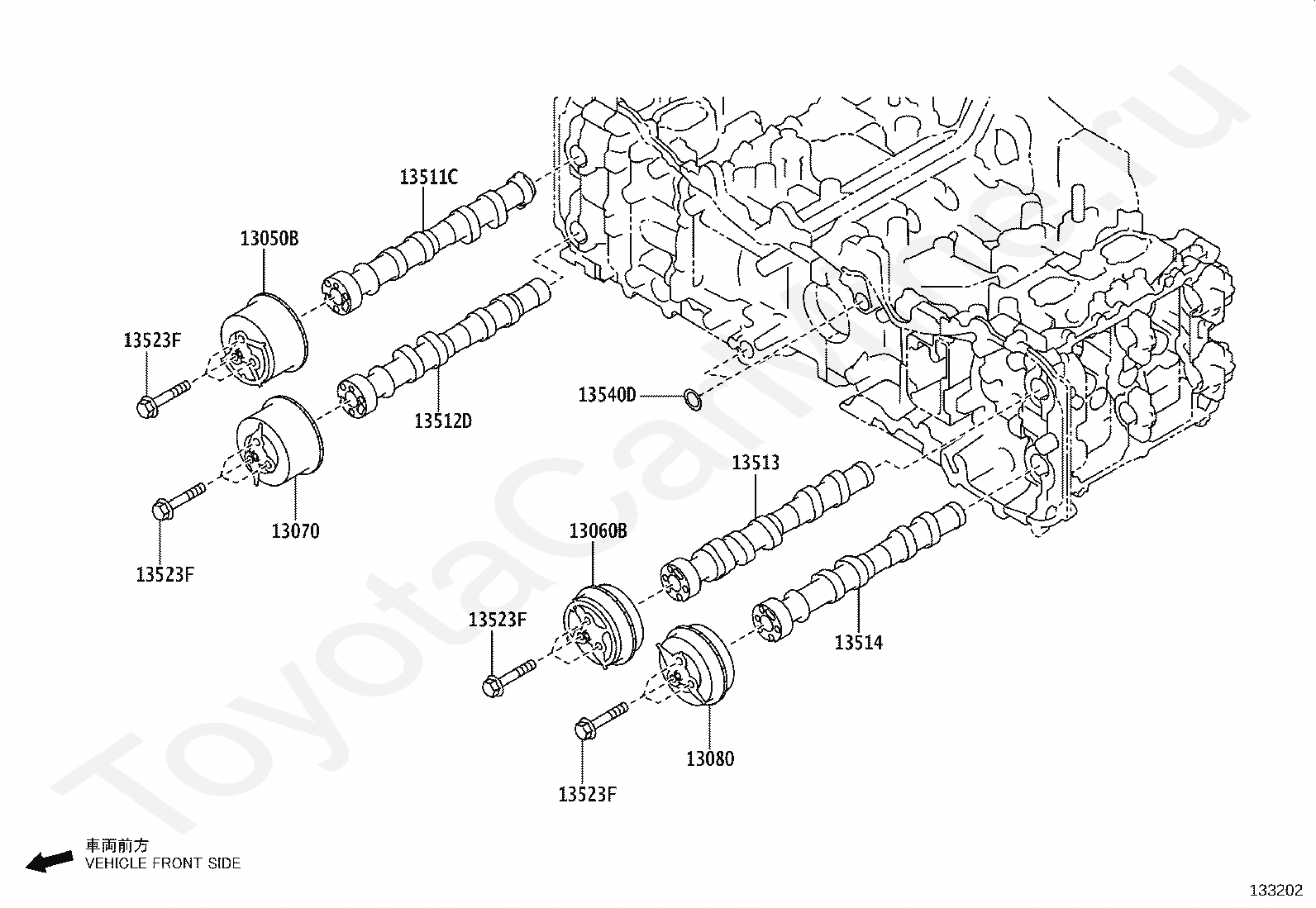

Распредвал, клапаны, ремень TOYOTA GR 86

Код

Описание

13711

VALVE, INTAKE

13711E

SEAL, INTAKE VALVE STEM OIL

13711M

SPRING, COMPRESSION(FOR INTAKE VALVE)

13715

VALVE, EXHAUST

13715A

SEAL, EXHAUST VALVE STEM OIL

13715H

SPRING, COMPRESSION(FOR EXHAUST VALVE)

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

13801

ARM SUB-ASSY, VALVE ROCKER, NO.1

13801

ARM SUB-ASSY, VALVE ROCKER, NO.1

13801K

PIVOT, ROCKER ARM RH

13801K

PIVOT, ROCKER ARM RH

13802A

PIVOT, ROCKER ARM LH

13802A

PIVOT, ROCKER ARM LH

Код

Описание

13050B

GEAR ASSY, CAMSHAFT TIMING INTAKE, RH

13060B

GEAR ASSY, CAMSHAFT TIMING INTAKE, LH

13070

GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH

13080

GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH

13511C

CAMSHAFT, INTAKE, RH

13512D

CAMSHAFT, EXHAUST, RH

13513

CAMSHAFT, INTAKE, LH

13514

CAMSHAFT, EXHAUST, LH

13523F

BOLT(FOR CAMSHAFT TIMING GEAR)

13523F

BOLT(FOR CAMSHAFT TIMING GEAR)

13523F

BOLT(FOR CAMSHAFT TIMING GEAR)

13523F

BOLT(FOR CAMSHAFT TIMING GEAR)

13540D

RING, O(FOR CHAIN TENSIONER)

Код

Описание

1301

переход к группе запчастей

1301

переход к группе запчастей

13506

CHAIN SUB-ASSY

13506

CHAIN SUB-ASSY

13540

TENSIONER ASSY, CHAIN, NO.1

13550

TENSIONER ASSY, CHAIN, NO.2

13559

SLIPPER, CHAIN TENSIONER

13559

SLIPPER, CHAIN TENSIONER

13561

DAMPER, CHAIN VIBRATION, NO.1

13562

DAMPER, CHAIN VIBRATION, NO.2

13566

GUIDE, CHAIN DAMPER

13566B

GUIDE, TIMING CHAIN

SU00302138

Крепеж

SU00302138

Крепеж

SU00302195

Крепеж

SU00302197

Крепеж

SU00302197

Крепеж

SU00308481

Крепеж
