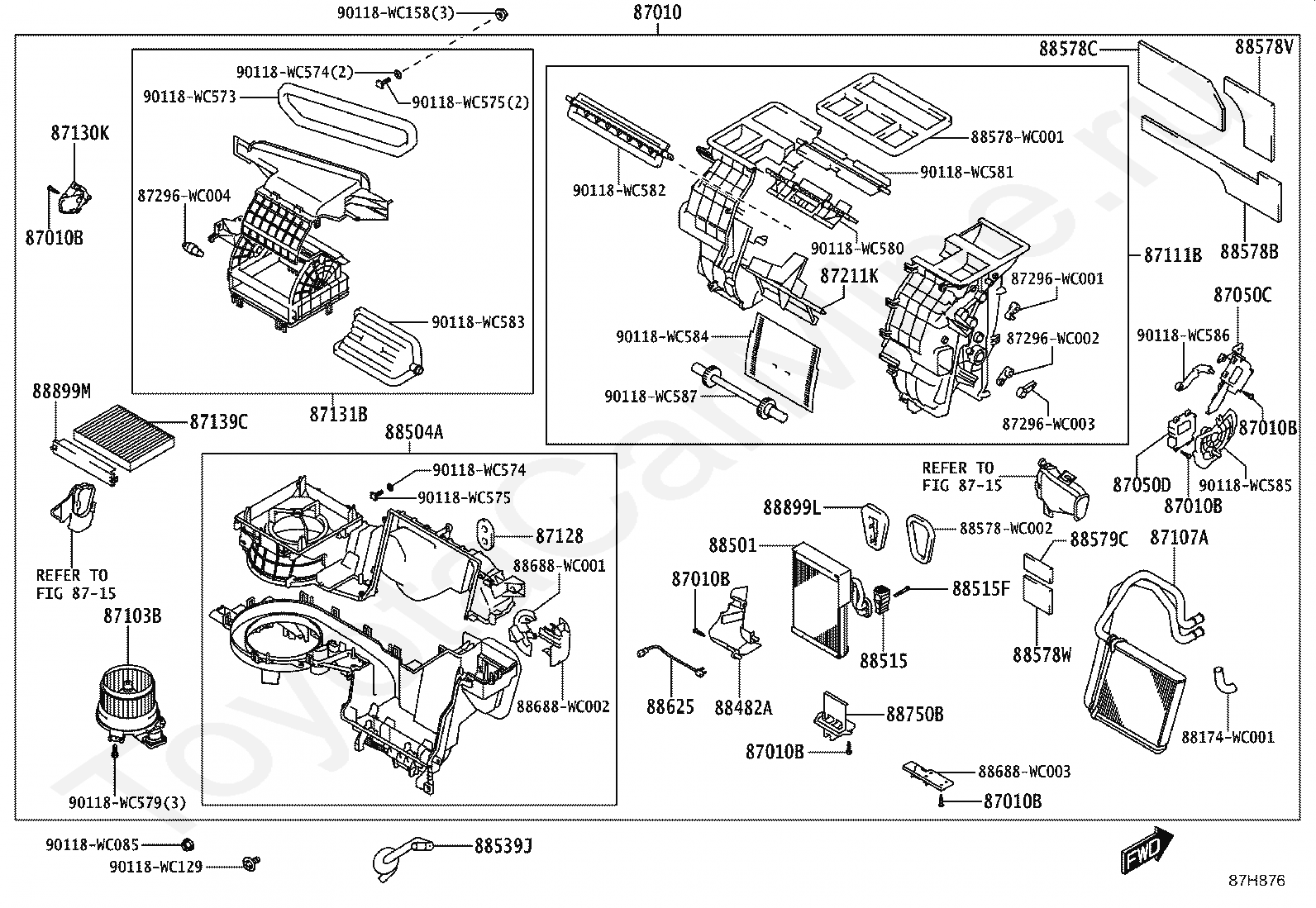

87010
UNIT ASSY, AIR CONDITIONER
87010B
SCREW(FOR AIR CONDITIONER UNIT)
87010B
SCREW(FOR AIR CONDITIONER UNIT)
87010B
SCREW(FOR AIR CONDITIONER UNIT)
87010B
SCREW(FOR AIR CONDITIONER UNIT)
87010B
SCREW(FOR AIR CONDITIONER UNIT)
87010B
SCREW(FOR AIR CONDITIONER UNIT)
87050C
DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050D
DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103B
MOTOR SUB-ASSY, BLOWER W/FAN
87107A
UNIT SUB-ASSY, HEATER RADIATOR
87130K
DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87131B
CASE, HEATER BLOWER
8715
переход к группе запчастей
8715
переход к группе запчастей
88501
EVAPORATOR SUB-ASSY, COOLER, NO.1
88504A
CASE SUB-ASSY, BLOWER
88515
VALVE, COOLER EXPANSION
88515F
BOLT(FOR COOLER EXPANSION VALVE)
88539J
HOSE, DRAIN COOLER
88578B
PACKING, COOLING UNIT, NO.1
88578C
PACKING, COOLING UNIT, NO.2
88578V
PACKING, COOLING UNIT, NO.3
88578W
PACKING, COOLING UNIT, NO.4
88579C
PACKING, COOLING UNIT, NO.5
88625
THERMISTOR, COOLER, NO.1
88750B
TRANSISTOR ASSY, BLOWER RESISTOR
88899L
PARTS, COOLING UNIT
88899M
PLATE, COVER(FOR AIR FILTER)
