Ближний Восток

Модель

FORTUNER

VIN

Дата

2008/08

Двигатель

3 литра, турбо-дизель

Кузов

SUV WAGON

Класс

SR SPECIFICATION

Фрейм

KUN51

КПП

МКПП, 5 скоростей

Опции

правый руль 5 дверей система впрыска дизельного топлива FOR THAILAND COMPLETED VEHICLE 408W

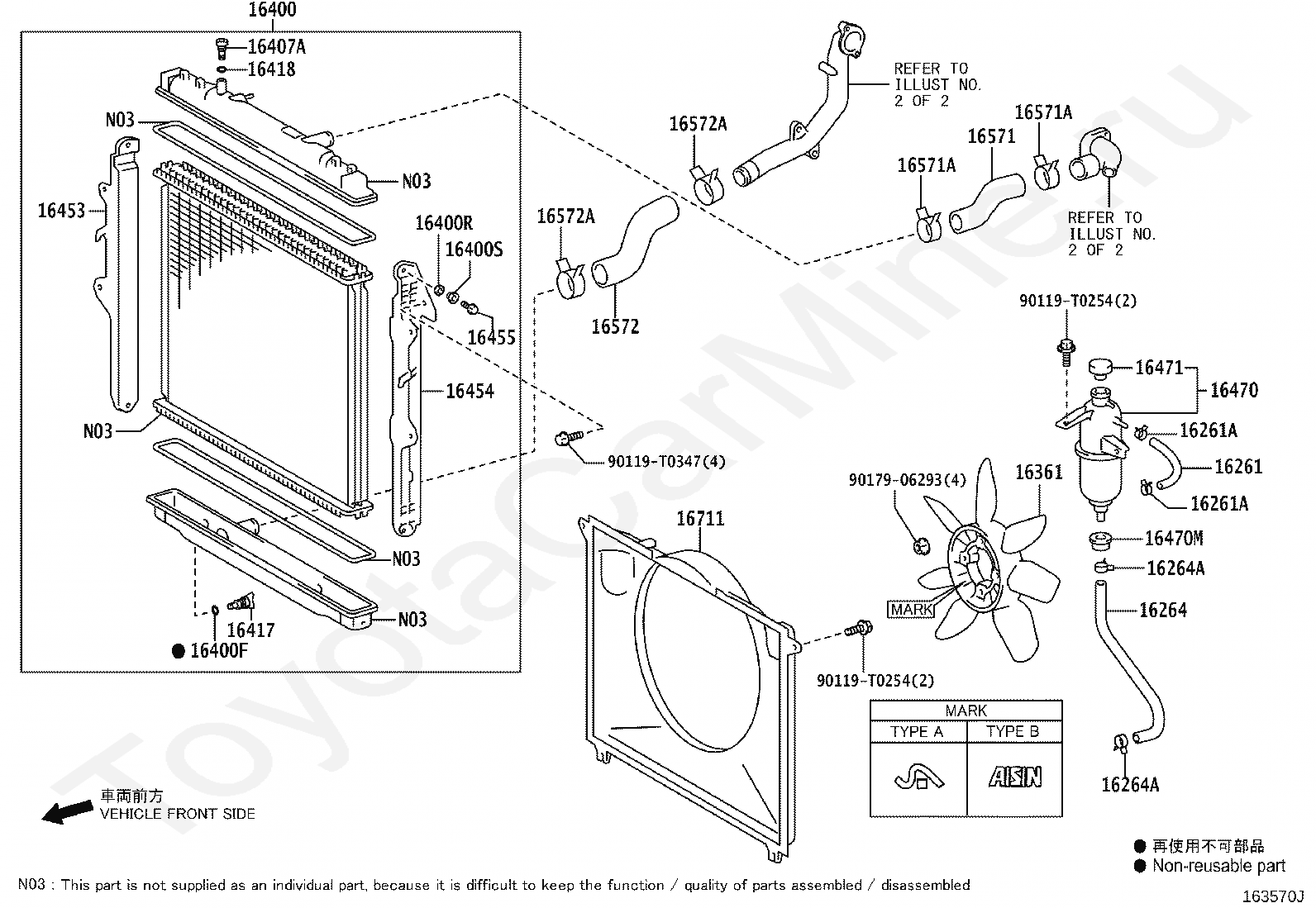

Радиатор и шланги TOYOTA FORTUNER

Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16361

FAN

16400

RADIATOR ASSY

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16407A

COCK SUB-ASSY, RADIATOR DRAIN

16417

COCK

16418

PACKING

16453

PLATE, RADIATOR SIDE

16454

PLATE, RADIATOR SIDE

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16471

CAP SUB-ASSY, RESERVE TANK

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16711

SHROUD, FAN

90119T0346

Крепеж

90119T0346

Крепеж

90119T0347

Крепеж

9017906293

Крепеж

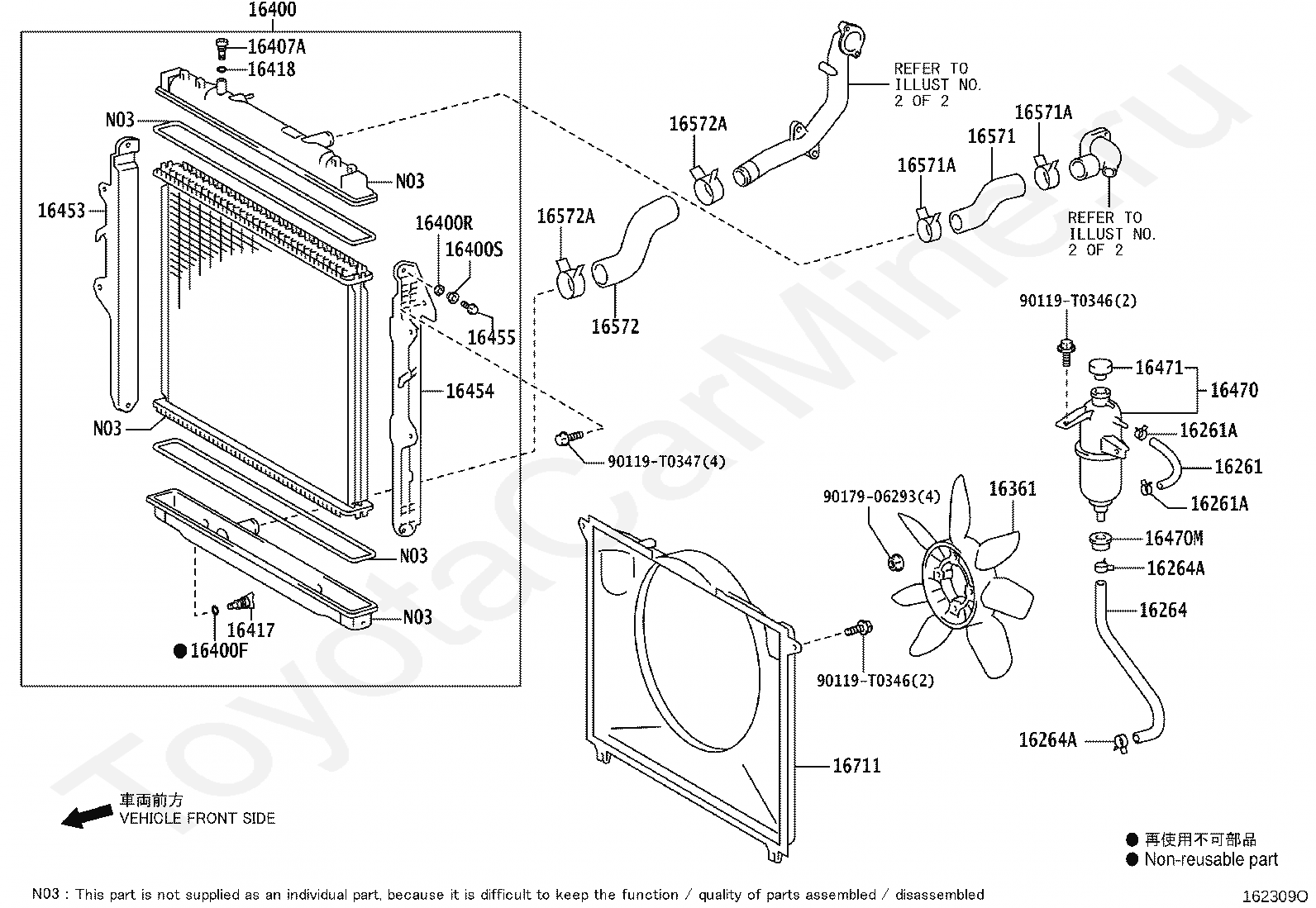

Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16361

FAN

16400

RADIATOR ASSY

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16407A

COCK SUB-ASSY, RADIATOR DRAIN

16417

COCK

16418

PACKING

16453

PLATE, RADIATOR SIDE

16454

PLATE, RADIATOR SIDE

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16471

CAP SUB-ASSY, RESERVE TANK

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16711

SHROUD, FAN

90119T0254

Крепеж

90119T0254

Крепеж

90119T0347

Крепеж

9017906293

Крепеж

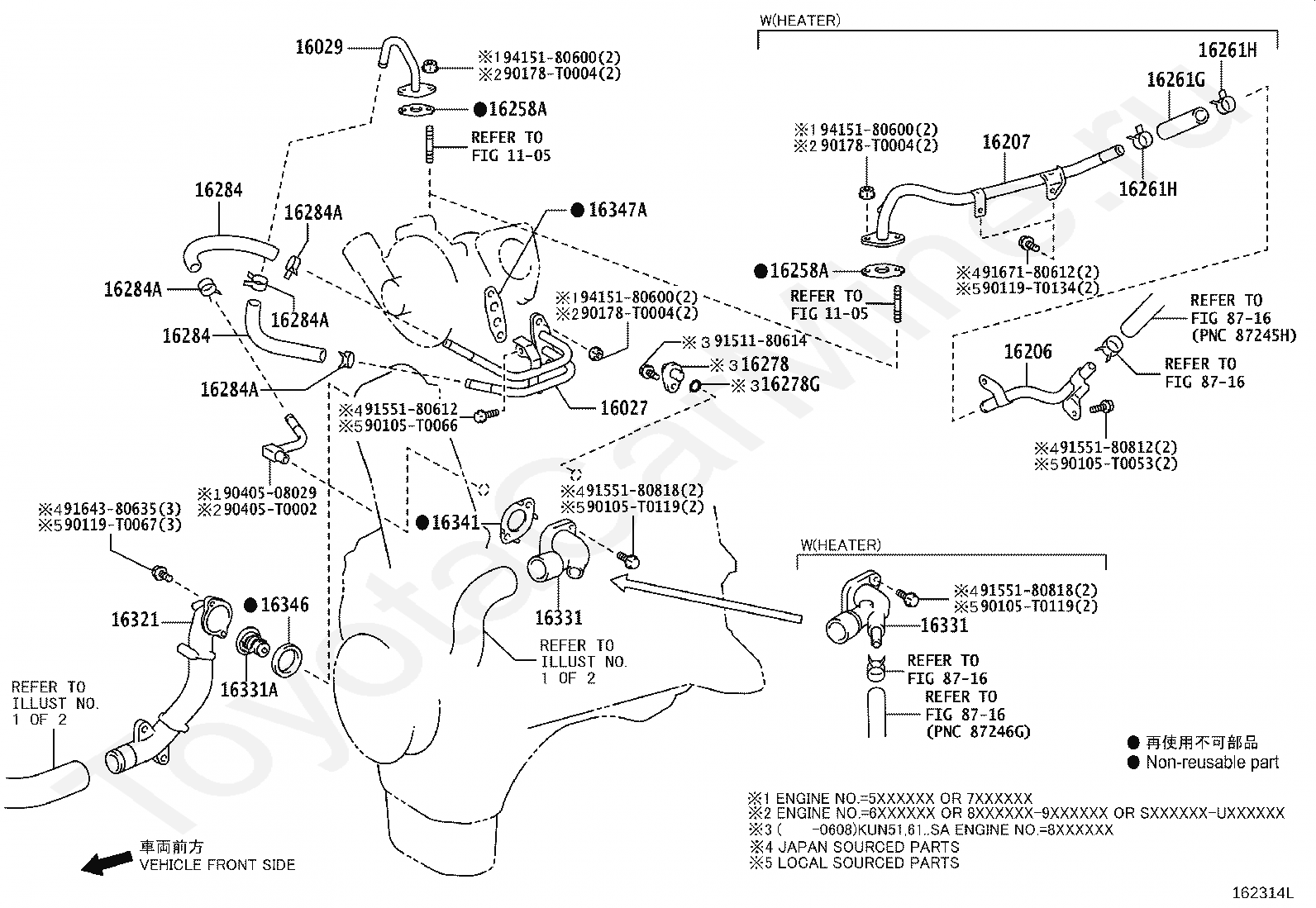

Код

Описание

1105

переход к группе запчастей

1105

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16029

PIPE SUB-ASSY, TURBO WATER, NO.3

16206

PIPE SUB-ASSY, WATER BY-PASS

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16258A

GASKET(FOR HEATER RETURN)

16258A

GASKET(FOR HEATER RETURN)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16278

PIPE, WATER BY-PASS, NO.2

16278G

RING, O(FOR WATER BY-PASS NO.2 PIPE)

16284

HOSE, TURBO WATER, NO.1

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16321

INLET, WATER

16331

OUTLET, WATER

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16346

GASKET, THERMOSTAT

16347A

GASKET(FOR TURBO WATER PIPE)

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

90105T0053

Крепеж

90105T0066

Крепеж

90105T0119

Крепеж

90105T0119

Крепеж

90119T0067

Крепеж

90119T0134

Крепеж

90178T0004

Крепеж

90178T0004

Крепеж

90178T0004

Крепеж

9040508029

Крепеж

90405T0002

Крепеж

9151180614

Крепеж

9155180612

Крепеж

9155180812

Крепеж

9155180818

Крепеж

9155180818

Крепеж

9164380635

Крепеж

9167180612

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж
