Каталог

Ближний Восток

Модель

ETIOS/LIVA/CROSS

VIN

Дата

2013/03

Двигатель

1,2 литра, 16 клапанов, DOHC, EFI

Класс

GRAMS

Фрейм

NGK10

КПП

механика МКПП, 5 скоростей

Опции

правый руль 5 дверей Индия 576W

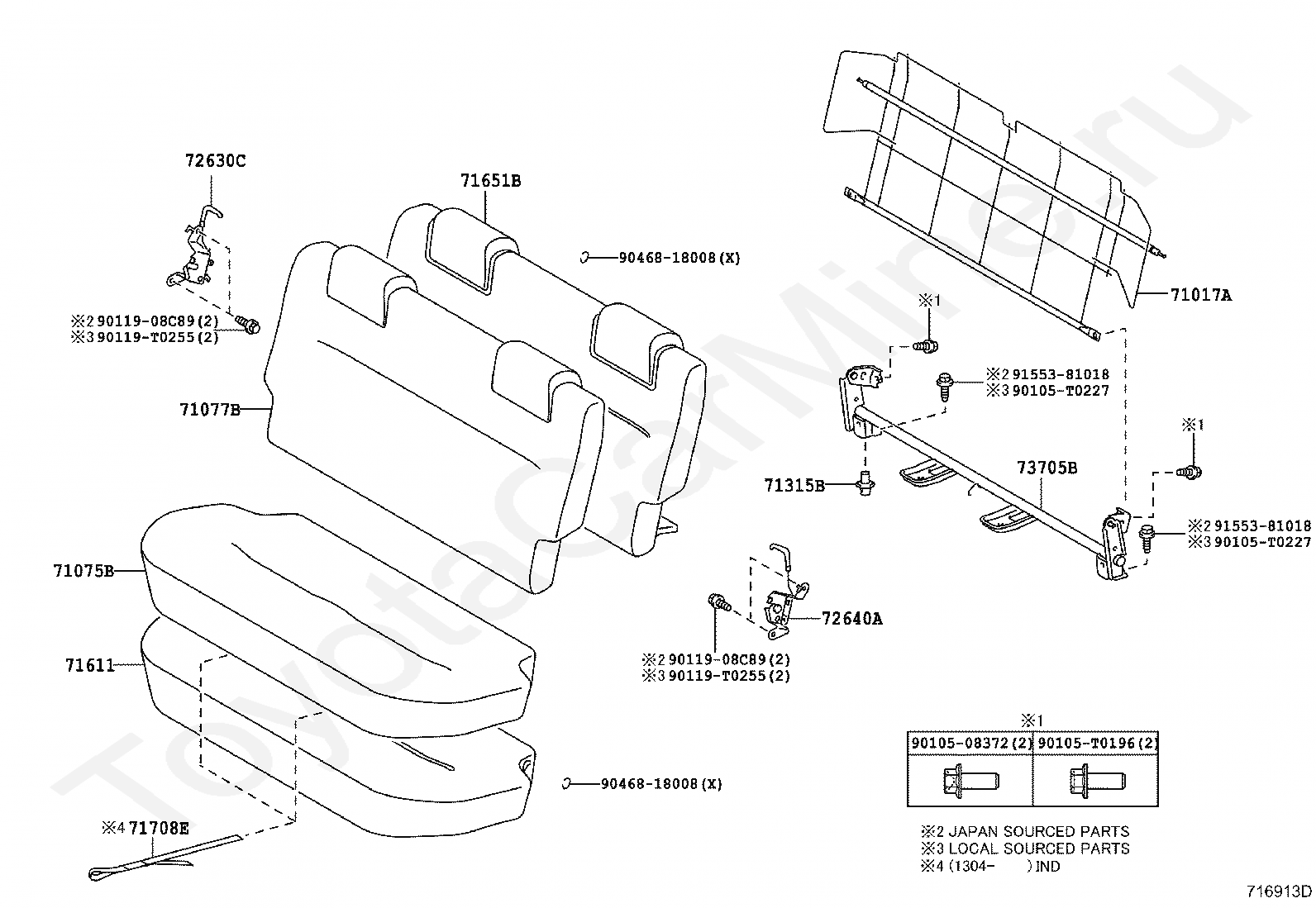

Задние кресла TOYOTA ETIOS/LIVA/CROSS







Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71315B

PIN, REAR SEAT HINGE

71611

PAD, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71708E

STRAP SUB-ASSY, REAR SEAT COVER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9010508372

Крепеж

90105T0196

Крепеж

90105T0227

Крепеж

90105T0227

Крепеж

9011908C89

Крепеж

9011908C89

Крепеж

90119T0255

Крепеж

90119T0255

Крепеж

9046818008

Крепеж

9046818008

Крепеж

9155381018

Крепеж

9155381018

Крепеж

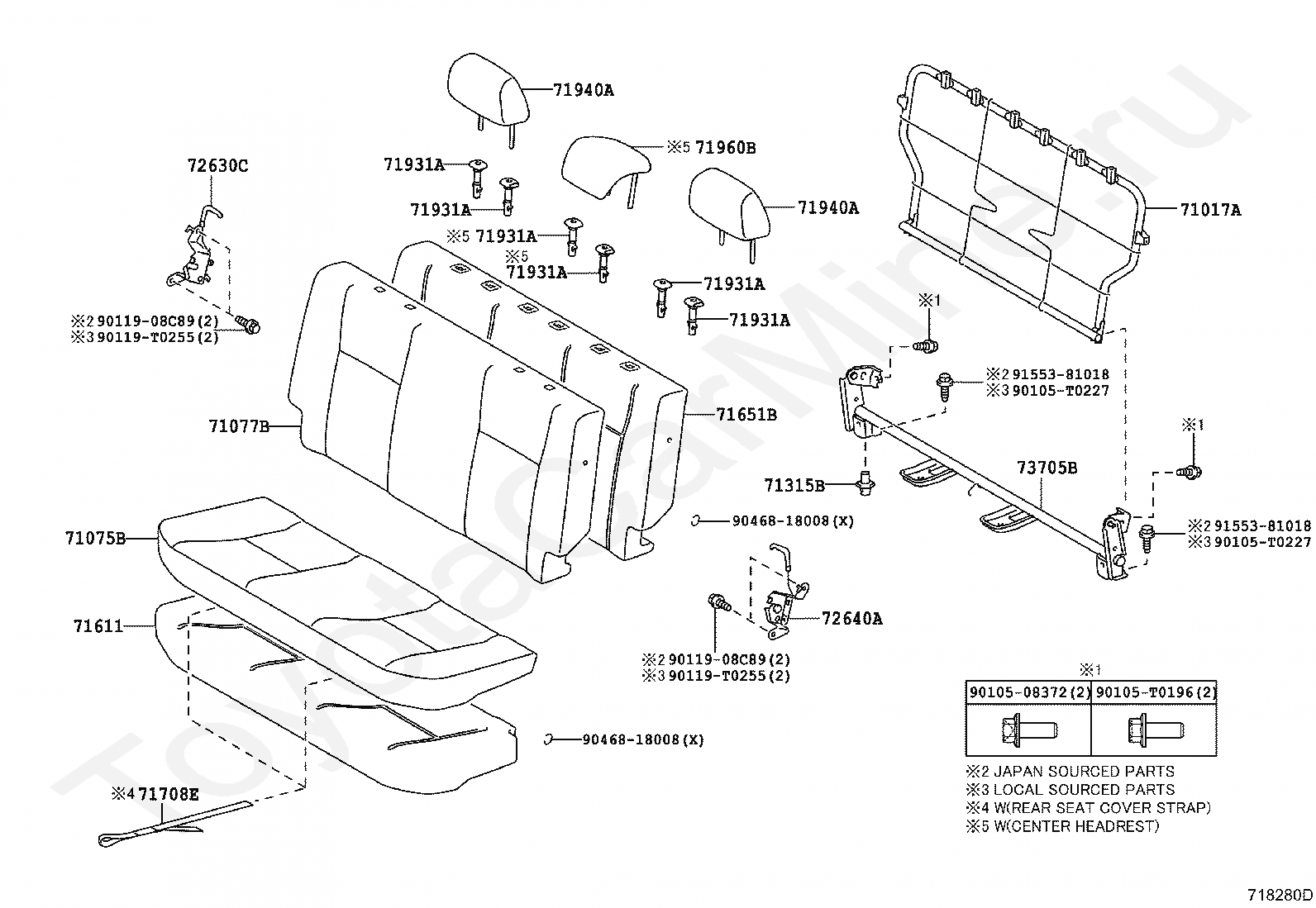

Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71315B

PIN, REAR SEAT HINGE

71611

PAD, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71708E

STRAP SUB-ASSY, REAR SEAT COVER

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9010508372

Крепеж

90105T0196

Крепеж

90105T0227

Крепеж

90105T0227

Крепеж

9011908C89

Крепеж

9011908C89

Крепеж

90119T0255

Крепеж

90119T0255

Крепеж

9046818008

Крепеж

9046818008

Крепеж

9155381018

Крепеж

9155381018

Крепеж

Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71315B

PIN, REAR SEAT HINGE

71611

PAD, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71708E

STRAP SUB-ASSY, REAR SEAT COVER

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

9010508372

Крепеж

90105T0196

Крепеж

90105T0227

Крепеж

90105T0227

Крепеж

9011908C89

Крепеж

9011908C89

Крепеж

90119T0255

Крепеж

90119T0255

Крепеж

9046818008

Крепеж

9046818008

Крепеж

9155381018

Крепеж

9155381018

Крепеж
