Каталог

Япония

Модель

ESTIMA T/L

VIN

Дата

2001/04

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

AERAS TYPE

Фрейм

ACR30

Опции

7-местный

Кондиционер: управление и воздуховод TOYOTA ESTIMA T/L

Код

Описание

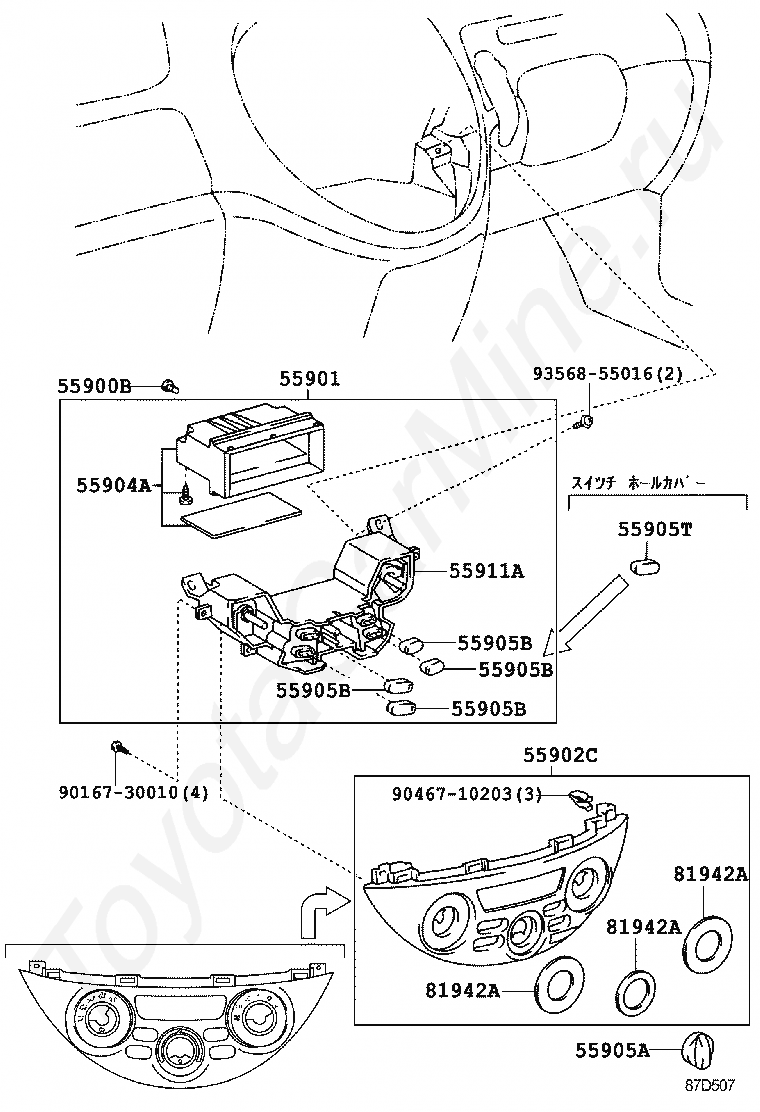

55900B

BULB, AIR CONDITIONER CONTROL

55901

BASE SUB-ASSY, HEATER CONTROL

55902C

PANEL SUB-ASSY, AIR CONDITIONER

55904A

HOUSING SUB-ASSY, HEATER CONTROL

55905A

KNOB, HEATER CONTROL

55905B

KNOB, HEATER CONTROL, NO.2

55905B

KNOB, HEATER CONTROL, NO.2

55905B

KNOB, HEATER CONTROL, NO.2

55905B

KNOB, HEATER CONTROL, NO.2

55905T

COVER, SWITCH HOLE, NO.1

55911A

BASE, HEATER CONTROL

81942A

SHEET, HEATER CONTROL NAME, NO.1

81942A

SHEET, HEATER CONTROL NAME, NO.1

81942A

SHEET, HEATER CONTROL NAME, NO.1

9016730010

Крепеж

9046710203

Крепеж

9356855016

Крепеж

Код

Описание

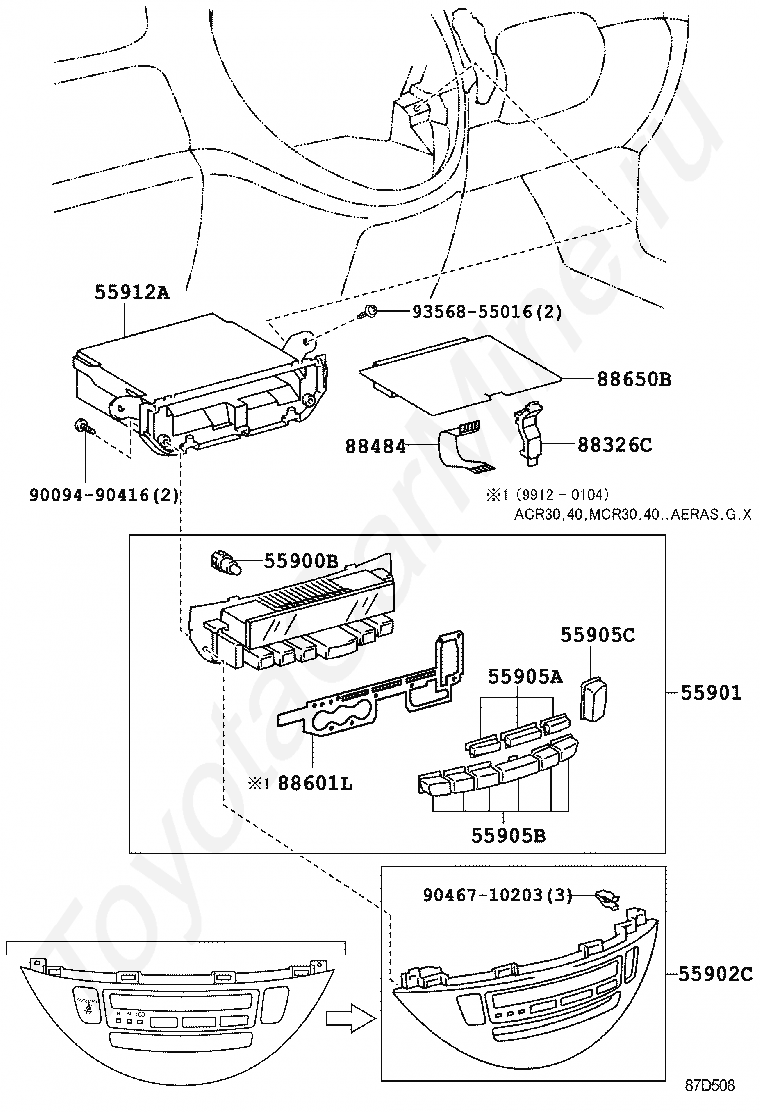

55900B

BULB, AIR CONDITIONER CONTROL

55901

BASE SUB-ASSY, HEATER CONTROL

55902C

PANEL SUB-ASSY, AIR CONDITIONER

55905A

KNOB, HEATER CONTROL

55905B

KNOB, HEATER CONTROL, NO.2

55905C

KNOB, HEATER CONTROL, NO.3

55912A

HOUSING, HEATER CONTROL

88326C

PLATE, COVER

88484

WIRE, COOLER, NO.1

88601L

SWITCH SUB-ASSY, COOLER CONTROL, FRONT

88650B

AMPLIFIER ASSY, AIRCONDITIONER

9009490416

Крепеж

9046710203

Крепеж

9356855016

Крепеж

Код

Описание

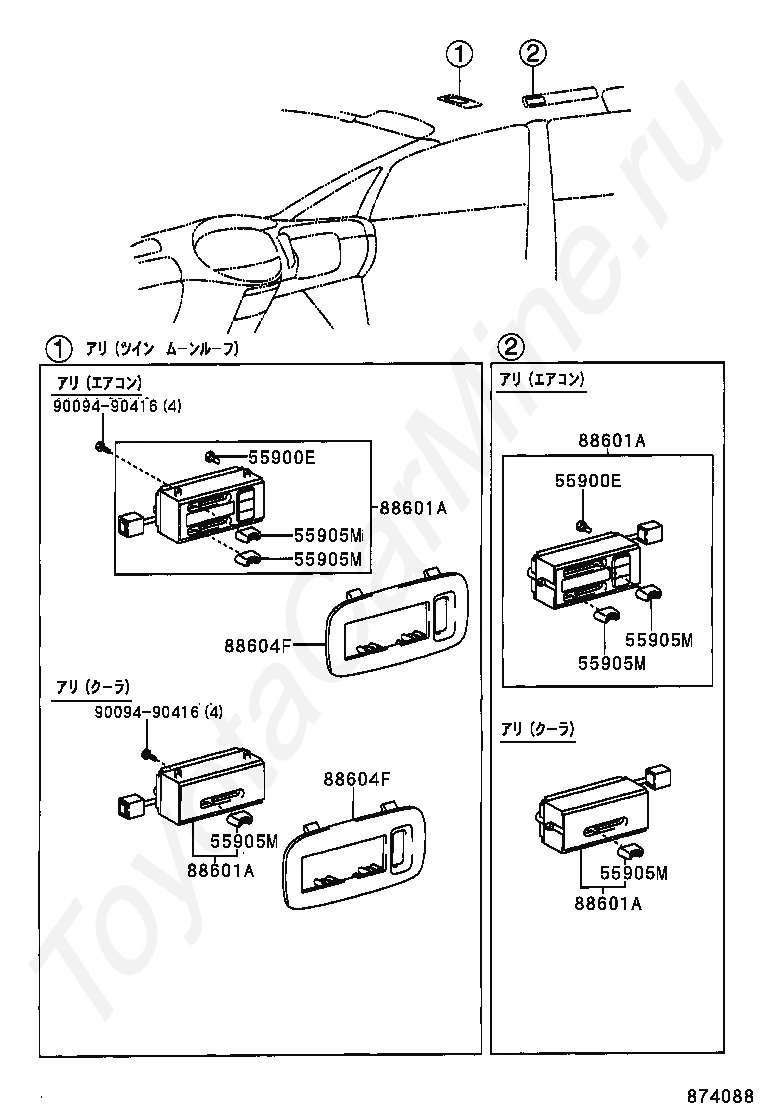

55900E

BULB, AIR CONDITIONER CONTROL, NO.2

55900E

BULB, AIR CONDITIONER CONTROL, NO.2

55905M

KNOB SUB-ASSY, CONTROL

55905M

KNOB SUB-ASSY, CONTROL

55905M

KNOB SUB-ASSY, CONTROL

55905M

KNOB SUB-ASSY, CONTROL

55905M

KNOB SUB-ASSY, CONTROL

55905M

KNOB SUB-ASSY, CONTROL

88601A

SWITCH SUB-ASSY, COOLER CONTROL

88601A

SWITCH SUB-ASSY, COOLER CONTROL

88601A

SWITCH SUB-ASSY, COOLER CONTROL

88601A

SWITCH SUB-ASSY, COOLER CONTROL

88604F

PANEL SUB-ASSY, COOLER CONTROL

88604F

PANEL SUB-ASSY, COOLER CONTROL

9009490416

Крепеж

9009490416

Крепеж

Код

Описание

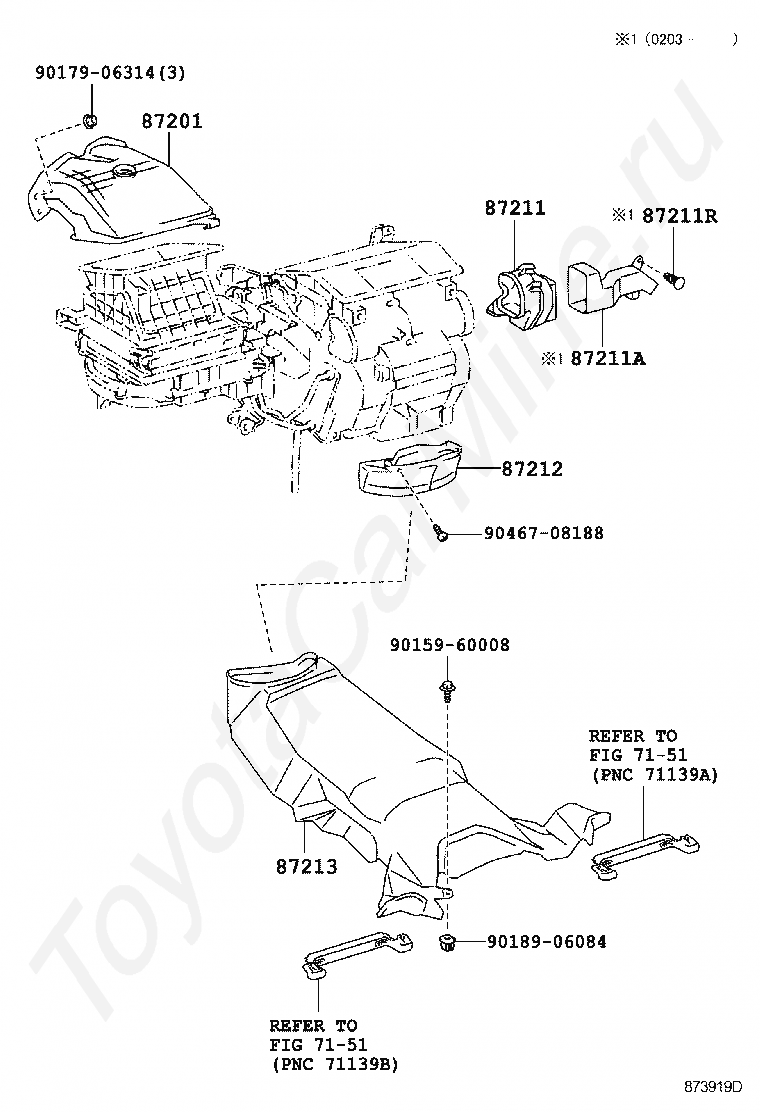

7151

переход к группе запчастей

7151

переход к группе запчастей

87201

DUCT SUB-ASSY, AIR, NO.1

87211

DUCT, AIR, NO.1

87211A

DUCT, AIR, NO.2

87211R

CLIP, AIR DUCT

87212

DUCT, AIR, REAR NO.1

87213

DUCT, AIR, REAR NO.2

9015960008

Крепеж

9017906314

Крепеж

9018906084

Крепеж

9046708188

Крепеж

Код

Описание

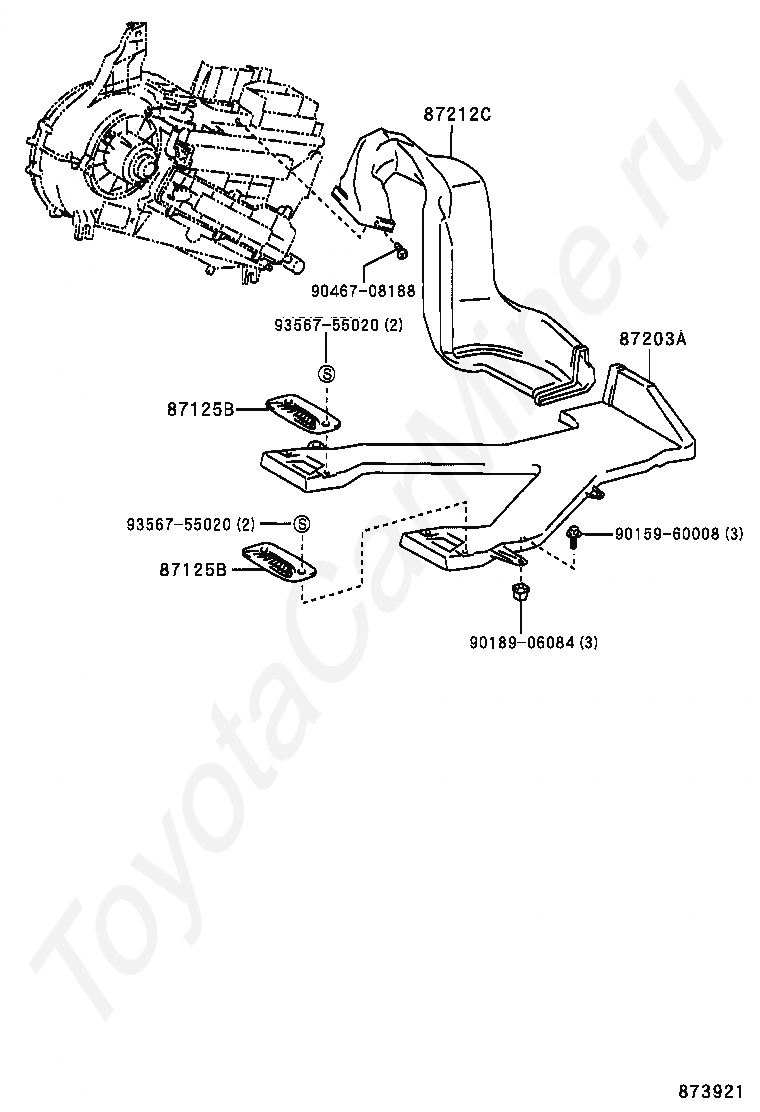

87125B

GRILLE, HEATER AIR OUTLET

87125B

GRILLE, HEATER AIR OUTLET

87203A

DUCT ASSY, HEATER AIR, REAR

87212C

DUCT, AIR, RR

9015960008

Крепеж

9018906084

Крепеж

9046708188

Крепеж

9356755020

Крепеж

9356755020

Крепеж

Код

Описание

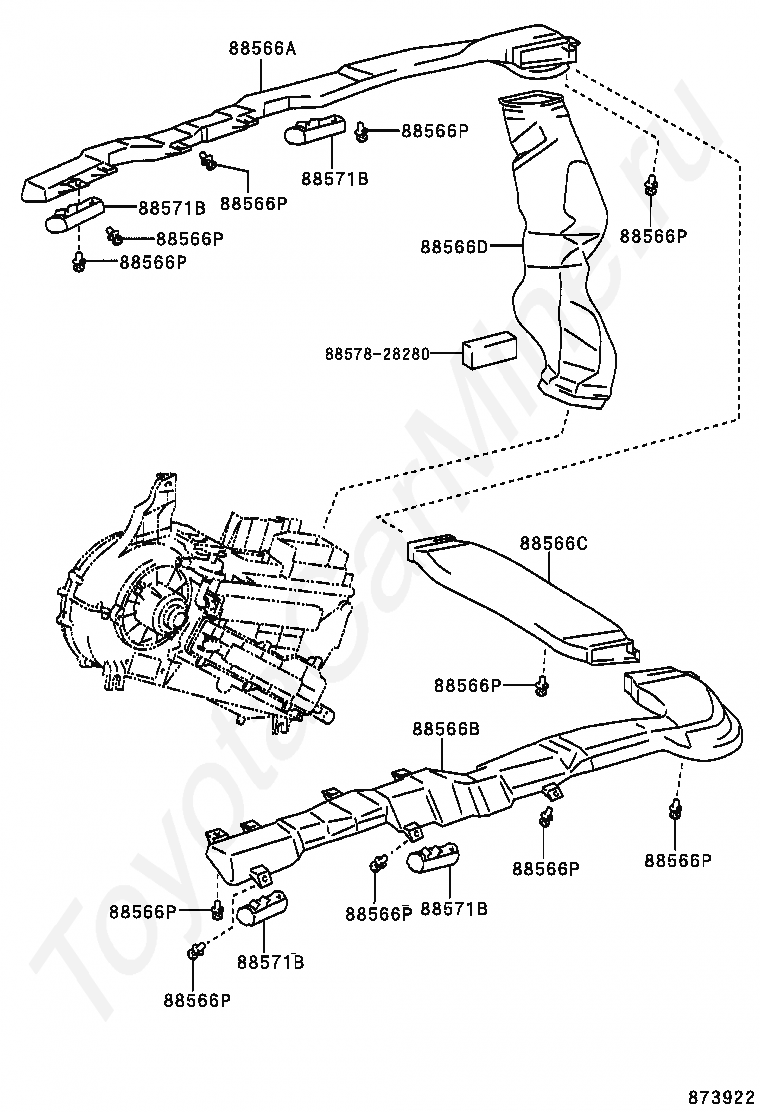

88566A

DUCT, COOLER AIR, NO.1

88566B

DUCT, COOLER AIR, NO.2

88566C

DUCT, COOLER AIR, NO.3

88566D

DUCT, COOLER AIR, NO.4

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88566P

CLIP, COOLER AIR DUCT

88571B

GRILLE, AIR OUTLET

88571B

GRILLE, AIR OUTLET

88571B

GRILLE, AIR OUTLET

88571B

GRILLE, AIR OUTLET

8857828280

Крепеж

Код

Описание

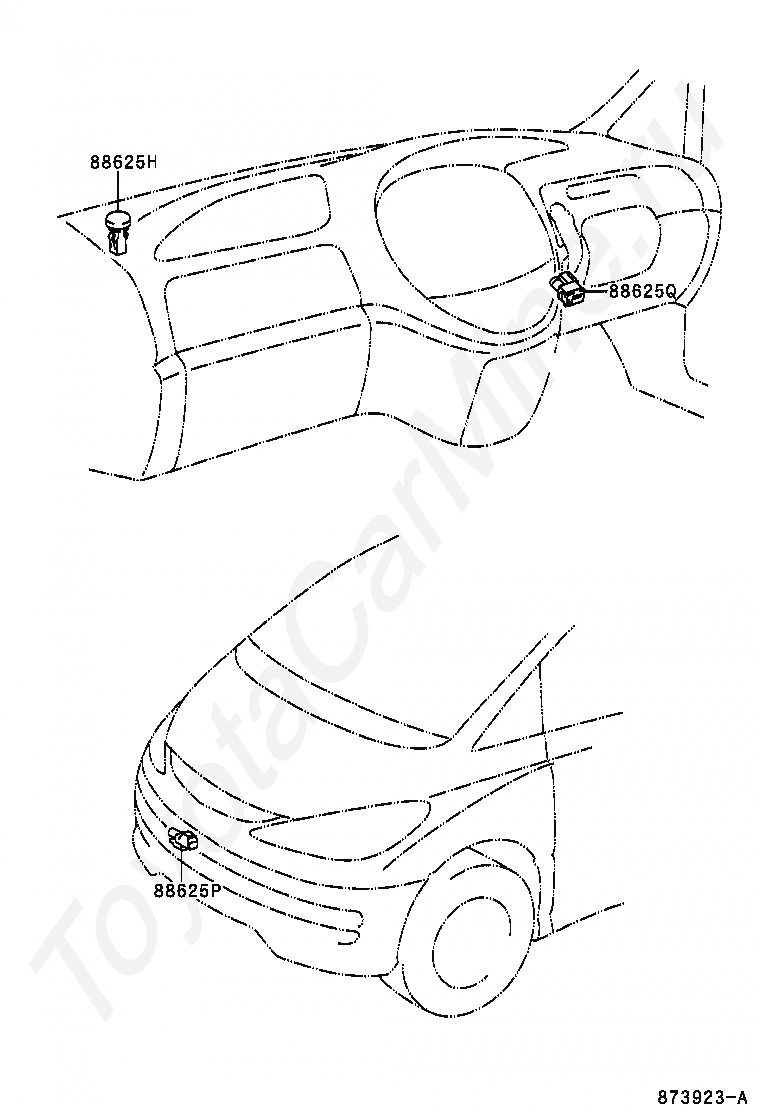

88625H

THERMISTOR, COOLER (SOLAR SENSOR)

88625P

THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)

88625Q

THERMISTOR, COOLER (ROOM TEMP. SENSOR)

Код

Описание

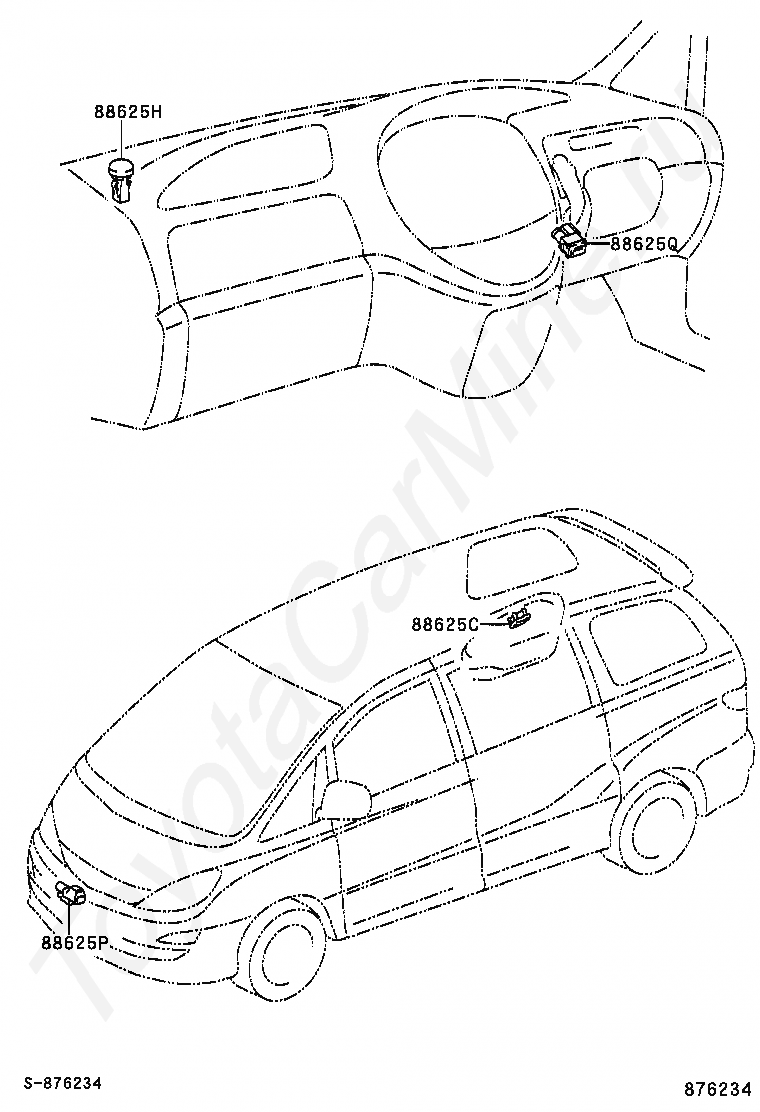

88625C

THERMISTOR, COOLER

88625H

THERMISTOR, COOLER (SOLAR SENSOR)

88625P

THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)

88625Q

THERMISTOR, COOLER (ROOM TEMP. SENSOR)
