Каталог

Япония

Модель

ESTIMA T/L

VIN

Дата

2000/02

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

GRAMS

Фрейм

ACR30

Опции

7-местный

Тормозная магистраль TOYOTA ESTIMA T/L

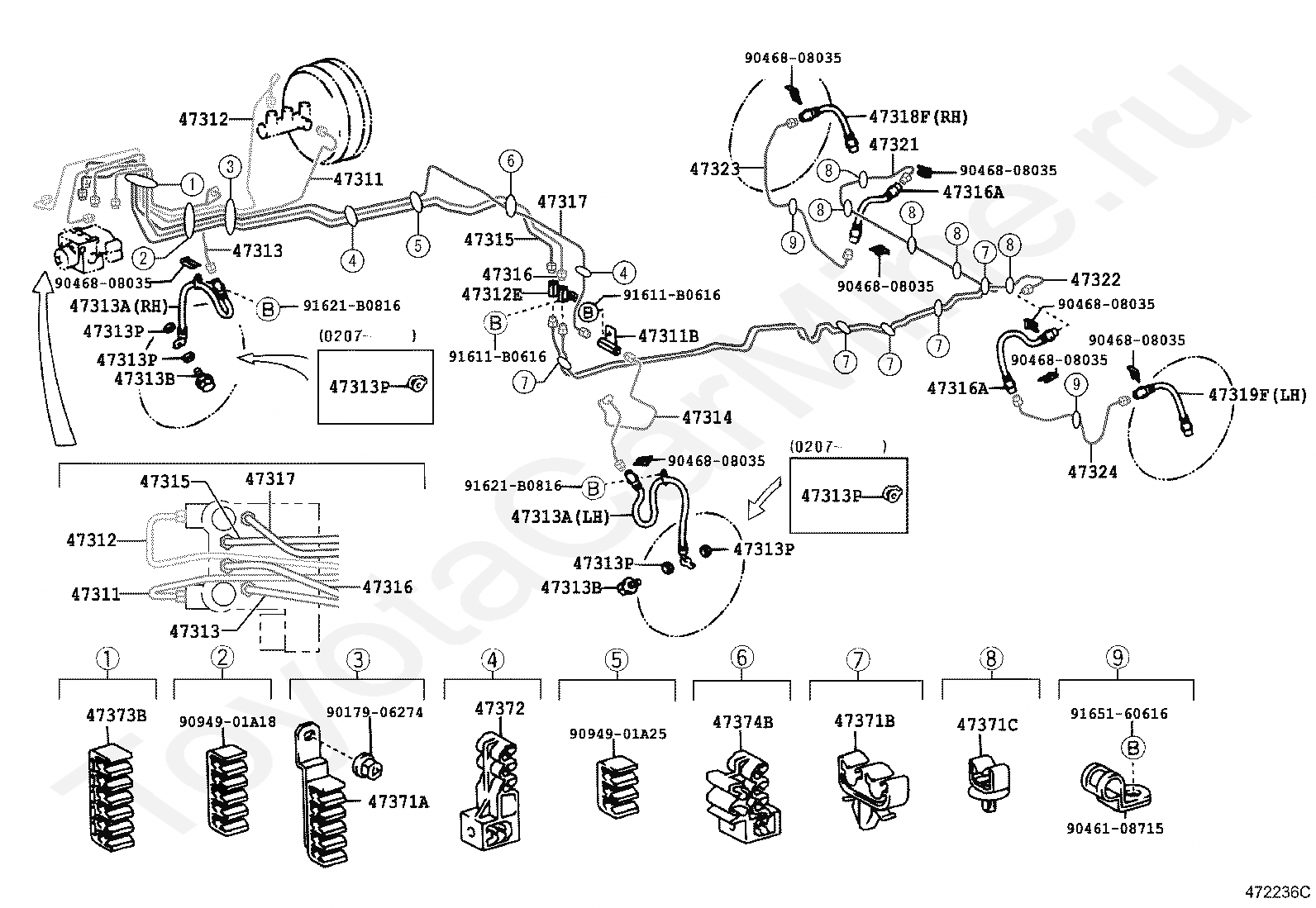

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

9017906274

Крепеж

9046108715

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9094901A18

Крепеж

9094901A25

Крепеж

91611B0616

Крепеж

91611B0616

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

9165160616

Крепеж

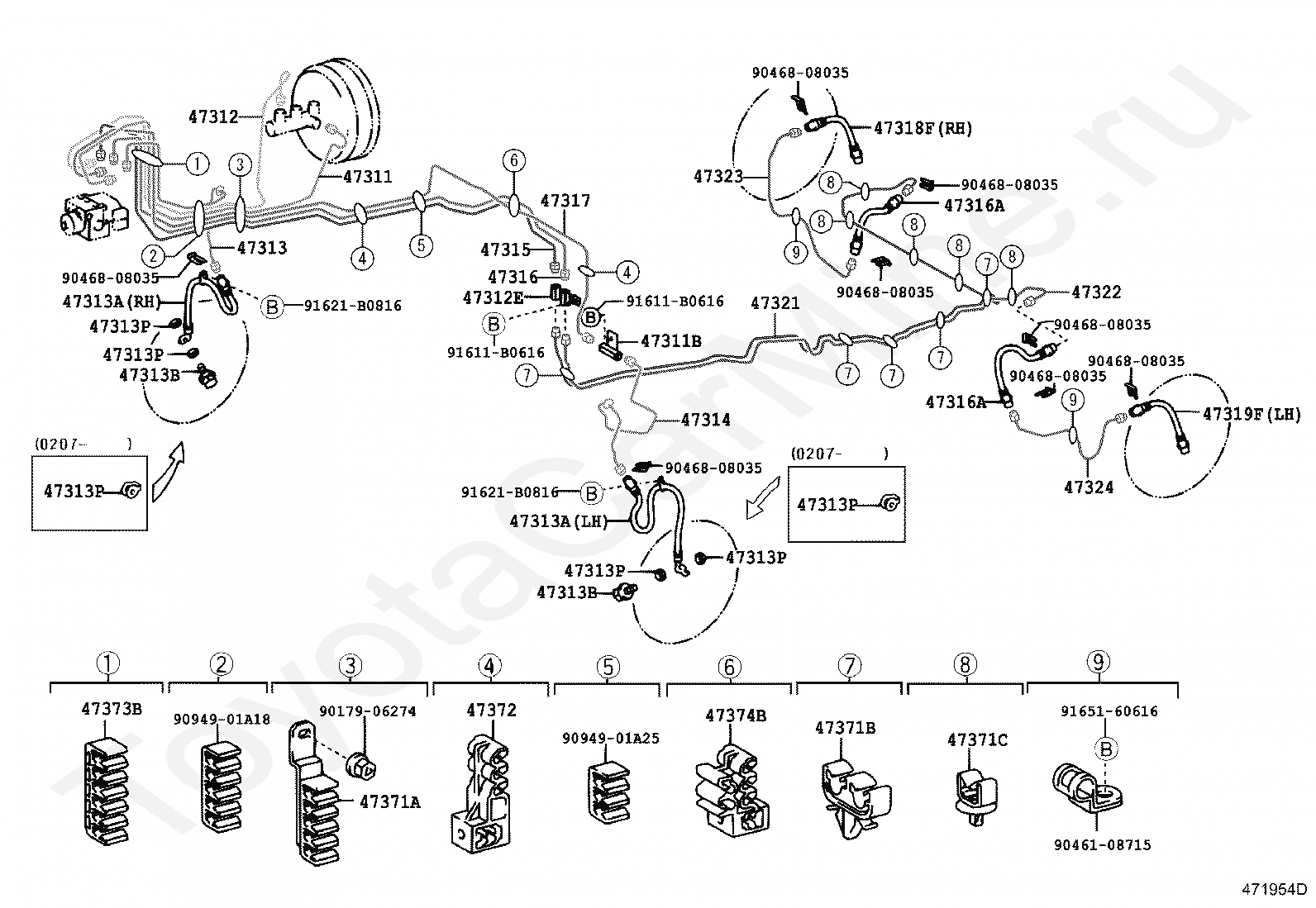

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47317

TUBE, FRONT BRAKE, NO.7

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

9017906274

Крепеж

9046108715

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9094901A18

Крепеж

9094901A25

Крепеж

91611B0616

Крепеж

91611B0616

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

9165160616

Крепеж

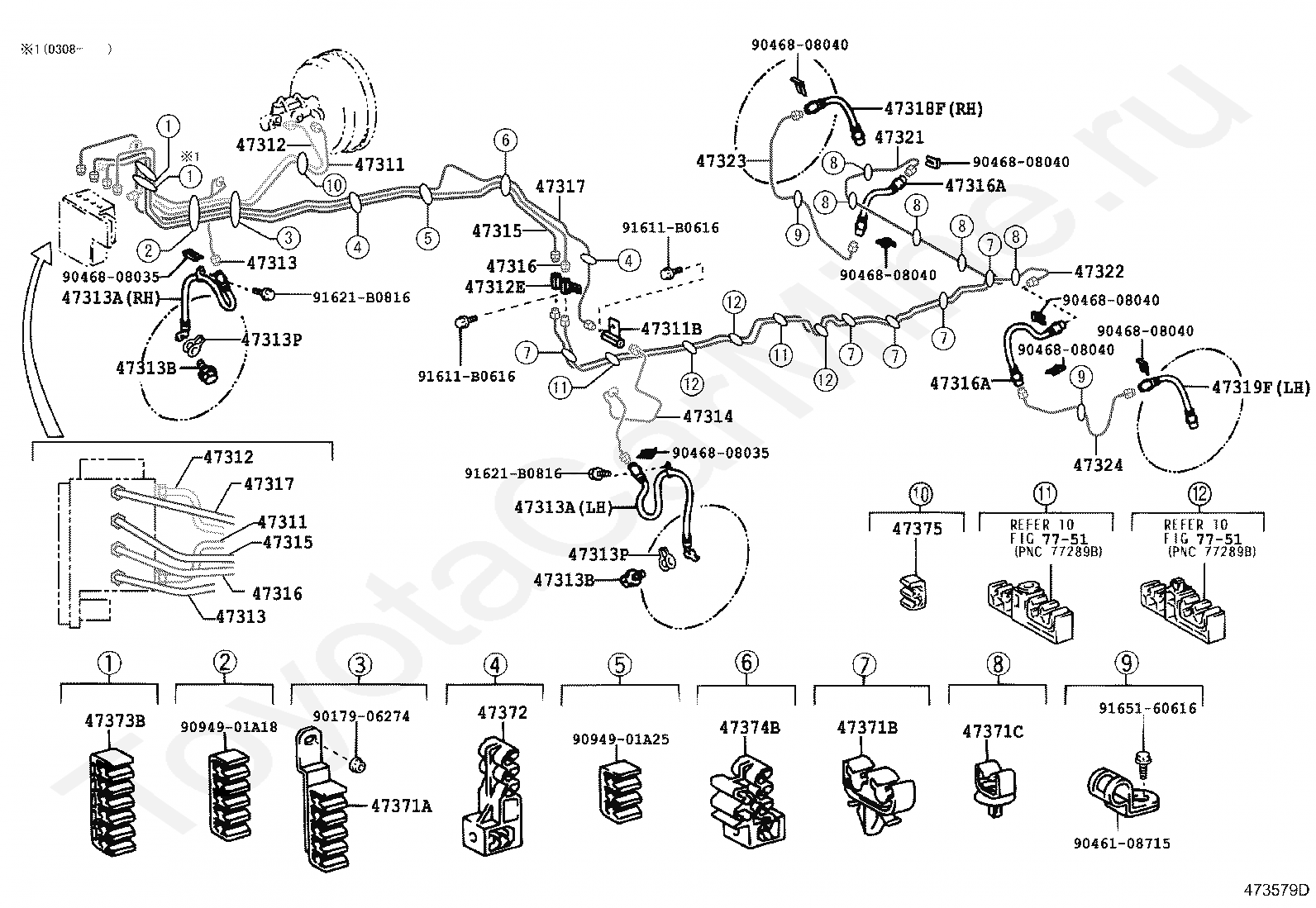

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47317

TUBE, FRONT BRAKE, NO.7

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

7751

переход к группе запчастей

7751

переход к группе запчастей

9017906274

Крепеж

9046108715

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9094901A18

Крепеж

9094901A25

Крепеж

91611B0616

Крепеж

91611B0616

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

9165160616

Крепеж

Код

Описание

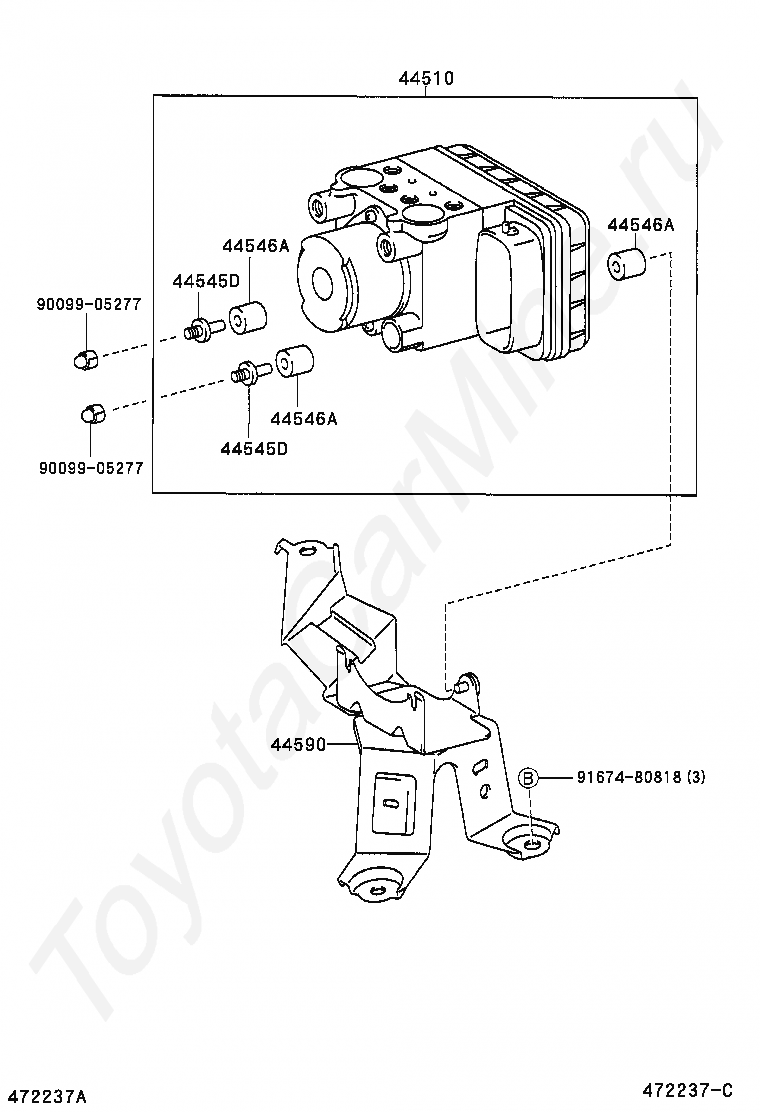

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9009905277

Крепеж

9009905277

Крепеж

91621B0816

Крепеж

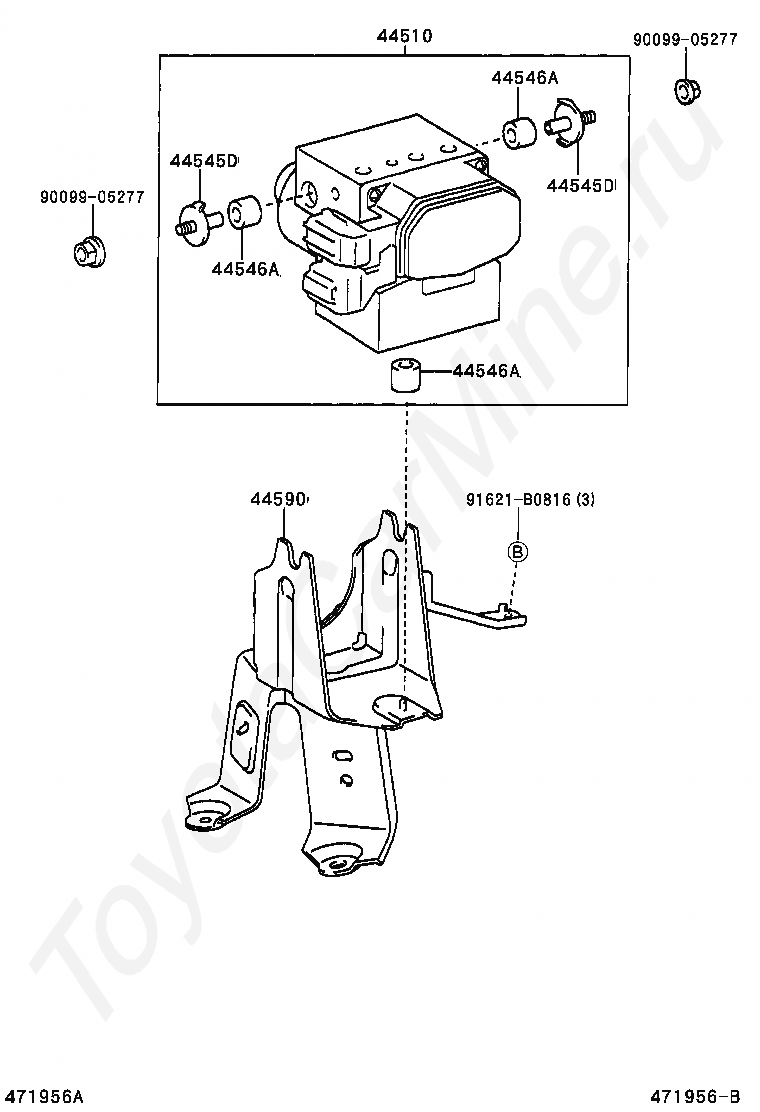

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9009905277

Крепеж

9009905277

Крепеж

9167480818

Крепеж

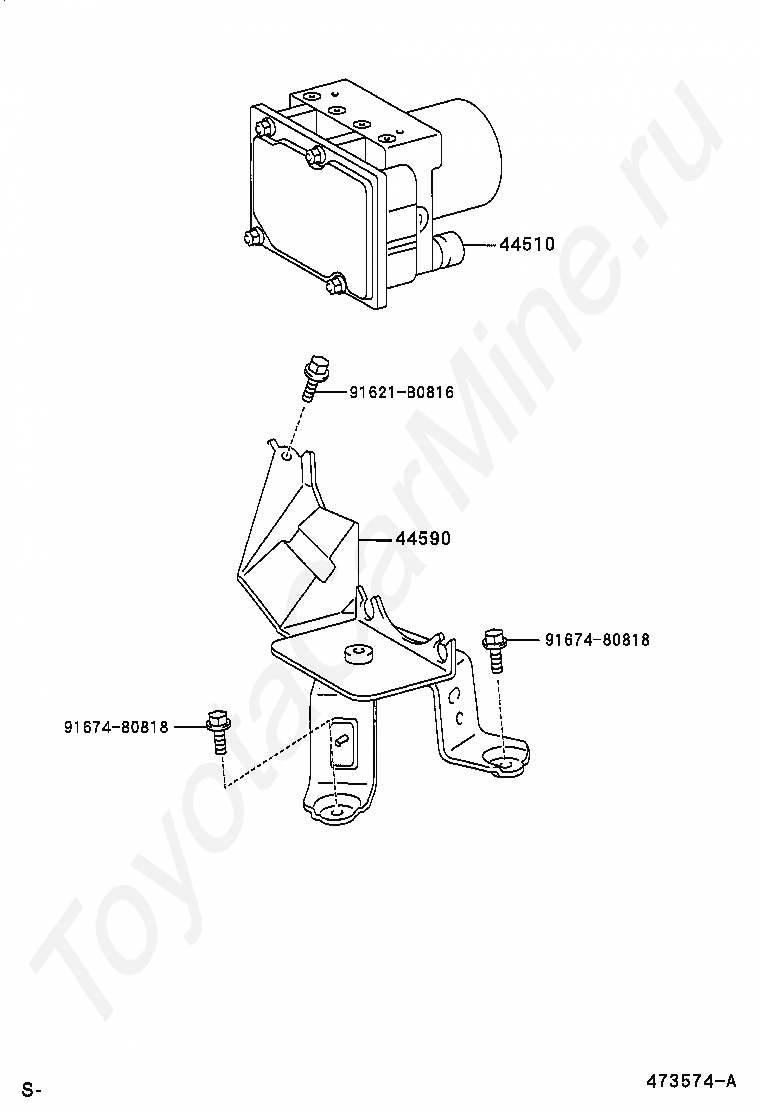

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44590

BRACKET ASSY, BRAKE ACTUATOR

91621B0816

Крепеж

9167480818

Крепеж

9167480818

Крепеж

Тормозная магистраль TOYOTA ESTIMA T/L
