Япония

Модель

ESTIMA HYBRID

VIN

Дата

2001/05

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Фрейм

AHR10

Опции

7-местный

Кресла TOYOTA ESTIMA HYBRID







Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72125A

COVER, SEAT TRACK, UPPER REAR

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72345F

PIPE, RECLINING CONNECTING, RH

72345G

PIPE, RECLINING CONNECTING, LH

72848A

CAP, SEAT ARMREST, NO.1

72849B

CAP, SEAT ARMREST, NO.1

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

9011910911

Крепеж

9011910911

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9161160818

Крепеж

9161160818

Крепеж

9353055016

Крепеж

9616000600

Крепеж

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72848A

CAP, SEAT ARMREST, NO.1

72849B

CAP, SEAT ARMREST, NO.1

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

9011910911

Крепеж

9011910911

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9353055016

Крепеж

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71130

LEG ASSY, FRONT SEAT, RH

71130A

CLIP, FRONT SEAT LEG

71139A

COVER, FRONT SEAT LEG, NO.1

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873B

SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

71873B

SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72848A

CAP, SEAT ARMREST, NO.1

72890

ARMREST ASSY, SEAT, C LH

73178H

CAP, SEAT BELT ANCHOR COVER, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9011910409

Крепеж

9011910799

Крепеж

9011910911

Крепеж

9015940159

Крепеж

9016740041

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9353055016

Крепеж

Код

Описание

71130

LEG ASSY, FRONT SEAT, RH

71130A

CLIP, FRONT SEAT LEG

71130A

CLIP, FRONT SEAT LEG

71139A

COVER, FRONT SEAT LEG, NO.1

71139B

COVER, FRONT SEAT LEG, NO.2

71140

LEG ASSY, FRONT SEAT, LH

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812E

COVER, RECLINING ADJUSTER, LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72137

COVER, SEAT TRACK, OUTER RH

72137B

COVER, SEAT TRACK, RH

72138

COVER, SEAT TRACK, OUTER LH

72138B

COVER, SEAT TRACK, LH

72211

HANDLE, SEAT TRACK ADJUSTING

72211

HANDLE, SEAT TRACK ADJUSTING

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910409

Крепеж

9011910409

Крепеж

9011910799

Крепеж

9011910799

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9052001006

Крепеж

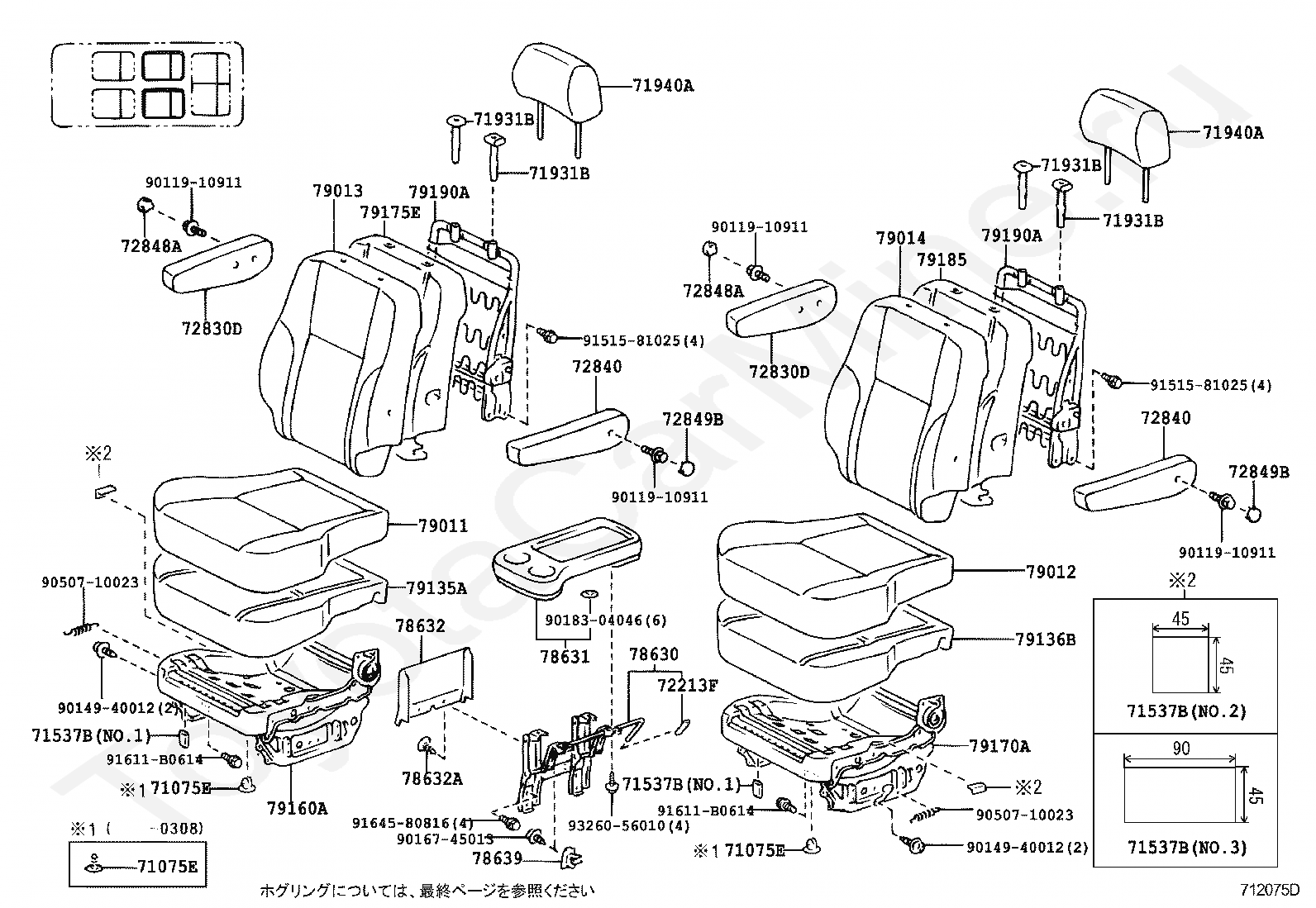

Код

Описание

71075E

CLIP(FOR REAR SEAT)

71075E

CLIP(FOR REAR SEAT)

71075E

CLIP(FOR REAR SEAT)

71537B

PROTECTOR, REAR SEAT CUSHION

71537B

PROTECTOR, REAR SEAT CUSHION

71537B

PROTECTOR, REAR SEAT CUSHION

71537B

PROTECTOR, REAR SEAT CUSHION

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

72213F

KNOB, SEAT TRACK ADJUSTING HANDLE

72830D

ARMREST ASSY, REAR SEAT, RH

72830D

ARMREST ASSY, REAR SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72848A

CAP, SEAT ARMREST, NO.1

72848A

CAP, SEAT ARMREST, NO.1

72849B

CAP, SEAT ARMREST, NO.1

72849B

CAP, SEAT ARMREST, NO.1

78630

ADJUSTER ASSY, FR0NT SEAT SIDE TABLE

78631

TABLE, FRONT SEAT SIDE

78632

COVER, FRONT SEAT SIDE TABLE

78632A

CLIP, FRONT SEAT SIDE TABLE COVER

78639

CLIP, FRONT SEAT SIDE TABLE

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9011910911

Крепеж

9011910911

Крепеж

9011910911

Крепеж

9011910911

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9016745013

Крепеж

9018304046

Крепеж

9050710023

Крепеж

9050710023

Крепеж

9151581025

Крепеж

9151581025

Крепеж

91611B0614

Крепеж

91611B0614

Крепеж

9164580816

Крепеж

9326056010

Крепеж

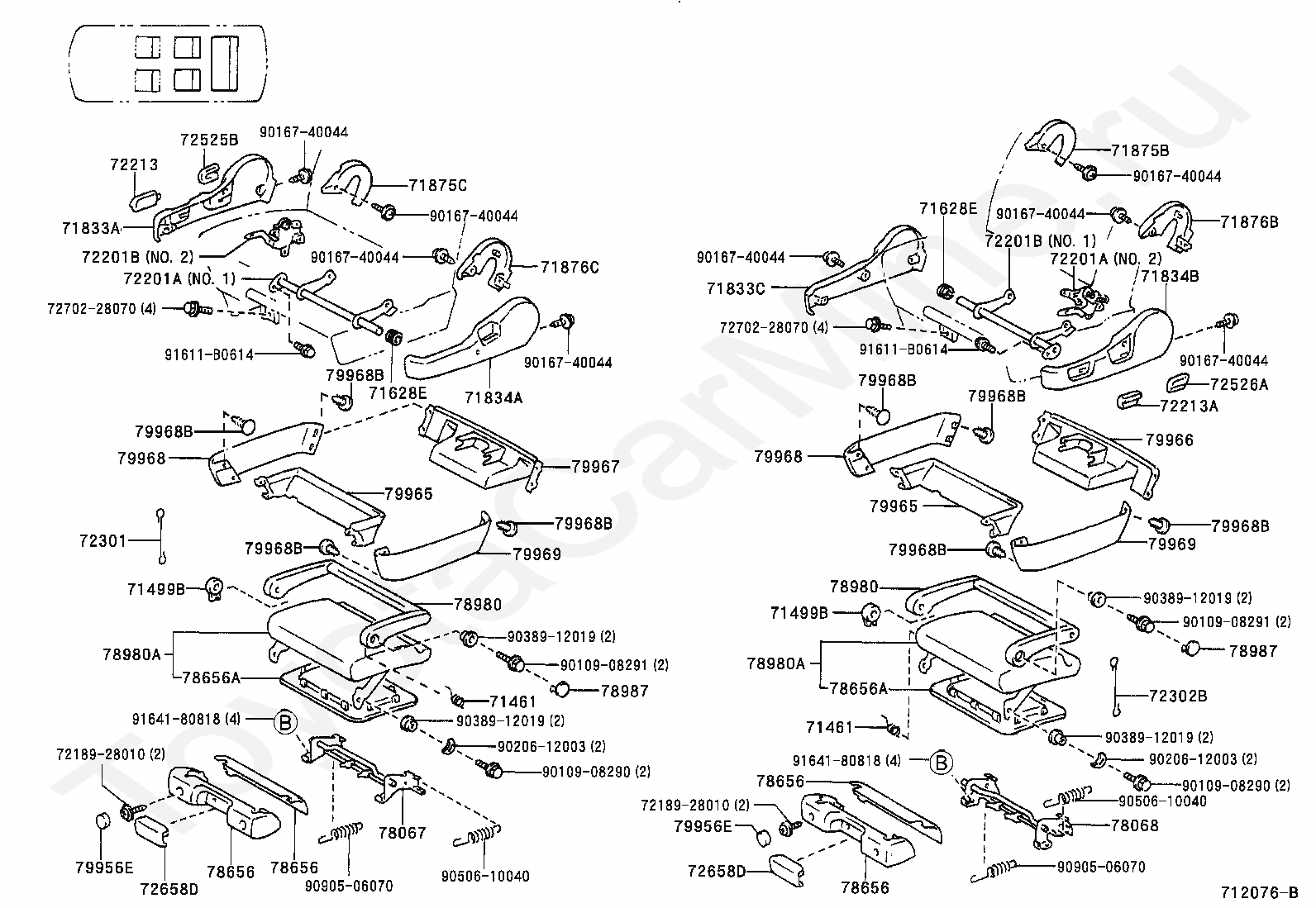

Код

Описание

71461

SPRING, REAR SEAT CUSHION

71461

SPRING, REAR SEAT CUSHION

71499B

DAMPER, SEAT CUSHION SPRING

71499B

DAMPER, SEAT CUSHION SPRING

71628E

SPACER, REAR SEAT CUSHION

71628E

SPACER, REAR SEAT CUSHION

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

7218928010

Крепеж

7218928010

Крепеж

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72658D

KNOB, REAR SEAT LOCK HANDLE

72658D

KNOB, REAR SEAT LOCK HANDLE

7270228070

Крепеж

7270228070

Крепеж

78067

BRACKET SUB-ASSY, REAR SEAT LEGREST, OUTER

78068

BRACKET SUB-ASSY, REAR SEAT LEGREST, INNER

78656

COVER, REAR SEAT LEGREST

78656

COVER, REAR SEAT LEGREST

78656

COVER, REAR SEAT LEGREST

78656

COVER, REAR SEAT LEGREST

78656A

COVER, REAR SEAT LEGREST

78656A

COVER, REAR SEAT LEGREST

78980

FOOTREST ASSY, REAR SEAT

78980

FOOTREST ASSY, REAR SEAT

78980A

FOOTREST ASSY, REAR SEAT

78980A

FOOTREST ASSY, REAR SEAT

78987

COVER, REAR SEAT FOOTREST, NO.1

78987

COVER, REAR SEAT FOOTREST, NO.1

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79965

COVER, REAR SEAT LEG SIDE, NO.2

79965

COVER, REAR SEAT LEG SIDE, NO.2

79966

COVER, REAR SEAT LEG SIDE, NO.3

79967

COVER, REAR SEAT LEG SIDE, NO.4

79968

COVER, REAR SEAT LEG SIDE, NO.5

79968

COVER, REAR SEAT LEG SIDE, NO.5

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79969

COVER, REAR SEAT LEG SIDE, NO.6

79969

COVER, REAR SEAT LEG SIDE, NO.6

9010908290

Крепеж

9010908290

Крепеж

9010908291

Крепеж

9010908291

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9020612003

Крепеж

9020612003

Крепеж

9038912019

Крепеж

9038912019

Крепеж

9038912019

Крепеж

9038912019

Крепеж

9050610040

Крепеж

9050610040

Крепеж

9090506070

Крепеж

9090506070

Крепеж

91611B0614

Крепеж

91611B0614

Крепеж

9164180818

Крепеж

9164180818

Крепеж

Код

Описание

71324A

CUSHION, REAR SEAT

71833D

COVER REAR SEAT RECLINING, RH

71834C

COVER, REAR SEAT RECLINING, NO.3 LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

72067

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

72068

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72345E

PIPE, RECLINING CONNECTING

72507D

HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

72507D

HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

72613B

STRIKER, REAR SEAT LOCK

72613B

STRIKER, REAR SEAT LOCK

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72665E

COVER, REAR SEAT LOCK, NO.2 RH

72666C

COVER, REAR SEAT LOCK, NO.2 LH

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72748

WIRE, REAR SEAT RECLINING CONTROL

72748

WIRE, REAR SEAT RECLINING CONTROL

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760C

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

72830M

ARMREST ASSY, SEAT CENTER, RH

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79203

FRAME SUB-ASSY, NO.2 SEAT BACK

79235

PAD, NO.2 SEAT CUSHION

79260

SPRING ASSY, NO.2 SEAT CUSHION

79275

PAD, NO.2 SEAT BACK

79475

PAD, NO.4 SEAT BACK

9010906195

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910578

Крепеж

9011910598

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9038608005

Крепеж

9038608155

Крепеж

9151261014

Крепеж

9151581030

Крепеж

9151581030

Крепеж

91611B0616

Крепеж

91611B0616

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

5854

переход к группе запчастей

5854

переход к группе запчастей

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72150

TRACK ASSY, REAR SEAT, RH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72160A

TRACK ASSY, REAR SEAT, LH

72170

TRACK ASSY, REAR SEAT, OUTER LH

9011910409

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти ESTIMA HYBRID > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
