Япония

Модель

ESTIMA EMINA/LUCIDA

VIN

Дата

1992/01

Двигатель

2,2 литра, турбо-дизель

Класс

GRAMS

Фрейм

CXR21

КПП

автомат

Опции

TURBO DIESEL

Кондиционер: вакуумные трубки TOYOTA ESTIMA EMINA/LUCIDA

Код

Описание

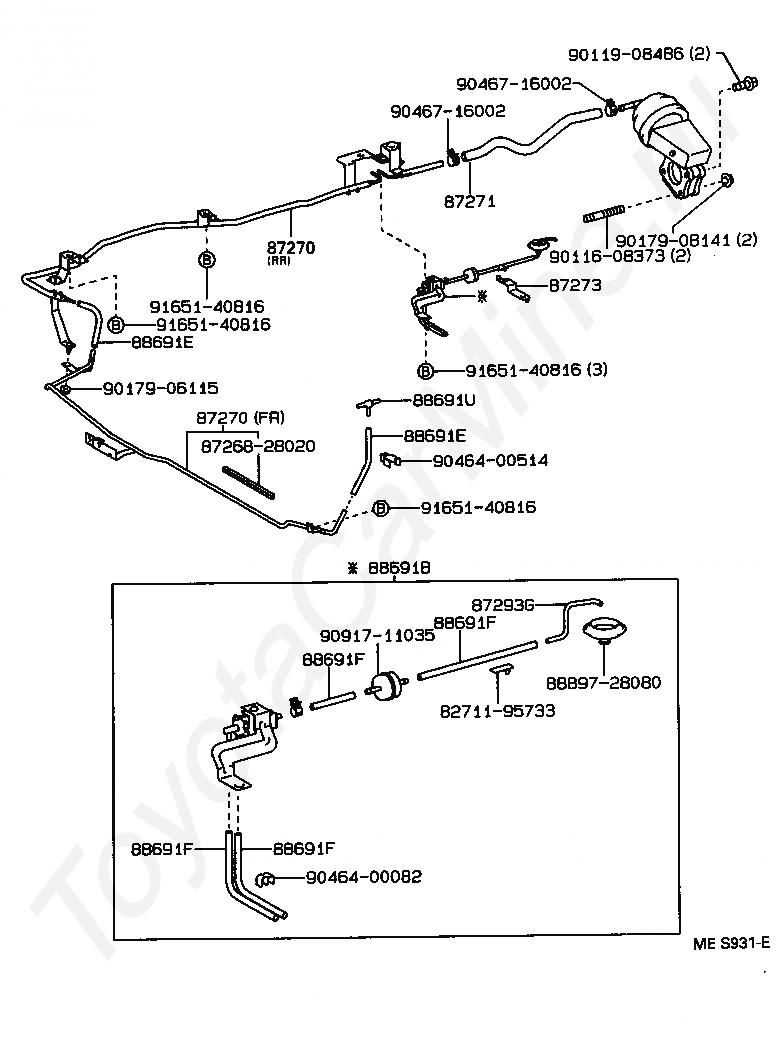

8271195733

Крепеж

8726828020

Крепеж

87270

PIPE ASSY, VACUUM

87270

PIPE ASSY, VACUUM

87271

HOSE, HEATER VACUUM

87273

BRACKET, HEATER VACUUM TUBE

87293G

CONNECTOR, VACUUM

88691B

VALVE, MAGNET (FOR WATER VALVE)

88691E

HOSE, VACUUM (FOR IDLE UP DIVICE), NO.3

88691E

HOSE, VACUUM (FOR IDLE UP DIVICE), NO.3

88691F

HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4

88691F

HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4

88691F

HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4

88691F

HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4

88691U

WAY(FOR VACUUM HOSE)

8889728080

Крепеж

9011608373

Крепеж

9011908486

Крепеж

9017906115

Крепеж

9017908141

Крепеж

9046400082

Крепеж

9046400514

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9091711035

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

Код

Описание

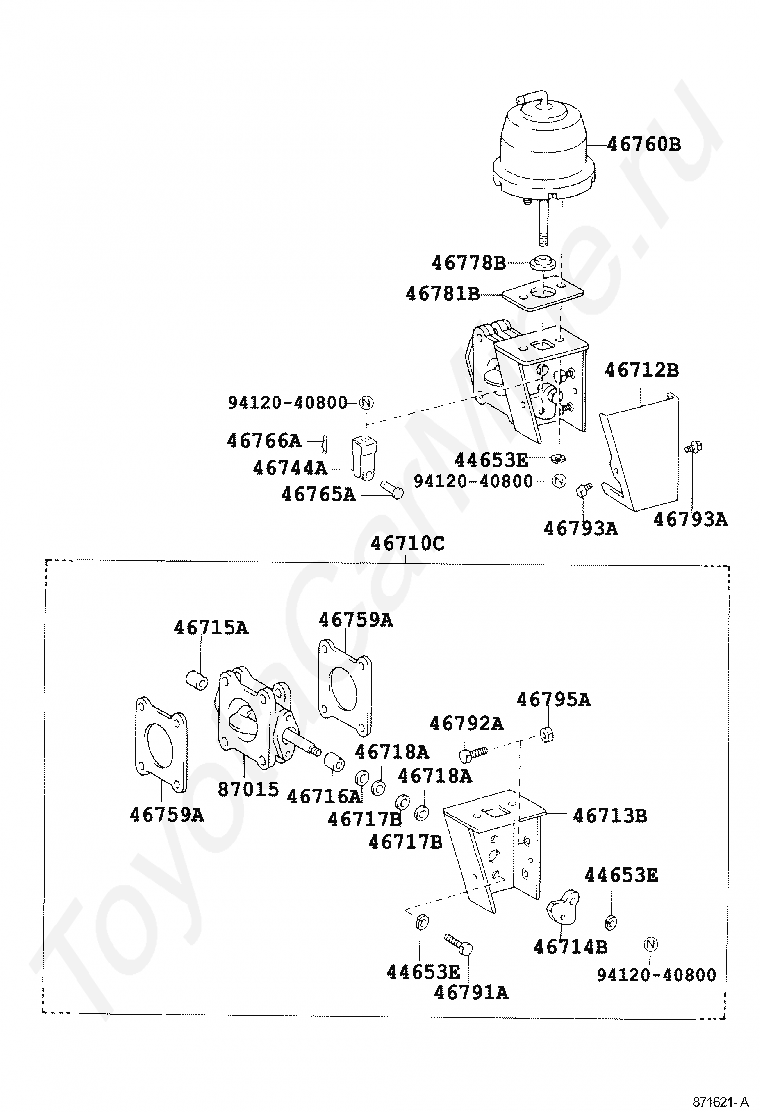

44653E

WASHER, HEATER VACUUM DIAPHRAGM

44653E

WASHER, HEATER VACUUM DIAPHRAGM

44653E

WASHER, HEATER VACUUM DIAPHRAGM

46710C

VALVE ASSY, HEATER VACUUM DIAPHRAGM

46712B

COVER, HEATER VACUUM DIAPHRAGM

46713B

BRACKET, HEATER VACUUM DIAPHRAGM

46714B

LEVER, HEATER VACUUM DIAPHRAGM

46715A

BUSH, HEATER VACUUM DIAPHRAGM N

46716A

BUSH, HEATER VACUUM DIAPHRAGM N

46717B

RING, HEATER VACUUM DIAPHRAGM S

46717B

RING, HEATER VACUUM DIAPHRAGM S

46718A

RING, HEATER VACUUM DIAPHRAGM

46718A

RING, HEATER VACUUM DIAPHRAGM

46744A

CLEVIS, HEATER VACUUM DIAPHRGM

46759A

GASKET, HEATEA VACUUM DIAPHRAGM

46759A

GASKET, HEATEA VACUUM DIAPHRAGM

46760B

CYLINDER ASSY, HEATER VACUUM DIAPHRAGM

46765A

PIN, HEATER VACUUM DIAPHRAGM, NO.1

46766A

PIN, HEATER VACUUM DIAPHRAGM, NO.2

46778B

BEARING, HEATER VACUUM DIAPHRAGM

46781B

INSULATOR, HEATER VACUUM DIAPHRAGM

46791A

BOLT, HEATER VACUUM DIAPHRAGM, NO.1

46792A

BOLT, HEATER VACUUM DIAPHRAGM, NO.2

46793A

SCREW, HEATER VACUUM DIAPHRAM

46793A

SCREW, HEATER VACUUM DIAPHRAM

46795A

NUT, HEATER VACUUM DIAPHRAGM

87015

VALVE SUB-ASSY, VACUUM

9412040800

Крепеж

9412040800

Крепеж

9412040800

Крепеж

Код

Описание

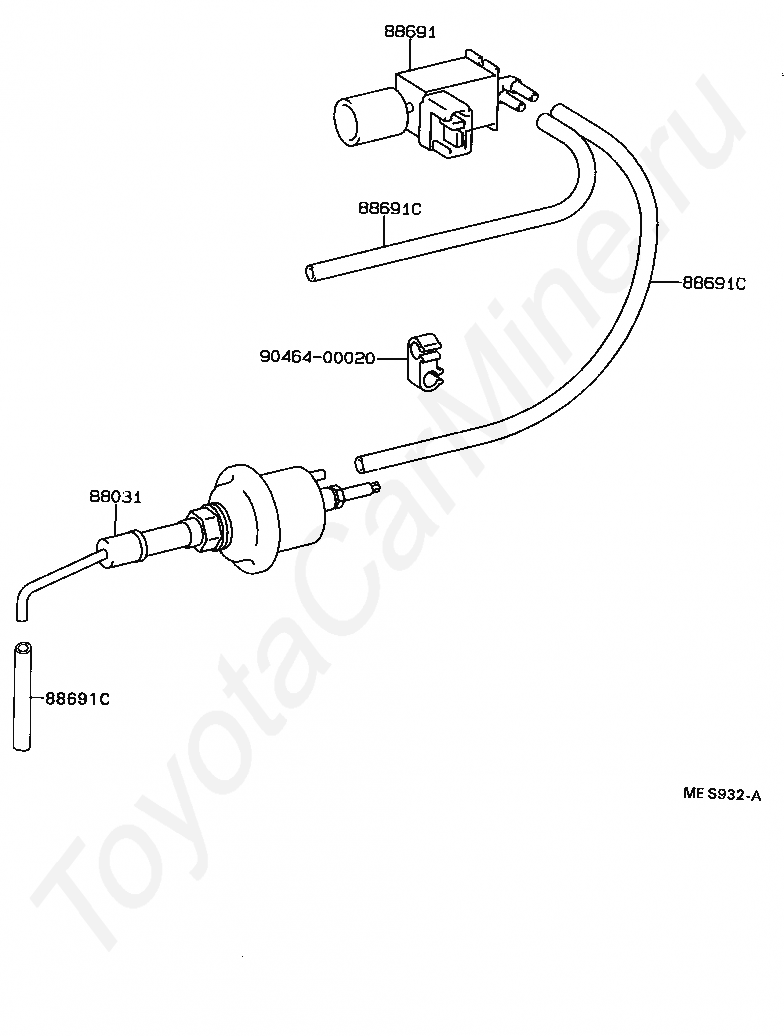

88031

ACTUATOR SET, IDLE-UP

88691

VALVE, MAGNET (FOR IDLE UP DEVICE)

88691C

HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

88691C

HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

88691C

HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

9046400020

Крепеж
