Япония

Модель

ESTIMA EMINA/LUCIDA

VIN

Дата

1992/01

Двигатель

2,2 литра, турбо-дизель

Класс

GRAMS

Фрейм

CXR21

КПП

автомат

Опции

TURBO DIESEL

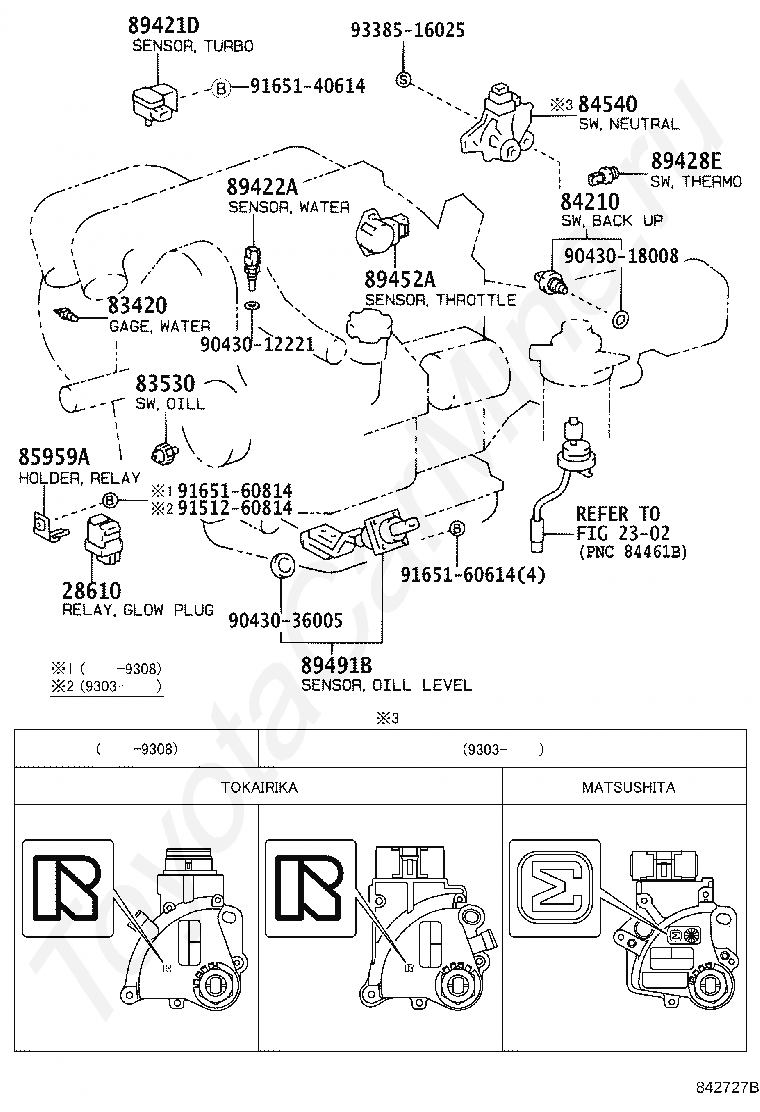

Реле и кнопки TOYOTA ESTIMA EMINA/LUCIDA







Код

Описание

2302

переход к группе запчастей

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

85959A

HOLDER, RELAY

89421D

SENSOR, TURBO PRESSURE

89422A

SENSOR, WATER TEMPERATURE

89428E

SWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

89452A

SENSOR, THROTTLE POSITION

89491B

SENSOR, ENGINE OIL LEVEL(FOR AUTO FEEDER)

9043012221

Крепеж

9043018008

Крепеж

9043036005

Крепеж

9151260814

Крепеж

9165140614

Крепеж

9165160614

Крепеж

9165160814

Крепеж

9338516025

Крепеж

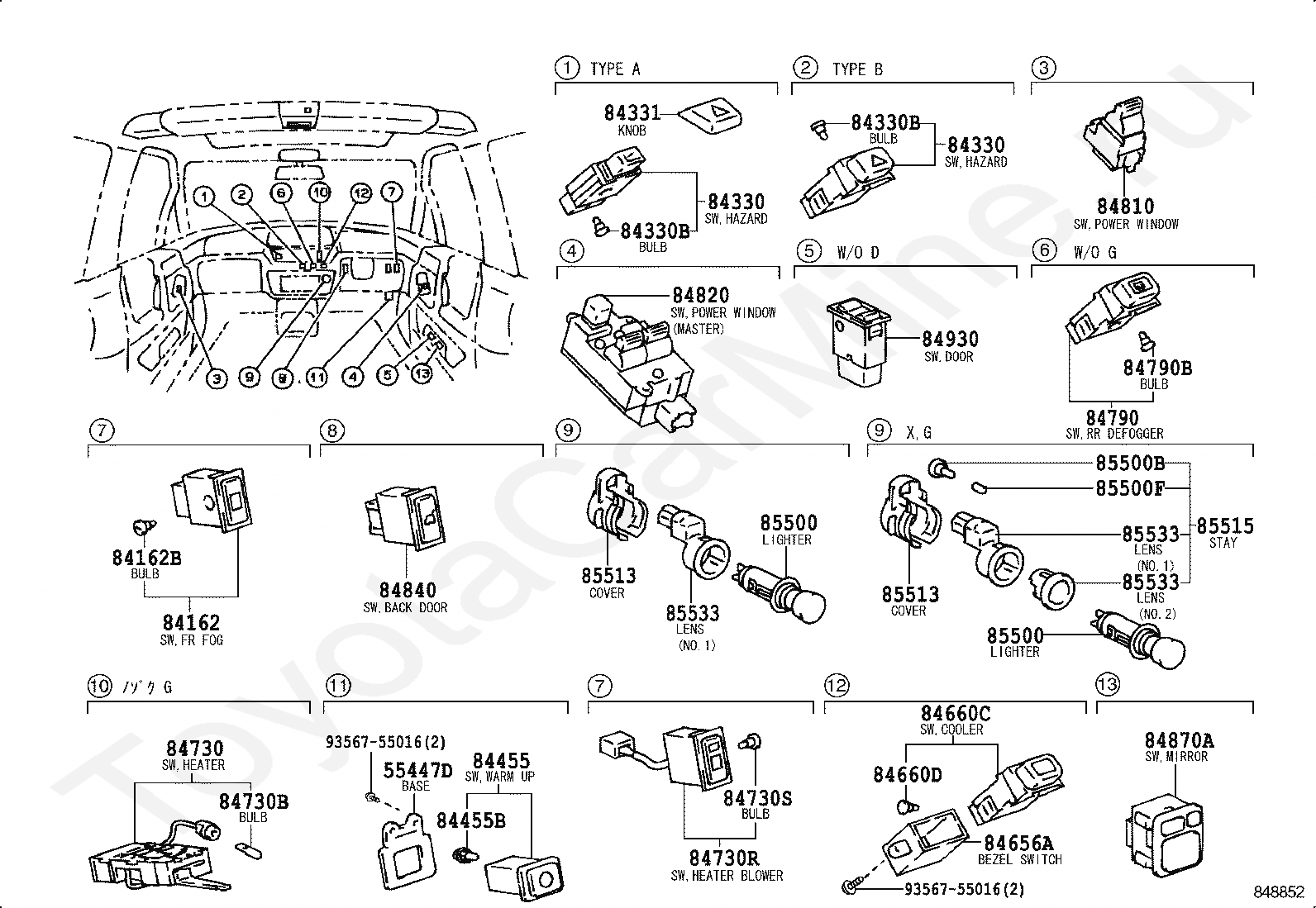

Код

Описание

55447D

BASE, SWITCH HOLE, NO.2

84162

SWITCH, FRONT FOG LAMP

84162B

BULB, FOG LAMP SWITCH

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84331

KNOB, HAZARD WARNING SIGNAL SWITCH

84455

SWITCH, WARM UP

84455B

BULB (FOR WARM UP SWITCH)

84656A

BEZEL, SWITCH

84660C

SWITCH, COOLER

84660D

BULB(FOR COOLER SWITCH)

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730R

SWITCH ASSY, HEATER BLOWER

84730S

BULB, HEATER BLOWER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84870A

SWITCH ASSY, OUTER MIRROR

84930

SWITCH ASSY, DOOR CONTROL

85500

LIGHTER ASSY, CIGARETTE

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

85513

COVER, CIGARETTE LIGHTER

85513

COVER, CIGARETTE LIGHTER

85515

STAY, CIGARETTE LIGHTER BEZEL

85533

LENS, CIGARETTE LIGHTER INDICATOR

85533

LENS, CIGARETTE LIGHTER INDICATOR

85533

LENS, CIGARETTE LIGHTER INDICATOR

9356755016

Крепеж

9356755016

Крепеж

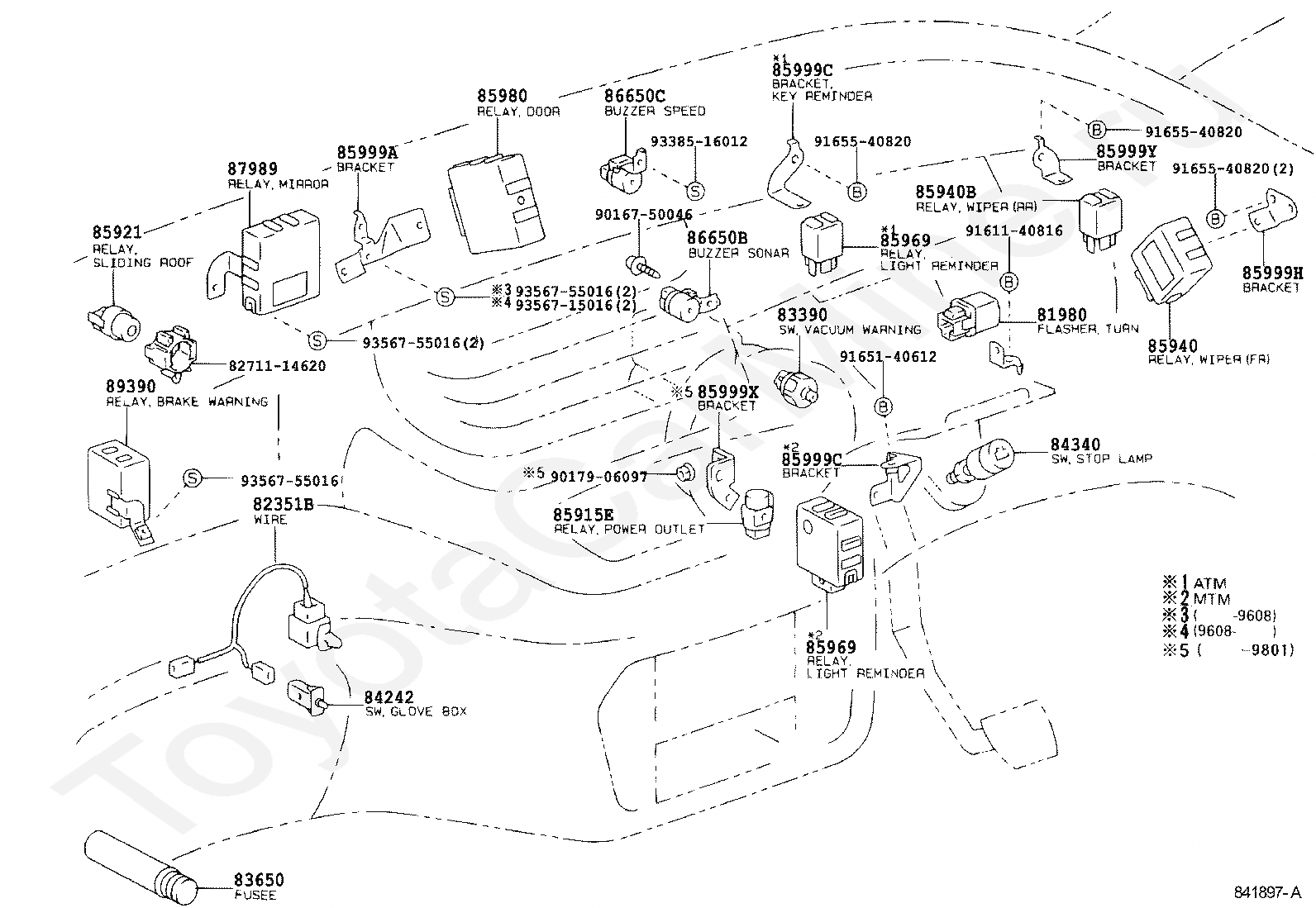

Код

Описание

81980

FLASHER ASSY, TURN SIGNAL

82351B

WIRE,COURTESY LAMP

8271114620

Крепеж

83390

SWITCH ASSY, VACUUM WARNING

83650

FUSEE

84242

SWITCH, GLOVE BOX LAMP

84340

SWITCH ASSY, STOP LAMP

85915E

RELAY

85921

RELAY, SLIDING ROOF CONTROL

85940

RELAY ASSY, WINDSHIELD WIPER

85940B

RELAY ASSY, REAR WIPER

85969

RELAY, LIGHT REMINDER

85969

RELAY, LIGHT REMINDER

85980

RELAY ASSY, DOOR CONTROL

85999A

BRACKET, RELAY, NO.2

85999C

BRACKET, RELAY, NO.3

85999C

BRACKET, RELAY, NO.3

85999H

BRACKET, RELAY

85999X

BRACKET, RELAY, NO.7

85999Y

BRACKET,RELAY

86650B

BUZZER ASSY, REVERSE WARNING

86650C

BUZZER ASSY, SEDIMENTER WARNING

87989

RELAY, MIRROR CONTROL

89390

RELAY, BRAKE WARNING

9016750046

Крепеж

9017906097

Крепеж

9161140816

Крепеж

9165140612

Крепеж

9165540820

Крепеж

9165540820

Крепеж

9165540820

Крепеж

9338516012

Крепеж

9356715016

Крепеж

9356755016

Крепеж

9356755016

Крепеж

9356755016

Крепеж

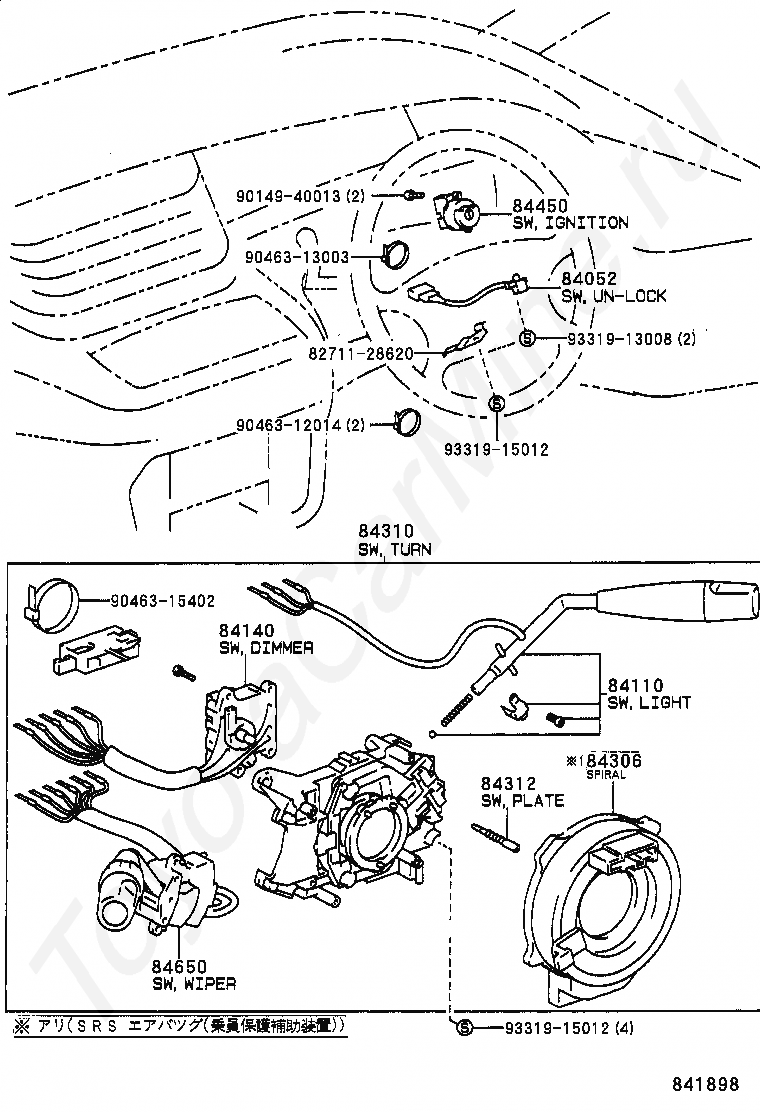

Код

Описание

8271128620

Крепеж

84052

SWITCH ASSY, UN-LOCK WARNING

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

9014940013

Крепеж

9046312014

Крепеж

9046313003

Крепеж

9046315402

Крепеж

9331913008

Крепеж

9331915012

Крепеж

9331915012

Крепеж

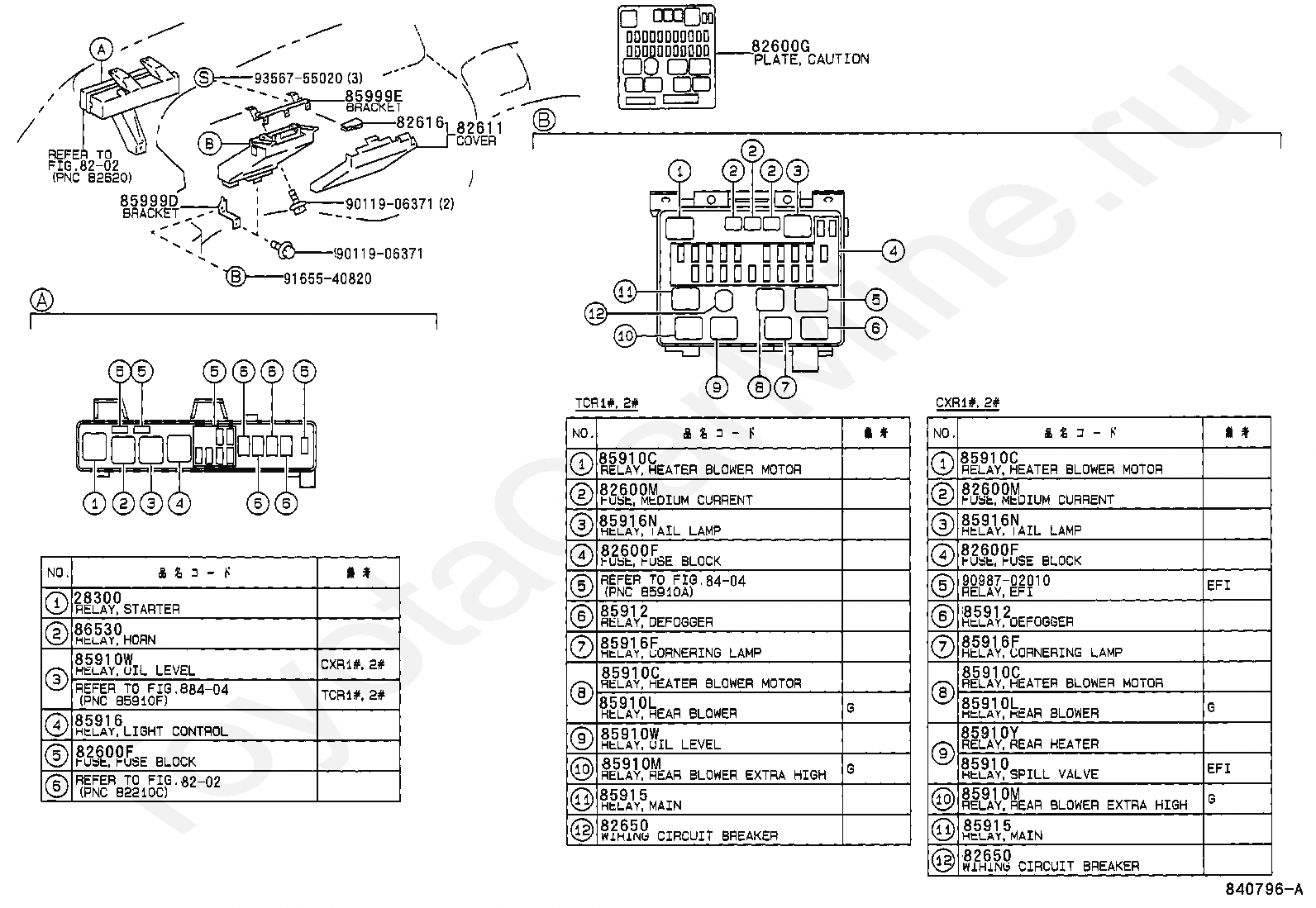

Код

Описание

28300

RELAY ASSY, STARTER

8202

переход к группе запчастей

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

82600M

FUSE, MEDIUM CURRENT

82600M

FUSE, MEDIUM CURRENT

82611

COVER, FUSE BLOCK

82616

PULLER, FUSE

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

8404

переход к группе запчастей

8404

переход к группе запчастей

85910

RELAY ASSY, CIRCUIT OPENING

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910L

RELAY, REAR BLOWER

85910L

RELAY, REAR BLOWER

85910M

RELAY, REAR BLOWER EXTRA HIGH

85910M

RELAY, REAR BLOWER EXTRA HIGH

85910W

RELAY, OIL LEVEL

85910W

RELAY, OIL LEVEL

85910Y

RELAY, REAR HEATER

85912

RELAY, DEFOGGER

85912

RELAY, DEFOGGER

85915

RELAY, MAIN

85915

RELAY, MAIN

85916

RELAY, LIGHT CONTROL

85916F

RELAY, CORNERING LAMP

85916F

RELAY, CORNERING LAMP

85916N

RELAY, TAIL LAMP

85916N

RELAY, TAIL LAMP

85999D

BRACKET, RELAY, NO.4

85999E

BRACKET, RELAY, NO.5

86530

RELAY ASSY, HORN

9011906371

Крепеж

9011906371

Крепеж

9098702010

Крепеж

9165540820

Крепеж

9356755020

Крепеж

Код

Описание

6153

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

83320

GAGE ASSY, FUEL SENDER

84550

SWITCH ASSY, PARKING BRAKE

84732A

SWITCH, REAR HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

84732B

BULB, REAR HEATER BLOWER SWITCH

84860A

SWITCH ASSY, SLIDING ROOF

84940

SWITCH ASSY, CURTAIN

85730

MOTOR ASSY, SLIDE ROOF

85975

RELAY, SLIDE DOOR CLOSER

85976

RELAY, BACK DOOR CLOSER

8714

переход к группе запчастей

88610M

SWITCH ASSY, COOLER CONTROL

88610N

SWITCH ASSY, COOLER CONTROL

88611C

KNOB, COOLER CONTROL SWITCH

89279A

COVER, COMPUTER

89373

SENSOR, LAMP FAILURE INDICATOR

89551

COMPUTER, EMISSION CONTROL

89667B

BRACKET, ENGINE CONTROL COMPUTER, NO.1

89667B

BRACKET, ENGINE CONTROL COMPUTER, NO.1

89668B

BRACKET, ENGINE CONTROL COMPUTER, NO.2

9015960025

Крепеж

9015960081

Крепеж

9018906018

Крепеж

9018906018

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9331514014

Крепеж

9331913006

Крепеж

9331915010

Крепеж

9331915010

Крепеж

9331915010

Крепеж

9356755016

Крепеж

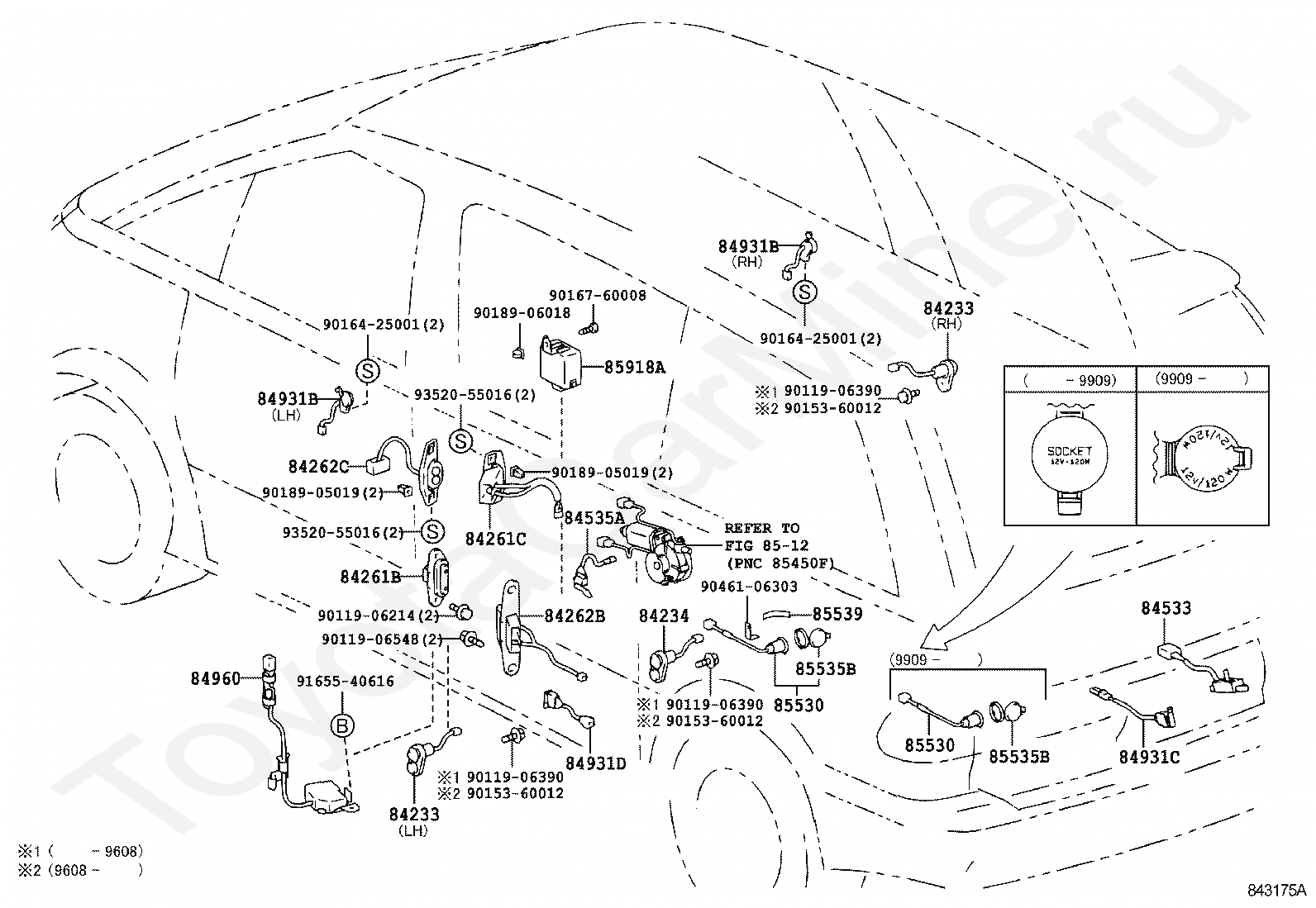

Код

Описание

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84261B

JUNCTION, SLIDE DOOR CONTROL,MALE

84261C

JUNCTION, SLIDE DOOR CONTROL,MALE NO.1

84262B

JUNCTION, SLIDE DOOR CONTROL, FEMALE

84262C

JUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1

84533

SWITCH, LUGGAGE CLOSER LIMIT

84535A

SWITCH, DOOR LOCK

84931B

SWITCH, DOOR CONTROL

84931B

SWITCH, DOOR CONTROL

84931C

SWITCH, BACK DOOR CONTROL

84931D

SWITCH, SLIDE DOOR CONTROL

84960

SWITCH ASSY, DOOR CLOSER POWER SUPPLY

8512

переход к группе запчастей

85530

SOCKET ASSY, POWER OUTLET, NO.1

85530

SOCKET ASSY, POWER OUTLET, NO.1

85535B

COVER, POWER OUTLET SOCKET, NO.1

85535B

COVER, POWER OUTLET SOCKET, NO.1

85539

LABEL, POWER OUTLET NOTICE

85918A

RELAY, DOOR CONTROL

9011906214

Крепеж

9011906390

Крепеж

9011906390

Крепеж

9011906390

Крепеж

9011906548

Крепеж

9015360012

Крепеж

9015360012

Крепеж

9015360012

Крепеж

9016425001

Крепеж

9016425001

Крепеж

9016760008

Крепеж

9018905019

Крепеж

9018905019

Крепеж

9018906018

Крепеж

9046106303

Крепеж

9165540616

Крепеж

9352055016

Крепеж

9352055016

Крепеж
