Каталог

Япония

Модель

ESTIMA EMINA/LUCIDA

VIN

Дата

1992/01

Двигатель

2,2 литра, турбо-дизель

Класс

GRAMS

Фрейм

CXR21

КПП

автомат

Опции

TURBO DIESEL

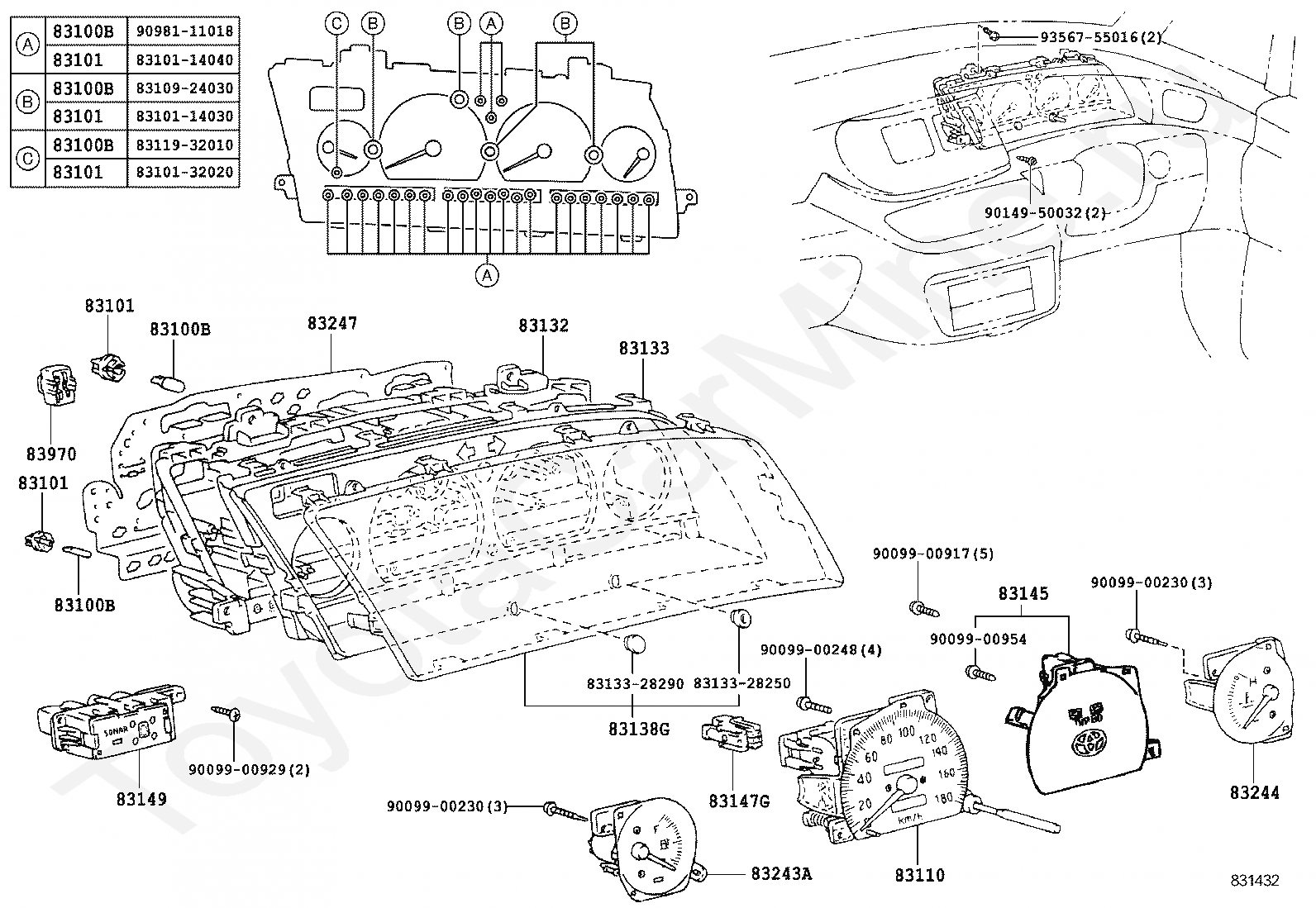

Спидометр TOYOTA ESTIMA EMINA/LUCIDA

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83110

SPEEDOMETER ASSY

83132

CASE, COMBINATION METER

83133

PLATE, COMBINATION METER, NO.1

8313328250

Крепеж

8313328290

Крепеж

83138G

GLASS, COMBINATION METER

83145

LENS, METER, NO.1

83147G

CONNECTOR, COMBINATION METER

83149

PLATE, METER CIRCUIT

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83244

GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

83247

PLATE, METER CIRCUIT

83970

BUZZER ASSY, REVERSE WARNING

9009900230

Крепеж

9009900230

Крепеж

9009900248

Крепеж

9009900917

Крепеж

9009900929

Крепеж

9009900954

Крепеж

9014950032

Крепеж

9356755016

Крепеж

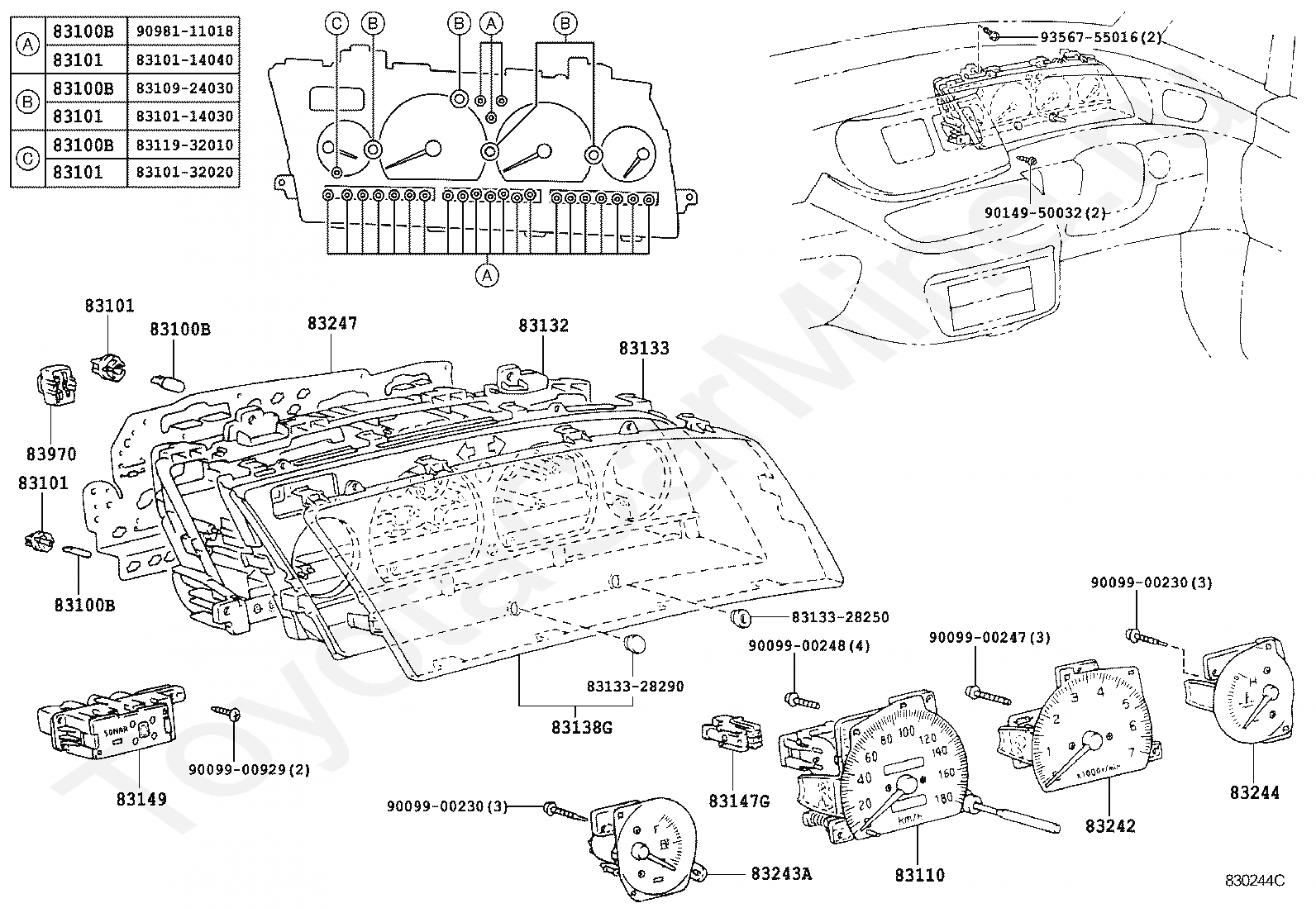

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83110

SPEEDOMETER ASSY

83132

CASE, COMBINATION METER

83133

PLATE, COMBINATION METER, NO.1

8313328250

Крепеж

8313328290

Крепеж

83138G

GLASS, COMBINATION METER

83147G

CONNECTOR, COMBINATION METER

83149

PLATE, METER CIRCUIT

83242

TACHOMETER ASSY, ENGINE

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83244

GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

83247

PLATE, METER CIRCUIT

83970

BUZZER ASSY, REVERSE WARNING

9009900230

Крепеж

9009900230

Крепеж

9009900247

Крепеж

9009900248

Крепеж

9009900929

Крепеж

9014950032

Крепеж

9356755016

Крепеж

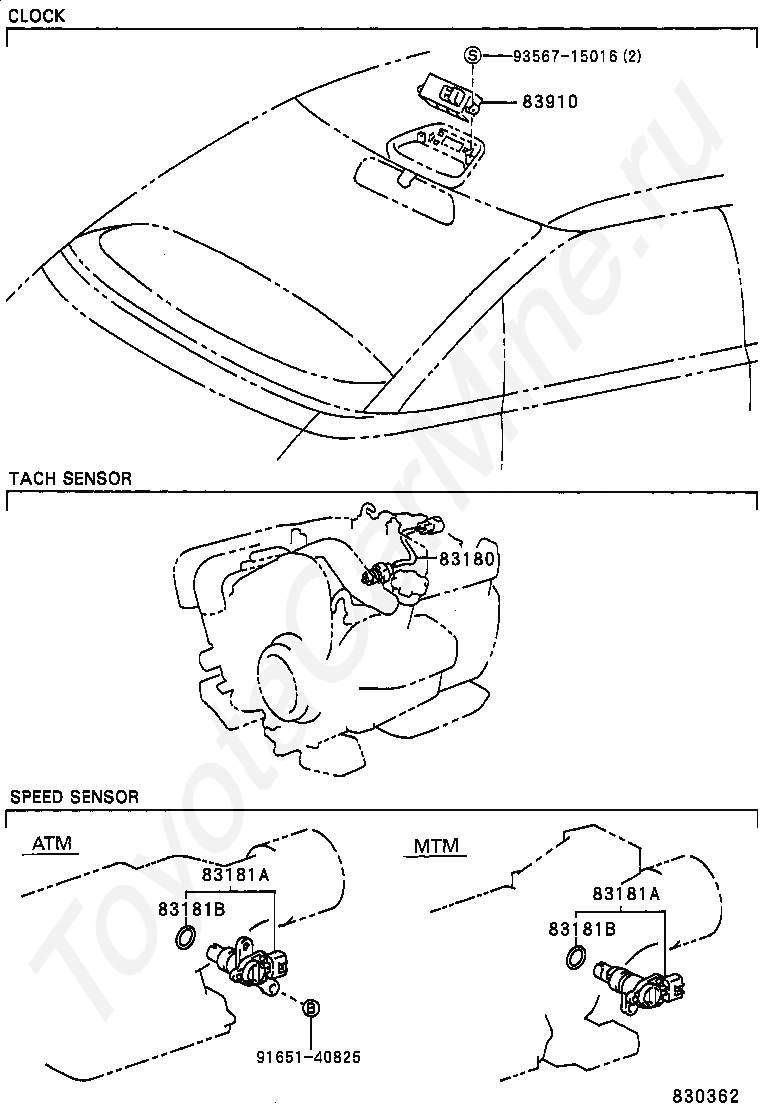

Код

Описание

83180

DETECTOR ASSY, REVOLUTION

83181A

SENSOR, SPEEDOMETER

83181A

SENSOR, SPEEDOMETER

83181B

RING, O (FOR SPEEDOMETER SENSOR)

83181B

RING, O (FOR SPEEDOMETER SENSOR)

83910

CLOCK ASSY

9165140825

Крепеж

9356715016

Крепеж
