Каталог

Япония

Модель

ESTIMA EMINA/LUCIDA

VIN

Дата

1992/01

Двигатель

2,2 литра, турбо-дизель

Класс

GRAMS

Фрейм

CXR21

КПП

автомат

Опции

TURBO DIESEL

Задняя ступица и тормозной диск TOYOTA ESTIMA EMINA/LUCIDA

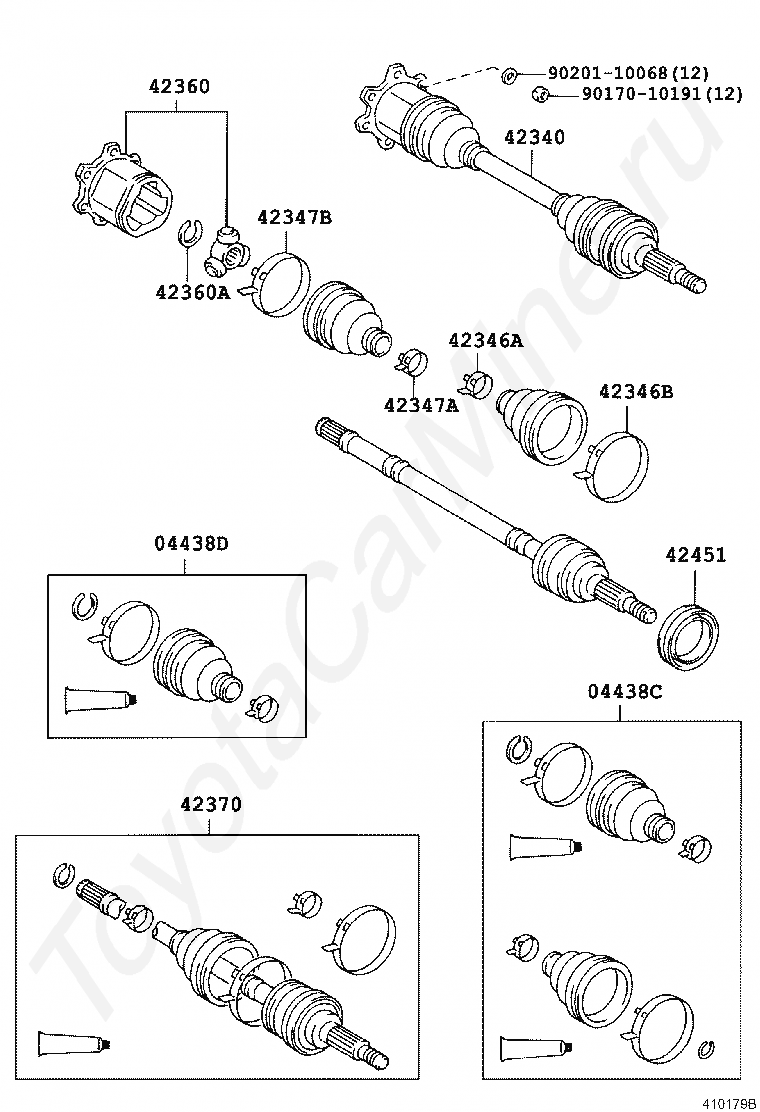

Код

Описание

04438C

BOOT KIT, REAR DRIVE SHAFT

04438D

BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

42340

SHAFT ASSY, REAR DRIVE

42346A

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42346B

CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

42347A

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42347B

CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42360

JOINT ASSY, REAR DRIVE SHAFT INBOARD

42360A

RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)

42370

SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

42451

DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

9017010191

Крепеж

9020110068

Крепеж

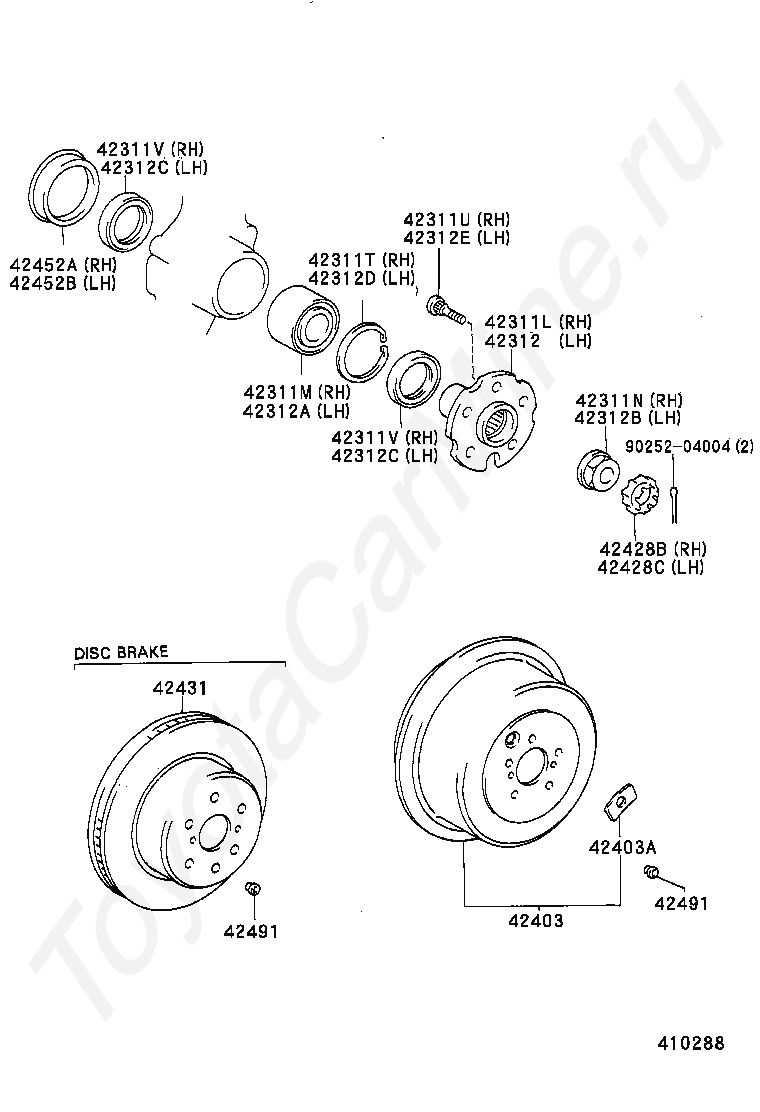

Код

Описание

42311L

SHAFT, REAR AXLE, RH

42311M

BEARING (FOR REAR AXLE SHAFT RH)

42311N

NUT (FOR REAR AXLE SHAFT RH)

42311T

RING, SNAP (FOR REAR AXLE SHAFT RH)

42311U

BOLT, HUB (FOR REAR AXLE RH)

42311V

SEAL, OIL (FOR REAR AXLE SHAFT RH)

42311V

SEAL, OIL (FOR REAR AXLE SHAFT RH)

42312

SHAFT, REAR AXLE, LH

42312A

BEARING (FOR REAR AXLE SHAFT LH)

42312B

NUT (FOR REAR AXLE SHAFT LH)

42312C

SEAL, OIL (FOR REAR AXLE SHAFT LH)

42312C

SEAL, OIL (FOR REAR AXLE SHAFT LH)

42312D

RING, SNAP (FOR REAR AXLE SHAFT LH)

42312E

BOLT, HUB (FOR REAR AXLE LH)

42403

DRUM SUB-ASSY, REAR BRAKE

42403A

PIECE, BALANCE (FOR REAR BRAKE DRUM)

42428B

PLATE, REAR AXLE LOCK NUT, RH

42428C

PLATE, REAR AXLE LOCK NUT, LH

42431

DISC, REAR

42452A

DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

42452B

DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

42491

PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

42491

PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

9025204004

Крепеж

Задняя ступица и тормозной диск TOYOTA ESTIMA EMINA/LUCIDA
