Каталог

Япония

Модель

ESTIMA EMINA/LUCIDA

VIN

Дата

1992/01

Двигатель

2,2 литра, турбо-дизель

Класс

GRAMS

Фрейм

CXR21

КПП

автомат

Опции

TURBO DIESEL

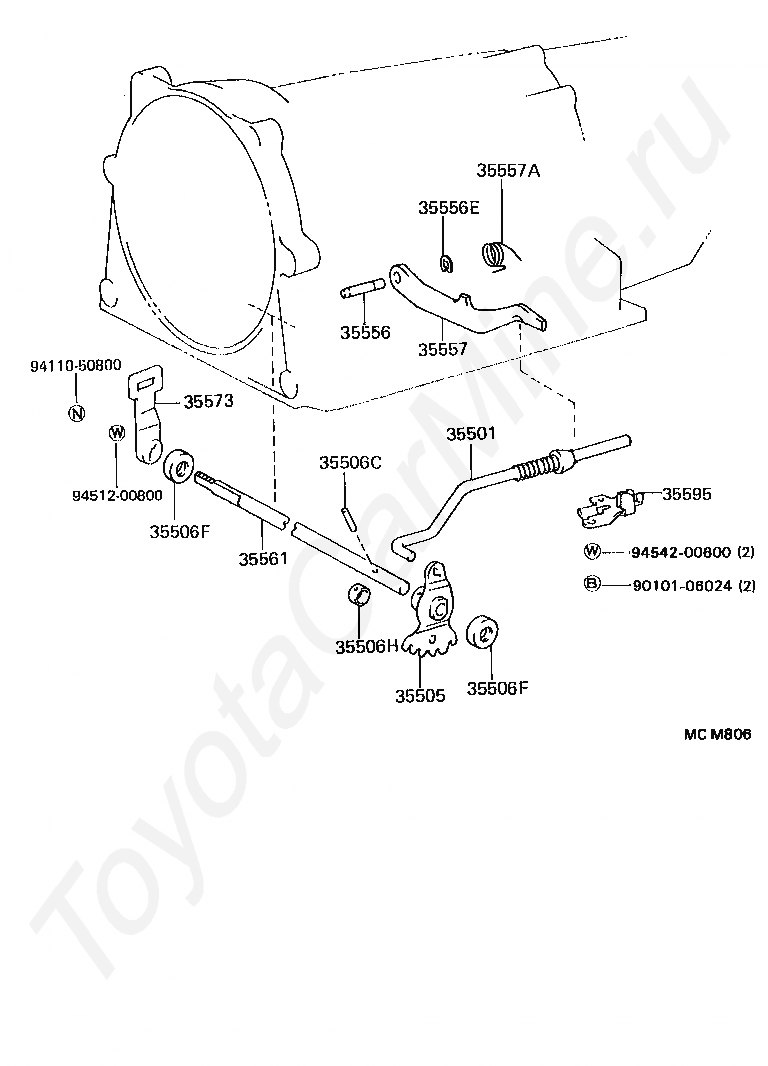

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA ESTIMA EMINA/LUCIDA

Код

Описание

35501

ROD SUB-ASSY, PARKING LOCK

35505

LEVER SUB-ASSY, MANUAL VALVE

35506C

PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506H

SPACER (FOR MANUAL VALVE LEVER SHAFT)

35556

SHAFT, PARKING LOCK PAWL

35556E

RING, E (FOR PARKING LOCK PAWL SHAFT)

35557

PAWL, PARKING LOCK

35557A

SPRING, TORSION (FOR PARKING LOCK PAWL)

35561

SHAFT, MANUAL VALVE LEVER

35573

LEVER, TRANSMISSION CONTROL SHAFT, LH

35595

BRACKET, PARKING LOCK PAWL

9010106024

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9454200600

Крепеж

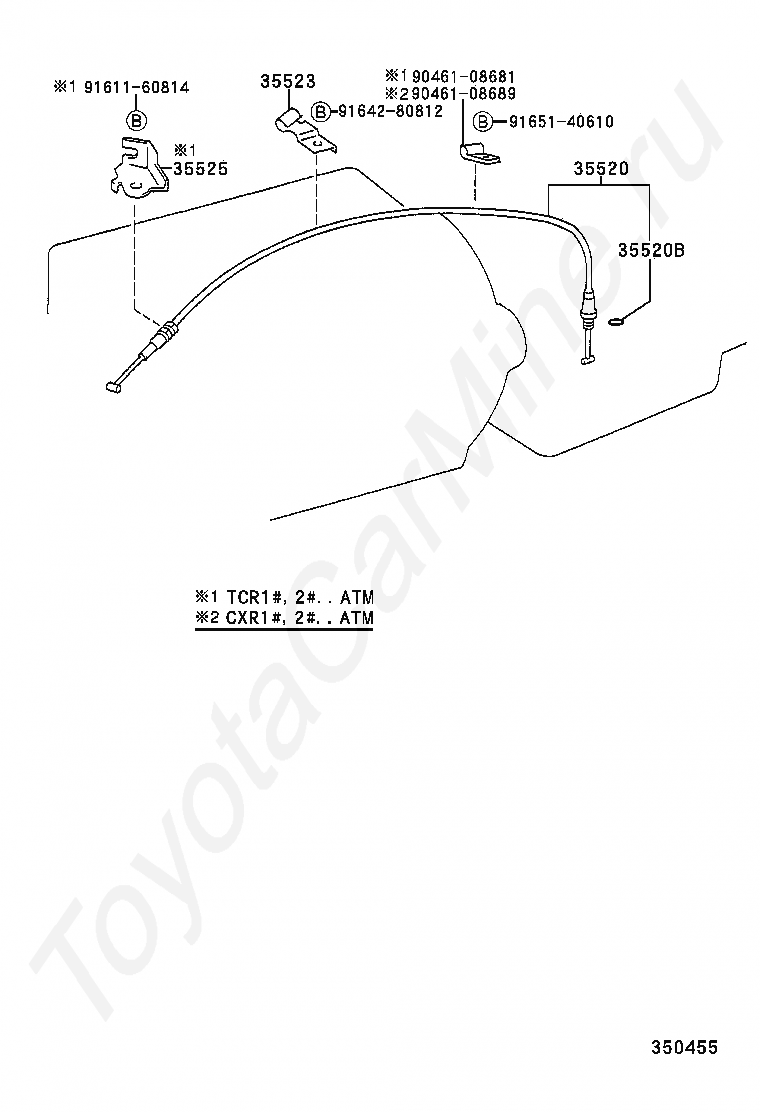

Код

Описание

35520

CABLE ASSY, THROTTLE

35520B

RING, O(FOR THROTTLE CABLE)

35523

CLAMP, THROTTLE CABLE

35525

BRACKET, THROTTLE CABLE

9046108681

Крепеж

9046108689

Крепеж

9161160814

Крепеж

9164280812

Крепеж

9165140610

Крепеж

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA ESTIMA EMINA/LUCIDA
