Каталог

Япония

Модель

ESTIMA EMINA/LUCIDA

VIN

Дата

1992/01

Двигатель

2,2 литра, турбо-дизель

Класс

GRAMS

Фрейм

CXR21

КПП

автомат

Опции

TURBO DIESEL

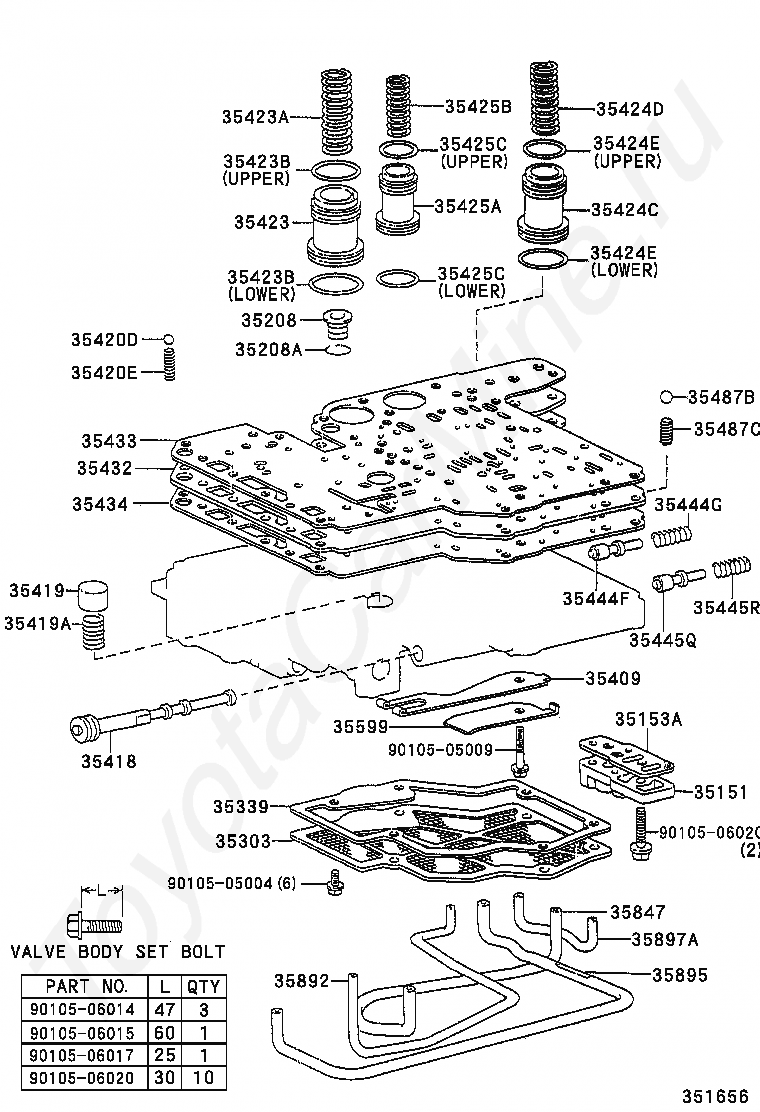

VALVE BODY & OIL STRAINER (ATM) TOYOTA ESTIMA EMINA/LUCIDA

Код

Описание

35151

COVER, TRANSMISSION CASE, LOWER

35153A

GASKET, TRANSMISSION CASE LOWER COVER

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35303

STRAINER SUB-ASSY, OIL

35339

GASKET, OIL STRAINER

35409

SPRING SUB-ASSY, MANUAL DETENT

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35420D

BALL (FOR LOWER VALVE BODY)

35420E

SPRING (FOR LOWER VALVE BODY)

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35444F

VALVE, INTERMEDIATE COAST MODULATOR

35444G

SPRING (FOR INTERMEDIATE COAST MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35487B

BALL, CHECK, NO.4

35487C

SPRING, COMPRESSION (FOR CHECK BALL)

35599

COVER, MANUAL DETENT SPRING

35847

TUBE, TRANSMISSION LUBE APPLY

35892

TUBE, OVERDRIVE BRAKE

35895

TUBE, FRONT CLUTCH APPLY

35897A

TUBE, 1ST & REVERSE BRAKE, NO.1

9010505004

Крепеж

9010505009

Крепеж

9010506014

Крепеж

9010506015

Крепеж

9010506017

Крепеж

9010506020

Крепеж

9010506020

Крепеж

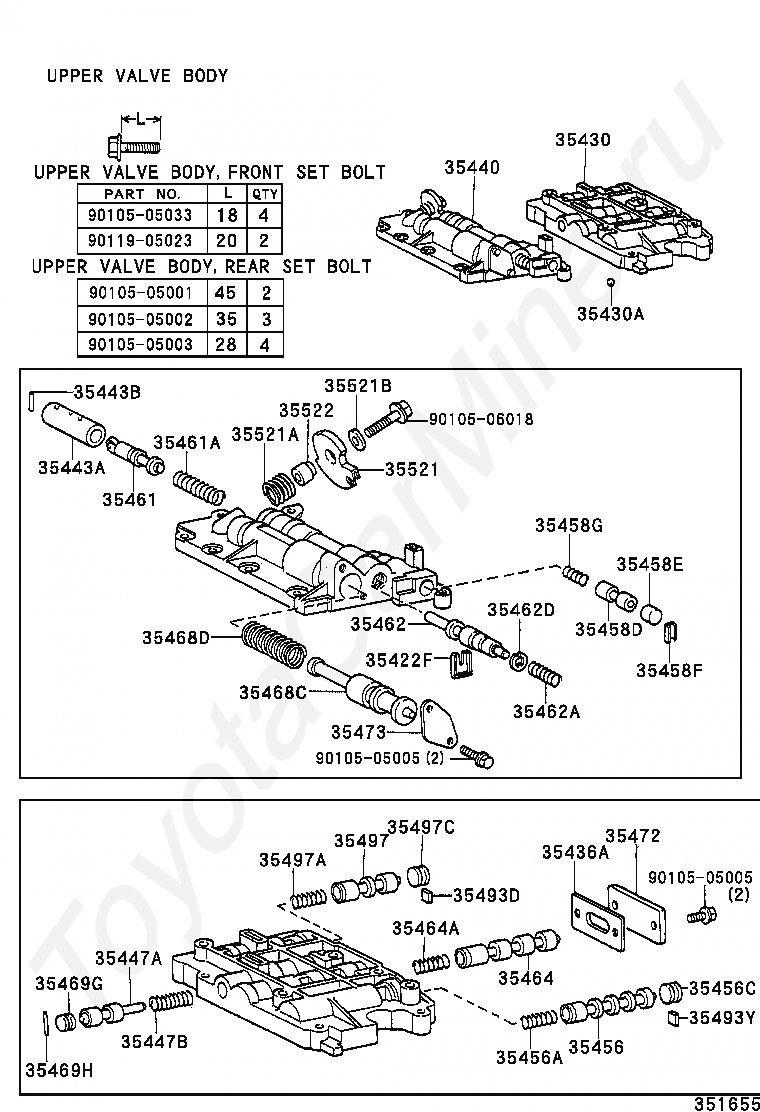

Код

Описание

35422F

STOPPER, VALVE VIBRATING

35430

BODY ASSY, REAR UPPER VALVE

35430A

BALL (FOR REAR UPPER VALVE BODY)

35436A

GASKET, VALVE BODY PLATE, NO.4

35440

BODY ASSY, FRONT UPPER VALVE

35443A

SLEEVE, DOWN SHIFT PLUG

35443B

PIN (FOR DOWN SHIFT PLUG SLEEVE)

35447A

VALVE, REVERSE CLUTCH SEQUENCE

35447B

SPRING, COMPRESSION (FOR REVERSE CLUTCH SEQUENCE VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458F

SEAT (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35461

PLUG, DOWN SHIFT

35461A

SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)

35462

VALVE, THROTTLE

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35462D

RING, E (FOR THROTTLE VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35469G

PLUG, REVERSE CLUTCH SEQUENCE VALVE

35469H

ROLLER (FOR REVERSE CLUTCH SEQUENCE VALVE)

35472

COVER, VALVE BODY, NO.2

35473

COVER, TRANSMISSION VALVE BODY

35493D

SEAT, 3-4 SHIFT VALVE PLUG

35493Y

SEAT, 2-3 SHIFT VALVE PLUG

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35521

CAM, THROTTLE VALVE

35521A

SPRING (FOR THROTTLE VALVE CAM RETURN)

35521B

WASHER (FOR THROTTLE VALVE CAM SET)

35522

PIN, THROTTLE VALVE CAM

9010505001

Крепеж

9010505002

Крепеж

9010505003

Крепеж

9010505005

Крепеж

9010505005

Крепеж

9010505033

Крепеж

9010506018

Крепеж

9011905023

Крепеж

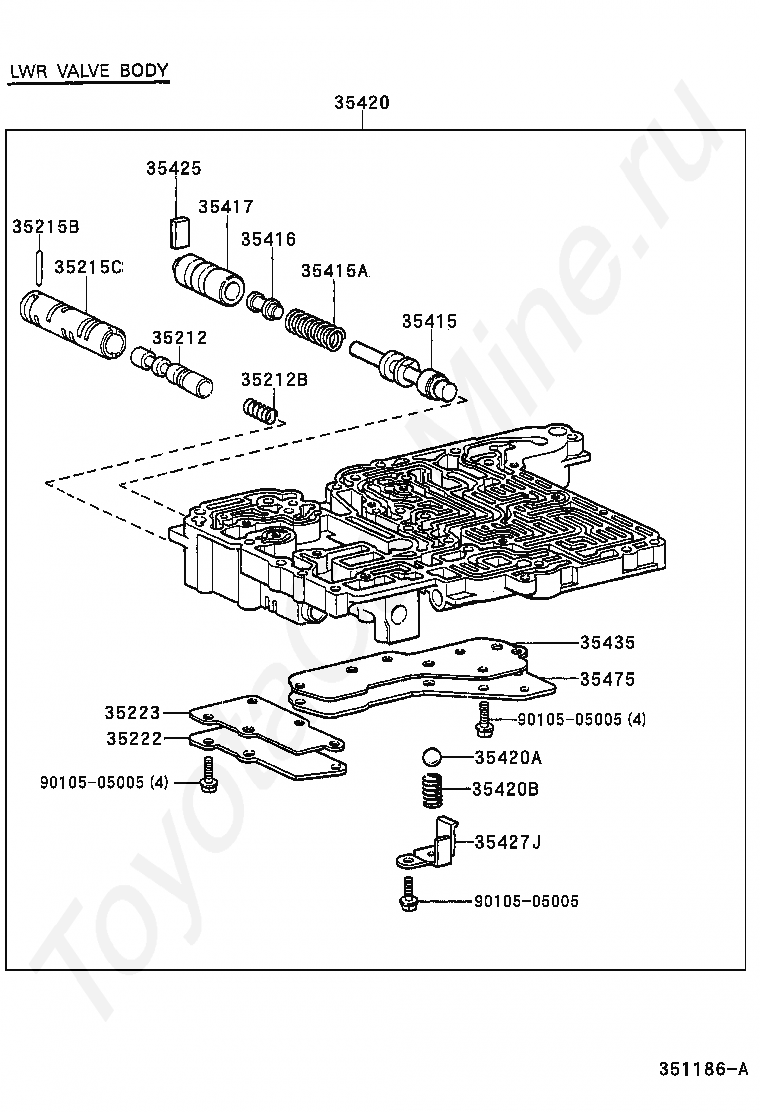

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35215B

PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE)

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35222

PLATE, LOCK UP RELAY VALVE BODY

35223

GASKET, LOCK UP RELAY VALVE BODY

35415

VALVE, PRESSURE REGULATOR

35415A

SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417

SLEEVE, PRESSURE REGULATOR VALVE

35420

BODY ASSY, LOWER VALVE

35420A

BALL (FOR PRESSURE RELIEF)

35420B

SPRING (FOR PRESSURE RELIEF)

35425

SEAT, PRESSURE REGULATOR VALVE SLEEVE

35427J

SEAT, CHECK VALVE SPRING (FOR PRESSURE RELIEF)

35435

GASKET, VALVE BODY PLATE, NO.3

35475

COVER, VALVE BODY, NO.5

9010505005

Крепеж

9010505005

Крепеж

9010505005

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA ESTIMA EMINA/LUCIDA
