Каталог

Япония

Модель

ESTIMA EMINA/LUCIDA

VIN

Дата

1993/08

Двигатель

2,2 литра, турбо-дизель, EFI

Класс

X TYPE

Фрейм

CXR20

КПП

автомат

Опции

TURBO DIESEL EFI

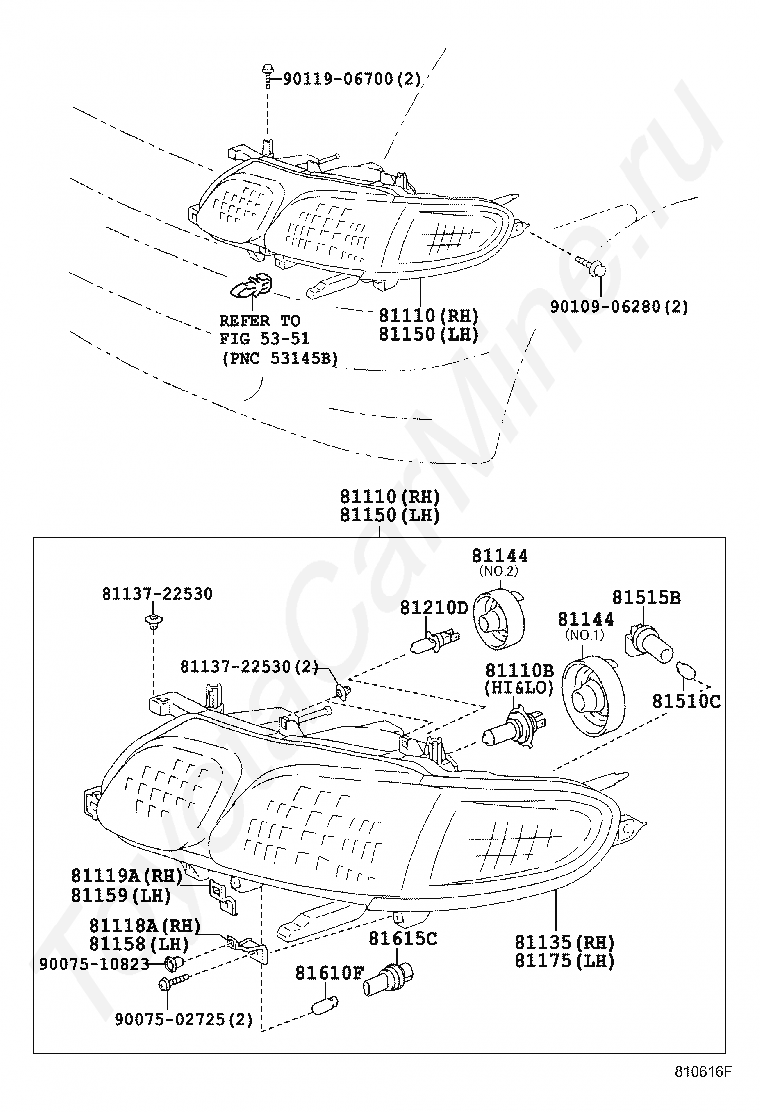

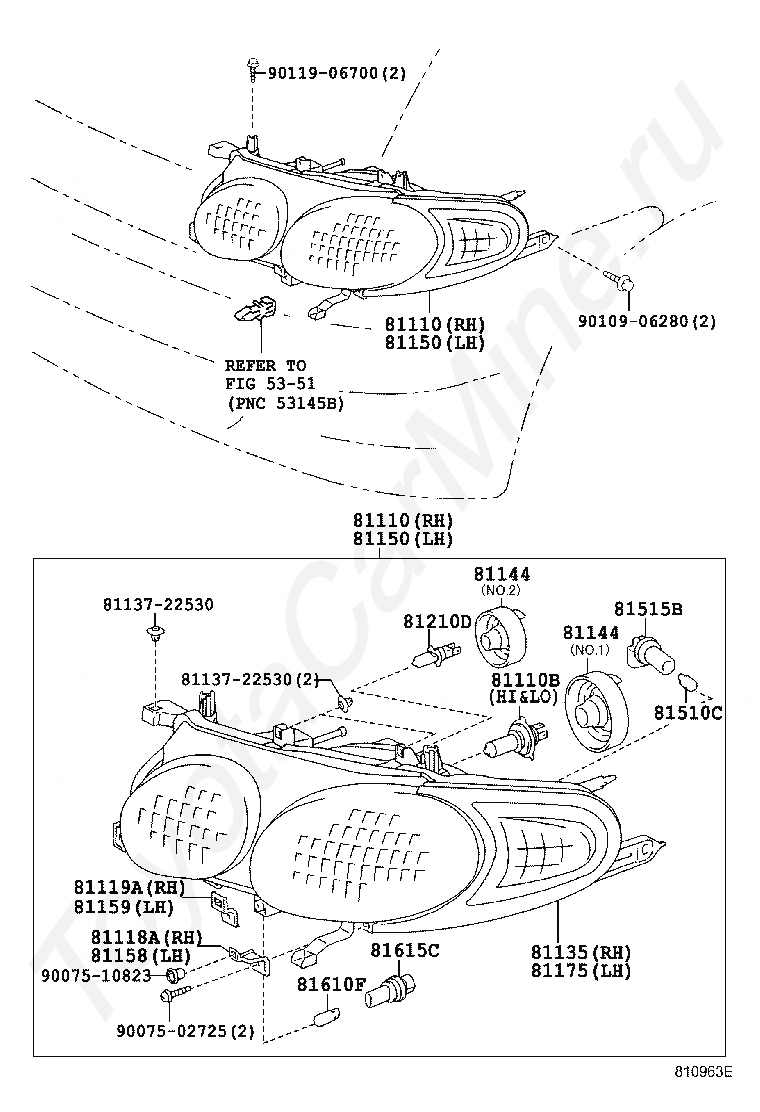

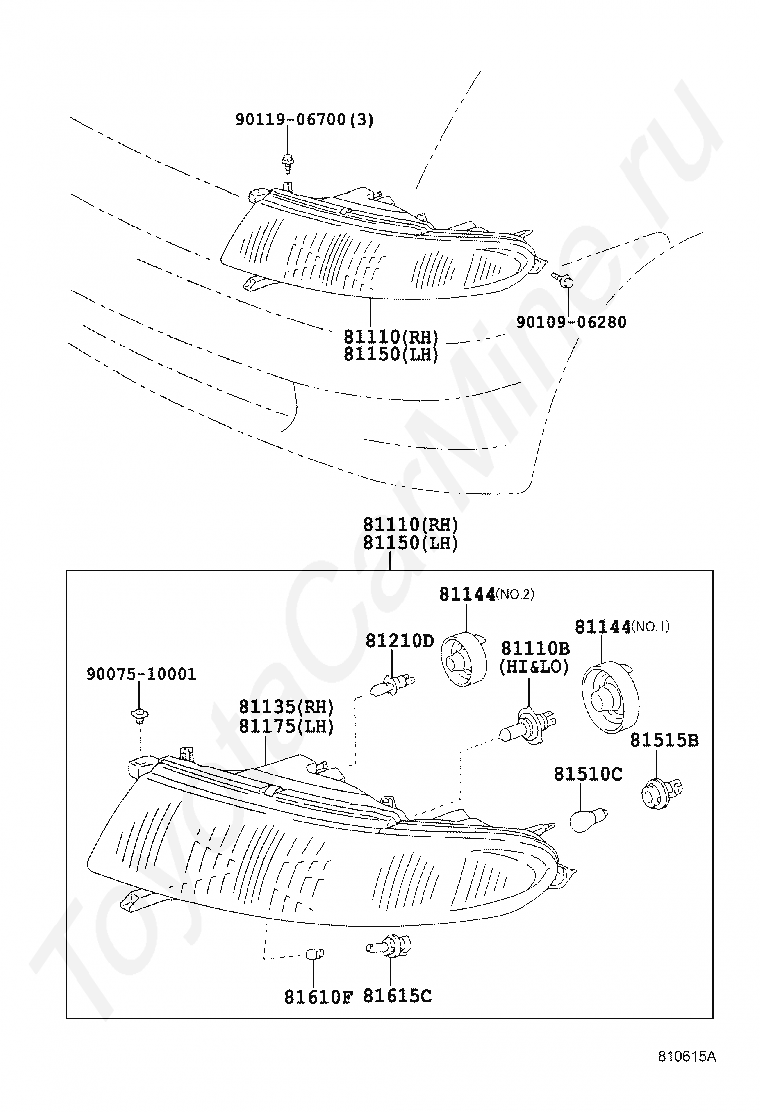

Фары TOYOTA ESTIMA EMINA/LUCIDA

Код

Описание

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81135

UNIT ASSY, HEADLAMP, RH

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81175

UNIT ASSY, HEADLAMP, LH

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

9007510009

Крепеж

9011906700

Крепеж

Код

Описание

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81144D

CAP, HEADLAMP LOCKING

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81175

UNIT ASSY, HEADLAMP, LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9007510001

Крепеж

9011906700

Крепеж

Код

Описание

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81144

COVER, HEADLAMP, NO.1

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81175

UNIT ASSY, HEADLAMP, LH

81210D

BULB, FOG LAMP

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

9007510001

Крепеж

9010906280

Крепеж

9011906700

Крепеж

Код

Описание

5351

переход к группе запчастей

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81118A

BRACKET, HEADLAMP, RH

81119A

BRACKET ASSY, HEAD LAMP, RH

81135

UNIT ASSY, HEADLAMP, RH

8113722530

Крепеж

8113722530

Крепеж

81144

COVER, HEADLAMP, NO.1

81144

COVER, HEADLAMP, NO.1

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81158

BRACKET, HEADLAMP, LH

81159

BRACKET ASSY, HEAD LAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81210D

BULB, FOG LAMP

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

9007502725

Крепеж

9007510823

Крепеж

9010906280

Крепеж

9011906700

Крепеж

Код

Описание

5351

переход к группе запчастей

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81118A

BRACKET, HEADLAMP, RH

81119A

BRACKET ASSY, HEAD LAMP, RH

81135

UNIT ASSY, HEADLAMP, RH

8113722530

Крепеж

8113722530

Крепеж

81144

COVER, HEADLAMP, NO.1

81144

COVER, HEADLAMP, NO.1

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81158

BRACKET, HEADLAMP, LH

81159

BRACKET ASSY, HEAD LAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81210D

BULB, FOG LAMP

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

9007502725

Крепеж

9007510823

Крепеж

9010906280

Крепеж

9011906700

Крепеж
