Ходовые запчасти

Каталог

Япония

Модель

ESTIMA

VIN

Дата

2012/04

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

AERAS TYPE

Фрейм

ACR50

КПП

автомат бесступенчатая АКПП

Опции

7-местный 566W

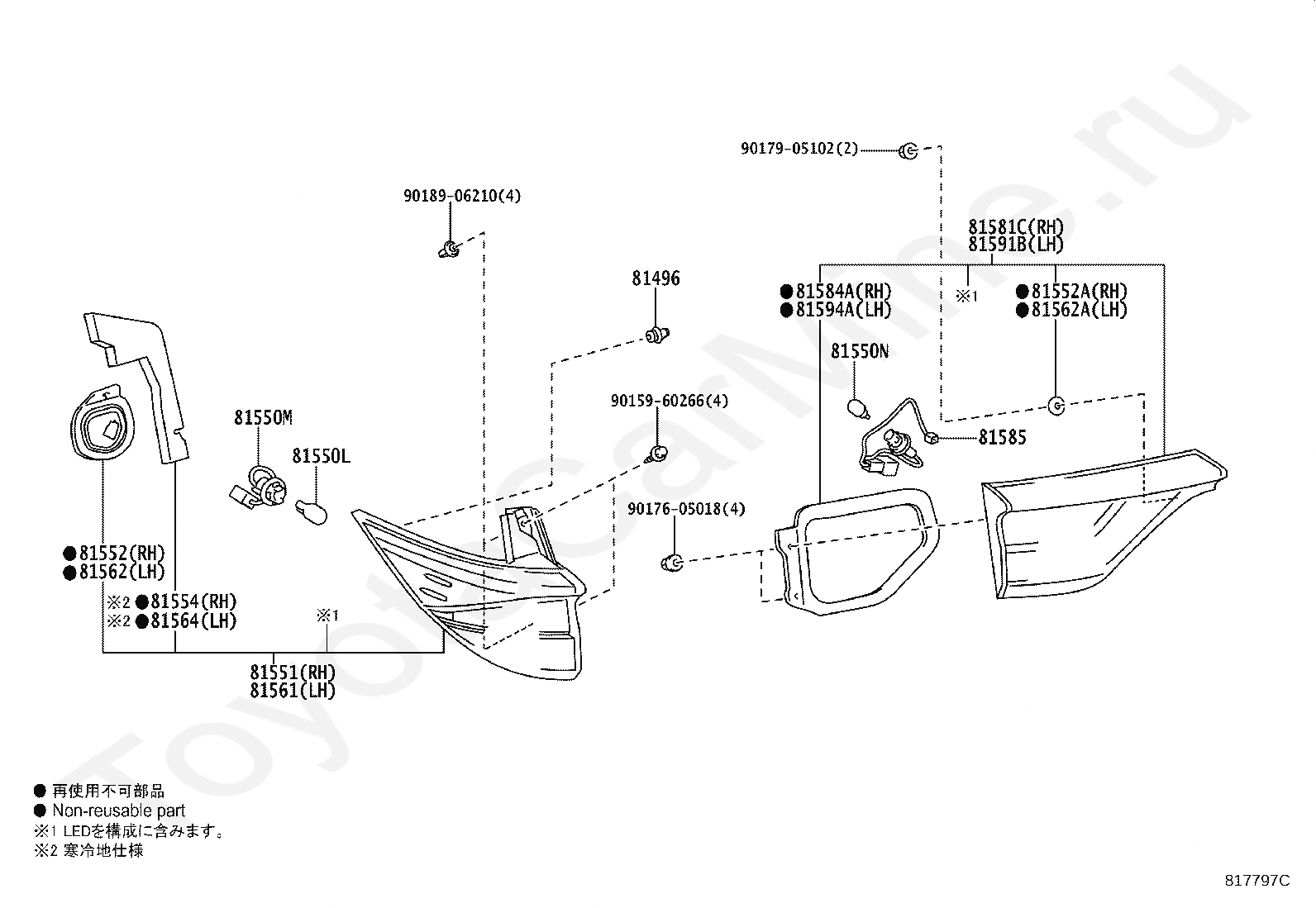

Задние фонари TOYOTA ESTIMA

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81550L

BULB, REAR TURN SIGNAL LAMP

81550M

SOCKET, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81551

LENS, REAR COMBINATION LAMP, RH

81552

GASKET, REAR COMBINATION LAMP LENS, RH

81552A

GASKET, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81561

LENS, REAR COMBINATION LAMP, LH

81562

GASKET, REAR COMBINATION LAMP LENS, LH

81562A

GASKET, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81581C

LENS AND BODY, REAR LAMP, RH

81584A

GASKET, REAR LAMP RH

81585

SOCKET & WIRE, REAR LAMP

81591B

LENS AND BODY, REAR LAMP, LH

81594A

GASKET, REAR LAMP LH

9015960266

Крепеж

9017605018

Крепеж

9017905102

Крепеж

9018906210

Крепеж

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81550L

BULB, REAR TURN SIGNAL LAMP

81550M

SOCKET, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81551

LENS, REAR COMBINATION LAMP, RH

81552

GASKET, REAR COMBINATION LAMP LENS, RH

81552A

GASKET, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81561

LENS, REAR COMBINATION LAMP, LH

81562

GASKET, REAR COMBINATION LAMP LENS, LH

81562A

GASKET, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81581C

LENS AND BODY, REAR LAMP, RH

81584A

GASKET, REAR LAMP RH

81585

SOCKET & WIRE, REAR LAMP

81591B

LENS AND BODY, REAR LAMP, LH

81594A

GASKET, REAR LAMP LH

9015960266

Крепеж

9017605018

Крепеж

9017905102

Крепеж

9018906210

Крепеж
