Япония

Модель

ESTIMA

VIN

Дата

2012/04

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

AERAS TYPE

Фрейм

ACR50

КПП

автомат бесступенчатая АКПП

Опции

7-местный 566W

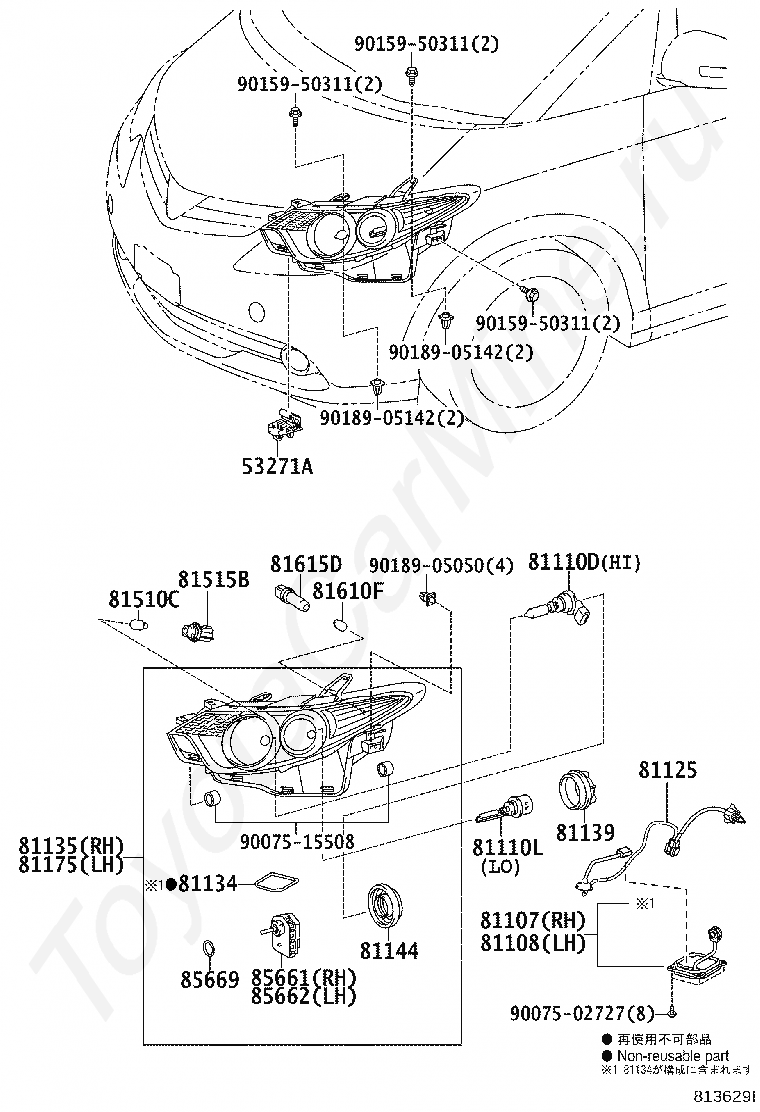

Фары TOYOTA ESTIMA

Код

Описание

53271A

BRACKET, HEADLAMP MOUNTING

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110D

BULB(FOR HEADLAMP, NO.2)

81110L

BULB, DISCHARGE HEADLAMP

81125

CORD, HEADLAMP

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81144

COVER, HEADLAMP, NO.1

81175

UNIT ASSY, HEADLAMP, LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502727

Крепеж

9007515508

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905050

Крепеж

9018905142

Крепеж

9018905142

Крепеж

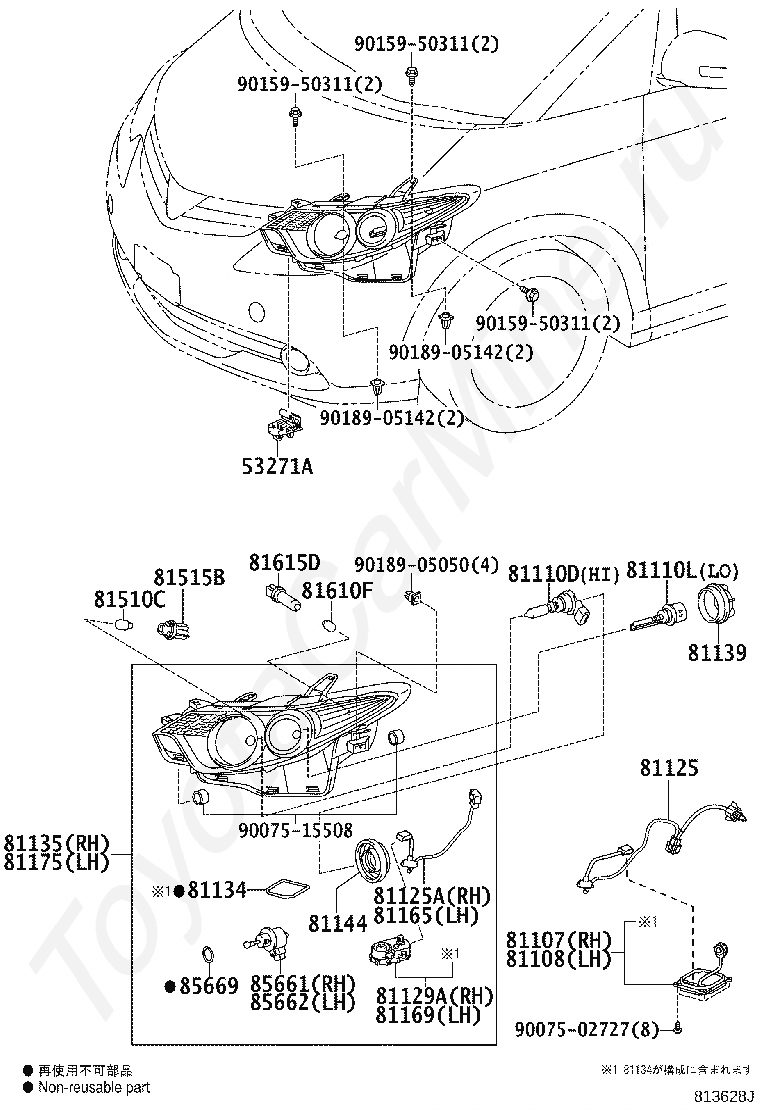

Код

Описание

53271A

BRACKET, HEADLAMP MOUNTING

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110D

BULB(FOR HEADLAMP, NO.2)

81110L

BULB, DISCHARGE HEADLAMP

81125

CORD, HEADLAMP

81125A

CORD, HEADLAMP, RH

81129A

REFLECTOR, HEADLAMP, RH

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81144

COVER, HEADLAMP, NO.1

81165

CORD, HEADLAMP, LH

81169

REFLECTOR, HEADLAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502727

Крепеж

9007515508

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905050

Крепеж

9018905142

Крепеж

9018905142

Крепеж

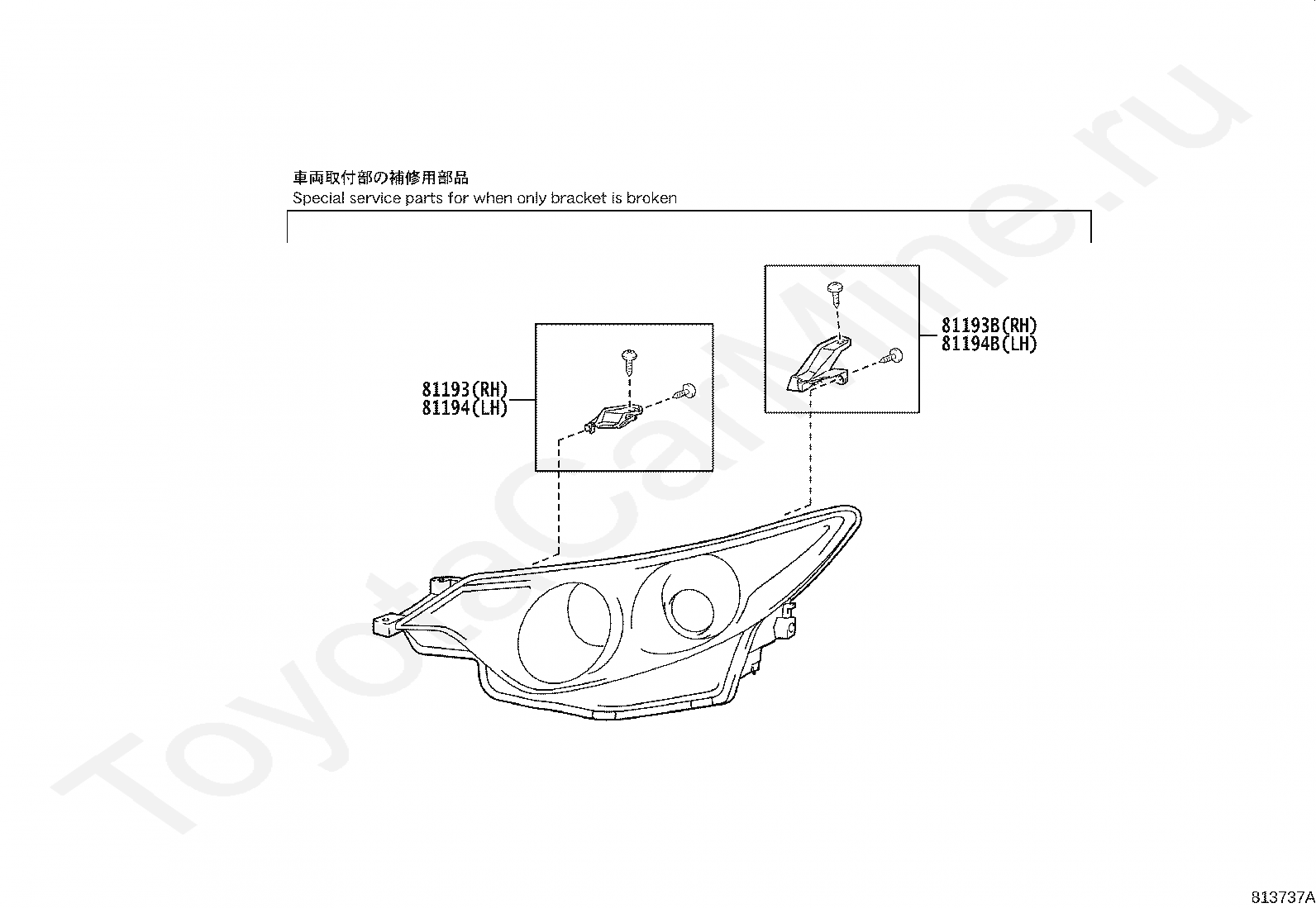

Код

Описание

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

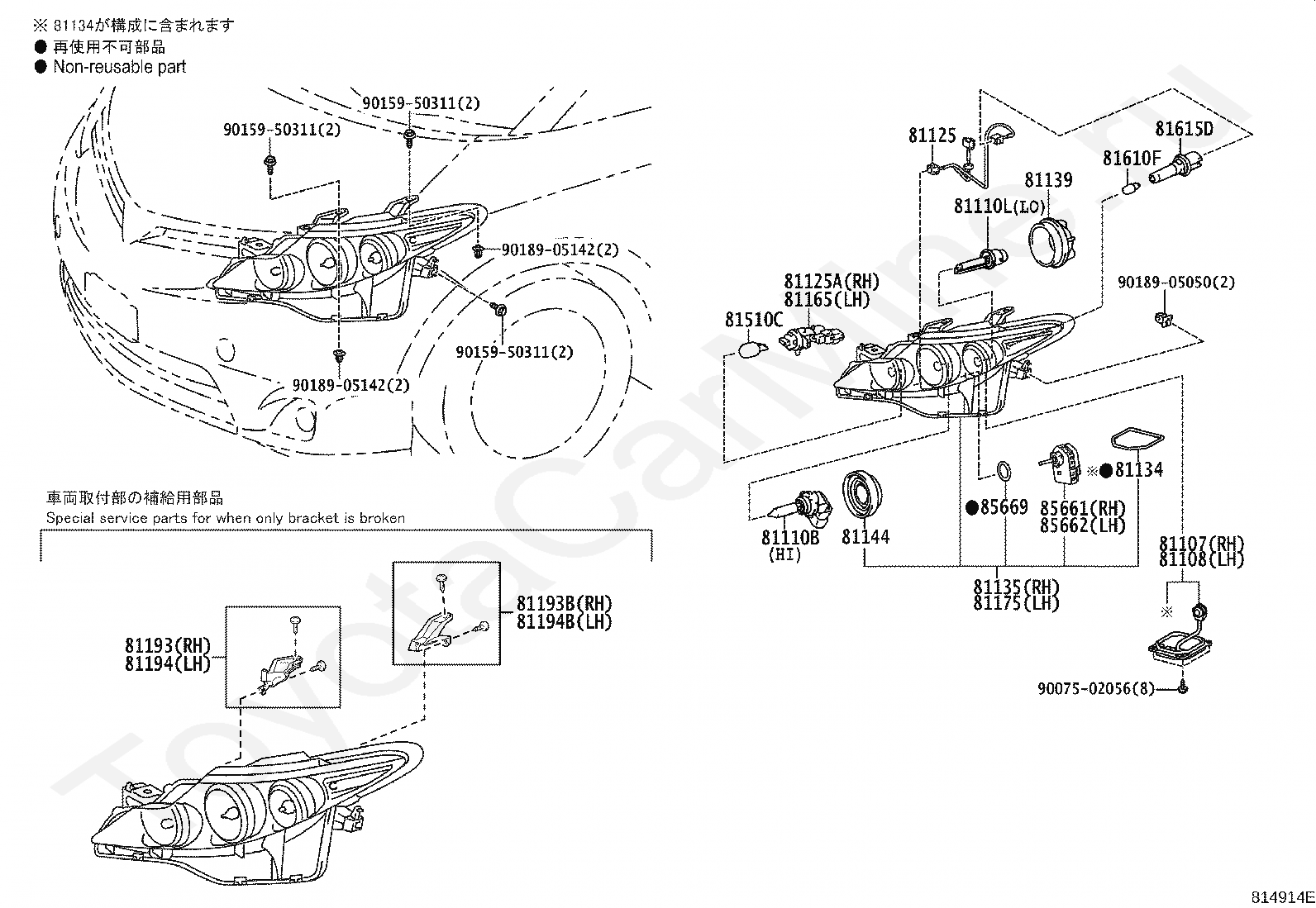

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110L

BULB, DISCHARGE HEADLAMP

81125

CORD, HEADLAMP

81125A

CORD, HEADLAMP, RH

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81144

COVER, HEADLAMP, NO.1

81165

CORD, HEADLAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502056

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905050

Крепеж

9018905142

Крепеж

9018905142

Крепеж

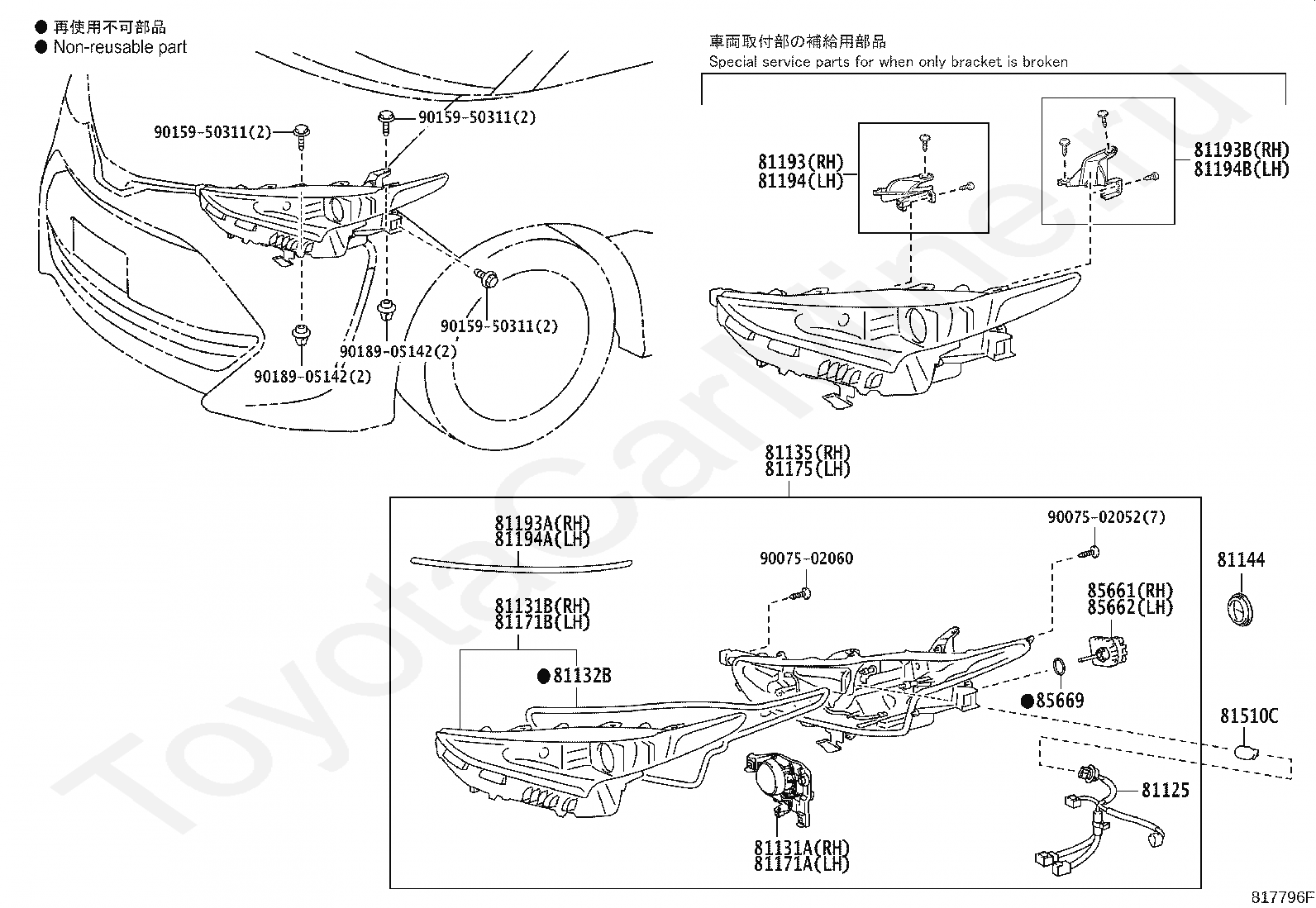

Код

Описание

81125

CORD, HEADLAMP

81131A

UNIT, HEADLAMP, RH

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81135

UNIT ASSY, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81171A

UNIT, HEADLAMP, LH

81171B

HEAD LAMP LENS, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193A

PROTECTOR, HEADLAMP, RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194A

PROTECTOR, HEADLAMP, LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502052

Крепеж

9007502060

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Фары TOYOTA ESTIMA
