Реле и кнопки Тойота ESTIMA, Япония, 2012/04 - 2025/, 2,4 литра, 16 клапанов DOHC, EFI, GRAMS, ACR50, автомат, бесступенчатая АКПП, 7-местный, 566W

Код

Описание

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84540

SWITCH ASSY, NEUTRAL START

8761642020

Крепеж

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89615

SENSOR, KNOCK CONTROL

9012608039

Крепеж

9017908153

Крепеж

9165140625

Крепеж

Код

Описание

28380A

RESISTER, FUEL PUMP

28850

SENSOR ASSY, BATTERY CURRENT

89257

COMPUTER, COOLING FAN

9017906274

Крепеж

9331514014

Крепеж

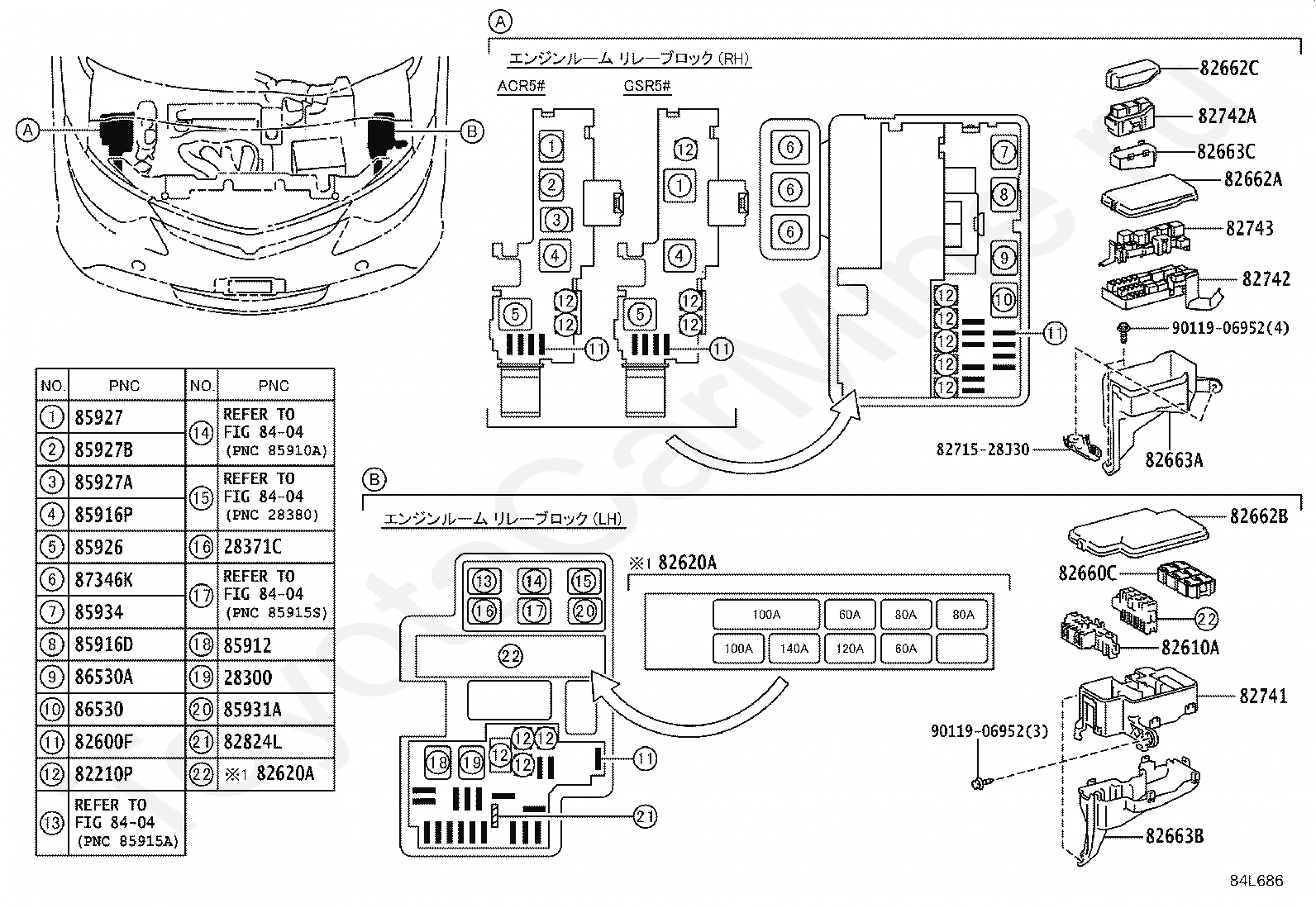

Код

Описание

28300

RELAY ASSY, STARTER

28371C

RELAY, IGNITION, NO.2

82210P

ENGINE ROOM FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82610A

BLOCK ASSY, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82620A

BLOCK ASSY, FUSIBLE LINK

82660C

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

8271528J30

Крепеж

82741

BLOCK, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

82742A

BLOCK, ENGINE ROOM RELAY, NO.5

82743

BLOCK, ENGINE ROOM RELAY, NO.3

82824L

PIN, SHORT

8404

переход к группе запчастей

8404

переход к группе запчастей

8404

переход к группе запчастей

8404

переход к группе запчастей

85912

RELAY, DEFOGGER

85916D

RELAY, FOG LAMP

85916P

RELAY, HEADLAMP

85926

RELAY, HEADLAMP DIMMER

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

85931A

RELAY, BRAKE LAMP

85934

RELAY, MAGNET-CLUTCH

86530

RELAY ASSY, HORN

86530A

RELAY, HORN

87346K

RELAY, PTC HEATER

9011906952

Крепеж

9011906952

Крепеж

Код

Описание

28300D

RELAY, STARTER CUT

6451

переход к группе запчастей

81980

FLASHER ASSY, TURN SIGNAL

8202

переход к группе запчастей

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82620B

BLOCK ASSY, FUSIBLE LINK

82666

HOLDER, CONNECTOR

82672A

COVER, JUNCTION BLOCK

82672B

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

8271528E50

Крепеж

82730A

BLOCK ASSY, DRIVER SIDE JUNCTION

82731

BLOCK, DRIVER SIDE JUNCTION

82733

BLOCK, PASSENGER SIDE JUNCTION

82733C

BLOCK, PASSENGER SIDE JUNCTION, W/O BODY COMPUTER

83650

FUSEE

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85530A

RELAY, POWER OUTLET SOCKET

85903

COMPUTER SUB-ASSY, SHIFT LOCK CONTROL

85912B

RELAY, DEFOGGER(FOR FRONT WINDOW)

85916L

RELAY, REAR FOG LAMP

85940

RELAY ASSY, WINDSHIELD WIPER

86220A

RELAY, INVERTER

89111

COMPUTER, NETWORK GATEWAY

895A1

RELAY, STOP LAMP CONTROL

89650

COMPUTER ASSY, POWER STEERING

89658

BRACKET, POWER STEERING COMPUTER

89815

COMPUTER, SEAT BELT CONTROL

89815

COMPUTER, SEAT BELT CONTROL

89940

COMPUTER ASSY, HEADLAMP SWIVEL

89960

COMPUTER ASSY, HEADLAMP LEVELING

9015960444

Крепеж

9015960610

Крепеж

9017906115

Крепеж

9017906115

Крепеж

9017906115

Крепеж

9017906115

Крепеж

9017906314

Крепеж

9155380616

Крепеж

9155380616

Крепеж

9155380616

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9167380622

Крепеж

9167380622

Крепеж

9331315010

Крепеж

9356855016

Крепеж

Код

Описание

8302

переход к группе запчастей

84152

SWITCH, HEADLAMP LEVELING

84155

SWITCH, HEADLAMP SWIVEL MAIN

8417

переход к группе запчастей

84485

SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET)

84490D

SWITCH ASSY, IPA MAIN

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84751

SWITCH, SEAT HEATER

84770A

SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL

84794

SWITCH, FR WIPER DEICER

84870A

SWITCH ASSY, OUTER MIRROR

84962

SWITCH, POWER SLIDE DOOR MAIN

84963

SWITCH, POWER SLIDE DOOR CONTROL, NO.1

84975

SWITCH, TRIP

85500

LIGHTER ASSY, CIGARETTE

85513

COVER, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530

SOCKET ASSY, POWER OUTLET, NO.1

85533

LENS, CIGARETTE LIGHTER INDICATOR

89611

SWITCH, PUSH START

Код

Описание

8302

переход к группе запчастей

84152

SWITCH, HEADLAMP LEVELING

84155

SWITCH, HEADLAMP SWIVEL MAIN

8417

переход к группе запчастей

84485

SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET)

84490E

SWITCH ASSY, IPA PRE SUPPORT

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84740B

SWITCH ASSY, AIR PURIFIER

84751

SWITCH, SEAT HEATER

84751

SWITCH, SEAT HEATER

84770A

SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL

84794

SWITCH, FR WIPER DEICER

84870A

SWITCH ASSY, OUTER MIRROR

84962

SWITCH, POWER SLIDE DOOR MAIN

84963

SWITCH, POWER SLIDE DOOR CONTROL, NO.1

84975

SWITCH, TRIP

84988L

SWITCH, VSC OFF

85500

LIGHTER ASSY, CIGARETTE

85513

COVER, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530

SOCKET ASSY, POWER OUTLET, NO.1

85530D

SOCKET ASSY, POWER OUTLET, NO.2

85533

LENS, CIGARETTE LIGHTER INDICATOR

85535E

COVER, POWER OUTLET SOCKET, NO.2

8601

переход к группе запчастей

89611

SWITCH, PUSH START

Код

Описание

4504

переход к группе запчастей

84140

SWITCH ASSY, HEADLAMP DIMMER

84247A

SWITCH, STEERING PAD, LH

84250A

SWITCH ASSY, STEERING PAD

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

9015950199

Крепеж

9015950199

Крепеж

9015950199

Крепеж

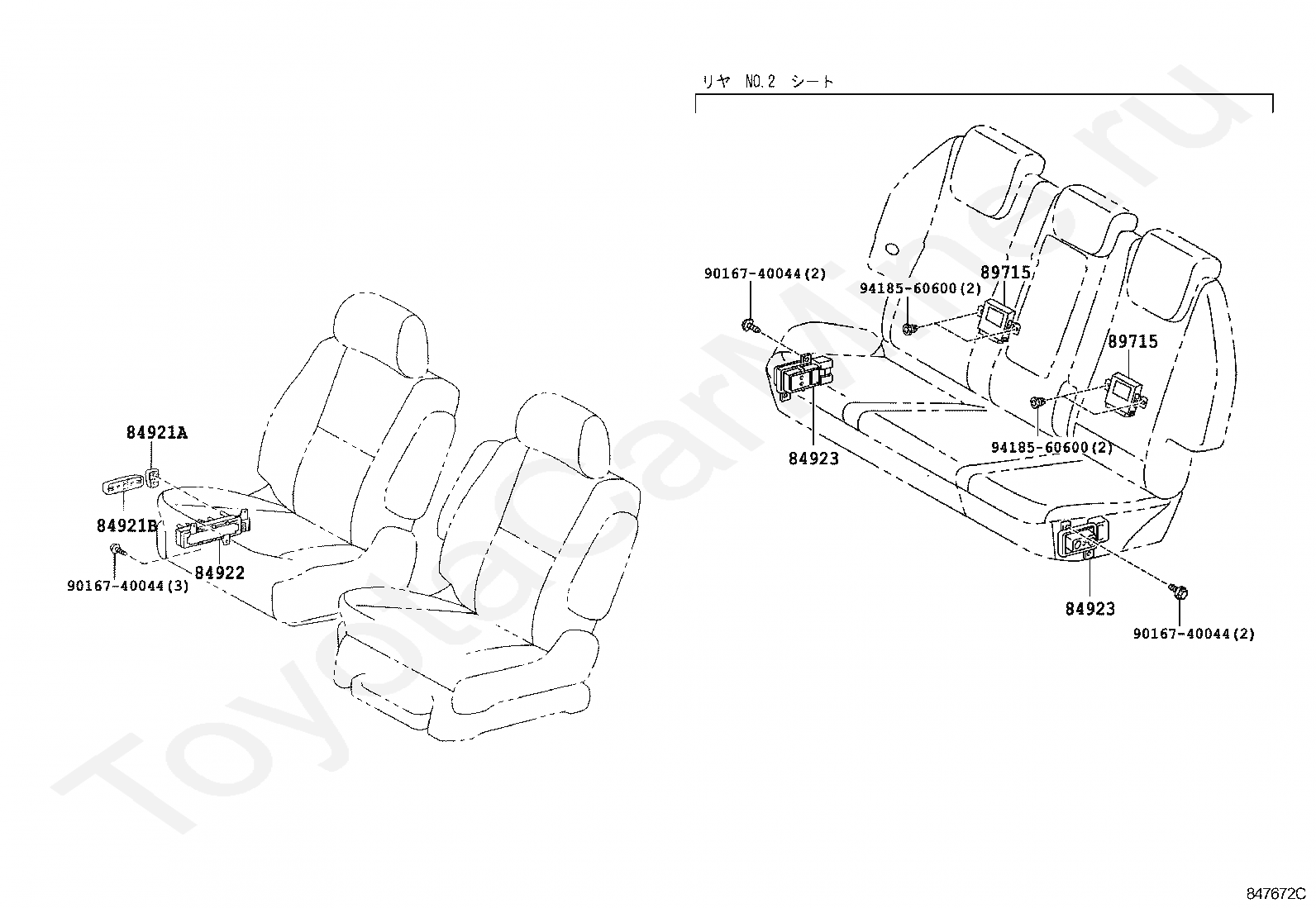

Код

Описание

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922

SWITCH, FRONT POWER SEAT

84923

SWITCH, REAR POWER SEAT

84923

SWITCH, REAR POWER SEAT

89715

COMPUTER, FOLD SEAT CONTROL

89715

COMPUTER, FOLD SEAT CONTROL

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

827111E360

Крепеж

84290

SWITCH ASSY, LIMIT

84920

SWITCH ASSY, POWER SEAT

84920

SWITCH ASSY, POWER SEAT

84920L

SWITCH ASSY, POWER SEAT, NO.2

9326963016

Крепеж

9353054010

Крепеж

9353054010

Крепеж

C2593

BRACKET, WIRELESS BOX, FR

C656518010

Крепеж

C8410A

SWITCH ASSY, POWER LIFT CONTROL

C8545A

RELAY, POWER LIFT CONTROL

C8560

RELAY ASSY, LIFTER

Код

Описание

827111E340

Крепеж

827111E360

Крепеж

84290

SWITCH ASSY, LIMIT

84920

SWITCH ASSY, POWER SEAT

84920

SWITCH ASSY, POWER SEAT

84920

SWITCH ASSY, POWER SEAT

84920L

SWITCH ASSY, POWER SEAT, NO.2

84920L

SWITCH ASSY, POWER SEAT, NO.2

85999H

BRACKET, RELAY

9326056008

Крепеж

9326963016

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9353054010

Крепеж

C656518010

Крепеж

C8410A

SWITCH ASSY, POWER LIFT CONTROL

C8545A

RELAY, POWER LIFT CONTROL

C8560

RELAY ASSY, LIFTER

Код

Описание

83320

GAGE ASSY, FUEL SENDER

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84190

SWITCH ASSY, FOLD SEAT

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84840G

SWITCH ASSY, BACK DOOR OPENER

84930

SWITCH ASSY, DOOR CONTROL

84963A

SWITCH, POWER SLIDE DOOR CONTROL, NO.2

84963C

BULB, POWER SLIDE CONTROL SWITCH, NO.2

85530D

SOCKET ASSY, POWER OUTLET, NO.2

85535C

COVER, POWER OUTLET SOCKET, REAR

85539A

LABEL, POWER OUTLET NOTICE, REAR

85975B

RELAY, SLIDE DOOR CLOSER, RH

86210A

INVERTER ASSY, VOLTAGE

88630Y

RELAY, REAR COOLER

89747E

BUZZER, POWER BACK DOOR WARNING

9010508478

Крепеж

9015960303

Крепеж

9016440103

Крепеж

9018906197

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9155180608

Крепеж

9155180608

Крепеж

C8460A

SWITCH ASSY, LIMIT, LH NO.2

G9221A

COVER, INVERTER, UPPER
