Япония

Модель

ESTIMA

VIN

Дата

1990/05

Двигатель

2,4 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

STANDARD TYPE

Фрейм

TCR21

КПП

автомат

Опции

7-местный электронная система впрыска топлива

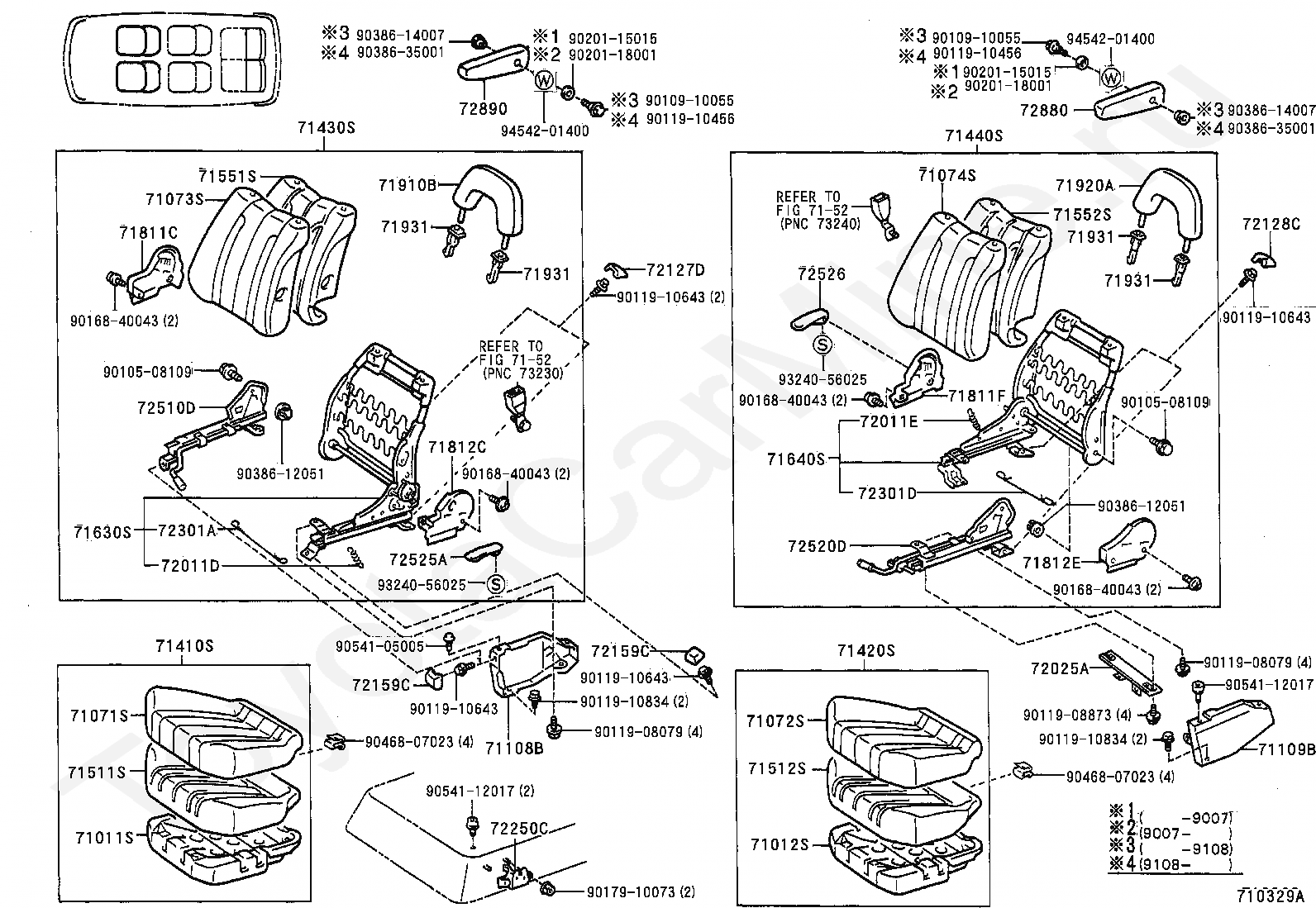

Кресла TOYOTA ESTIMA







Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71109B

LEG SUB-ASSY, FRONT SEAT, LH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812E

COVER, RECLINING ADJUSTER, LH

71910B

HEADREST ASSY, FRONT SEAT

71920A

HEADREST ASSY, FRONT SEAT, LH

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72011D

SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER)

72011E

SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER)

72025A

STRIKER SUB-ASSY, FRONT SEAT LOCK

72127D

COVER, SEAT TRACK BRACKET, FRONT, RH

72128C

COVER, SEAT TRACK BRACKET, FRONT, LH

72159C

COVER, FRONT SEAT TRACK BRACKET

72159C

COVER, FRONT SEAT TRACK BRACKET

72250C

LOCK ASSY, FRONT SEAT

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72510D

ADJUSTER ASSY, RECLINING SEAT, OUTER RH

72520D

ADJUSTER ASSY, RECLINING SEAT, OUTER LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

9010508109

Крепеж

9010508109

Крепеж

9010910055

Крепеж

9010910055

Крепеж

9011908079

Крепеж

9011908079

Крепеж

9011908873

Крепеж

9011910456

Крепеж

9011910456

Крепеж

9011910643

Крепеж

9011910643

Крепеж

9011910643

Крепеж

9011910643

Крепеж

9011910834

Крепеж

9011910834

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9017910073

Крепеж

9020115015

Крепеж

9020115015

Крепеж

9020118001

Крепеж

9020118001

Крепеж

9038612051

Крепеж

9038612051

Крепеж

9038614007

Крепеж

9038614007

Крепеж

9038635001

Крепеж

9038635001

Крепеж

9046807023

Крепеж

9046807023

Крепеж

9054105005

Крепеж

9054112017

Крепеж

9054112017

Крепеж

9324056025

Крепеж

9324056025

Крепеж

9454201400

Крепеж

9454201400

Крепеж

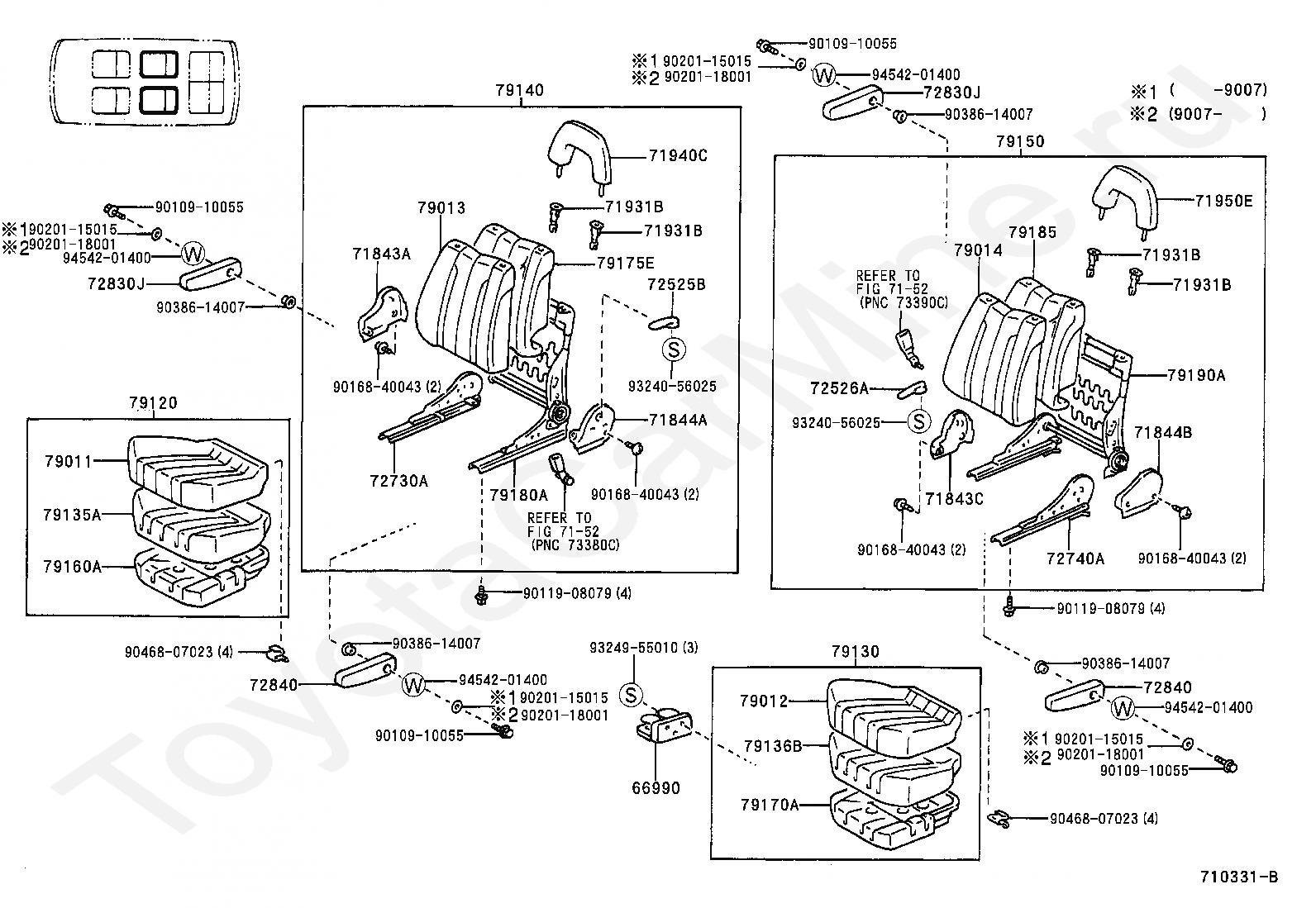

Код

Описание

66990

HOLDER ASSY, CUP

7152

переход к группе запчастей

7152

переход к группе запчастей

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71843C

COVER, RECLINING ADJUSTER, RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844B

COVER, RECLINING ADJUSTER, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

71950E

HEADREST ASSY, REAR NO.1 SEAT, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72830J

ARMREST ASSY, REAR NO.1 SEAT, RH

72830J

ARMREST ASSY, REAR NO.1 SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9010910055

Крепеж

9010910055

Крепеж

9010910055

Крепеж

9010910055

Крепеж

9011908079

Крепеж

9011908079

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9020115015

Крепеж

9020115015

Крепеж

9020115015

Крепеж

9020115015

Крепеж

9020118001

Крепеж

9020118001

Крепеж

9020118001

Крепеж

9020118001

Крепеж

9038614007

Крепеж

9038614007

Крепеж

9038614007

Крепеж

9038614007

Крепеж

9046807023

Крепеж

9046807023

Крепеж

9324056025

Крепеж

9324056025

Крепеж

9324955010

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9454201400

Крепеж

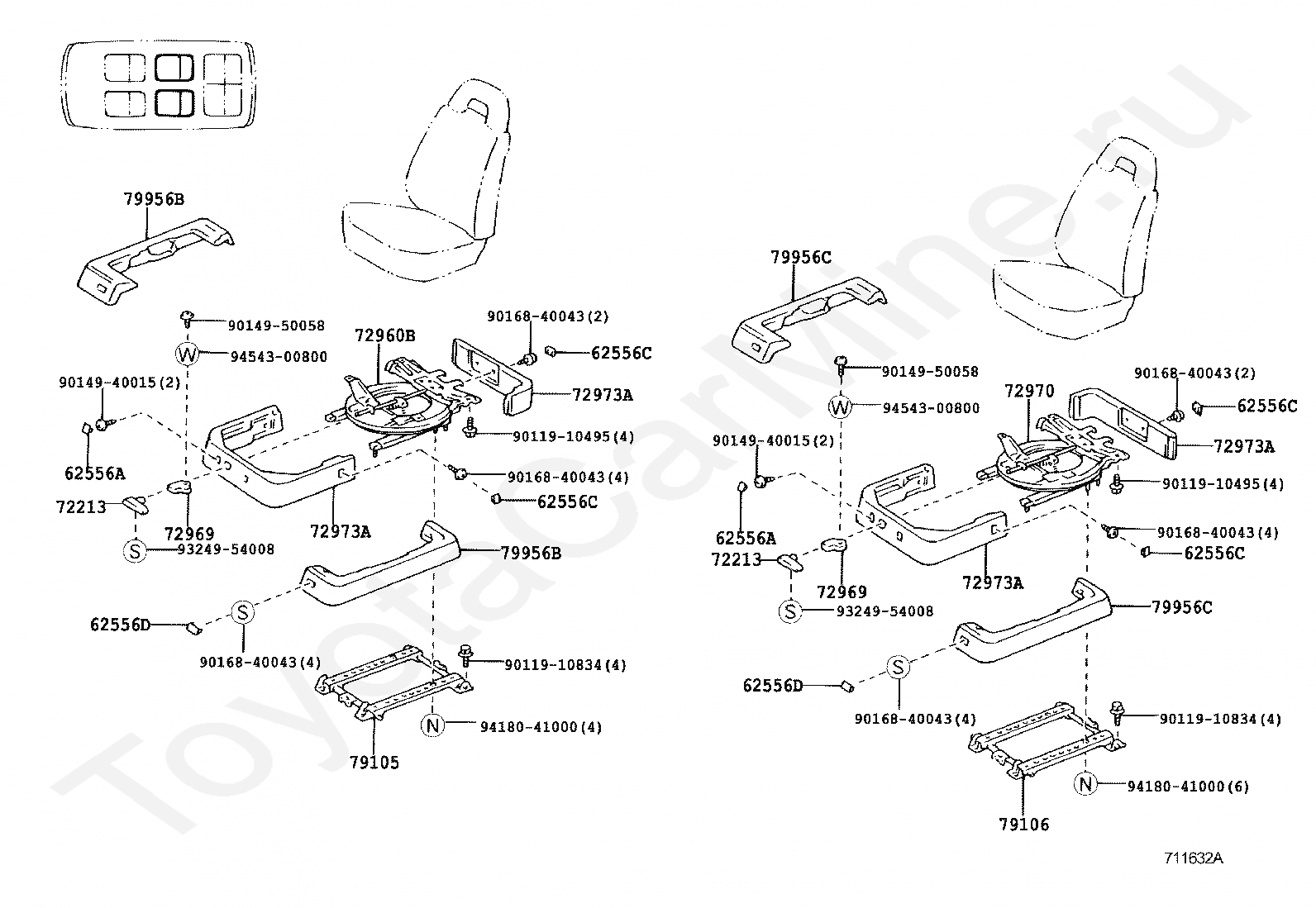

Код

Описание

62556A

CAP, REAR SEAT SIDE GARNISH

62556A

CAP, REAR SEAT SIDE GARNISH

62556C

CAP, REAR SEAT SIDE GARNISH, NO.2

62556C

CAP, REAR SEAT SIDE GARNISH, NO.2

62556C

CAP, REAR SEAT SIDE GARNISH, NO.2

62556C

CAP, REAR SEAT SIDE GARNISH, NO.2

62556D

CAP, REAR SEAT SIDE GARNISH, NO.3

62556D

CAP, REAR SEAT SIDE GARNISH, NO.3

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72960B

TABLE ASSY, REAR SEAT TURN, RH

72969

KNOB, REAR SEAT TURN LOCK

72969

KNOB, REAR SEAT TURN LOCK

72970

TABLE ASSY, REAR SEAT TURN, LH

72973A

COVER, REAR SEAT TURN TABLE

72973A

COVER, REAR SEAT TURN TABLE

72973A

COVER, REAR SEAT TURN TABLE

72973A

COVER, REAR SEAT TURN TABLE

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79956B

COVER, REAR SEAT LEG SIDE, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

79956C

COVER, REAR SEAT LEG SIDE, LH

9011910495

Крепеж

9011910495

Крепеж

9011910834

Крепеж

9011910834

Крепеж

9014940015

Крепеж

9014940015

Крепеж

9014950058

Крепеж

9014950058

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9324954008

Крепеж

9324954008

Крепеж

9418041000

Крепеж

9418041000

Крепеж

9454300800

Крепеж

9454300800

Крепеж

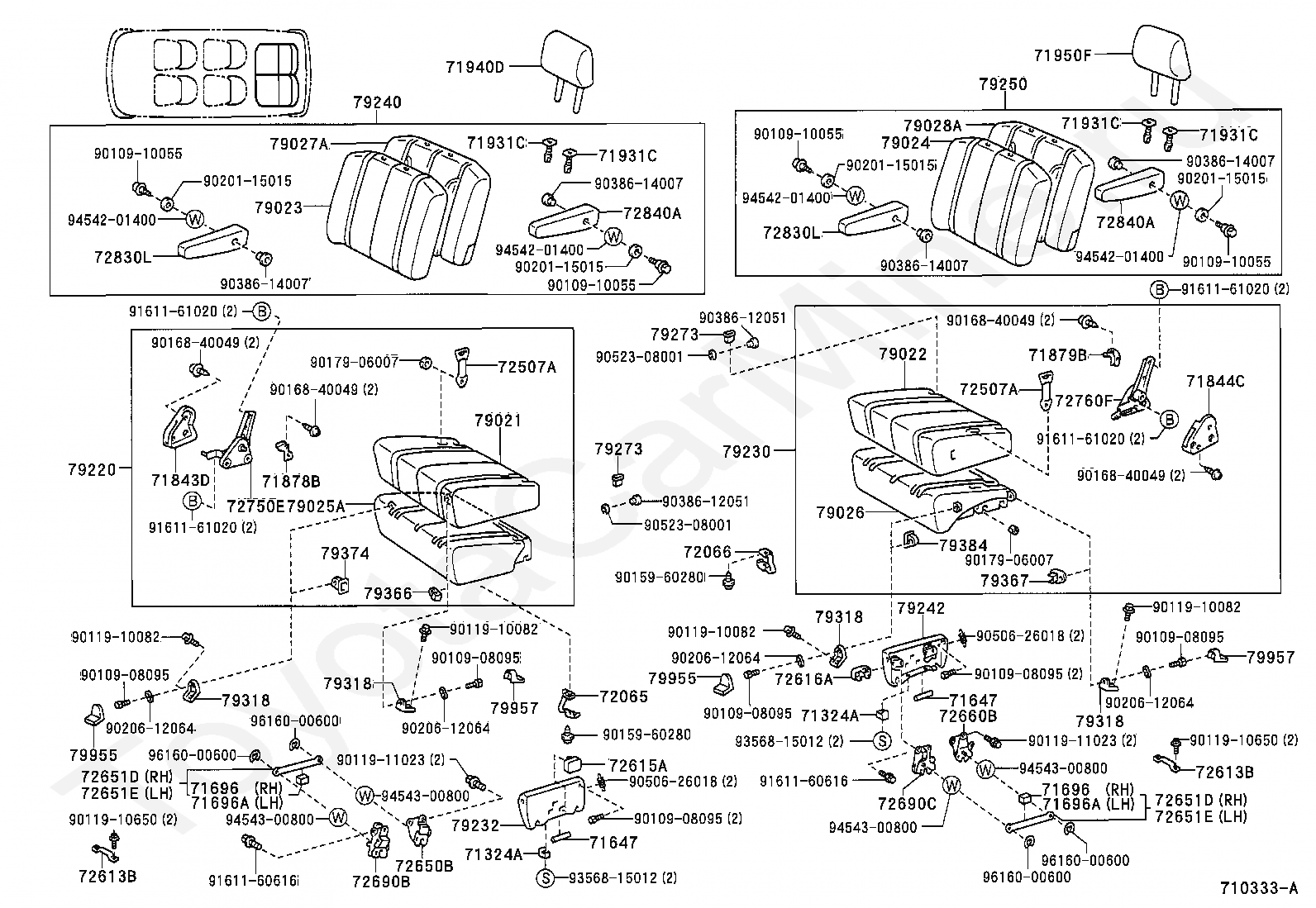

Код

Описание

71324A

CUSHION, REAR SEAT

71324A

CUSHION, REAR SEAT

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71696

PROTECTOR, REAR SEAT, NO.2

71696

PROTECTOR, REAR SEAT, NO.2

71696A

PROTECTOR, REAR SEAT, NO.2 LH

71696A

PROTECTOR, REAR SEAT, NO.2 LH

71843D

COVER, REAR SEAT RECLINING, NO.2 RH

71844C

COVER, REAR SEAT RECLINING, NO.2 LH

71878B

COVER, REAR SEAT RECLINING, INNER RH

71879B

COVER, REAR SEAT RECLINING, INNER LH

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940D

HEADREST ASSY, REAR NO.2 SEAT, RH

71950F

HEADREST ASSY, REAR NO.2 SEAT, LH

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72613B

STRIKER, REAR SEAT LOCK

72613B

STRIKER, REAR SEAT LOCK

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72651D

ROD, REAR SEAT BACK LOCK, RH

72651D

ROD, REAR SEAT BACK LOCK, RH

72651E

ROD, REAR SEAT BACK LOCK, LH

72651E

ROD, REAR SEAT BACK LOCK, LH

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72690B

LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH

72690C

LEVER ASSY, SEAT CUSHION LOCK RELEASE, LH

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

72830L

ARMREST ASSY, REAR NO.2 SEAT, RH

72830L

ARMREST ASSY, REAR NO.2 SEAT, RH

72840A

ARMREST ASSY, REAR NO.2 SEAT, LH

72840A

ARMREST ASSY, REAR NO.2 SEAT, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79220

CUSHION ASSY, NO.2 SEAT, RH

79230

CUSHION ASSY, NO.2 SEAT, LH

79232

LEG, REAR NO.2 SEAT, RH

79240

BACK ASSY, NO.2 SEAT, RH

79242

LEG, REAR NO.2 SEAT, LH

79250

BACK ASSY, NO.2 SEAT, LH

79273

COVER, NO.2 SEAT HINGE

79273

COVER, NO.2 SEAT HINGE

79318

BRACKET, NO.3 SEAT LEG

79318

BRACKET, NO.3 SEAT LEG

79318

BRACKET, NO.3 SEAT LEG

79318

BRACKET, NO.3 SEAT LEG

79366

COVER, NO.3 SEAT LEG, NO.1

79367

COVER, NO.3 SEAT LEG, NO.2

79374

COVER, NO.3 SEAT LEG, REAR RH

79384

COVER, NO.3 SEAT LEG, REAR LH

79955

COVER, REAR SEAT FRONT BRACKET, FRONT

79955

COVER, REAR SEAT FRONT BRACKET, FRONT

79957

COVER, REAR SEAT REAR BRACKET, REAR

79957

COVER, REAR SEAT REAR BRACKET, REAR

9010908095

Крепеж

9010908095

Крепеж

9010908095

Крепеж

9010908095

Крепеж

9010908095

Крепеж

9010908095

Крепеж

9010910055

Крепеж

9010910055

Крепеж

9010910055

Крепеж

9010910055

Крепеж

9011910082

Крепеж

9011910082

Крепеж

9011910082

Крепеж

9011910082

Крепеж

9011910650

Крепеж

9011910650

Крепеж

9011911023

Крепеж

9011911023

Крепеж

9015960280

Крепеж

9015960280

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9017906007

Крепеж

9017906007

Крепеж

9020115015

Крепеж

9020115015

Крепеж

9020115015

Крепеж

9020115015

Крепеж

9020612064

Крепеж

9020612064

Крепеж

9020612064

Крепеж

9020612064

Крепеж

9038612051

Крепеж

9038612051

Крепеж

9038614007

Крепеж

9038614007

Крепеж

9038614007

Крепеж

9038614007

Крепеж

9050626018

Крепеж

9050626018

Крепеж

9052308001

Крепеж

9052308001

Крепеж

9161160616

Крепеж

9161160616

Крепеж

9161161020

Крепеж

9161161020

Крепеж

9161161020

Крепеж

9161161020

Крепеж

9356815012

Крепеж

9356815012

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9454300800

Крепеж

9454300800

Крепеж

9454300800

Крепеж

9454300800

Крепеж

9616000600

Крепеж

9616000600

Крепеж

9616000600

Крепеж

9616000600

Крепеж

> Запчасти ESTIMA > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
