Аккумулятор и кабель Тойота DYNA/TOYOACE HV, Япония, 2021/03 - 2025/, 4 литра, дизель, XKU712, AUTOMATED MANUAL TRANSMISSION, МКПП, 6 скоростей, SINGLE CARBURETOR:SINGLE CAB, (FULL JUST LOW), 3 тонны, DOUBLE TIRE, DCWDOIV3, 878W

Код

Описание

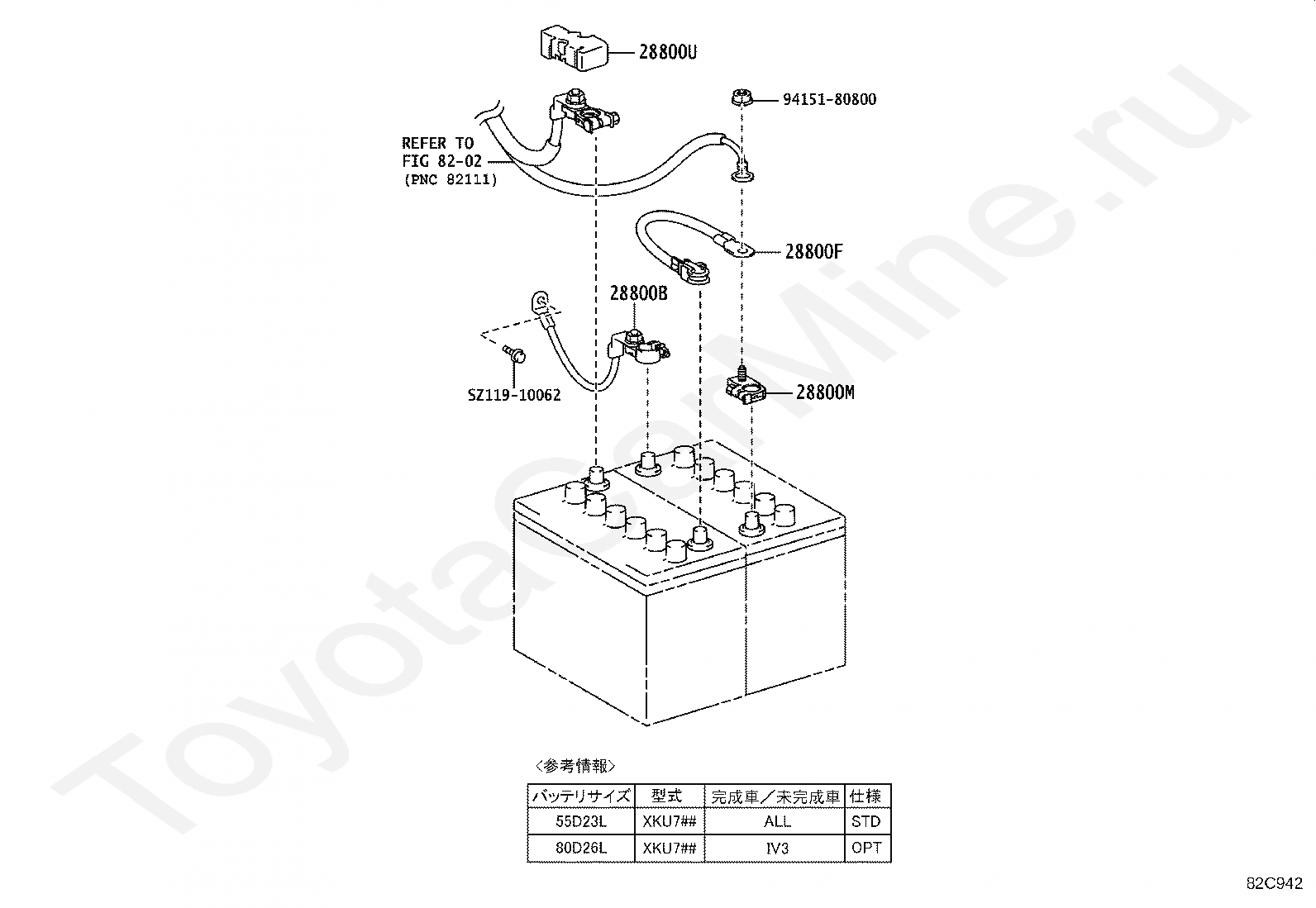

28800B

CABLE, BATTERY TO GROUND

28800F

CABLE, BATTERY TO BATTERY

28800M

TERMINAL, BATTERY POSITIVE

28800U

COVER, CONNECTOR(FOR BATTERY TERMINAL), NO.2

8202

переход к группе запчастей

9415180800

Крепеж

SZ11910062

Крепеж

Код

Описание

3302

переход к группе запчастей

8433

переход к группе запчастей

Код

Описание

6777137040

Крепеж

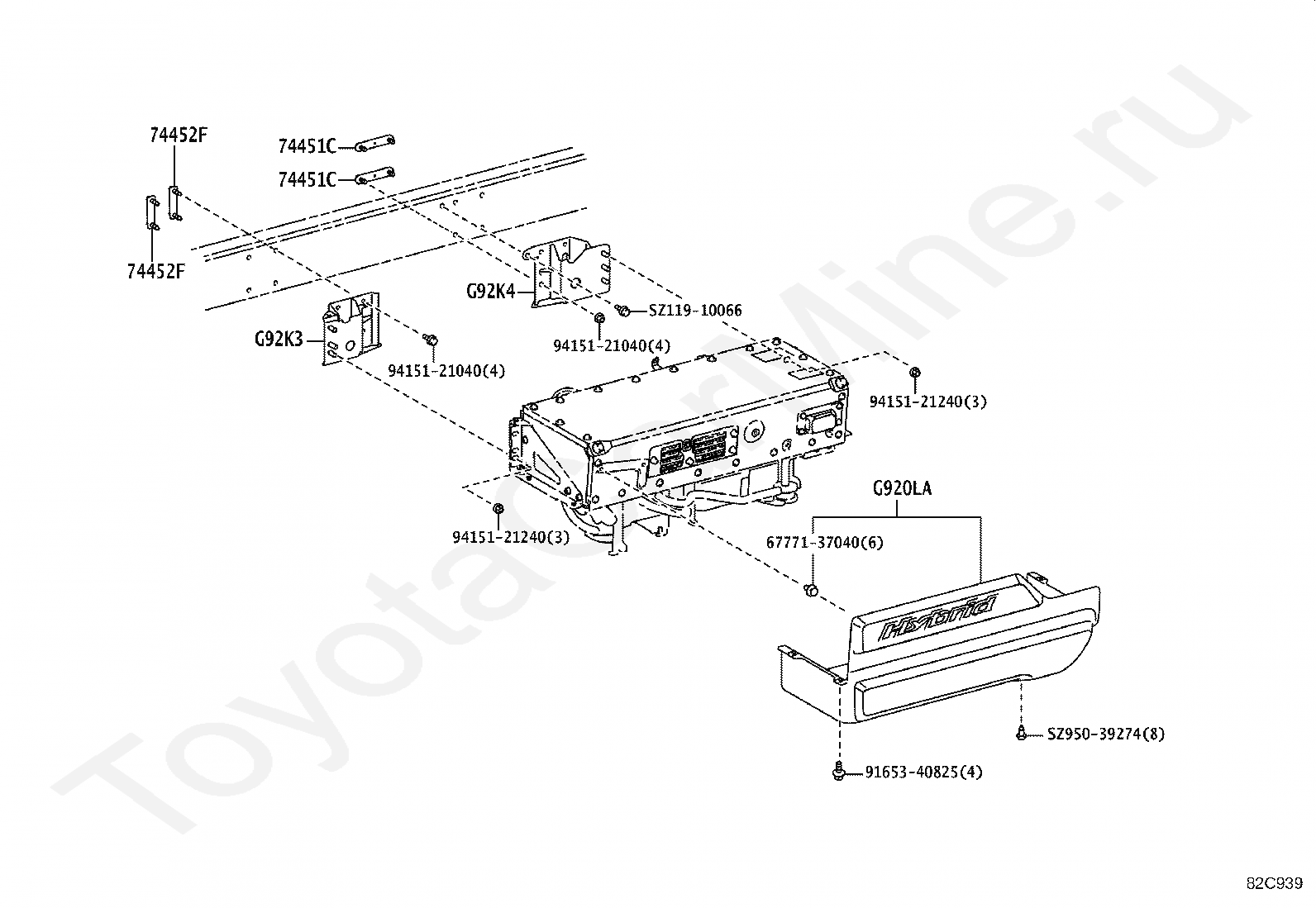

74451C

PLATE, BATTERY SET

74451C

PLATE, BATTERY SET

74452F

PLATE, BATTERY SET

74452F

PLATE, BATTERY SET

9165340825

Крепеж

9415121040

Крепеж

9415121040

Крепеж

9415121240

Крепеж

9415121240

Крепеж

G920LA

COVER SUB-ASSY, HYBRID BATTERY, LOWER

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K4

BRACKET, HYBRID BATTERY CARRIER, NO.2

SZ11910066

Крепеж

SZ95039274

Крепеж

Код

Описание

827111E350

Крепеж

827153VW90

Крепеж

89892A

SENSOR, BATTERY VOLTAGE

9011906A10

Крепеж

9017606045

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9021007011

Крепеж

91553A0620

Крепеж

91621J0614

Крепеж

91621J0614

Крепеж

9167180614

Крепеж

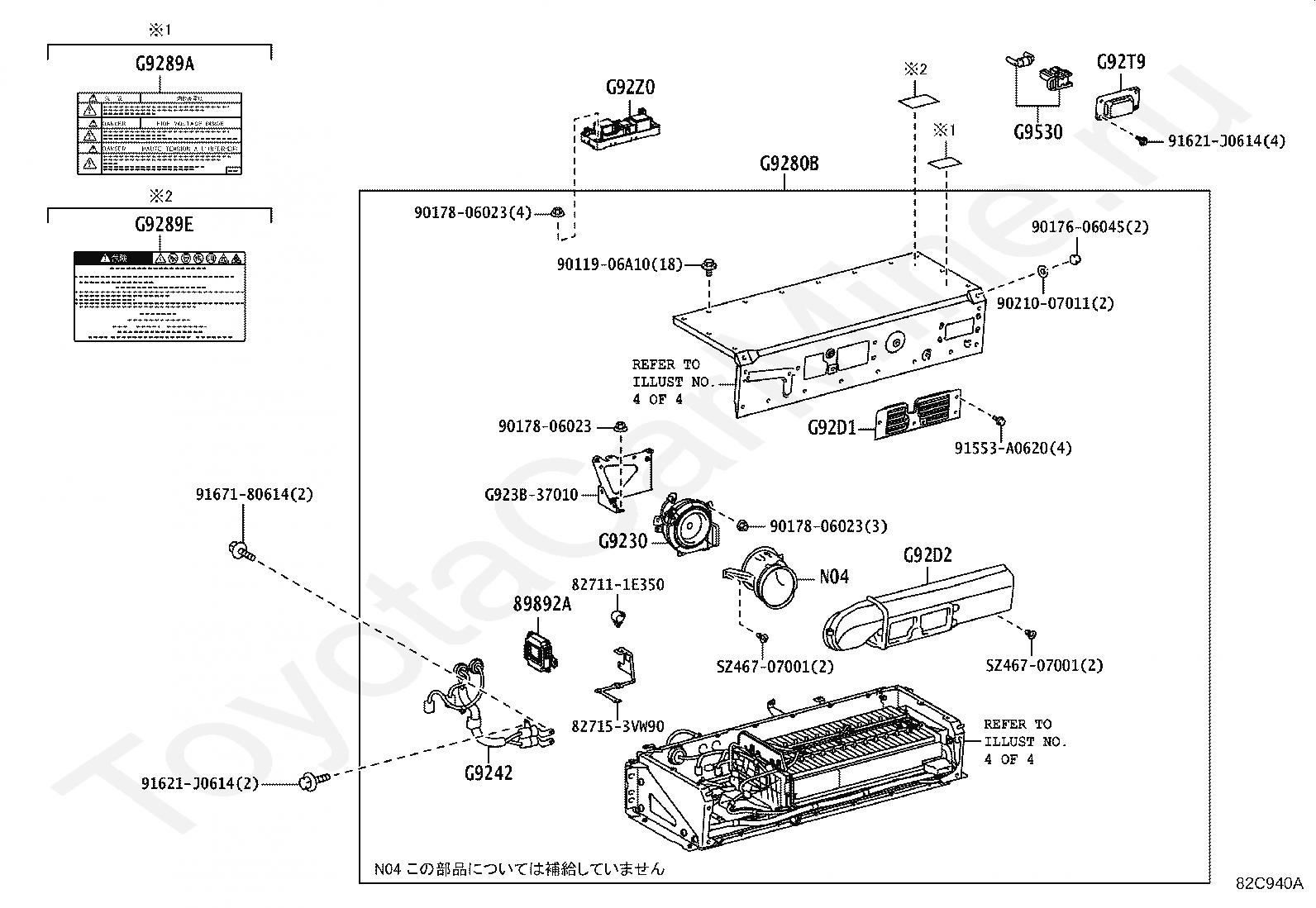

G9230

BLOWER ASSY, BATTERY COOLING

G923B37010

Крепеж

G9242

CABLE, MAIN BATTERY

G9280B

BATTERY ASSY, HV

G9289A

LABEL, BATTERY CAUTION

G9289E

LABEL, BATTERY CAUTION, NO.2

G92D1

DUCT, HYBRID BATTERY INTAKE, NO.1

G92D2

DUCT, HYBRID BATTERY INTAKE, NO.2

G92T9

COVER, HYBRID BATTERY SERVICE PLUG

G92Z0

BLOCK ASSY, HV BATTERY JUNCTION

G9530

PLUG ASSY, HYBRID BATTERY SUPPLY

SZ46707001

Крепеж

SZ46707001

Крепеж

Код

Описание

74403B

CARRIER SUB-ASSY, BATTERY

74403C

CARRIER SUB-ASSY, BATTERY, NO.2

74405B

COVER SUB-ASSY, BATTERY

74413C

PANEL, BATTERY CARRIER, FRONT

74414G

PANEL, BATTERY CARRIER, RR

9011906A10

Крепеж

9011906A10

Крепеж

9017606045

Крепеж

9021007011

Крепеж

9415121041

Крепеж

9415121041

Крепеж

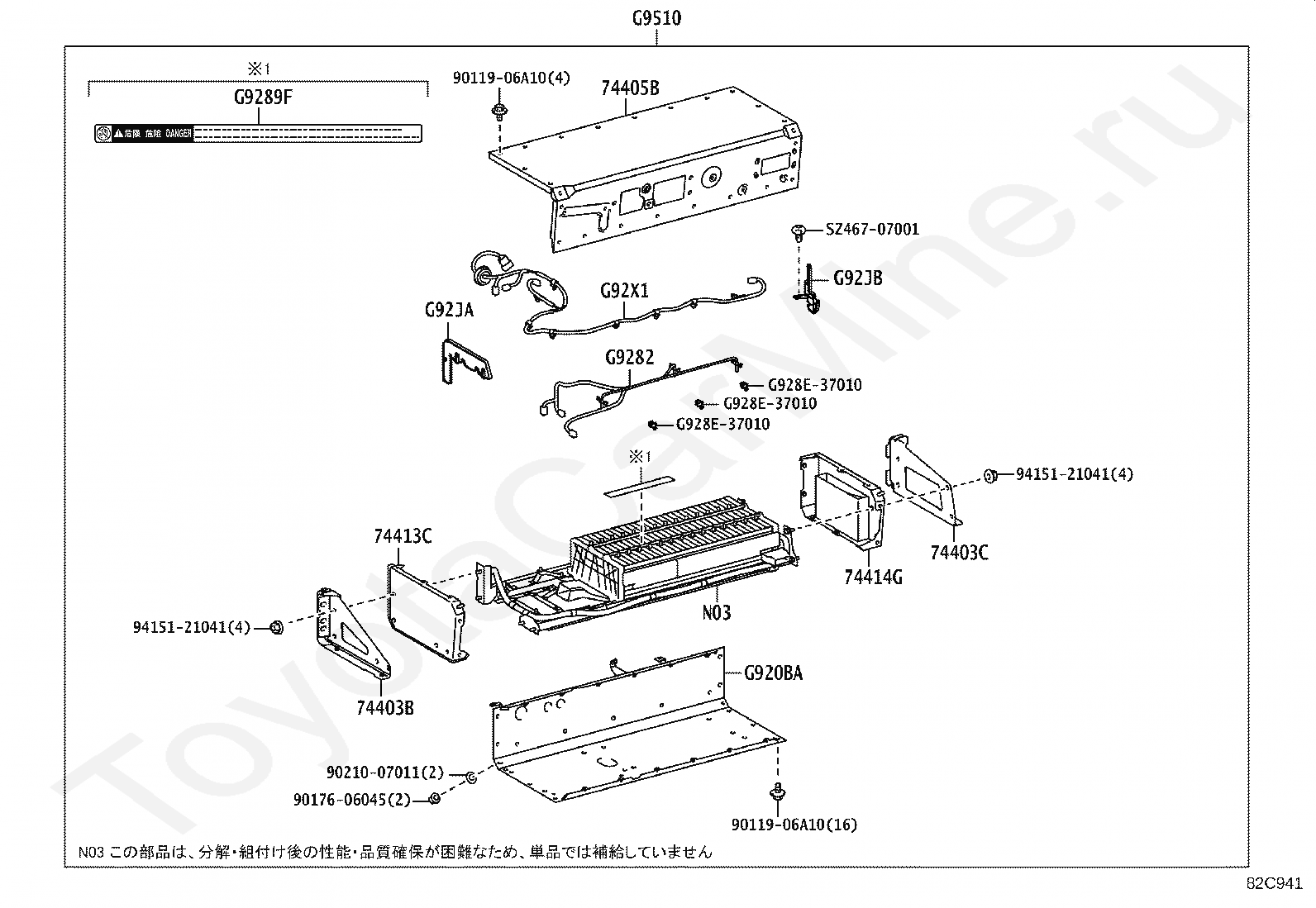

G920BA

TRAY SUB-ASSY, HV BATTERY, NO.1

G9282

THERMISTOR, HYBRID BATTERY

G9289F

LABEL, BATTERY CAUTION, NO.3

G928E37010

Крепеж

G928E37010

Крепеж

G928E37010

Крепеж

G92JA

PLATE, HV BATTERY END, NO.1

G92JB

PLATE, HV BATTERY END, NO.2

G92X1

WIRE, HYBRID BATTERY PACK, NO.1

G9510

BATTERY ASSY, HV SUPPLY

SZ46707001

Крепеж
