Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

1989/10

Двигатель

3,7 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU72

КПП

МКПП, 5 скоростей

Опции

DYNA HIGH FLAT DECK OPENING ON THREE SIDES 3-местный DOUBLE TIRE 20T DSL CBU

Тормозная магистраль TOYOTA DYNA/TOYOACE

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313H

WAY, NO.3(FOR FRONT BRAKE TUBE)

47314

TUBE, FRONT BRAKE, NO.4

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47324

TUBE, REAR BRAKE, NO.4

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47325

TUBE, REAR BRAKE, NO.5

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47341B

TUBE, WHEEL CYLINDER, FRONT RH NO.1

47342

TUBE, WHEEL CYLINDER, FRONT RH NO.2

47343A

TUBE, WHEEL CYLINDER, FRONT LH NO.1

47344

TUBE, WHEEL CYLINDER, FRONT LH NO.2

47345

TUBE, WHEEL CYLINDER, REAR RH

47346

TUBE, WHEEL CYLINDER, REAR LH

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

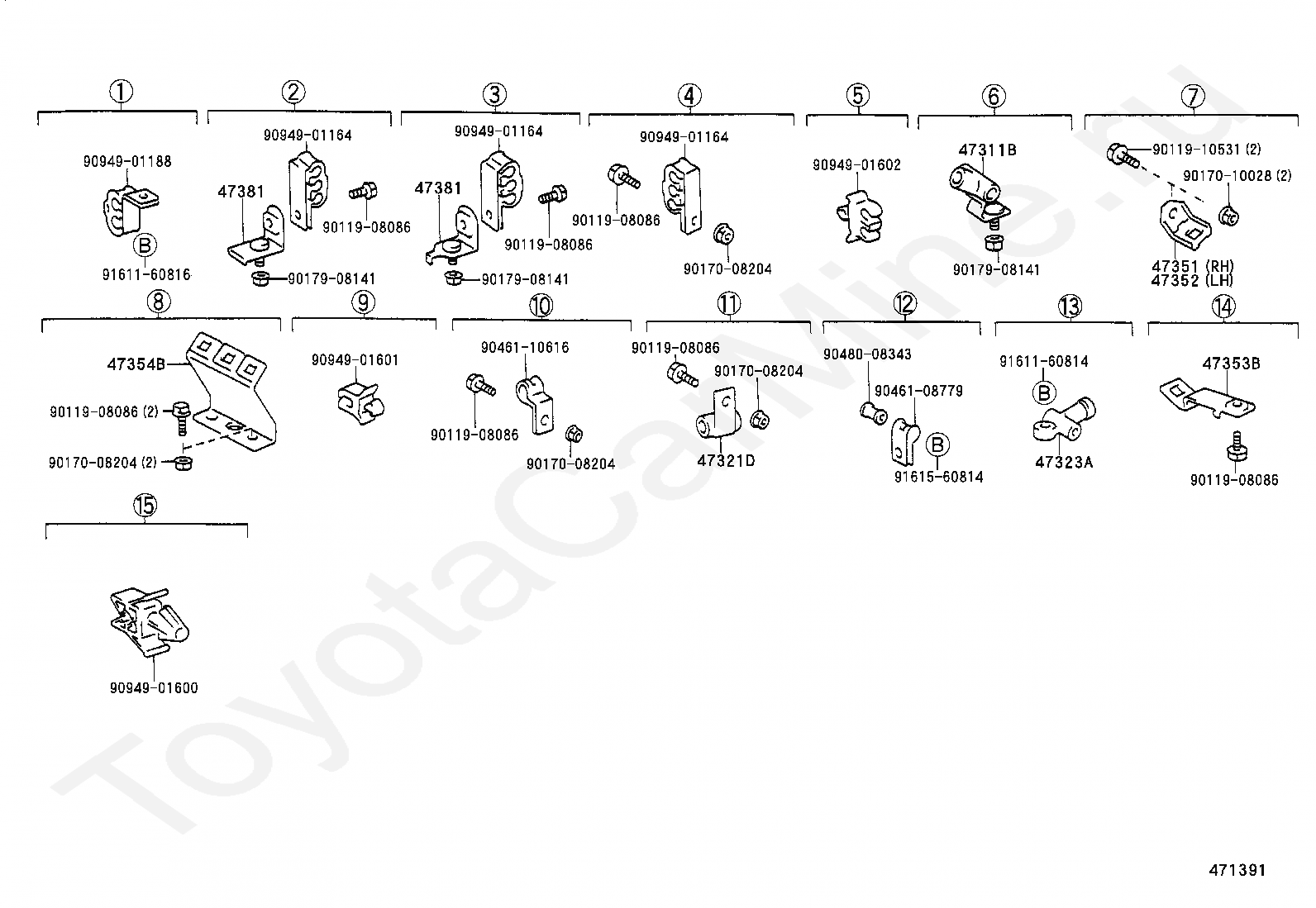

Код

Описание

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47381

BRACKET, BRAKE TUBE CLAMP NO.1

47381

BRACKET, BRAKE TUBE CLAMP NO.1

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011910531

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017010028

Крепеж

9017908141

Крепеж

9017908141

Крепеж

9017908141

Крепеж

9046108779

Крепеж

9046110616

Крепеж

9048008343

Крепеж

9094901164

Крепеж

9094901164

Крепеж

9094901164

Крепеж

9094901188

Крепеж

9094901600

Крепеж

9094901601

Крепеж

9094901602

Крепеж

9161160814

Крепеж

9161160816

Крепеж

9161560814

Крепеж

Код

Описание

31478D

CAP, BLEEDER PLUG(FOR LSPV)

31478D

CAP, BLEEDER PLUG(FOR LSPV)

47547D

PLUG, BLEEDER (FOR DECELERATION SENSING PROPORTIONIN)

47547D

PLUG, BLEEDER (FOR DECELERATION SENSING PROPORTIONIN)

47910G

VALVE ASSY, DECELERATION SENSING PROPORTIONING

47910G

VALVE ASSY, DECELERATION SENSING PROPORTIONING

47931

BRACKET, LOAD SENSING VALVE

9017908141

Крепеж

9165140816

Крепеж

9165140820

Крепеж

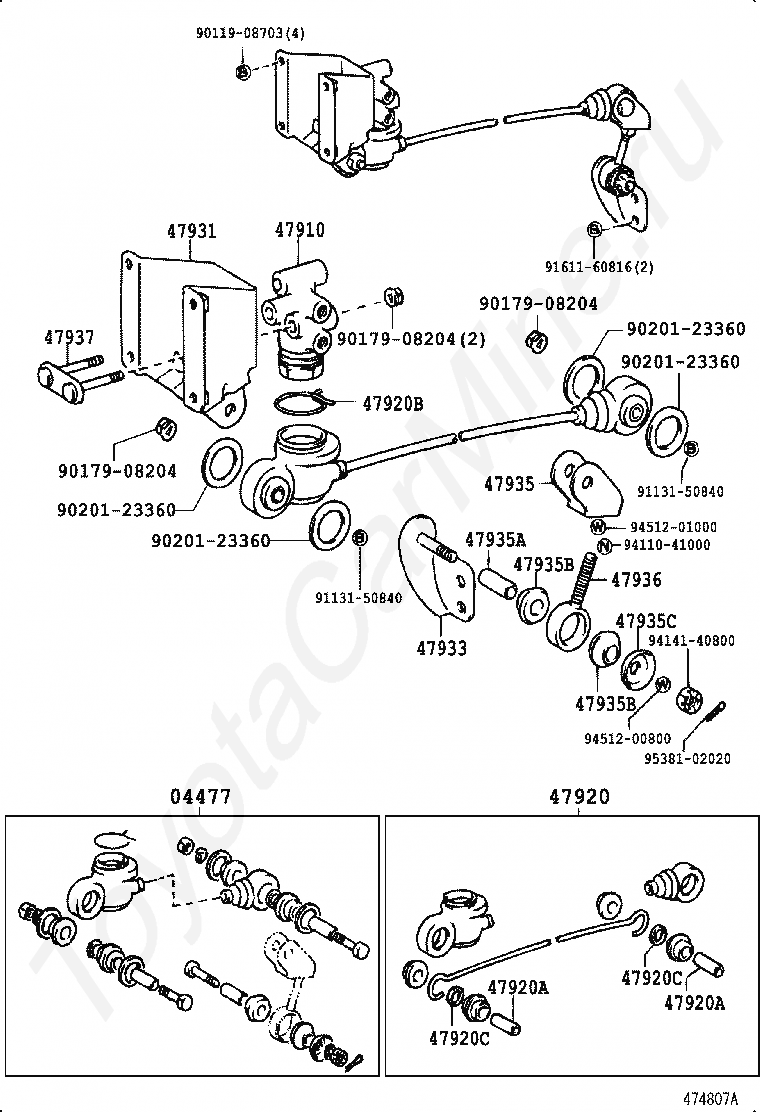

Код

Описание

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

9011908703

Крепеж

9017908204

Крепеж

9017908204

Крепеж

9017908204

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9113150840

Крепеж

9113150840

Крепеж

9161160816

Крепеж

9411041000

Крепеж

9414140800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9538102020

Крепеж

Тормозная магистраль TOYOTA DYNA/TOYOACE
