Япония

Модель

DYNA/TOYOACE

VIN

Дата

1988/08

Двигатель

3 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU60

КПП

МКПП, 5 скоростей

Опции

TOYOACE (FULL JUST LOW) 3-местный DOUBLE TIRE 20T DSL CBU

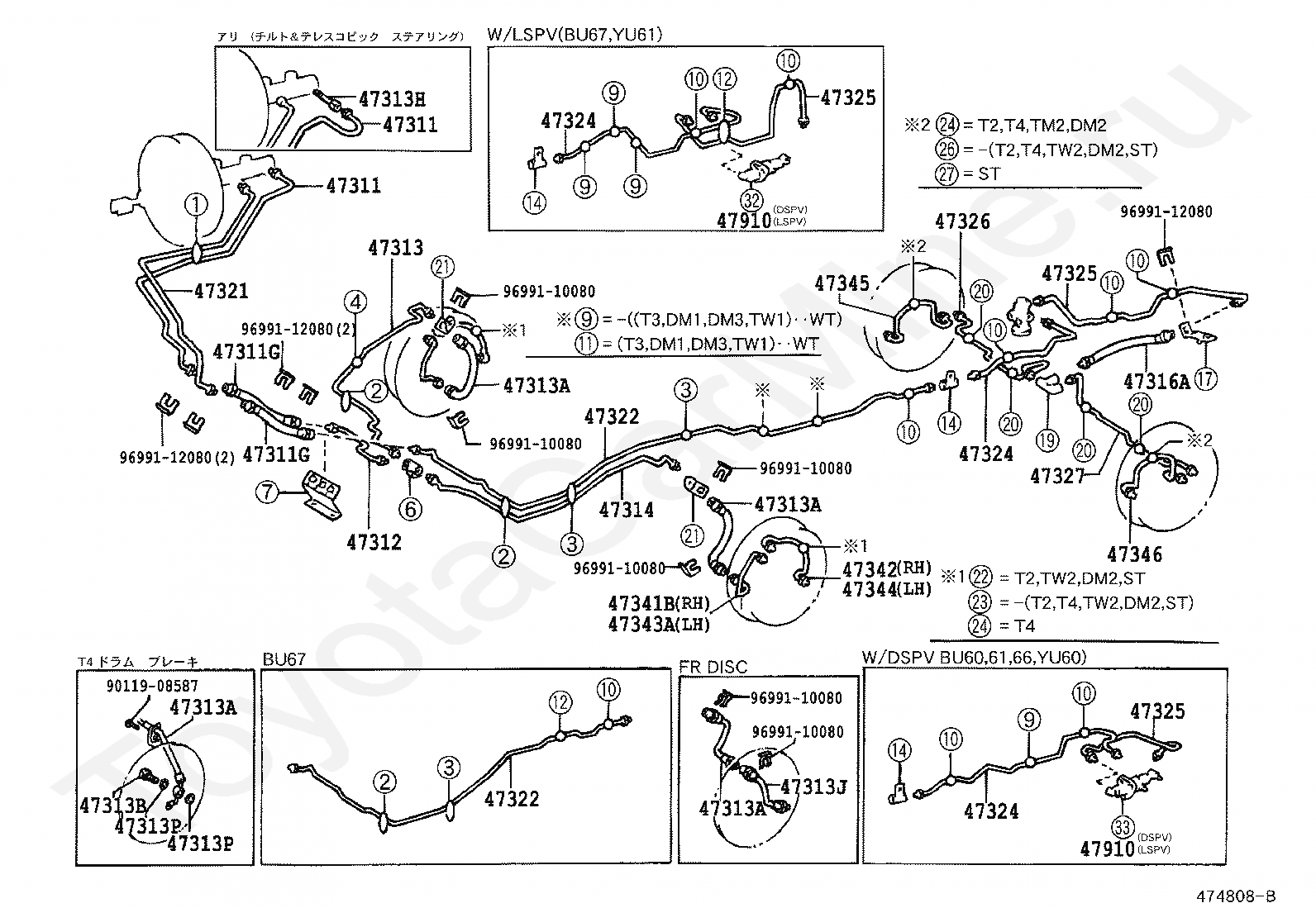

Тормозная магистраль TOYOTA DYNA/TOYOACE







Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311

TUBE, FRONT BRAKE, NO.1

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313H

WAY, NO.3(FOR FRONT BRAKE TUBE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47322

TUBE, REAR BRAKE, NO.2

47324

TUBE, REAR BRAKE, NO.4

47324

TUBE, REAR BRAKE, NO.4

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47325

TUBE, REAR BRAKE, NO.5

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47341B

TUBE, WHEEL CYLINDER, FRONT RH NO.1

47342

TUBE, WHEEL CYLINDER, FRONT RH NO.2

47343A

TUBE, WHEEL CYLINDER, FRONT LH NO.1

47344

TUBE, WHEEL CYLINDER, FRONT LH NO.2

47345

TUBE, WHEEL CYLINDER, REAR RH

47346

TUBE, WHEEL CYLINDER, REAR LH

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

9011908587

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

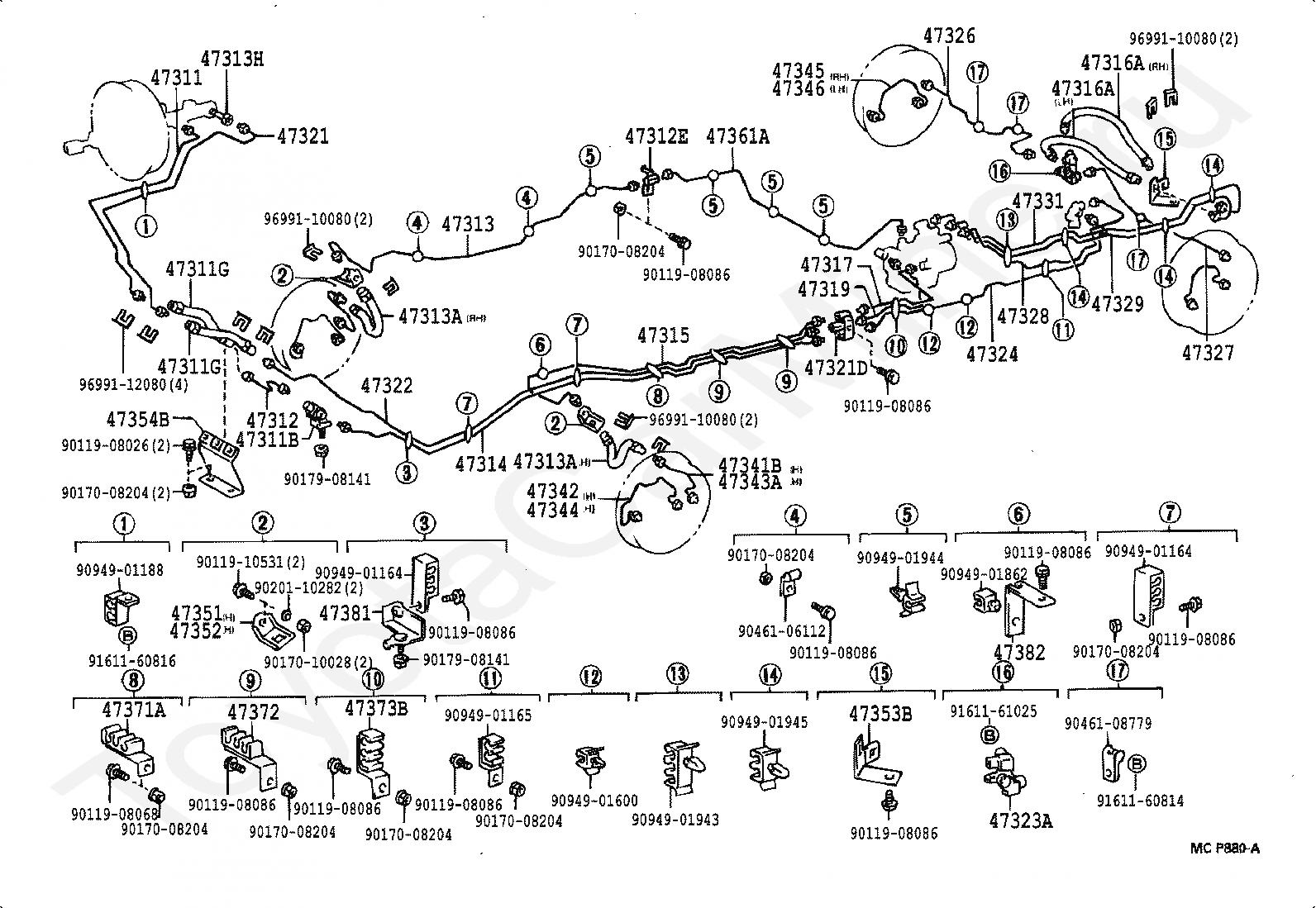

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313H

WAY, NO.3(FOR FRONT BRAKE TUBE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47319

TUBE, FRONT BRAKE, NO.9

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47324

TUBE, REAR BRAKE, NO.4

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47329

TUBE, REAR BRAKE, NO.9

47331

TUBE, REAR BRAKE, NO.10

47341B

TUBE, WHEEL CYLINDER, FRONT RH NO.1

47342

TUBE, WHEEL CYLINDER, FRONT RH NO.2

47343A

TUBE, WHEEL CYLINDER, FRONT LH NO.1

47344

TUBE, WHEEL CYLINDER, FRONT LH NO.2

47345

TUBE, WHEEL CYLINDER, REAR RH

47346

TUBE, WHEEL CYLINDER, REAR LH

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47361A

TUBE, FRONT BRAKE, NO.10

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47381

BRACKET, BRAKE TUBE CLAMP NO.1

47382

BRACKET, TUBE CLAMP, LH

9011908026

Крепеж

9011908068

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011910531

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017010028

Крепеж

9017908141

Крепеж

9017908141

Крепеж

9020110282

Крепеж

9046106112

Крепеж

9046108779

Крепеж

9094901164

Крепеж

9094901164

Крепеж

9094901165

Крепеж

9094901188

Крепеж

9094901600

Крепеж

9094901862

Крепеж

9094901943

Крепеж

9094901944

Крепеж

9094901945

Крепеж

9161160814

Крепеж

9161160816

Крепеж

9161161025

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699112080

Крепеж

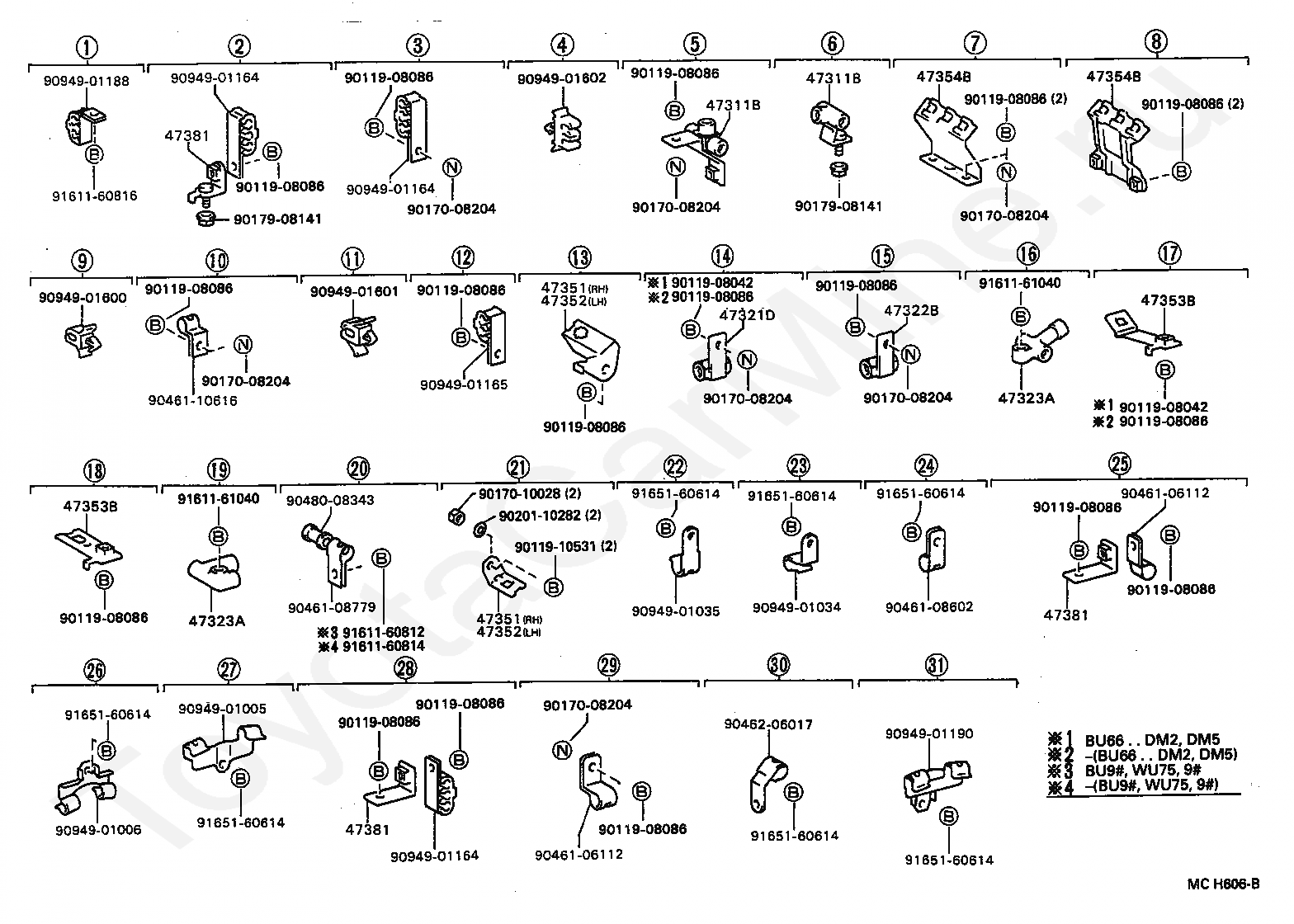

Код

Описание

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47381

BRACKET, BRAKE TUBE CLAMP NO.1

47381

BRACKET, BRAKE TUBE CLAMP NO.1

47381

BRACKET, BRAKE TUBE CLAMP NO.1

9011908042

Крепеж

9011908042

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011910531

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017010028

Крепеж

9017908141

Крепеж

9017908141

Крепеж

9020110282

Крепеж

9046106112

Крепеж

9046106112

Крепеж

9046108602

Крепеж

9046108779

Крепеж

9046110616

Крепеж

9046206017

Крепеж

9048008343

Крепеж

9094901005

Крепеж

9094901006

Крепеж

9094901034

Крепеж

9094901035

Крепеж

9094901164

Крепеж

9094901164

Крепеж

9094901164

Крепеж

9094901165

Крепеж

9094901188

Крепеж

9094901190

Крепеж

9094901600

Крепеж

9094901601

Крепеж

9094901602

Крепеж

9161160812

Крепеж

9161160814

Крепеж

9161160816

Крепеж

9161161040

Крепеж

9161161040

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

Код

Описание

31478D

CAP, BLEEDER PLUG(FOR LSPV)

31478D

CAP, BLEEDER PLUG(FOR LSPV)

47547D

PLUG, BLEEDER (FOR DECELERATION SENSING PROPORTIONIN)

47547D

PLUG, BLEEDER (FOR DECELERATION SENSING PROPORTIONIN)

47910G

VALVE ASSY, DECELERATION SENSING PROPORTIONING

47910G

VALVE ASSY, DECELERATION SENSING PROPORTIONING

47931

BRACKET, LOAD SENSING VALVE

9017908141

Крепеж

9165140816

Крепеж

9165140820

Крепеж

Код

Описание

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

9011908703

Крепеж

9017908204

Крепеж

9017908204

Крепеж

9017908204

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9113150840

Крепеж

9113150840

Крепеж

9161160816

Крепеж

9411041000

Крепеж

9414140800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9538102020

Крепеж

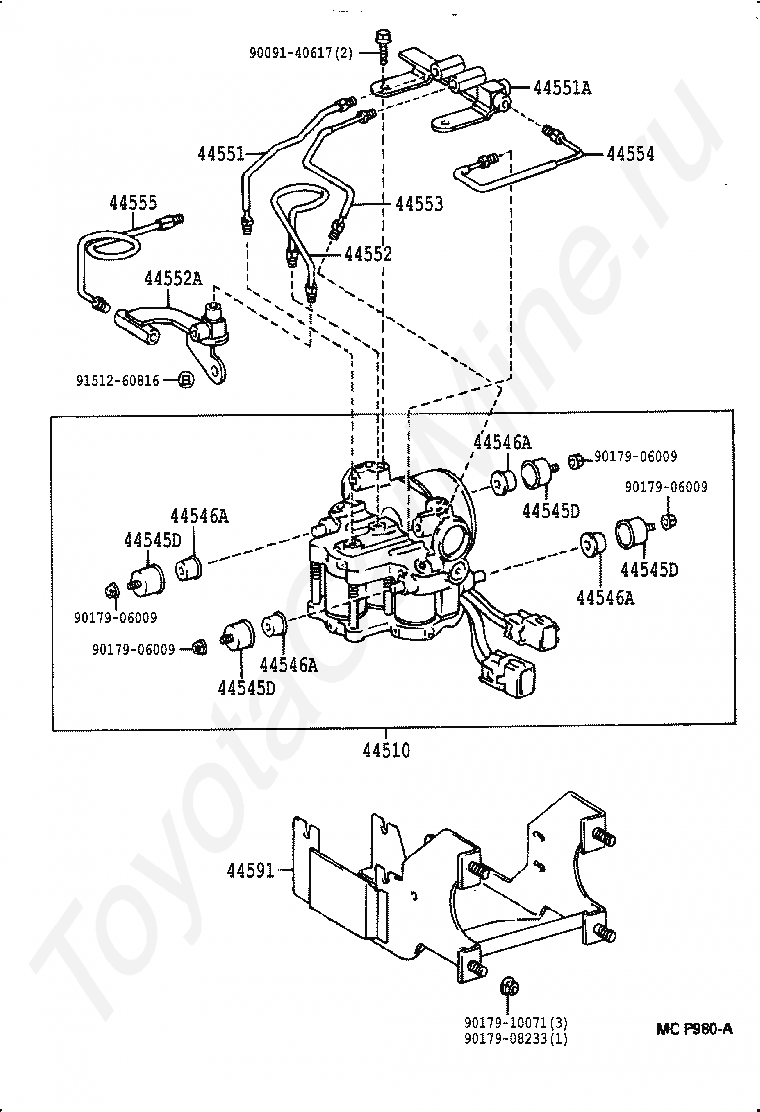

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44545D

HOLDER, BRAKE ACTUATOR BOLT

44545D

HOLDER, BRAKE ACTUATOR BOLT

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44552

TUBE, BRAKE ACTUATOR, NO.2

44552A

WAY, NO.2(FOR BRAKE ACTUATOR)

44553

TUBE, BRAKE ACTUATOR, NO.3

44554

TUBE, BRAKE ACTUATOR, NO.4

44555

TUBE, BRAKE ACTUATOR, NO.5

44591

BRACKET, BRAKE ACTUATOR, NO.1

9009140617

Крепеж

9017906009

Крепеж

9017906009

Крепеж

9017906009

Крепеж

9017906009

Крепеж

9017908233

Крепеж

9017910071

Крепеж

9151260816

Крепеж
