Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

1988/08

Двигатель

3 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU60

КПП

МКПП, 5 скоростей

Опции

TOYOACE (FULL JUST LOW) 3-местный DOUBLE TIRE 20T DSL CBU

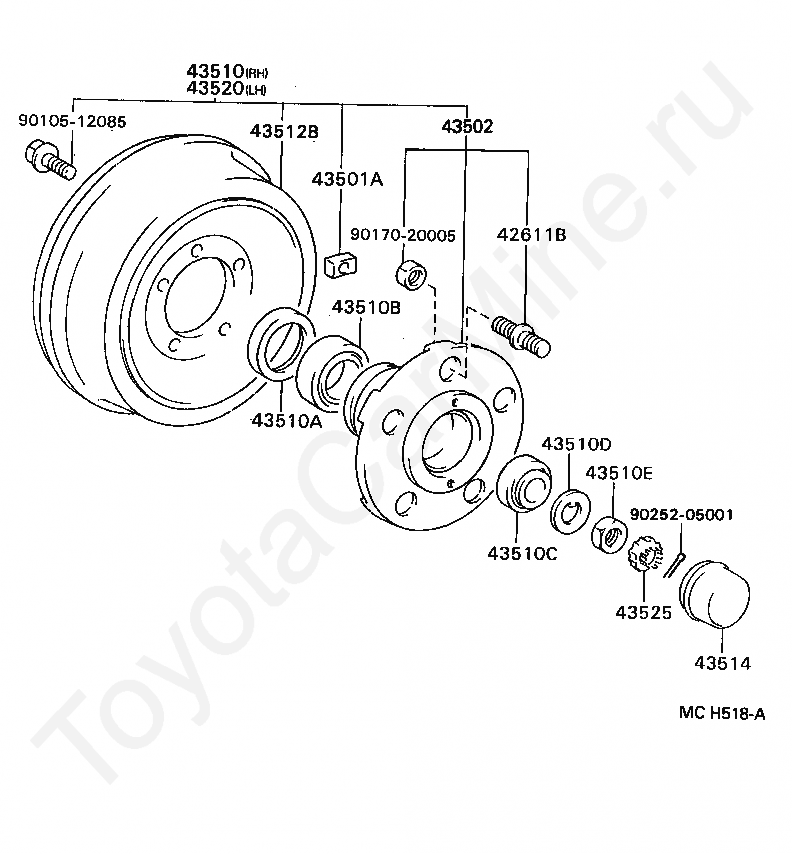

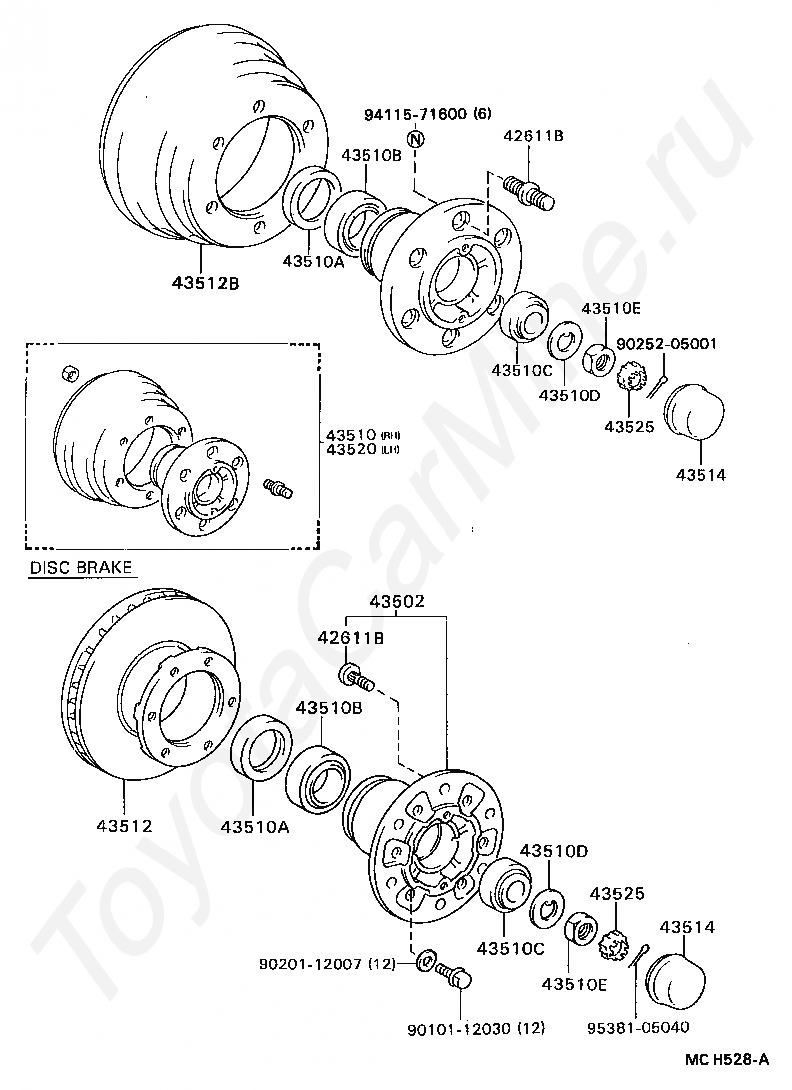

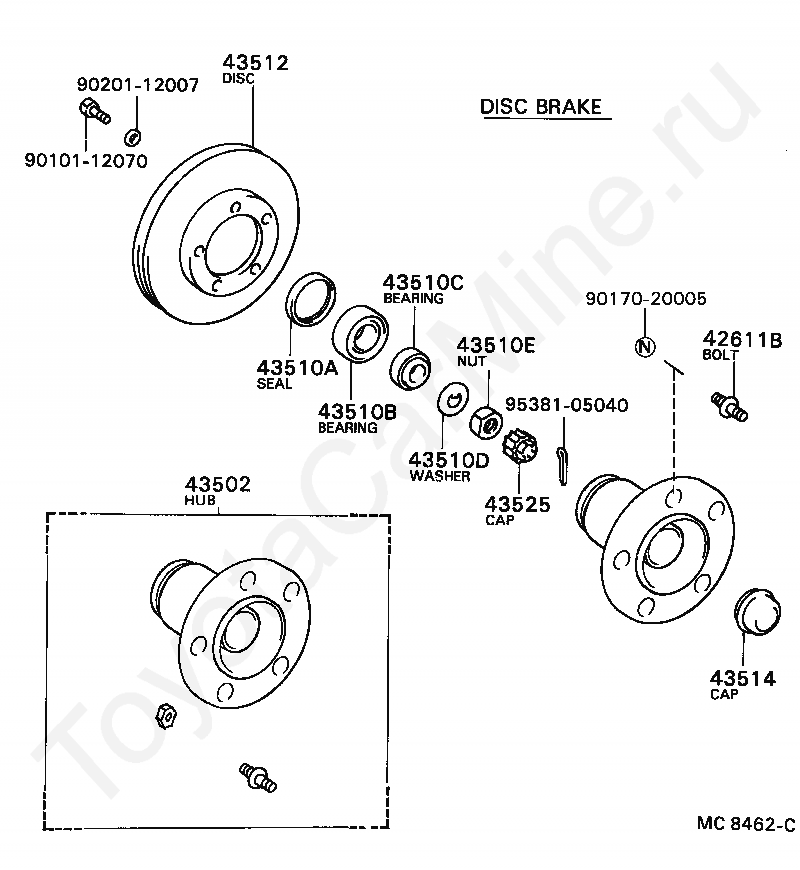

Передняя ступица и тормозной диск TOYOTA DYNA/TOYOACE

Код

Описание

42611B

BOLT, HUB (FOR FRONT AXLE)

43501B

BOLT, SET (FOR FRONT BRAKE DRUM SETTING)

43510

HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43510E

NUT (FOR STEERING KNUCKLE)

43510F

RING, SHAFT SNAP (FOR FRONT AXLE HUB)

43512B

DRUM, BRAKE

43514

CAP, FRONT HUB GREASE

43520

HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

43525

CAP, FRONT WHEEL ADJUSTING LOCK

9025205001

Крепеж

Код

Описание

42611B

BOLT, HUB (FOR FRONT AXLE)

42611B

BOLT, HUB (FOR FRONT AXLE)

43502

HUB SUB-ASSY, FRONT AXLE

43510

HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43510E

NUT (FOR STEERING KNUCKLE)

43510E

NUT (FOR STEERING KNUCKLE)

43512

DISC, FRONT

43512B

DRUM, BRAKE

43514

CAP, FRONT HUB GREASE

43514

CAP, FRONT HUB GREASE

43520

HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

43525

CAP, FRONT WHEEL ADJUSTING LOCK

43525

CAP, FRONT WHEEL ADJUSTING LOCK

9010112030

Крепеж

9020112007

Крепеж

9025205001

Крепеж

9411571600

Крепеж

9538105040

Крепеж

Код

Описание

42611B

BOLT, HUB (FOR FRONT AXLE)

43501A

PIECE, BALANCE (FOR FRONT BRAKE DRUM)

43502

HUB SUB-ASSY, FRONT AXLE

43510

HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43510E

NUT (FOR STEERING KNUCKLE)

43512B

DRUM, BRAKE

43514

CAP, FRONT HUB GREASE

43520

HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

43525

CAP, FRONT WHEEL ADJUSTING LOCK

9010512085

Крепеж

9017020005

Крепеж

9025205001

Крепеж

Код

Описание

42611B

BOLT, HUB (FOR FRONT AXLE)

43502

HUB SUB-ASSY, FRONT AXLE

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43510E

NUT (FOR STEERING KNUCKLE)

43512

DISC, FRONT

43514

CAP, FRONT HUB GREASE

43525

CAP, FRONT WHEEL ADJUSTING LOCK

9010112070

Крепеж

9017020005

Крепеж

9020112007

Крепеж

9538105040

Крепеж

Передняя ступица и тормозной диск TOYOTA DYNA/TOYOACE
