Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

1984/09

Двигатель

2 литра

Кузов

V(MODEL MARK)

Фрейм

YU70

КПП

МКПП, 5 скоростей

Опции

DYNA STANDARD ROOF 6-местный ST CBR CBU

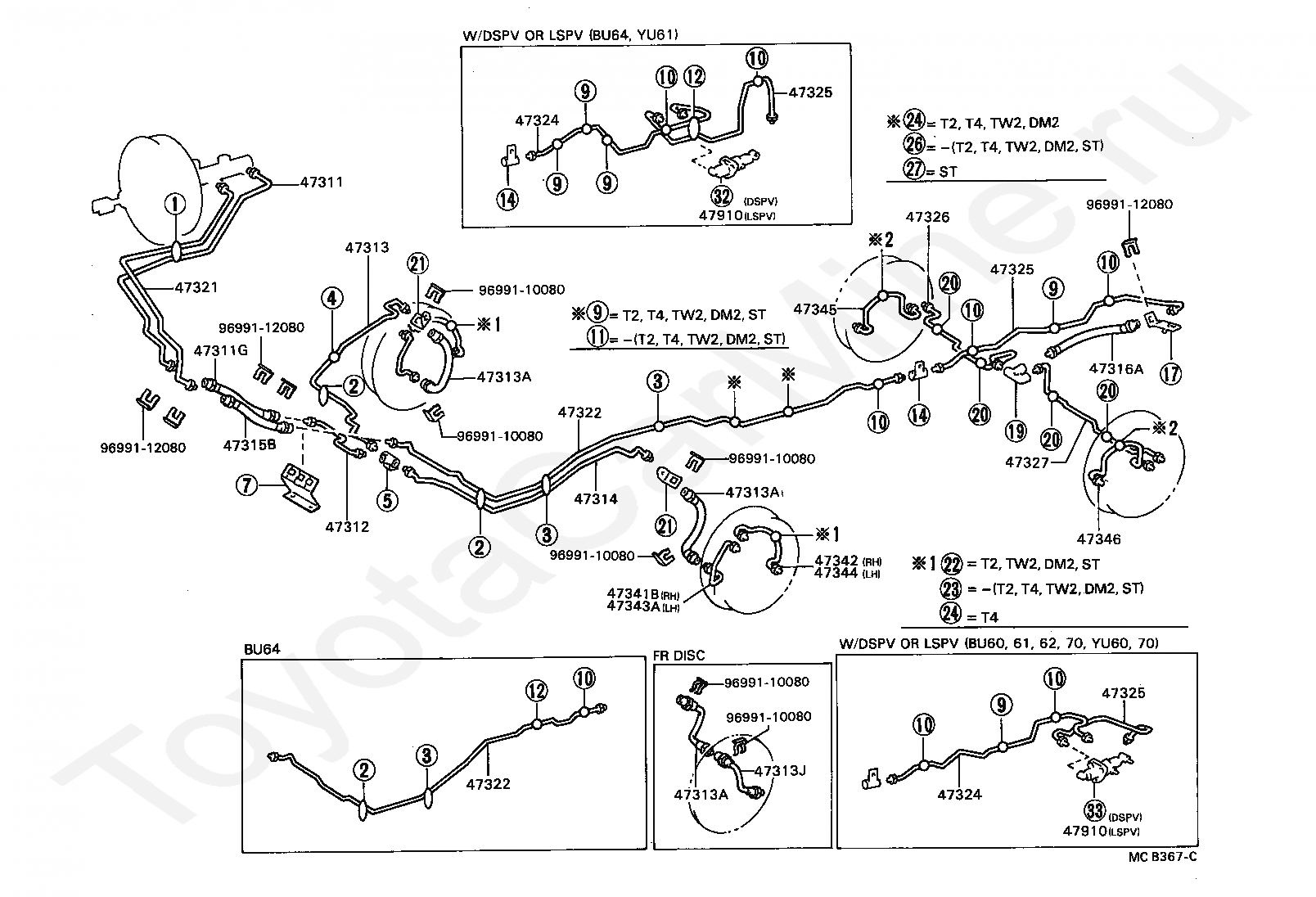

Тормозная магистраль TOYOTA DYNA/TOYOACE

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47314

TUBE, FRONT BRAKE, NO.4

47315B

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47322

TUBE, REAR BRAKE, NO.2

47324

TUBE, REAR BRAKE, NO.4

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47325

TUBE, REAR BRAKE, NO.5

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47341B

TUBE, WHEEL CYLINDER, FRONT RH NO.1

47342

TUBE, WHEEL CYLINDER, FRONT RH NO.2

47343A

TUBE, WHEEL CYLINDER, FRONT LH NO.1

47344

TUBE, WHEEL CYLINDER, FRONT LH NO.2

47345

TUBE, WHEEL CYLINDER, REAR RH

47346

TUBE, WHEEL CYLINDER, REAR LH

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

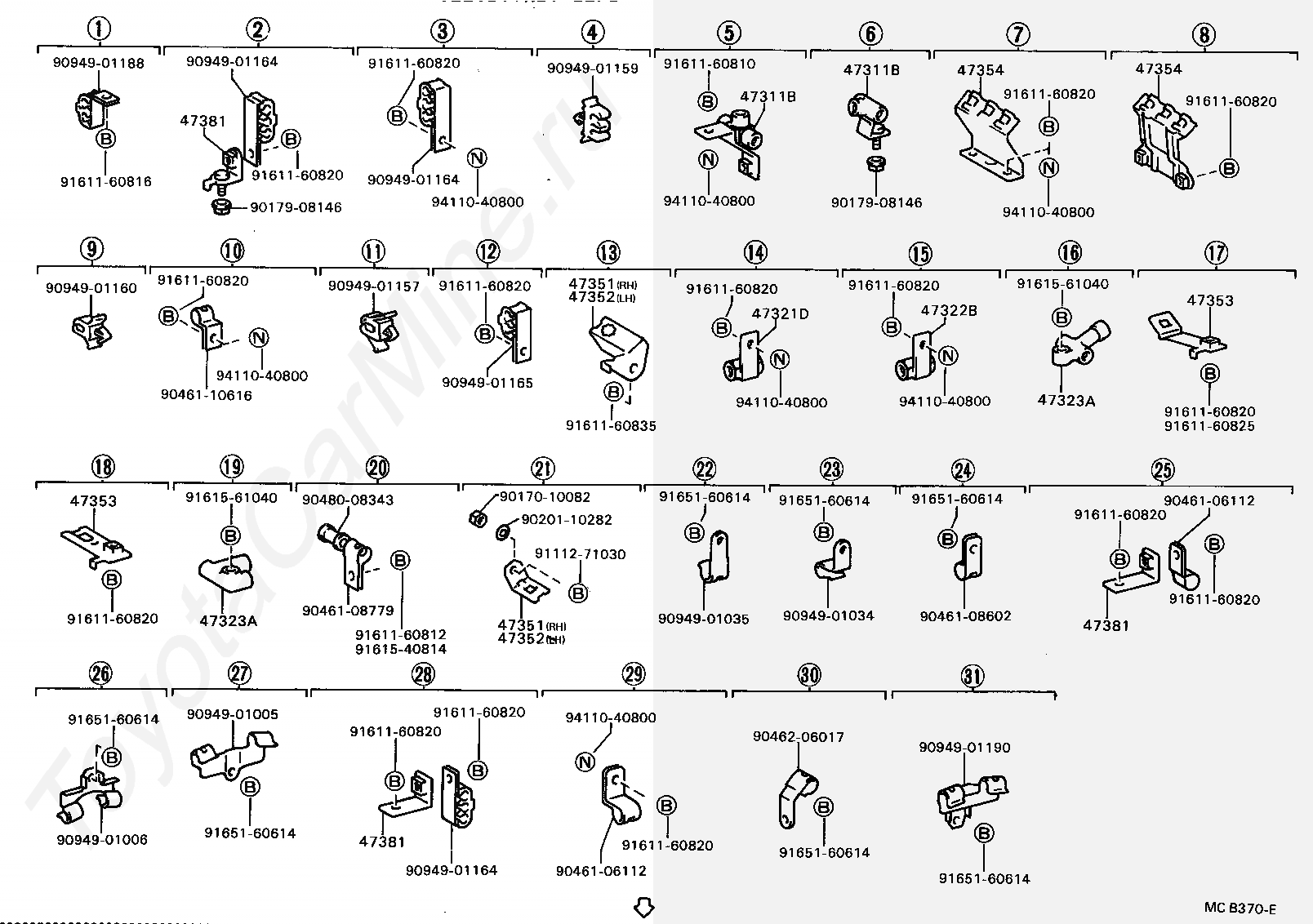

Код

Описание

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47354

BRACKET, FRONT FLEXIBLE HOSE

47354

BRACKET, FRONT FLEXIBLE HOSE

47381

BRACKET, BRAKE TUBE CLAMP NO.1

47381

BRACKET, BRAKE TUBE CLAMP NO.1

47381

BRACKET, BRAKE TUBE CLAMP NO.1

9017010082

Крепеж

9017908146

Крепеж

9017908146

Крепеж

9020110282

Крепеж

9046106112

Крепеж

9046106112

Крепеж

9046108602

Крепеж

9046108779

Крепеж

9046110616

Крепеж

9046206017

Крепеж

9048008343

Крепеж

9094901005

Крепеж

9094901006

Крепеж

9094901034

Крепеж

9094901035

Крепеж

9094901157

Крепеж

9094901159

Крепеж

9094901160

Крепеж

9094901164

Крепеж

9094901164

Крепеж

9094901164

Крепеж

9094901165

Крепеж

9094901188

Крепеж

9094901190

Крепеж

9111271030

Крепеж

9161160810

Крепеж

9161160812

Крепеж

9161160816

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160825

Крепеж

9161160835

Крепеж

9161540814

Крепеж

9161561040

Крепеж

9161561040

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

Код

Описание

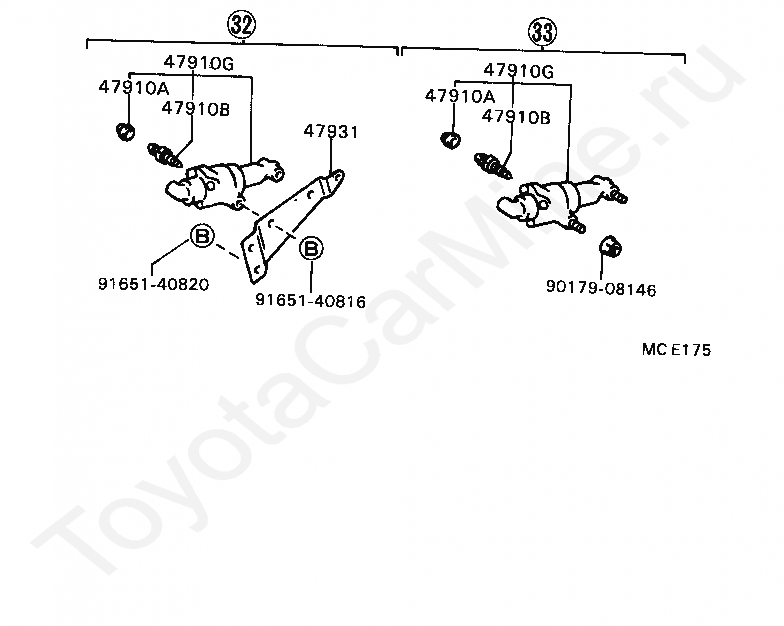

47910A

CAP, BLEEDER PLUG

47910A

CAP, BLEEDER PLUG

47910B

PLUG, BLEEDER

47910B

PLUG, BLEEDER

47910G

VALVE ASSY, DECELERATION SENSING PROPORTIONING

47910G

VALVE ASSY, DECELERATION SENSING PROPORTIONING

47931

BRACKET, LOAD SENSING VALVE

9017908146

Крепеж

9165140816

Крепеж

9165140820

Крепеж

Код

Описание

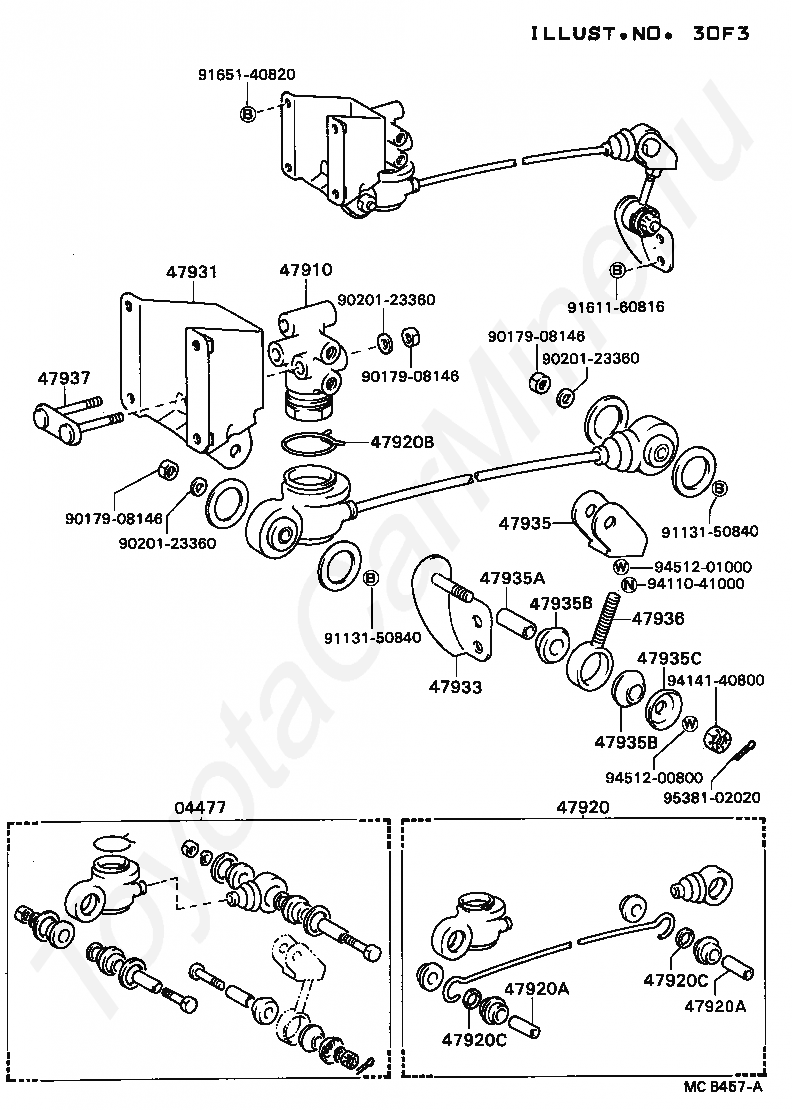

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

9017908146

Крепеж

9017908146

Крепеж

9017908146

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9113150840

Крепеж

9113150840

Крепеж

9161160816

Крепеж

9165140820

Крепеж

9411041000

Крепеж

9414140800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9538102020

Крепеж

Тормозная магистраль TOYOTA DYNA/TOYOACE
