Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

1984/09

Двигатель

2 литра

Кузов

V(MODEL MARK)

Фрейм

YU70

КПП

МКПП, 5 скоростей

Опции

DYNA STANDARD ROOF 6-местный ST CBR CBU

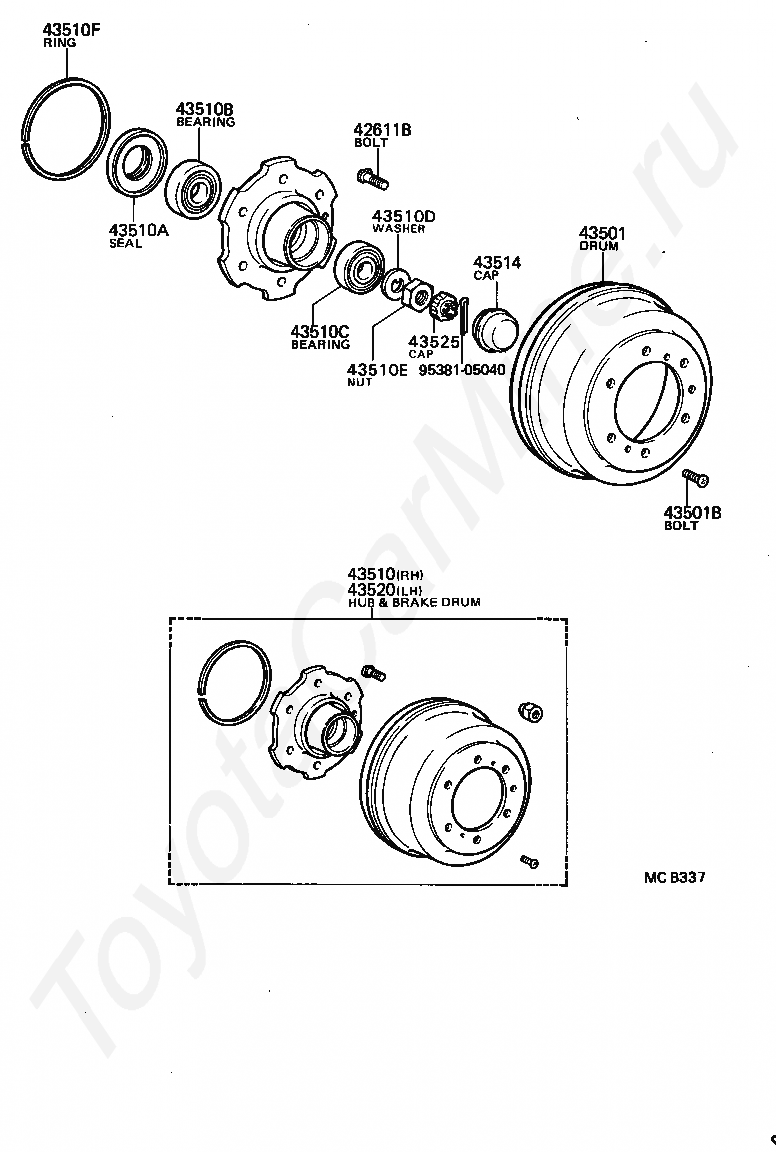

Передняя ступица и тормозной диск TOYOTA DYNA/TOYOACE

Код

Описание

42611B

BOLT, HUB (FOR FRONT AXLE)

43501

DRUM SUB-ASSY, FRONT BRAKE

43501B

BOLT, SET (FOR FRONT BRAKE DRUM SETTING)

43510

HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43510E

NUT (FOR STEERING KNUCKLE)

43510F

RING, SHAFT SNAP (FOR FRONT AXLE HUB)

43514

CAP, FRONT HUB GREASE

43520

HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

43525

CAP, FRONT WHEEL ADJUSTING LOCK

9538105040

Крепеж

Код

Описание

42611B

BOLT, HUB (FOR FRONT AXLE)

43501

DRUM SUB-ASSY, FRONT BRAKE

43501A

PIECE, BALANCE (FOR FRONT BRAKE DRUM)

43510

HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43510E

NUT (FOR STEERING KNUCKLE)

43514

CAP, FRONT HUB GREASE

43520

HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

43525

CAP, FRONT WHEEL ADJUSTING LOCK

9010512085

Крепеж

9017020005

Крепеж

9538105040

Крепеж

Передняя ступица и тормозной диск TOYOTA DYNA/TOYOACE
