Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

1988/08

Двигатель

2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

YU60

КПП

МКПП, 5 скоростей

Опции

DYNA DOUBLE CAB TRUCK (STANDARD) 6-местный SINGAPORE TAXI 175 CBR CBU

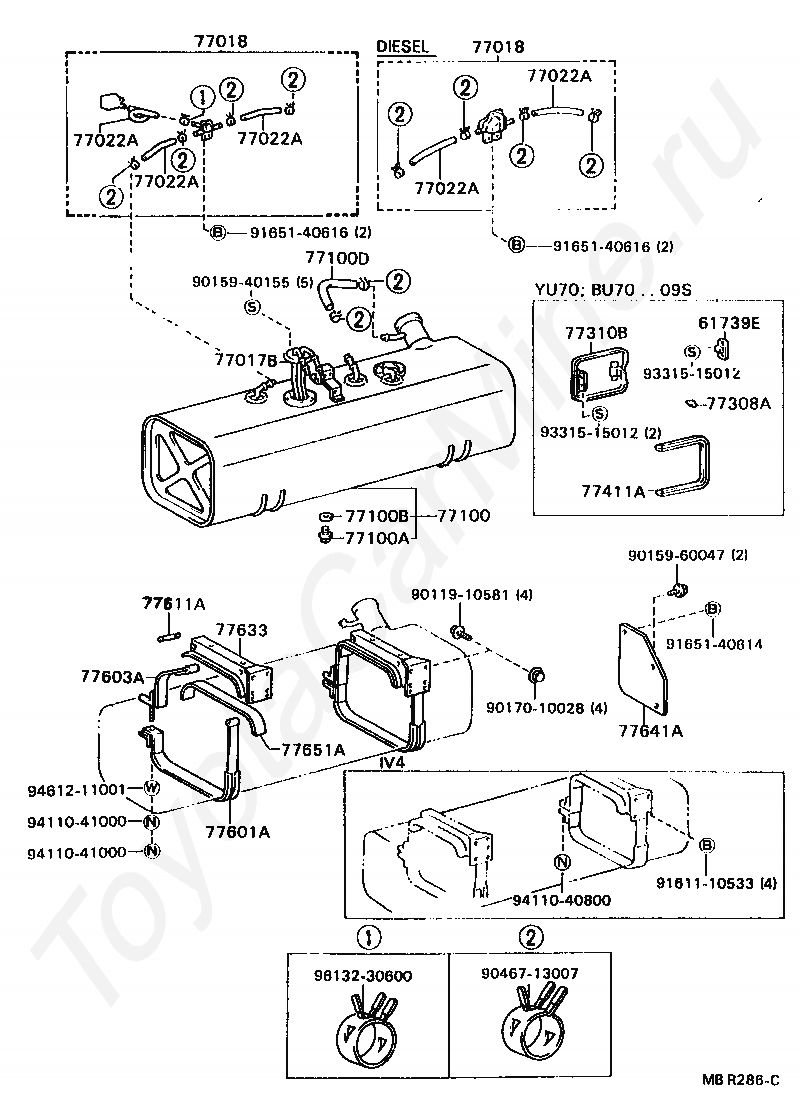

Топливный бак и горловина TOYOTA DYNA/TOYOACE

Код

Описание

77017B

TUBE SUB-ASSY, FUEL TANK VENT

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77275B

PROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77611A

PIN (FOR FUEL TANK BAND)

77633

STAY, FUEL TANK

77651A

CUSHION, FUEL TANK, NO.1

9011910533

Крепеж

9015940155

Крепеж

9017010028

Крепеж

9046713007

Крепеж

9161240616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9613230600

Крепеж

Код

Описание

61739E

STOPPER, FUEL INLET COVER

77017B

TUBE SUB-ASSY, FUEL TANK VENT

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77308A

CUSHION(FOR FUEL INLET BOX COVER)

77310B

DOOR ASSY, FUEL INLET, RH

77411A

PROTECTOR, FUEL INLET BOX

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77603A

BAND SUB-ASSY, FUEL TANK, NO.2

77611A

PIN (FOR FUEL TANK BAND)

77633

STAY, FUEL TANK

77641A

PROTECTOR, FUEL TANK, NO.1

77651A

CUSHION, FUEL TANK, NO.1

9011910581

Крепеж

9015940155

Крепеж

9015960047

Крепеж

9017010028

Крепеж

9046713007

Крепеж

9161110533

Крепеж

9165140614

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9331515012

Крепеж

9331515012

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9461211001

Крепеж

9613230600

Крепеж

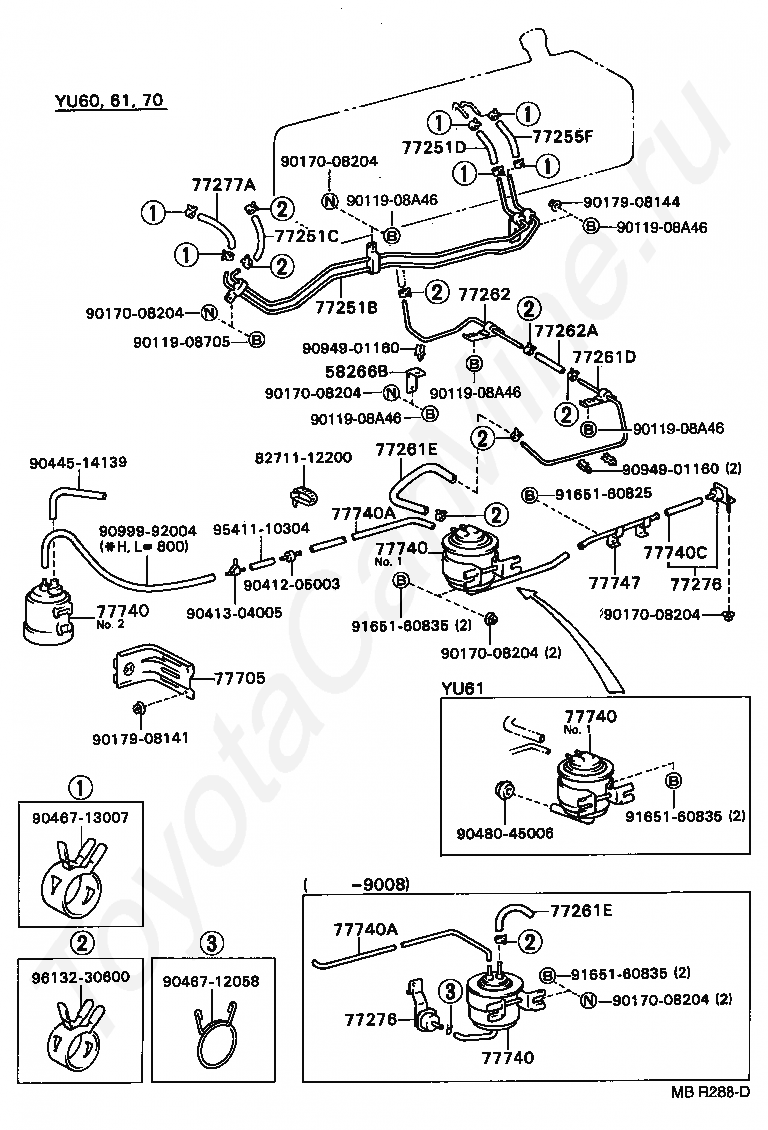

Код

Описание

58266B

BRACKET, FUEL TUBE CLAMP

77251B

TUBE, FUEL MAIN

77251C

HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

77251D

HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77261D

TUBE, FUEL TANK TO CANISTER

77261E

HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

77261E

HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

77262

TUBE, FUEL EMISSION, NO.2

77262A

HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)

77276

PROTECTOR, FUEL HOSE

77276

PROTECTOR, FUEL HOSE

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77705

BRACKET SUB-ASSY, CHARCOAL CANISTER

77740

CANISTER ASSY, CHARCOAL

77740

CANISTER ASSY, CHARCOAL

77740

CANISTER ASSY, CHARCOAL

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740C

HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

77747

PIPE, CHARCOAL CANISTER, NO.1

8271112200

Крепеж

9011908705

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017008204

Крепеж

9017908141

Крепеж

9017908144

Крепеж

9041205003

Крепеж

9041304005

Крепеж

9044514139

Крепеж

9046712058

Крепеж

9046713007

Крепеж

9048045006

Крепеж

9094901160

Крепеж

9094901160

Крепеж

9099992004

Крепеж

9165160825

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9541110304

Крепеж

9613230600

Крепеж

Топливный бак и горловина TOYOTA DYNA/TOYOACE
