Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

1988/08

Двигатель

2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

YU60

КПП

МКПП, 5 скоростей

Опции

DYNA DOUBLE CAB TRUCK (STANDARD) 6-местный SINGAPORE TAXI 175 CBR CBU

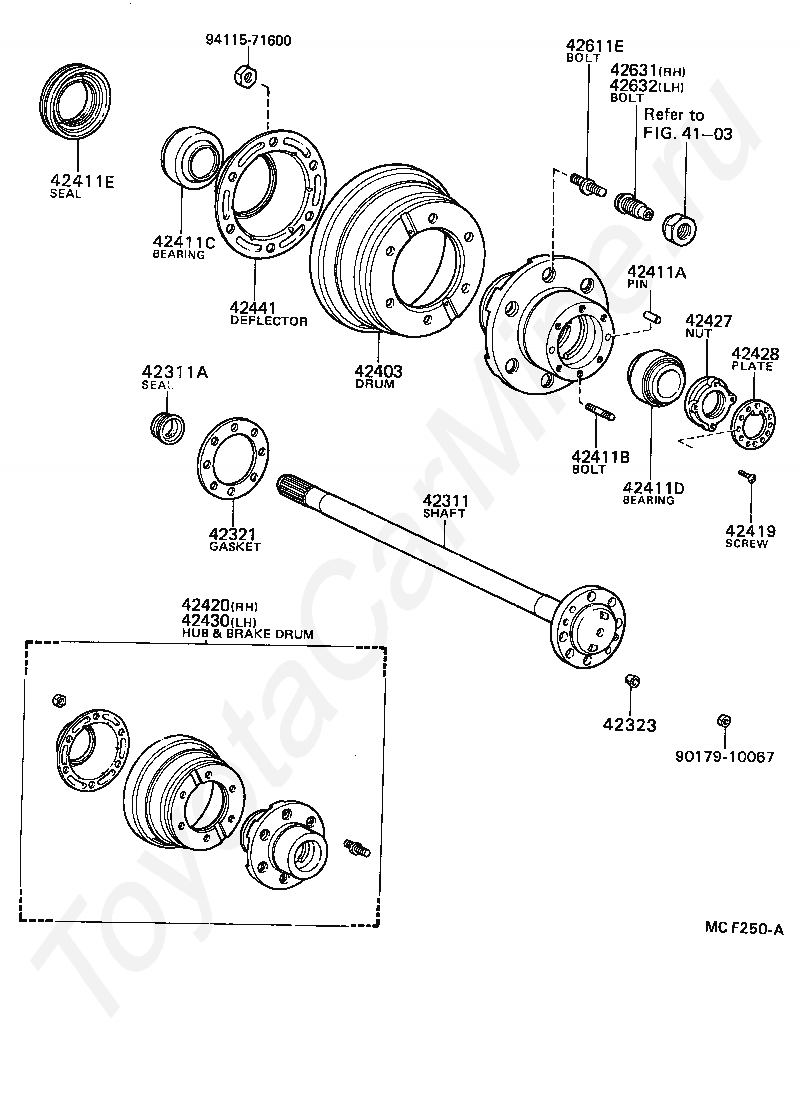

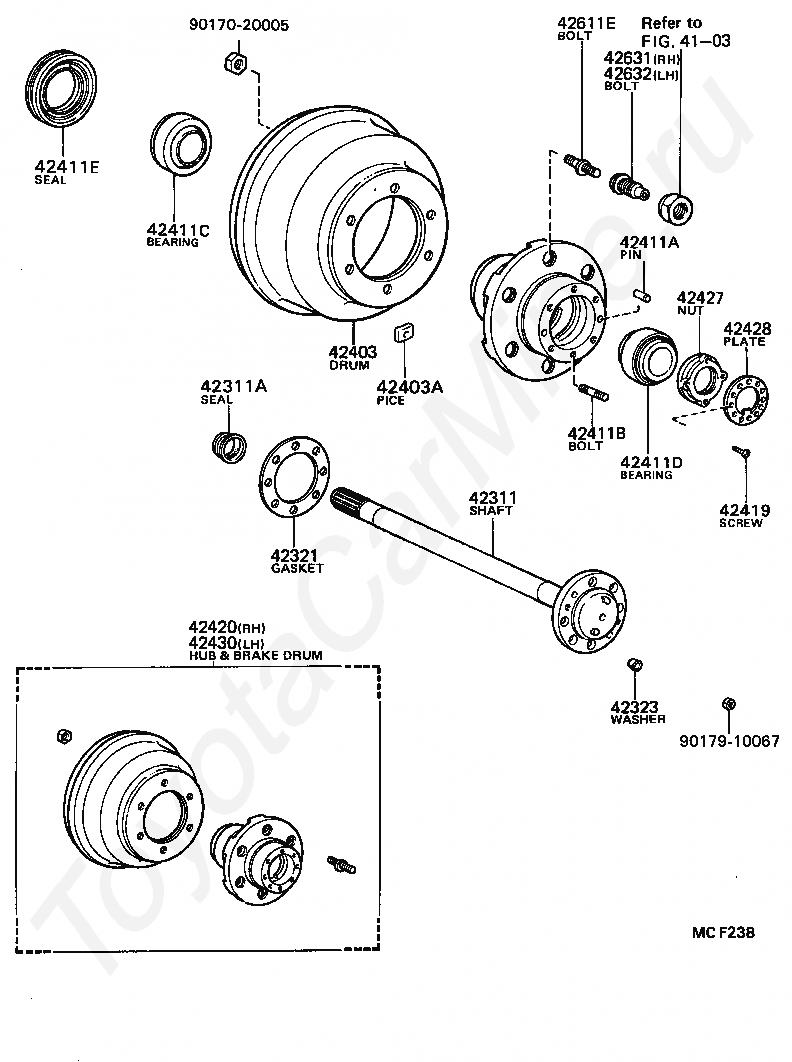

Задняя ступица и тормозной диск TOYOTA DYNA/TOYOACE

Код

Описание

4103

переход к группе запчастей

42311

SHAFT, REAR AXLE

42311A

SEAL, OIL (FOR REAR AXLE SHAFT)

42311D

RING, SNAP (FOR REAR AXLE SHAFT)

42321

GASKET, REAR AXLE SHAFT

42323

WASHER, CONE (FOR REAR AXLE SHAFT)

42403

DRUM SUB-ASSY, REAR BRAKE

42403B

BOLT, SET (FOR REAR BRAKE DRUM SETTING)

42411A

PIN, STRAIGHT (FOR REAR AXLE HUB)

42411B

BOLT, STUD (FOR REAR AXLE HUB)

42411C

BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

42411D

BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

42411E

SEAL, OIL (FOR REAR AXLE HUB)

42419

SCREW, REAR AXLE BEARING LOCK NUT

42420

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

42427

NUT, REAR AXLE BEARING LOCK

42428

PLATE, REAR AXLE LOCK NUT

42430

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

42611E

BOLT, HUB (FOR REAR AXLE)

9017910067

Крепеж

Код

Описание

4103

переход к группе запчастей

42311

SHAFT, REAR AXLE

42311A

SEAL, OIL (FOR REAR AXLE SHAFT)

42311D

RING, SNAP (FOR REAR AXLE SHAFT)

42321

GASKET, REAR AXLE SHAFT

42323

WASHER, CONE (FOR REAR AXLE SHAFT)

42403

DRUM SUB-ASSY, REAR BRAKE

42403B

BOLT, SET (FOR REAR BRAKE DRUM SETTING)

42411A

PIN, STRAIGHT (FOR REAR AXLE HUB)

42411B

BOLT, STUD (FOR REAR AXLE HUB)

42411C

BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

42411D

BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

42411E

SEAL, OIL (FOR REAR AXLE HUB)

42419

SCREW, REAR AXLE BEARING LOCK NUT

42420

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

42427

NUT, REAR AXLE BEARING LOCK

42428

PLATE, REAR AXLE LOCK NUT

42430

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

42611E

BOLT, HUB (FOR REAR AXLE)

9017910067

Крепеж

Код

Описание

4103

переход к группе запчастей

42311

SHAFT, REAR AXLE

42311A

SEAL, OIL (FOR REAR AXLE SHAFT)

42321

GASKET, REAR AXLE SHAFT

42323

WASHER, CONE (FOR REAR AXLE SHAFT)

42403

DRUM SUB-ASSY, REAR BRAKE

42411A

PIN, STRAIGHT (FOR REAR AXLE HUB)

42411B

BOLT, STUD (FOR REAR AXLE HUB)

42411C

BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

42411D

BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

42411E

SEAL, OIL (FOR REAR AXLE HUB)

42419

SCREW, REAR AXLE BEARING LOCK NUT

42420

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

42427

NUT, REAR AXLE BEARING LOCK

42428

PLATE, REAR AXLE LOCK NUT

42430

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

42441

DEFLECTOR, BRAKE DRUM OIL

42611E

BOLT, HUB (FOR REAR AXLE)

42631

BOLT, DOUBLE WHEEL STOP, RH

42632

BOLT, DOUBLE WHEEL STOP, LH

9017910067

Крепеж

9411571600

Крепеж

Код

Описание

4103

переход к группе запчастей

42311

SHAFT, REAR AXLE

42311A

SEAL, OIL (FOR REAR AXLE SHAFT)

42321

GASKET, REAR AXLE SHAFT

42323

WASHER, CONE (FOR REAR AXLE SHAFT)

42403

DRUM SUB-ASSY, REAR BRAKE

42403A

PIECE, BALANCE (FOR REAR BRAKE DRUM)

42411A

PIN, STRAIGHT (FOR REAR AXLE HUB)

42411B

BOLT, STUD (FOR REAR AXLE HUB)

42411C

BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

42411D

BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

42411E

SEAL, OIL (FOR REAR AXLE HUB)

42419

SCREW, REAR AXLE BEARING LOCK NUT

42420

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

42427

NUT, REAR AXLE BEARING LOCK

42428

PLATE, REAR AXLE LOCK NUT

42430

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

42611E

BOLT, HUB (FOR REAR AXLE)

42631

BOLT, DOUBLE WHEEL STOP, RH

42632

BOLT, DOUBLE WHEEL STOP, LH

9017020005

Крепеж

9017910067

Крепеж

Задняя ступица и тормозной диск TOYOTA DYNA/TOYOACE
