Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2002/06

Двигатель

4,6 литра, дизель

Фрейм

XZU352

КПП

механика МКПП, 5 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB FULL JUST LOW DUMP TRUCK 2 тонны DOUBLE TIRE CBU DSL 4NO

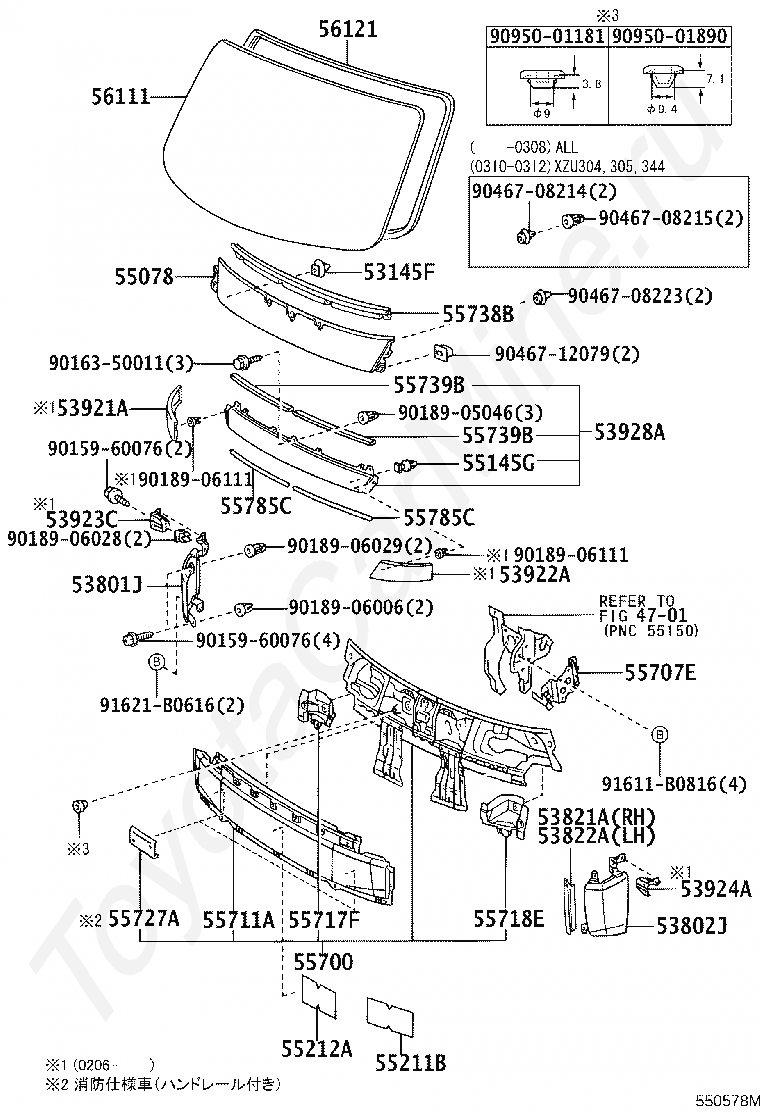

Лобовое стекло TOYOTA DYNA/TOYOACE







Код

Описание

4701

переход к группе запчастей

53145F

CLIP, RADIATOR GRILLE GARNISH

53801J

PANEL SUB-ASSY, FRONT SIDE, RH

53802J

PANEL SUB-ASSY, FRONT SIDE, LH

53821A

PROTECTOR, FRONT SIDE PANEL, NO.1 RH

53822A

PROTECTOR, FRONT SIDE PANEL, NO.1 LH

53921A

PANEL, FRONT VALANCE, RH

53922A

PANEL, FRONT VALANCE, LH

53923C

SUPPORT, FRONT SIDE GARNISH, RH

53924A

SUPPORT, FRONT SIDE GARNISH, LH

53928A

GARNISH, FRONT PANEL, CENTER

55078

COVER SUB-ASSY, FRONT PANEL

55145G

CLIP, RADIATOR GRILLE GARNISH

55211B

SILENCER, FRONT PANEL

55212A

SILENCER, FRONT PANEL, LOWER

55700

PANEL ASSY, FRONT

55707E

BRACKET SUB-ASSY, RELAY MOUNTING

55711A

PANEL, FRONT, LOWER

55717F

EXTENSION, FRONT PANEL REINFORCEMENT, RH

55718E

EXTENSION, FRONT PANEL REINFORCEMENT, LH

55727A

RETAINER, FRONT PANEL UPPER REINFORCEMENT

55738B

PROTECTOR, FRONT PANEL COVER, NO.1

55739B

PROTECTOR, FRONT PANEL COVER, NO.2

55739B

PROTECTOR, FRONT PANEL COVER, NO.2

55785C

PAD, FRONT PANEL COVER

55785C

PAD, FRONT PANEL COVER

56111

GLASS, WINDSHIELD

56121

WEATHERSTRIP, WINDSHIELD

9015960076

Крепеж

9015960076

Крепеж

9016350011

Крепеж

9018905046

Крепеж

9018906006

Крепеж

9018906028

Крепеж

9018906029

Крепеж

9018906111

Крепеж

9018906111

Крепеж

9046708214

Крепеж

9046708215

Крепеж

9046708223

Крепеж

9046712079

Крепеж

9095001181

Крепеж

9095001890

Крепеж

91611B0816

Крепеж

91621B0616

Крепеж

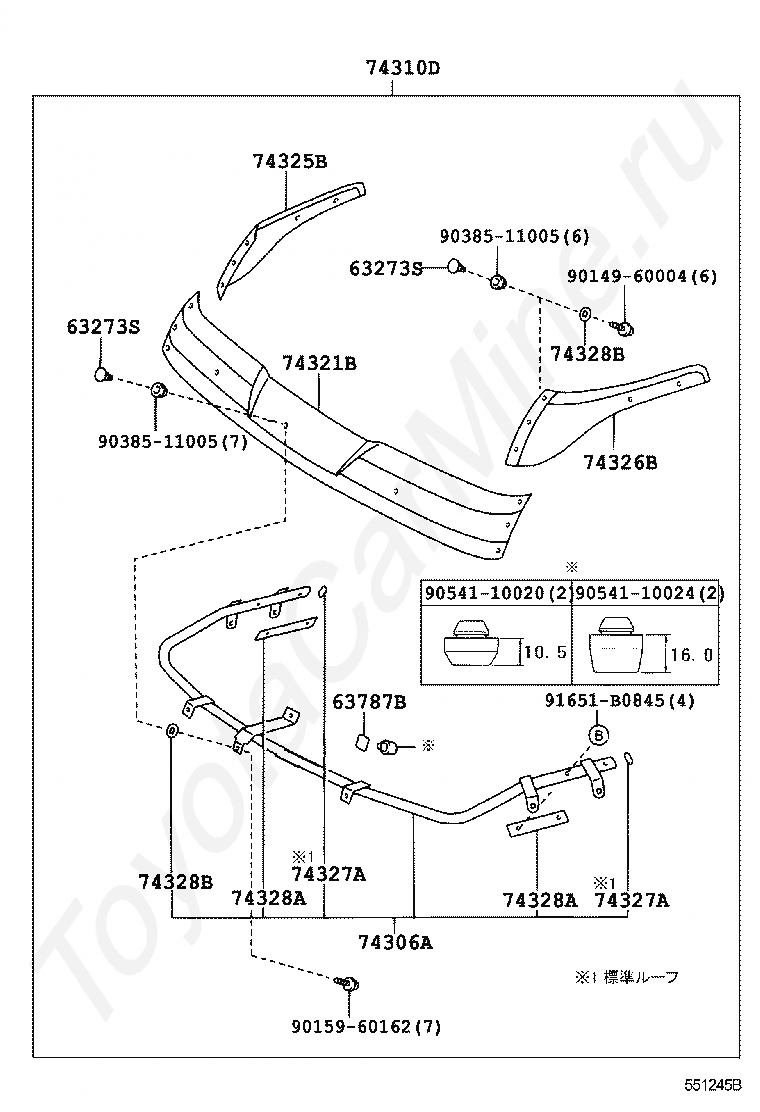

Код

Описание

63273S

RETAINER, ROOF WINDOW HINGE

63273S

RETAINER, ROOF WINDOW HINGE

63787B

PAD, ROOF AIR DEFLECTOR, NO.1

74306A

SUPPORT SUB-ASSY, FRONT VISOR

74310D

VISOR ASSY

74321B

VISOR, FRONT

74325B

SUPPORT, FRONT VISOR, RH

74326B

SUPPORT, FRONT VISOR, LH

74327A

PAD, FRONT VISOR

74327A

PAD, FRONT VISOR

74328A

PAD, FRONT VISOR, NO.2

74328A

PAD, FRONT VISOR, NO.2

74328B

PAD, FRONT VISOR, NO.2

74328B

PAD, FRONT VISOR, NO.2

9014960004

Крепеж

9015960162

Крепеж

9038511005

Крепеж

9038511005

Крепеж

9054110020

Крепеж

9054110024

Крепеж

91651B0845

Крепеж

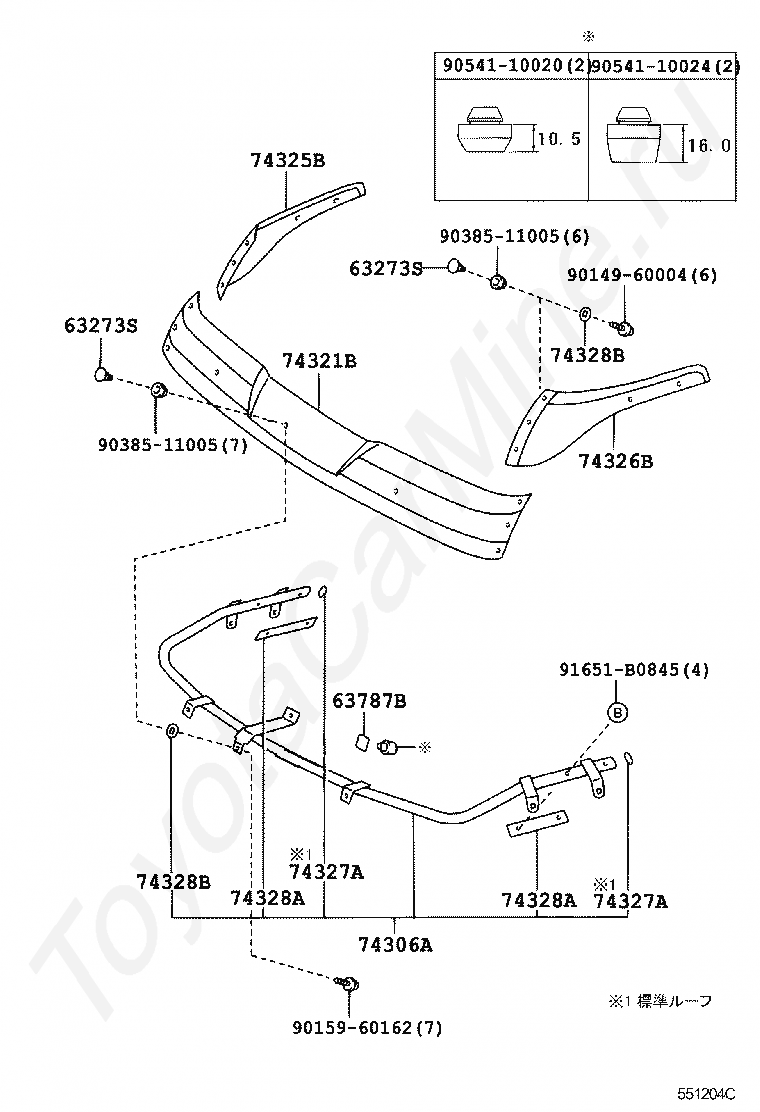

Код

Описание

63273S

RETAINER, ROOF WINDOW HINGE

63273S

RETAINER, ROOF WINDOW HINGE

63787B

PAD, ROOF AIR DEFLECTOR, NO.1

74306A

SUPPORT SUB-ASSY, FRONT VISOR

74321B

VISOR, FRONT

74325B

SUPPORT, FRONT VISOR, RH

74326B

SUPPORT, FRONT VISOR, LH

74327A

PAD, FRONT VISOR

74327A

PAD, FRONT VISOR

74328A

PAD, FRONT VISOR, NO.2

74328A

PAD, FRONT VISOR, NO.2

74328B

PAD, FRONT VISOR, NO.2

74328B

PAD, FRONT VISOR, NO.2

9014960004

Крепеж

9015960162

Крепеж

9038511005

Крепеж

9038511005

Крепеж

9054110020

Крепеж

9054110024

Крепеж

91651B0845

Крепеж
