Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2002/06

Двигатель

4,6 литра, дизель

Фрейм

XZU352

КПП

механика МКПП, 5 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB FULL JUST LOW DUMP TRUCK 2 тонны DOUBLE TIRE CBU DSL 4NO

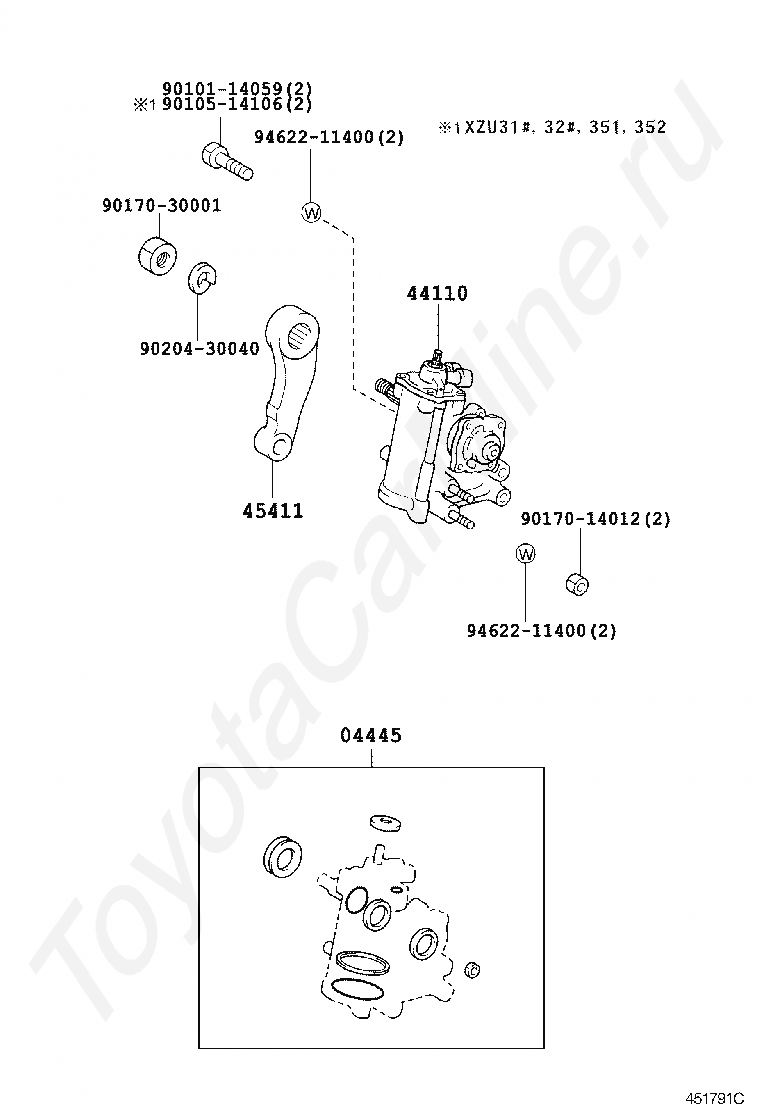

Рулевая рейка и наконечники TOYOTA DYNA/TOYOACE

Код

Описание

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

44110

GEAR ASSY, POWER STEERING

45411

ARM, PITMAN

9010114059

Крепеж

9010514106

Крепеж

9017014012

Крепеж

9017030001

Крепеж

9020430040

Крепеж

9462211400

Крепеж

9462211400

Крепеж

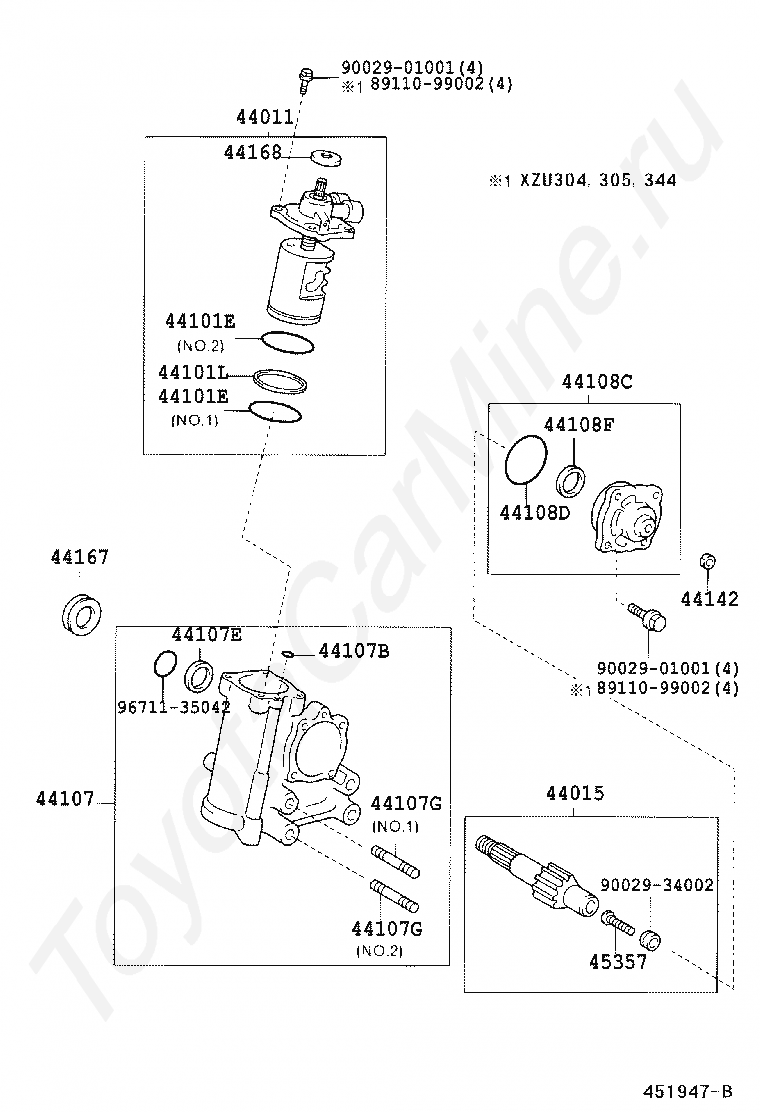

Код

Описание

44011

PISTON SUB-ASSY, POWER

44015

SHAFT SUB-ASSY, SECTOR

44101E

RING, O(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101L

SEAL, DUST(FOR POWER PISTON SUB-ASSY)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44107G

BOLT, STUD(FOR POWER STEERING GEAR HOUSING)

44107G

BOLT, STUD(FOR POWER STEERING GEAR HOUSING)

44108C

COVER SUB-ASSY, SECTOR

44108D

RING, O(FOR SECTOR COVER)

44108F

SEAL, DUST(FOR SECTOR COVER)

44142

NUT, LOCK

44167

COVER, SECTOR SHAFT DUST

44168

COVER, WORM SHAFT DUST

45357

SCREW, SECTOR SHAFT ADJUSTING

8911099002

Крепеж

8911099002

Крепеж

9002901001

Крепеж

9002901001

Крепеж

9002934002

Крепеж

9671135042

Крепеж

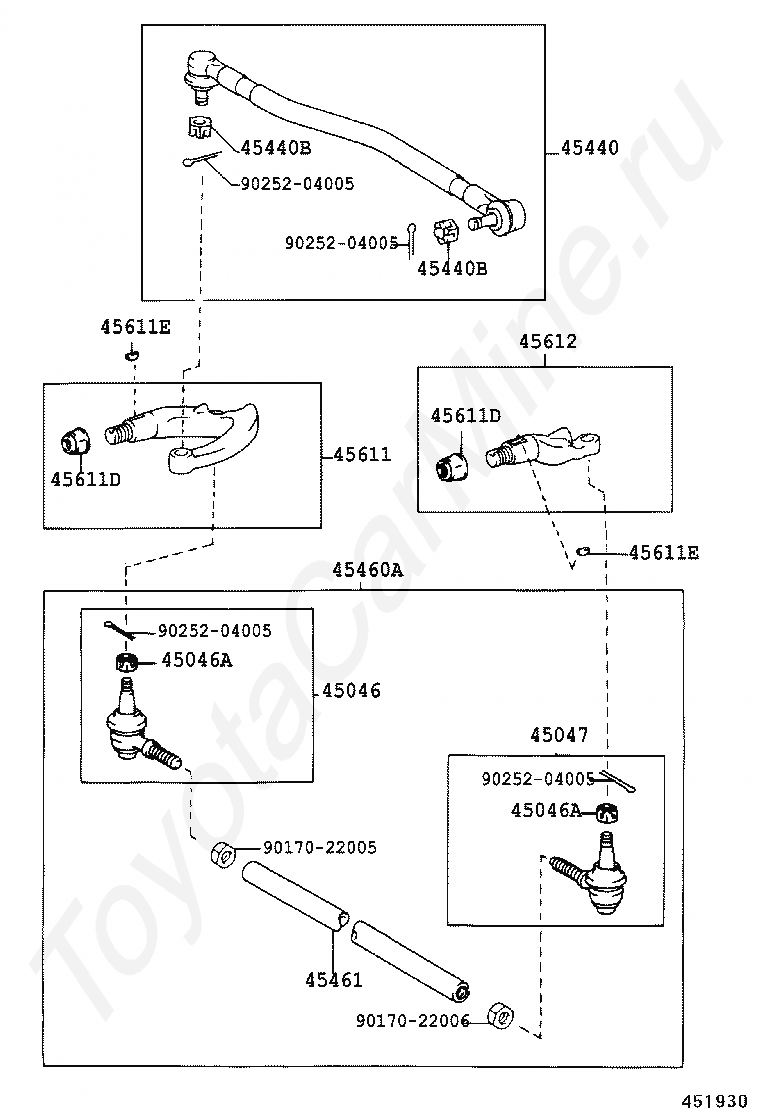

Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45440

LINK ASSY, STEERING DRAG

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45460A

ROD ASSY, TIE

45461

ROD, STEERING TIE

45611

ARM, STEERING KNUCKLE, RH

45611D

NUT(FOR STEERING KNUCKLE ARM)

45611D

NUT(FOR STEERING KNUCKLE ARM)

45611E

KEY, WOODRUFF(FOR STEERING IDLER ARM)

45611E

KEY, WOODRUFF(FOR STEERING IDLER ARM)

45612

ARM, STEERING KNUCKLE, LH

9017022005

Крепеж

9017022006

Крепеж

9025204005

Крепеж

9025204005

Крепеж

9025204005

Крепеж

9025204005

Крепеж

Рулевая рейка и наконечники TOYOTA DYNA/TOYOACE
