Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2007/12

Двигатель

2 литра, 16 клапанов DOHC, EFI, сжиженный газ

Фрейм

TRY231

КПП

автомат

Опции

(FULL JUST LOW) BOARDING DECK 1.5 TONNE DOUBLE TIRE LPG CBU

Кондиционер: управление и воздуховод TOYOTA DYNA/TOYOACE

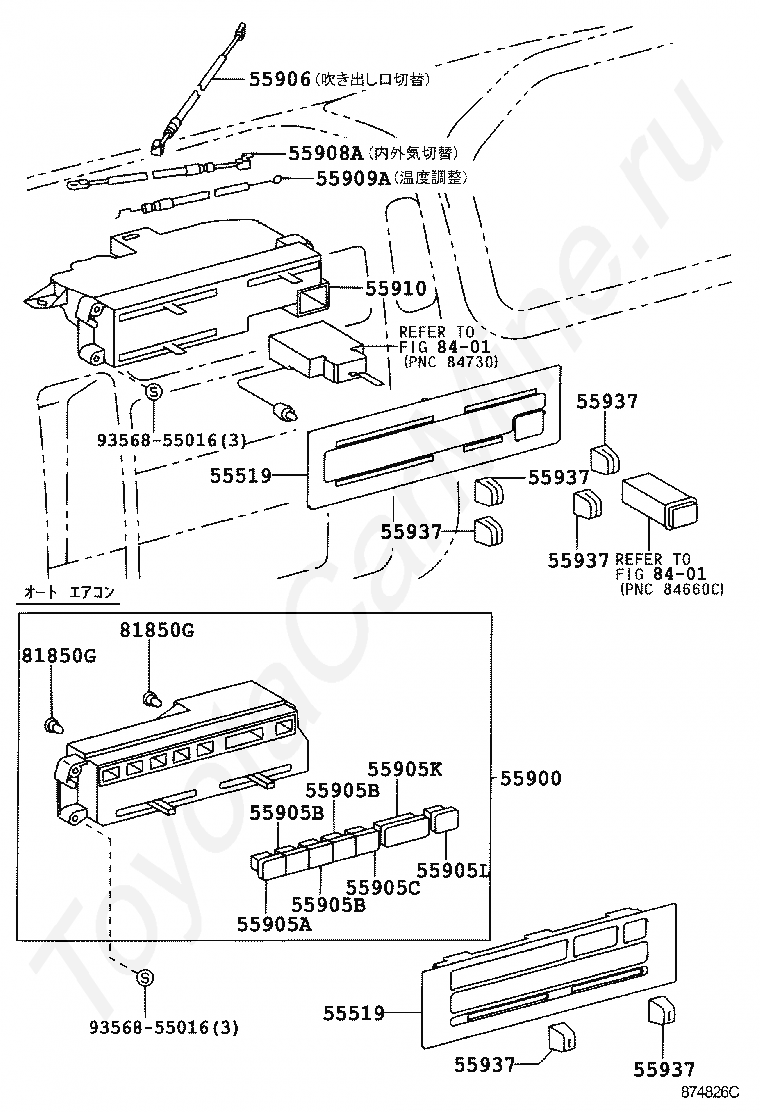

Код

Описание

55519

PLATE, HEATER CONTROL NAME

55519

PLATE, HEATER CONTROL NAME

55900

CONTROL ASSY, AIR CONDITIONER

55905A

KNOB, HEATER CONTROL

55905B

KNOB, HEATER CONTROL, NO.2

55905B

KNOB, HEATER CONTROL, NO.2

55905B

KNOB, HEATER CONTROL, NO.2

55905C

KNOB, HEATER CONTROL, NO.3

55905K

KNOB, HEATER CONTROL, NO.4

55905L

KNOB, HEATER CONTROL, NO.5

55906

CABLE SUB-ASSY, HEATER CONTROL

55908A

CABLE SUB-ASSY, AIR INLET DAMPER CONTROL

55909A

CABLE SUB-ASSY, AIRMIX DAMPER CONTROL

55910

CONTROL ASSY, HEATER OR BOOST VENTILATOR

55937

KNOB, HEATER CONTROL LEVER

55937

KNOB, HEATER CONTROL LEVER

55937

KNOB, HEATER CONTROL LEVER

55937

KNOB, HEATER CONTROL LEVER

55937

KNOB, HEATER CONTROL LEVER

55937

KNOB, HEATER CONTROL LEVER

81850G

LAMP ASSY, INDICATOR

81850G

LAMP ASSY, INDICATOR

8401

переход к группе запчастей

8401

переход к группе запчастей

9356855016

Крепеж

9356855016

Крепеж

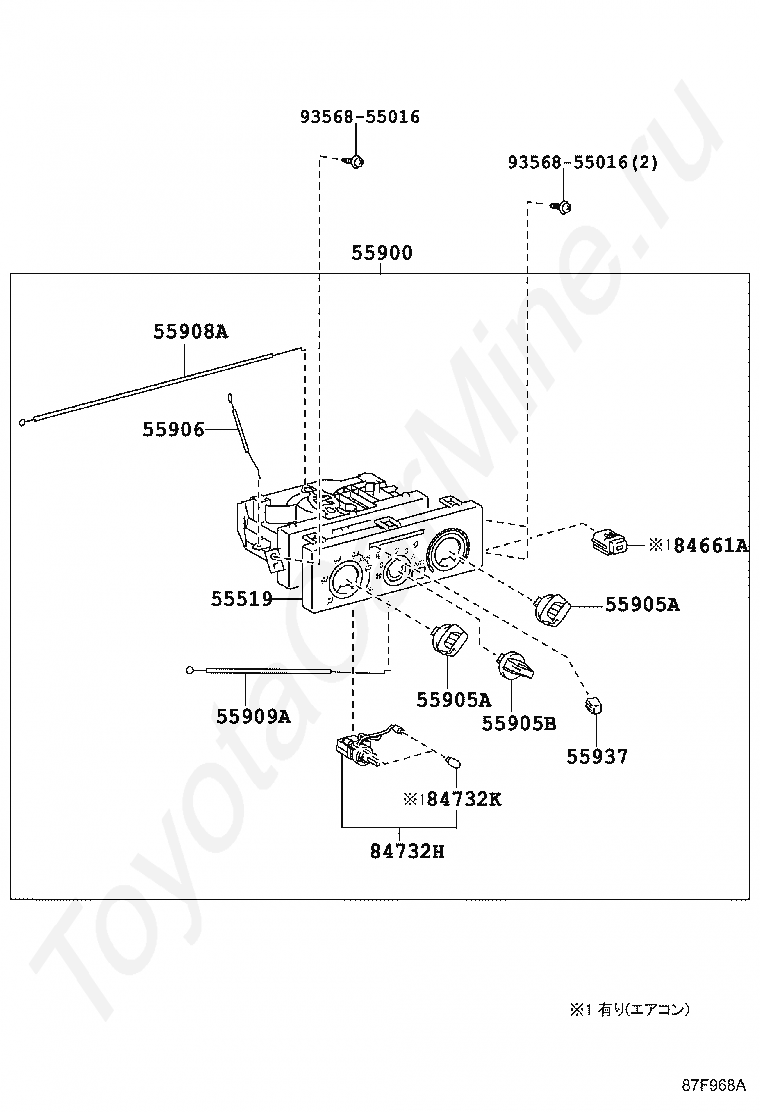

Код

Описание

55519

PLATE, HEATER CONTROL NAME

55900

CONTROL ASSY, AIR CONDITIONER

55905A

KNOB, HEATER CONTROL

55905A

KNOB, HEATER CONTROL

55905B

KNOB, HEATER CONTROL, NO.2

55906

CABLE SUB-ASSY, HEATER CONTROL

55908A

CABLE SUB-ASSY, AIR INLET DAMPER CONTROL

55909A

CABLE SUB-ASSY, AIRMIX DAMPER CONTROL

55937

KNOB, HEATER CONTROL LEVER

84661A

KNOB, COOLER CONTROL SWITCH

84732H

SWITCH, HEATER BLOWER

84732K

BULB, HEATER BLOWER SWITCH

9356855016

Крепеж

9356855016

Крепеж

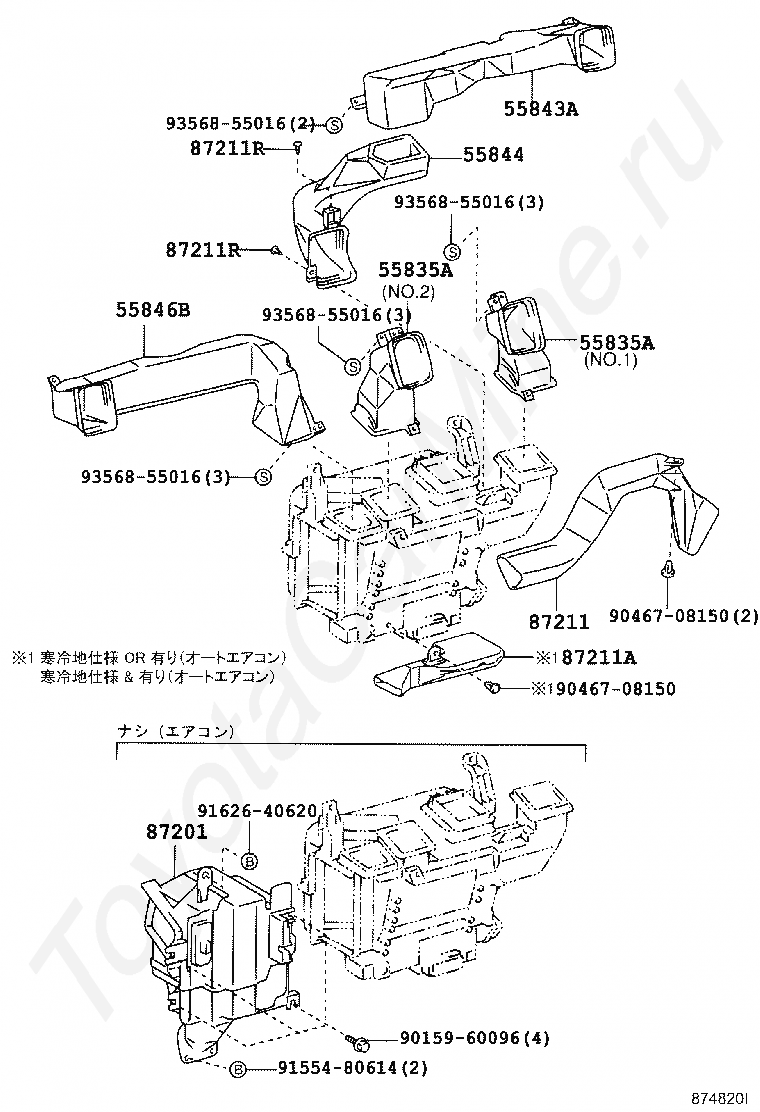

Код

Описание

55835A

DUCT, HEATER TO REGISTER, CENTER

55835A

DUCT, HEATER TO REGISTER, CENTER

55843A

DUCT, HEATER TO REGISTER, NO.1

55844

DUCT, HEATER TO REGISTER, NO.2

55846B

DUCT, HEATER TO REGISTER, NO.4

87201

DUCT SUB-ASSY, AIR, NO.1

87211

DUCT, AIR, NO.1

87211A

DUCT, AIR, NO.2

87211R

CLIP, AIR DUCT

87211R

CLIP, AIR DUCT

9015960096

Крепеж

9046708150

Крепеж

9046708150

Крепеж

9155480614

Крепеж

9162640620

Крепеж

9356855016

Крепеж

9356855016

Крепеж

9356855016

Крепеж

9356855016

Крепеж

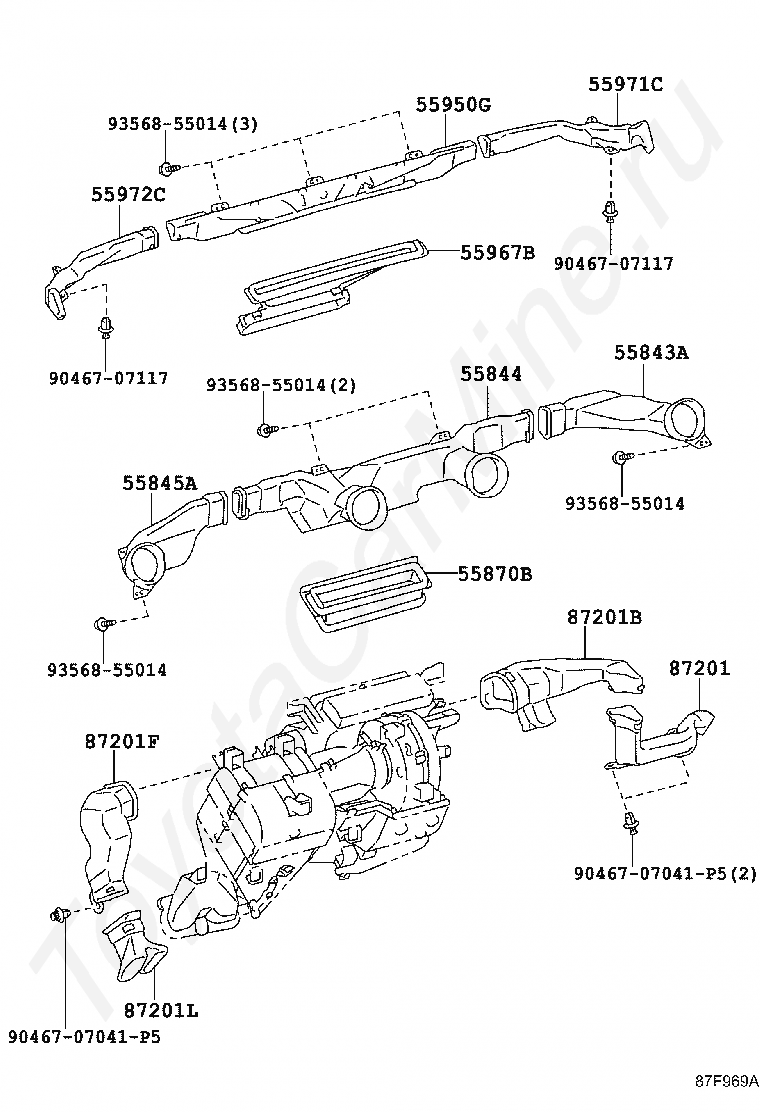

Код

Описание

55843A

DUCT, HEATER TO REGISTER, NO.1

55844

DUCT, HEATER TO REGISTER, NO.2

55845A

DUCT, HEATER TO REGISTER, NO.3

55870B

DUCT ASSY, HEATER TO REGISTER

55950G

NOZZLE ASSY, DEFROSTER

55967B

NOZZLE, DEFROSTER, LOWER

55971C

DUCT, SIDE DEFROSTER NOZZLE, NO.1

55972C

DUCT, SIDE DEFROSTER NOZZLE, NO.2

87201

DUCT SUB-ASSY, AIR, NO.1

87201B

DUCT SUB-ASSY, AIR, NO.2

87201F

DUCT SUB-ASSY, AIR, NO.3

87201L

DUCT SUB-ASSY, AIR, NO.4

9046707041P5

Крепеж

9046707041P5

Крепеж

9046707117

Крепеж

9046707117

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9356855014

Крепеж

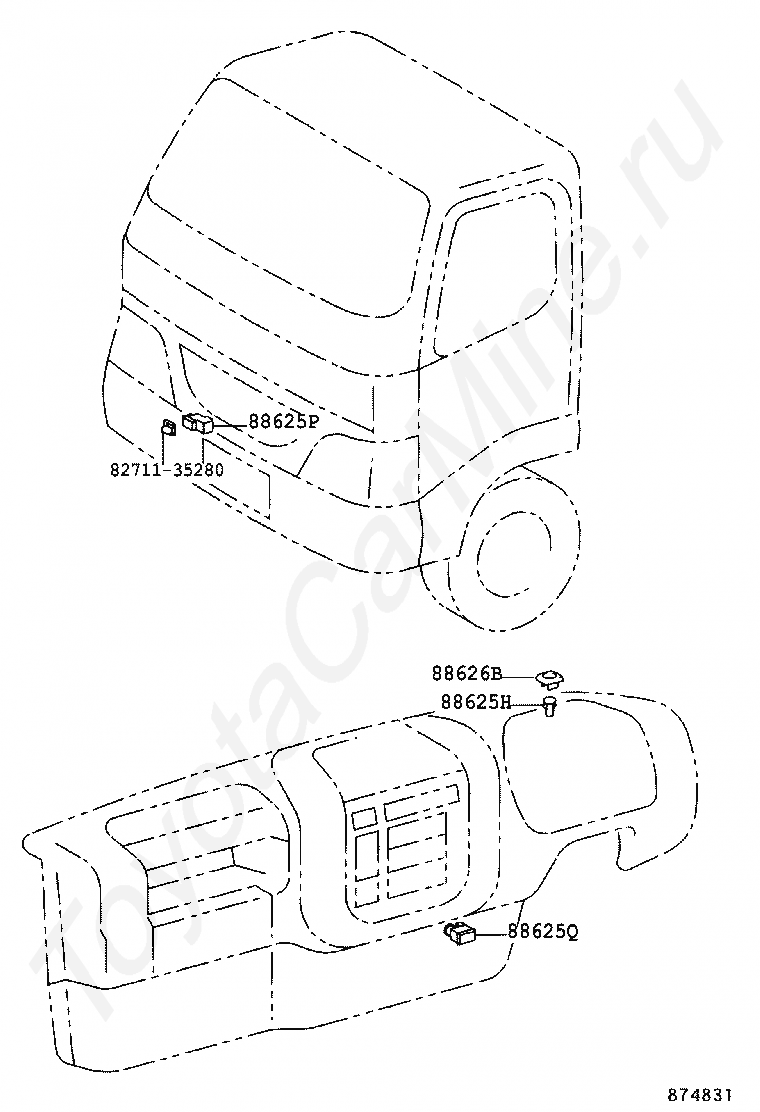

Код

Описание

8271135280

Крепеж

88625H

THERMISTOR, COOLER (SOLAR SENSOR)

88625P

THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)

88625Q

THERMISTOR, COOLER (ROOM TEMP. SENSOR)

88626B

HOLDER, THERMISTOR
