Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2007/12

Двигатель

2 литра, 16 клапанов DOHC, EFI, сжиженный газ

Фрейм

TRY231

КПП

автомат

Опции

(FULL JUST LOW) BOARDING DECK 1.5 TONNE DOUBLE TIRE LPG CBU

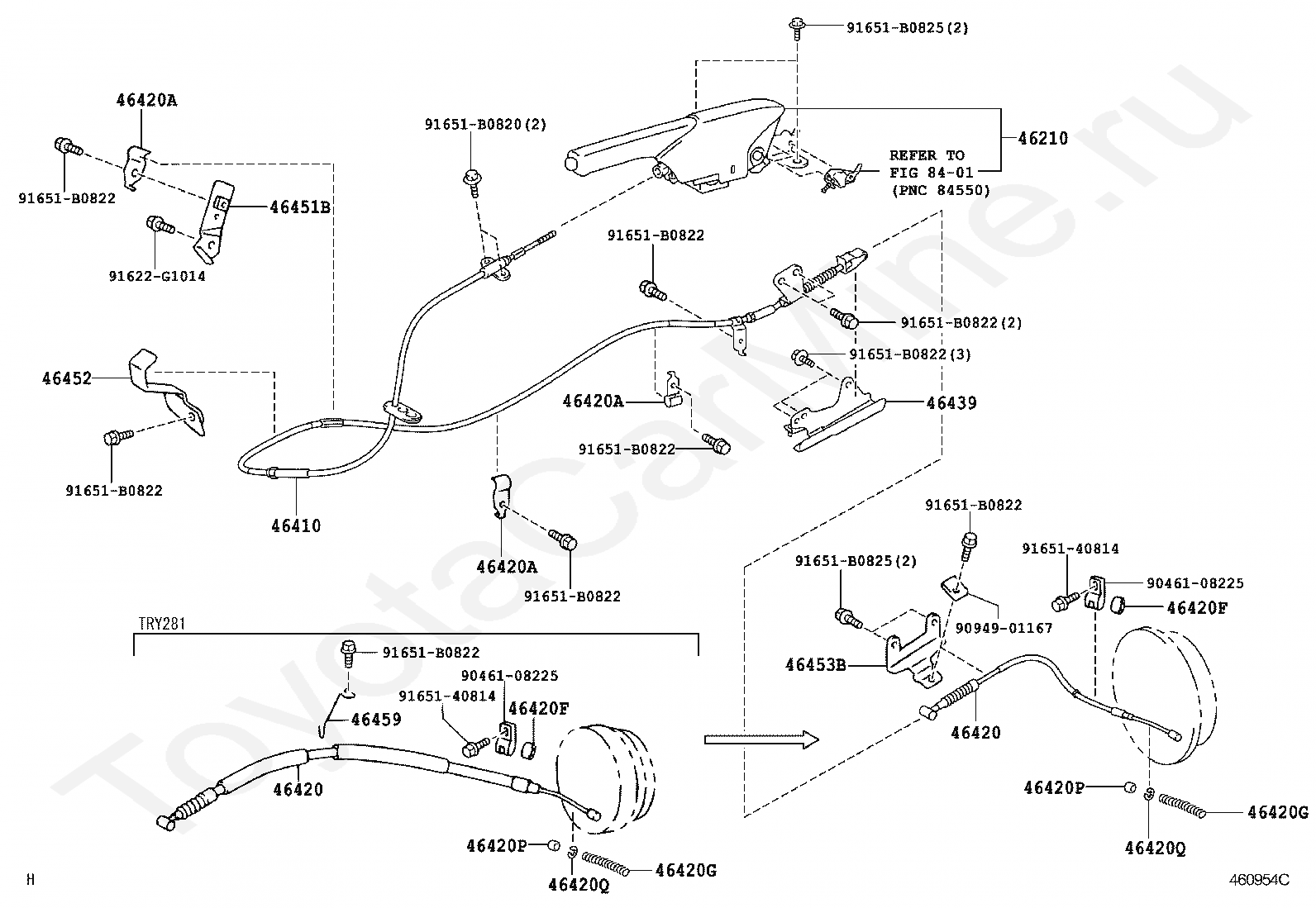

Ручной тормоз TOYOTA DYNA/TOYOACE

Код

Описание

46210

LEVER ASSY, PARKING BRAKE

46410

CABLE ASSY, PARKING BRAKE, NO.1

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420A

CLAMP, NO.1(FOR PARKING BRAKE CABLE)

46420A

CLAMP, NO.1(FOR PARKING BRAKE CABLE)

46420A

CLAMP, NO.1(FOR PARKING BRAKE CABLE)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420P

SPACER, PARKING BRAKE

46420P

SPACER, PARKING BRAKE

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46439

INSULATOR, PARKING BRAKE CABLE HEAT

46451B

BRACKET, PARKING BRAKE CABLE SUPPORT

46452

BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

46453B

BRACKET, CABLE SUPPORT, NO.3

46459

GUIDE, CABLE

8401

переход к группе запчастей

9046108225

Крепеж

9046108225

Крепеж

9094901167

Крепеж

91622G1014

Крепеж

9165140814

Крепеж

9165140814

Крепеж

91651B0820

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

91651B0825

Крепеж

91651B0825

Крепеж

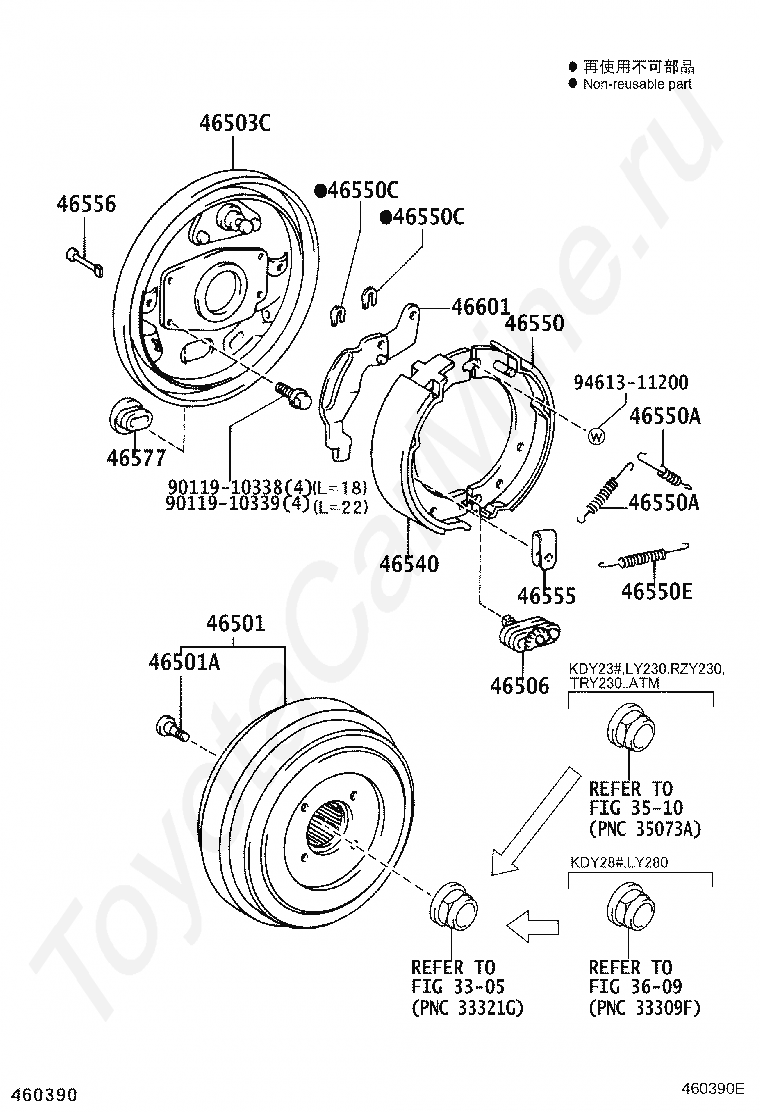

Код

Описание

3305

переход к группе запчастей

3510

переход к группе запчастей

3609

переход к группе запчастей

46501

DRUM SUB-ASSY, PARKING BRAKE

46501A

BOLT, SERRATION(FOR PARKING BRAKE DRUM)

46503C

PLATE SUB-ASSY, PARKING BRAKE

46506

ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER

46540

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46555

SPRING, BRAKE SHOE HOLD DOWN

46556

PIN, SHOE HOLD DOWN SPRING

46577

COVER, ADJUSTING CAM HOLE

46601

LEVER SUB-ASSY, PARKING BRAKE SHOE

9011910338

Крепеж

9011910339

Крепеж

9461311200

Крепеж

Ручной тормоз TOYOTA DYNA/TOYOACE
